QIDI Plus4 Y-Splitter
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other Printer Parts & Upgrades
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

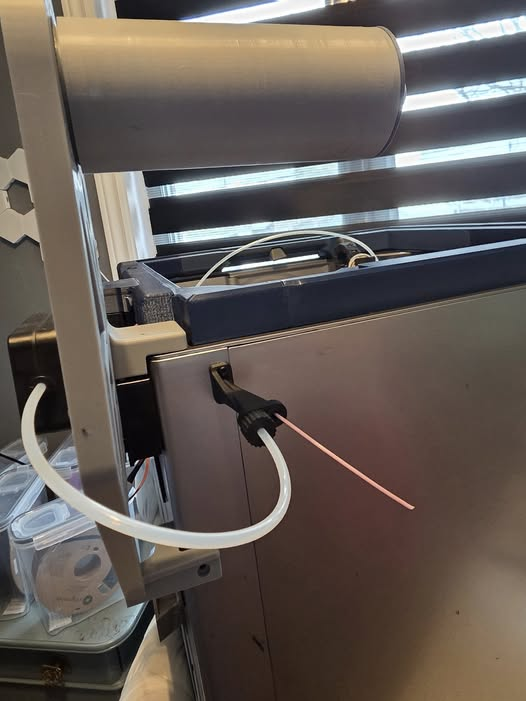

Made this for my QBox at tangle sensor.
Suggest printing:
Mat: ABS - PA612-CF or equivalent (NO PLA)
Layers: 0.08 ~ 0.12 max
full walls and 100% infill or you can try 1 wall-100%infill with ALL SOLID SURFACE ironing SEE VIDEO
Installation:
You will need to drill two holes for M3 bolts and tap the metal frame of the printer.
Also a small PTFE tube need to be inserted in the tangle sensor and the Y-SPLITTER … adjust length to fit SNUG between the two so that the filament doesn't block
TAKE YOUR TIME TO PRINT THIS … best finish is critical
