Here are grips for your ASG CZ 75 D Compact.
There are three models :

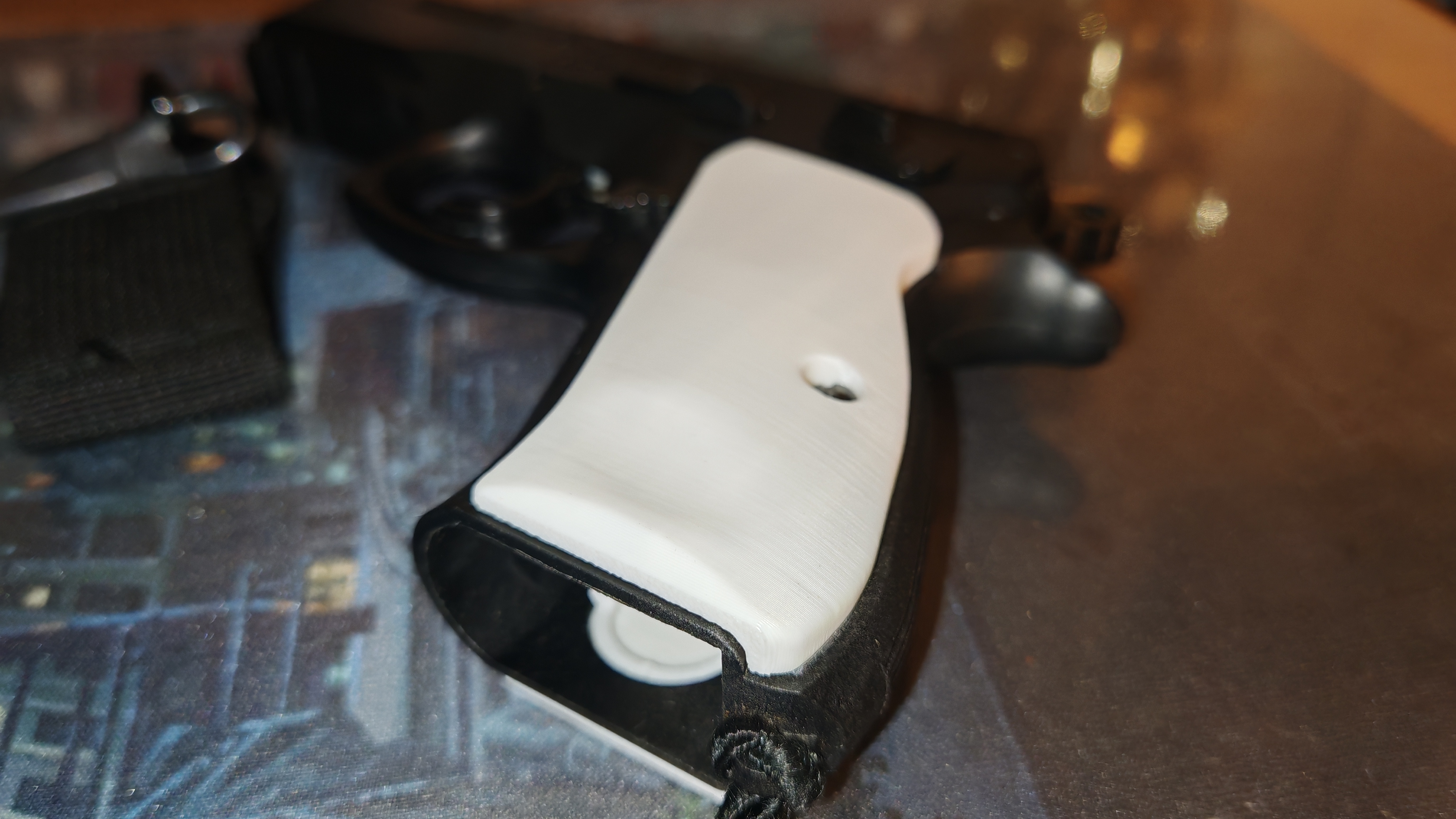

- a grip similar to the original, with the same thickness ;

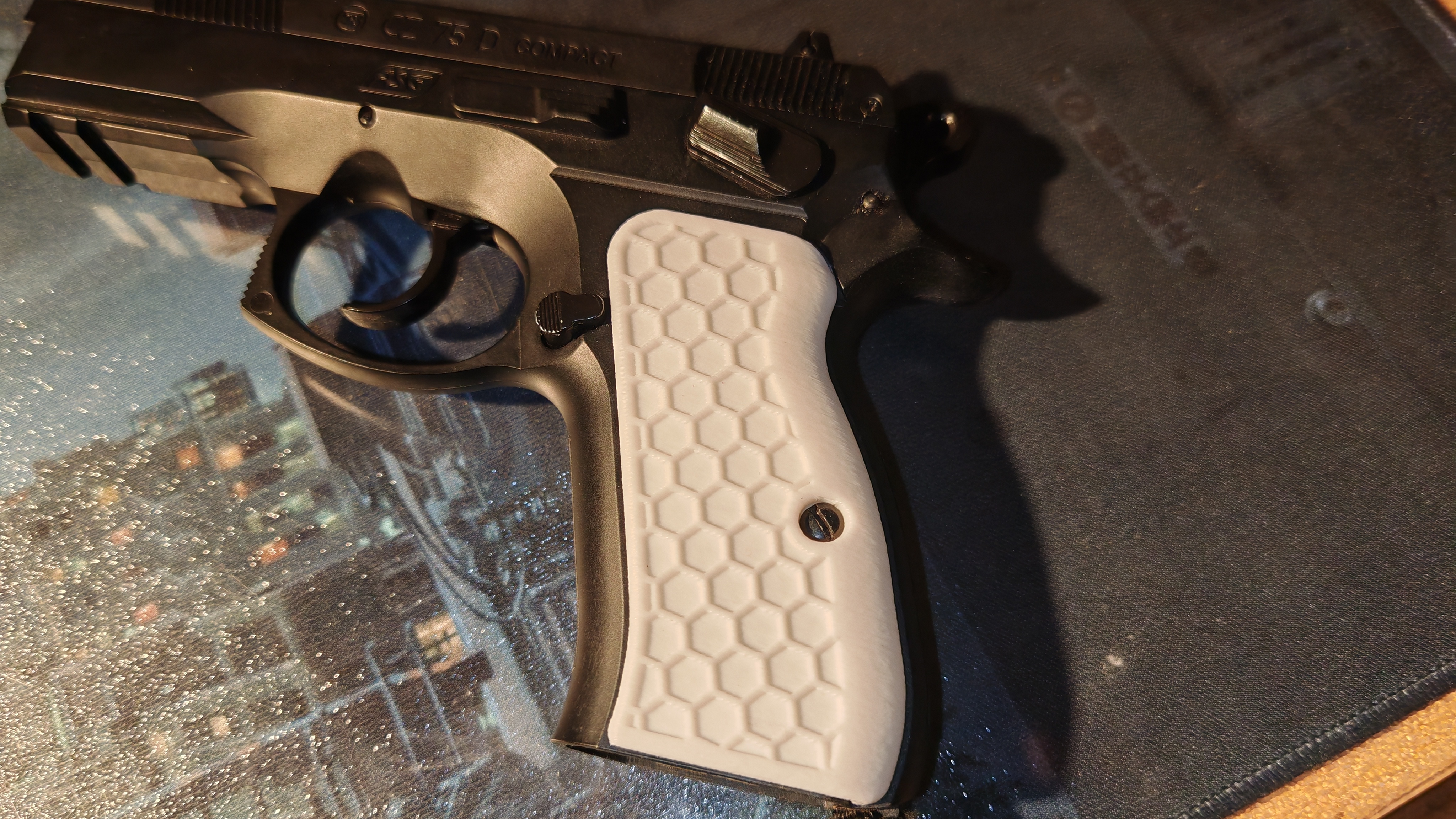

- a thin grip (-3 mm for each grip) with a honeycomb pattern ;
- a thin grip without pattern.
The thin honeycomb version provides a very good grip. I printed it with PETG CF - dark olive green.
It fits well. To install, first insert the front side and then fold down the part to be screwed on, then reuse the original screw.
3D printing settings : Print in PETG with a layer height of 0.16 or 0.20. For each model, the left and right plates are connected. This allows for upright printing without supports. A skirt is still recommended. Once printing is complete, cut the attachments with small cutting pliers to separate the two plates.
