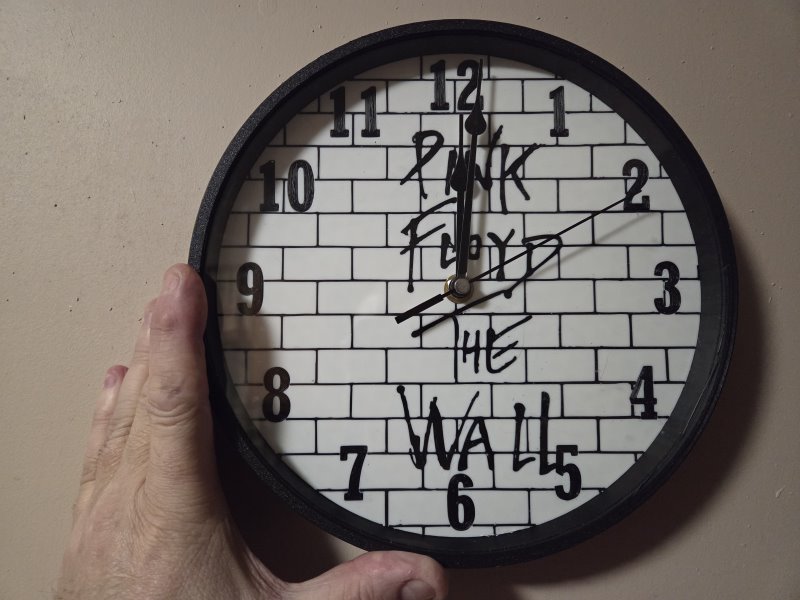

Pink Floyd "The Wall" Clock

This is a standard 9" wall clock in various themes. Feel free to drop a note suggesting a theme. You can either paint the colors on the face or if you have a multicolor printer, use the paint feature to select the colors before you print the clock face.

Print Settings:

• Infill: 15% on the face, 5 to 10% on the other components

• ANY material will work

• Print the clock face component face down, no supports

• Print the Back piece, back down with supports

• Print the Front ring, face down with supports

Parts needed:

• 4 - M3x12mm socket head screws to attach the face to the back.

• 4 - M3x8mm socket head screw ( if you attach the slatwall hangers)

• clock mechanism - TIKROUND Youngtown 12888 Movement for Clock Repair Replacement 16mm(41/64 inch) Shaft Length 8mm (5/16 inch) Thread Length.

• Round clear cover for front - 9 Inch Round Clear Acrylic Sheets Plexiglass Sheet 1/16 Inch Thick Disc Circle Plastic Sheet 0.060", Transparent Board Panel for Glass

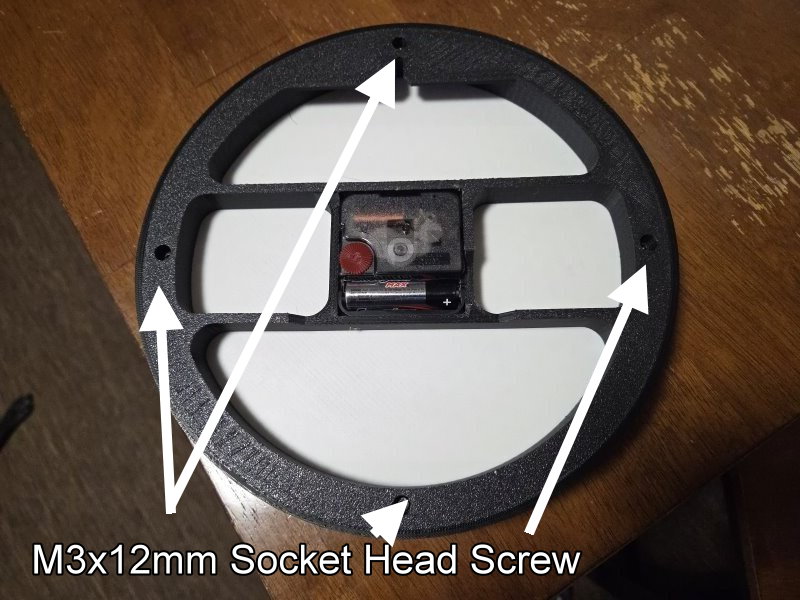

After printing the components, attach the face to the base with M3x12mm socket head screws with the #12 aligned with the hanger area on the base.

Then mount the clock mechanism the the face, attach clock hands. Insert the hour hand to be in alignment with the 12. Insert the minute hand to align with the #12. The second hand can be put on in any pointing direction. This is done so the hands show correctly as the y move around the face. Peel protective cover from clear round panel and press into the face cover. Be careful not to touch the inside of this panel as it will have fingerprints on the inside of the clock. Set clock face cover on the table front down and press the rear assembly into place. It is a snap fit attachment. Clock complete.

Drop me a message if you have a suggested theme you would like to see.
