UDR Limit Strap - Multi Length
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Various lengths of limit straps for the TRAXXAS UDR
- Rating
- 0 / 5
- Likes
- 4
- Downloads
- 21
- Makes
- 0
- Views
- 129
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- RC & Robotics
- License
- Creative Commons — Attribution — Noncommercial
Limit Straps for the TRAXXAS UDR.
Included two versions and various lengths. The FDM version provides a nice flat base and can be printed without supports, the OE version more closely follows the original part from TRAXXAS and will require support if printing on an FDM printer.
Printing Instructions
Material: TPU (I used 95A, but any durometer will work, Tune outer walls to change stiffness)
Layer height: 0.15-0.30mm
Walls: 1.2 - 2.4mm (2 to 4 Loops)
Infill: 30%
Support: Disabled

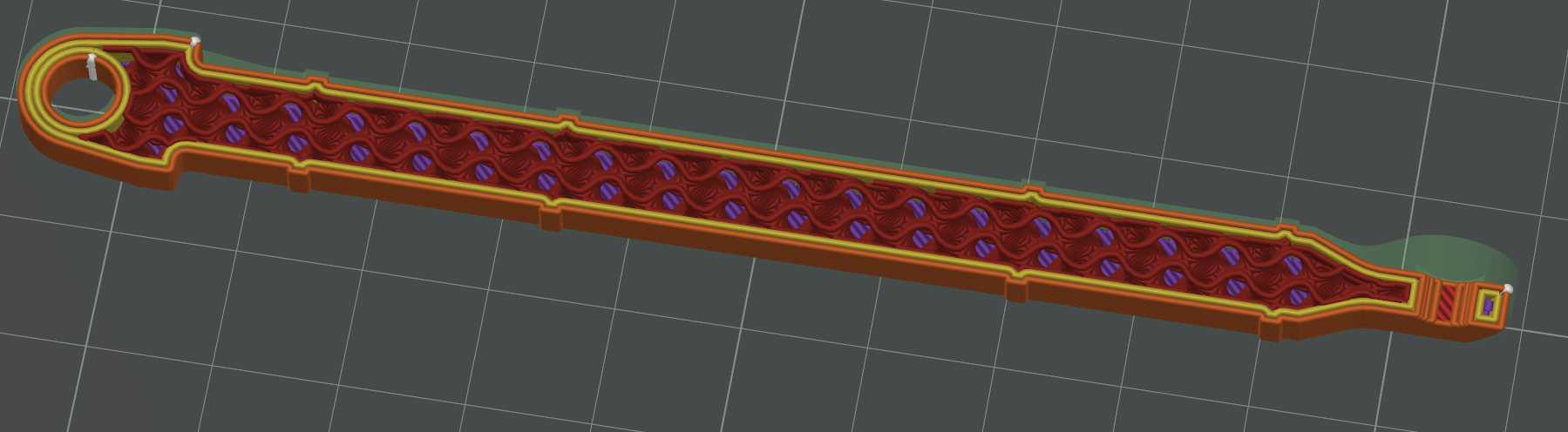

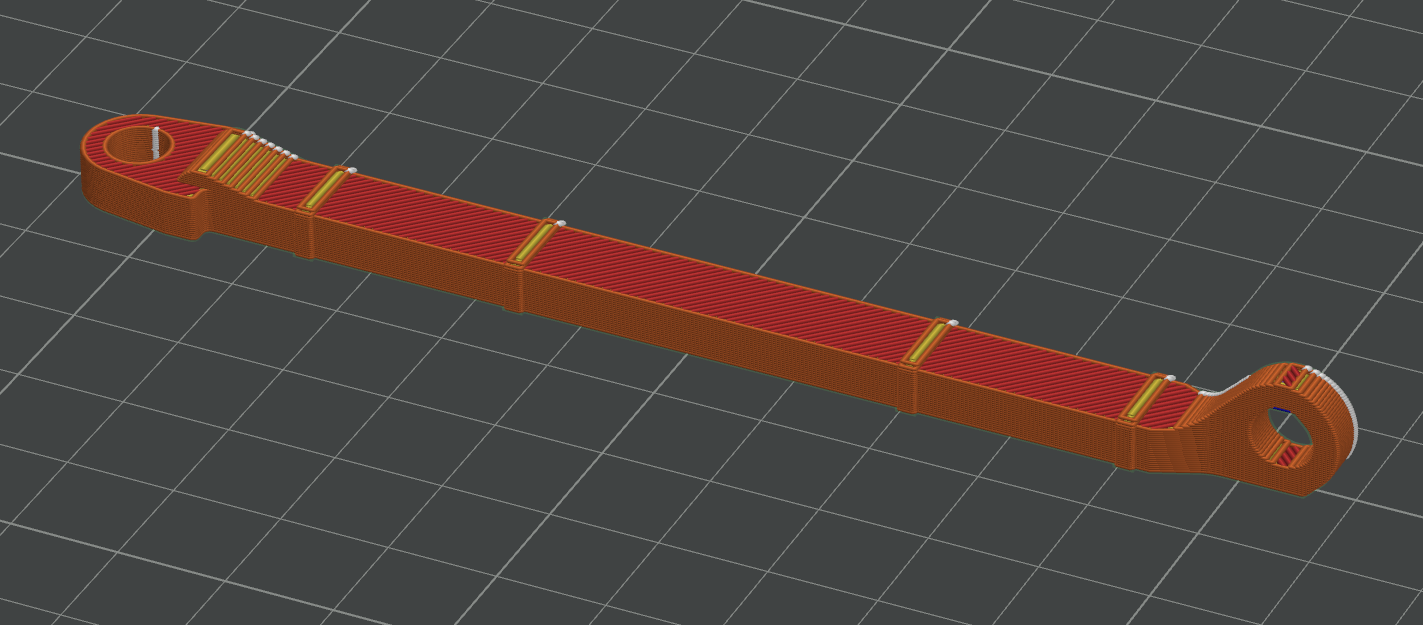

Orientation: As show below
Flat side onto the bed
-Use the outer wall count and infill to tune the stiffness-
in my experience with 95A using 2 walls and 30% infill provided a stiffness similar to the traxxas ones. unless you are using a very soft TPU, DO NOT print this part solid.
