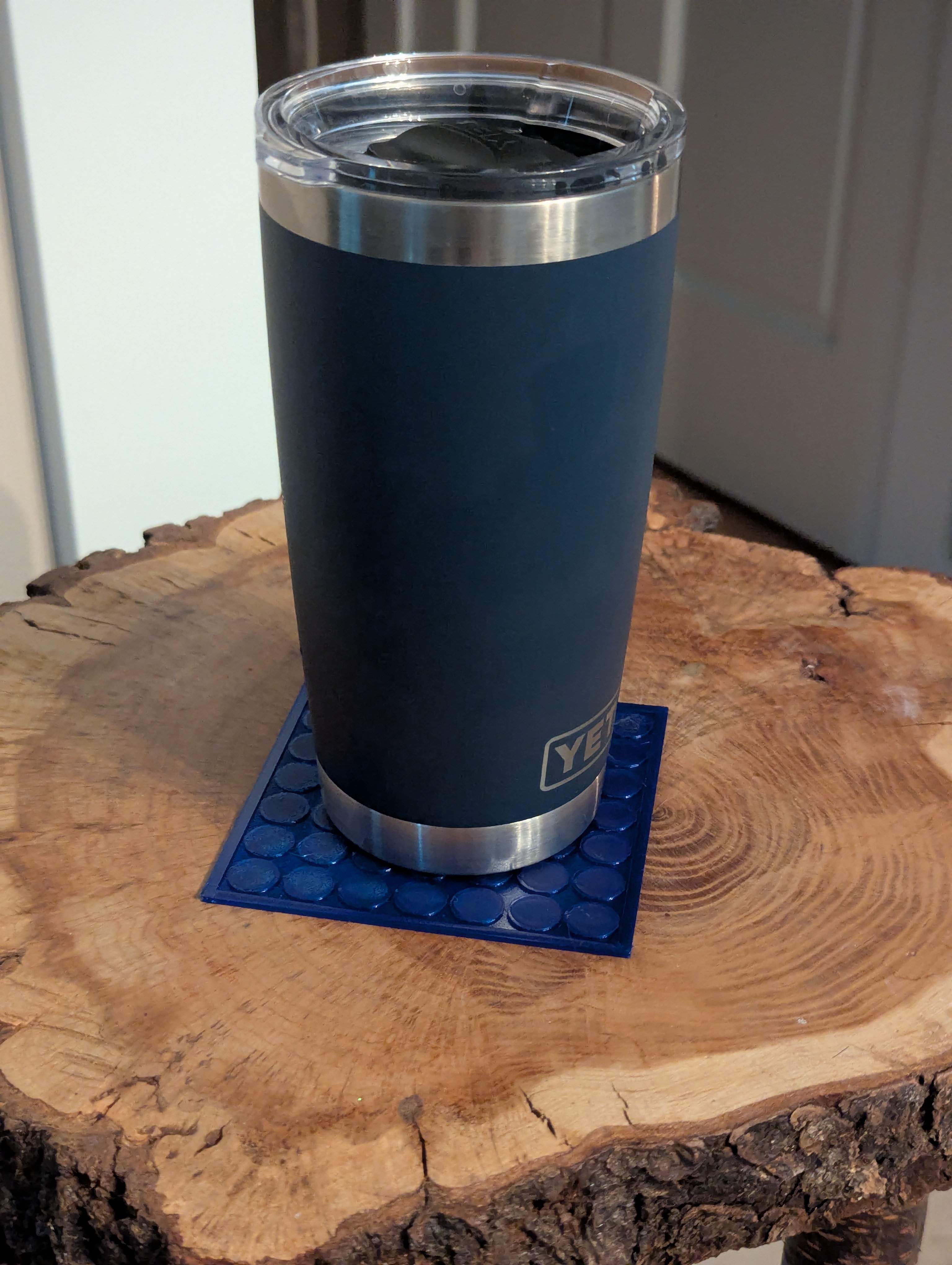

Wanted to create an ironing test that could be utilized beyond just the test itself to avoid being left with plastic scraps when done. This test print can double as a large drink coaster or keep it to use as a reference for your selected filament's ironing settings in the future.
The Ironing Coaster is 4"x4" and it includes Ironing Speed(mm/s) and Flow (%) settings in increments of 15 starting at 10 for a total of 49 different settings tested in the square. It takes just over 2 hours to print.
There is a reference text "O" on the underside to identify the corner that starts at 10% and 10mm/s. That way if you set it and forget it you can quickly identify your settings.

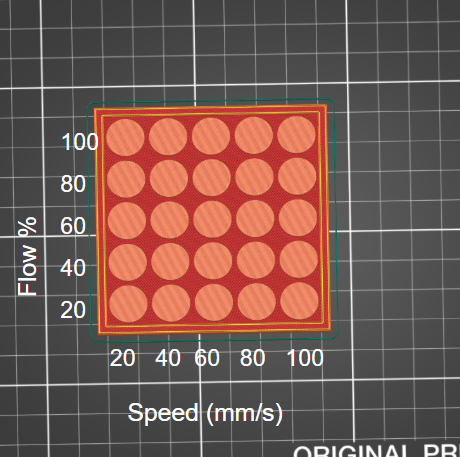

Edit: Added a smaller 3" version that tests 25 Settings in increments of 20. Prints in just under 1 hour 20 mins.
I hope this is useful for some folks out there, if you like it please give a like. Thanks and Happy Printing!
