Subcompact OWL enclosure

25/1/26:

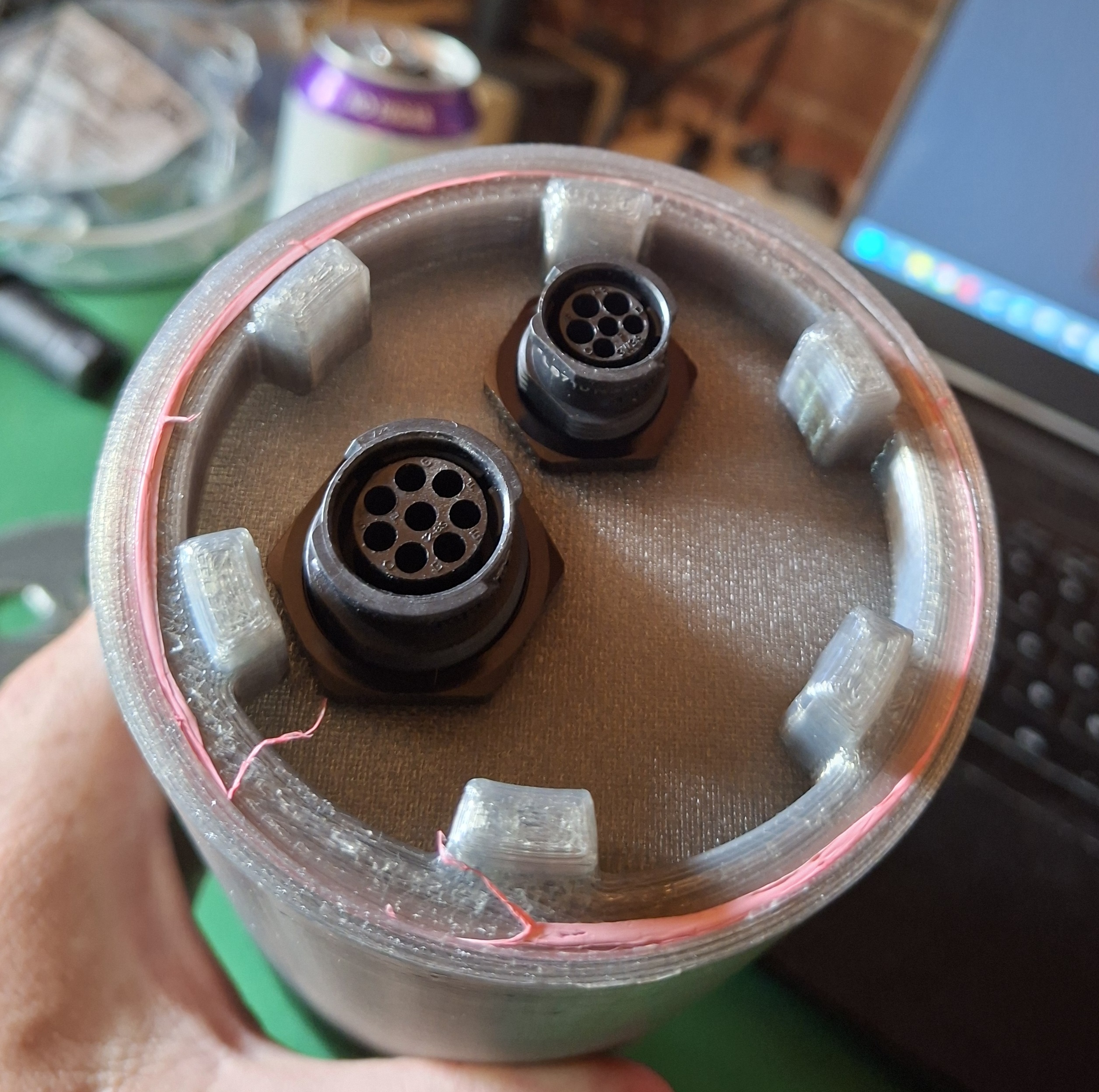

Added a new back plate that has holes to suit the 8 pin and 6 pin amphenol connectors.

5/1/26:

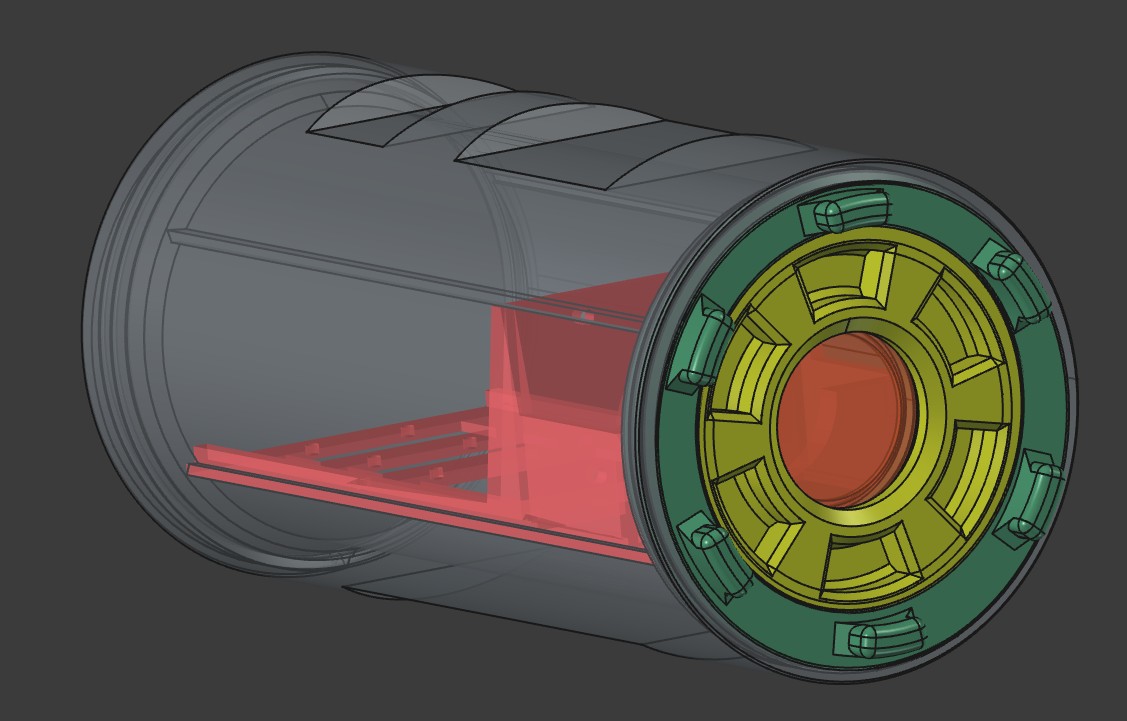

This holds the compact owl, just like the pre-existing enclosure - Download and use Tray.stl from it.

I've called this the Subcompcat OWL enclosure since its submarine like - makes a good bath toy.

I wanted to reduce part count (while i was waiting for parts), and make assembly faster. I haven't installed this myself (yet) so i may change the way it mounts in the future.

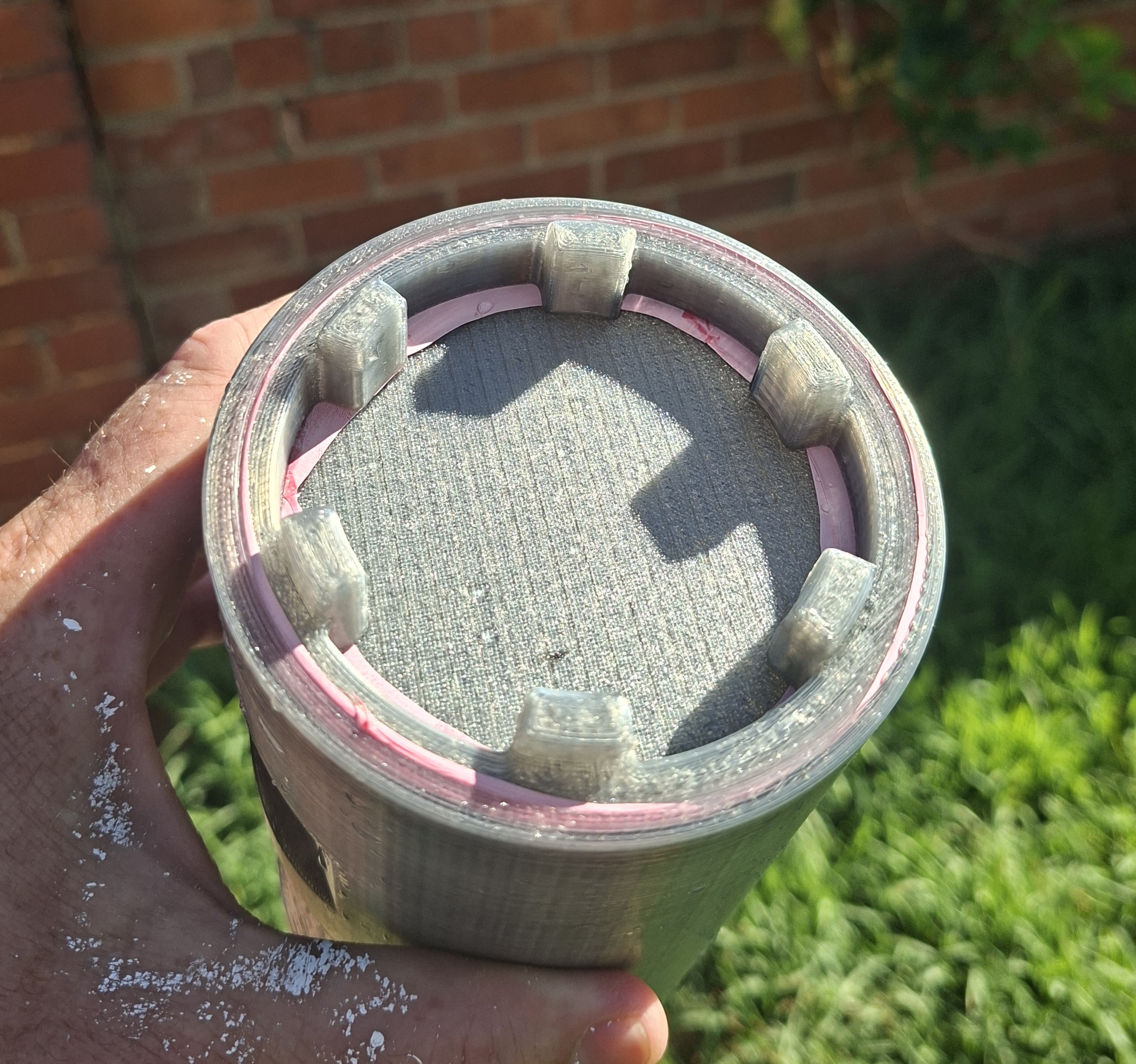

Print the blank back plate and test for water tightness in a bucket of water before putting any electronics inside.

Choose a main body and backplate to suit.

Required

• Metric o-ring R-25 34.5x3.55

• plumbers tape - wrap each thread (and the backplate) about 5 times

• 37mm K&F uv filter (same as other enclosure)

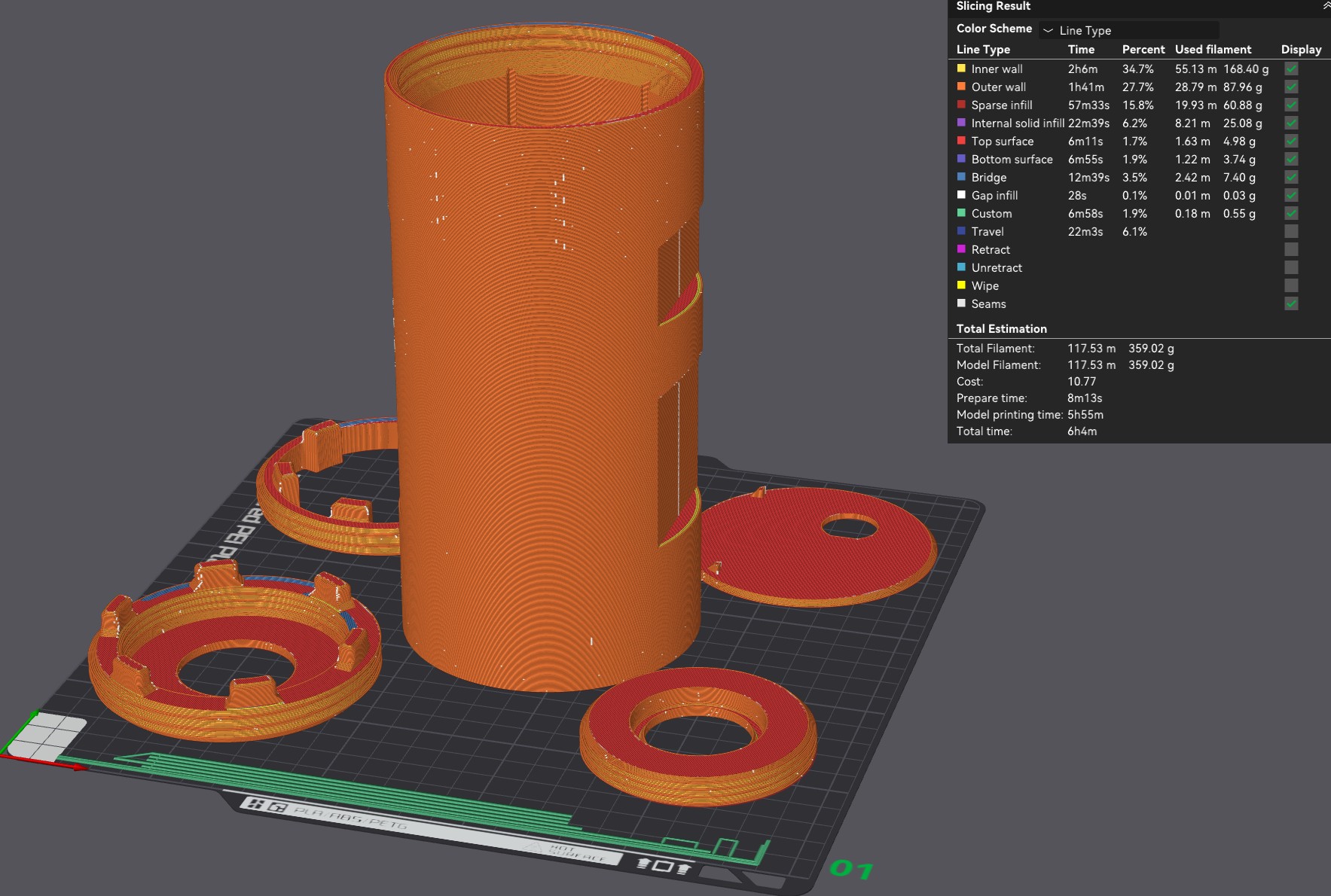

print settings:

• Modern 3D printer with high accuracy

• Arachne wall generator

• 0.3mm layer height (works better for the threads)

• Make sure seam position is nearest - aligned isn't good for the threads

• might want a brim around the main body if you print out of polycarbonate

• no supports required

• 3 walls and top/bottom layers

All threads are made from metric threaded rod in FreeCAD

• main body female is 95mm, 4mm pitch

• screw on lid male is 94mm, 4mm pitch

• inside of screw on lid female is 75mm, 2.5mm pitch

• oring holder is male 74mm, 2.5mm pitch
