Nozzlebox (Standalone or for Organizer Design linked)
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Accessories
- License
- Creative Commons — Attribution — Noncommercial — NoDerivatives
I created a Nozzlebox for my Organizer (https://www.prusaprinters.org/prints/150787-not-just-a-wall-hook)
It consists of 3 (Standalone Version) or 5 (Organizer Version) Parts.
For Standalone Version you need to print:
- NozzleboxInsert.3mf
- NozzleboxCover.3mf
- NozzleboxBottomForStandalone.3mf
For Organizer Version you need to print:
- NozzleboxInsert.3mf
- NozzleboxCover.3mf
- NozzleboxBottomForOrganizer.3mf
- 2x PartMount6Nupsies.3mf
NOTE: For both Versions you will need:
- 1x M3x8 Screw
- 1x Screw Insert M3 (I recommend this one: https://amzn.to/3vBZrmr)
Instructiones:
- Push the Screw Insert into the NozzleboxBottom, using a soldering iron
- Insert the NozzleboxInsert into the NozzleboxBottom
- Screw both parts together using the M3x8 Screw

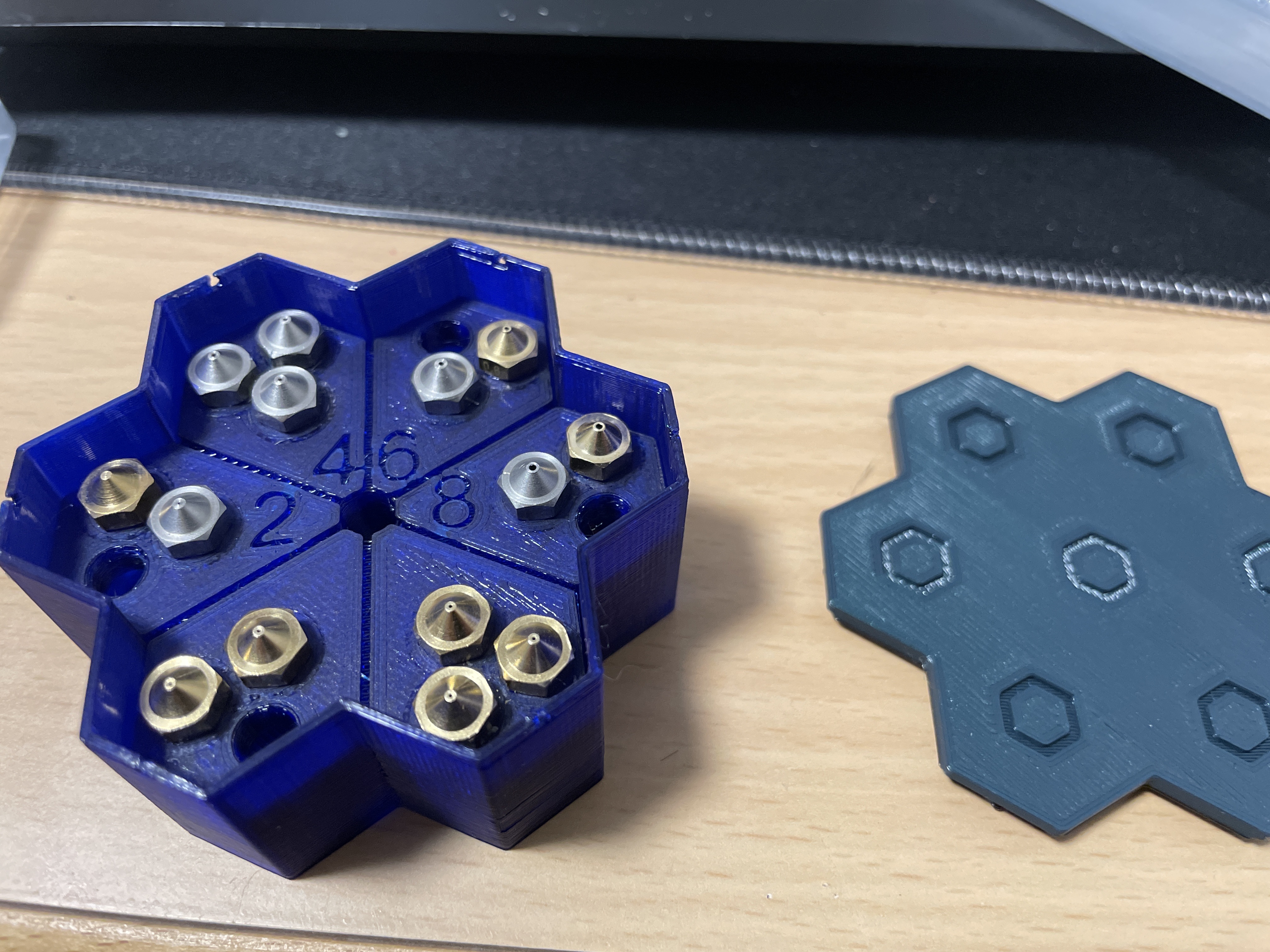

- Put spare nozzles in
- Close it with the NozzleboxCover
- (Optional) Mount 2x PartMount6Nupsies on the Organizer board

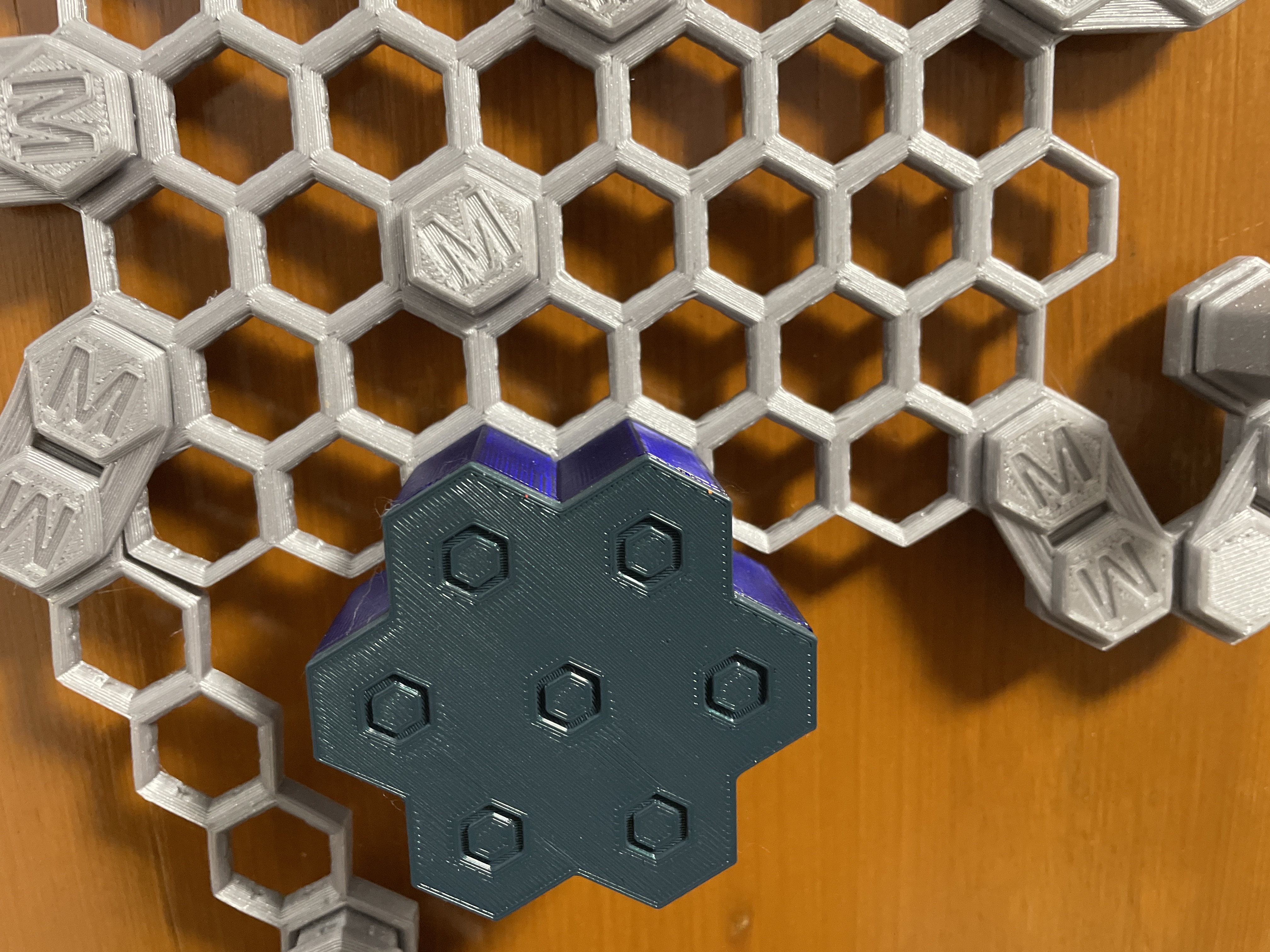

- (Optional) Mount the Nozzlebox to the Organizer on the PartMount6Nupsies
- Done
