What does forever mean? you can service this and the components should last a lifetime. its overbuilt and under utilized 12amp BMS only using 3amps. 20AH LIFEPO4 Battery. it will run for over 50 hours. you can stick in in a go bag for 5 years and it should still hold a usable charge when you need it. 6 amp switch switching milliamps. 100watt pd trigger pushing no more than 25w etc. etc..
Even if the cell loses half its capacity over the next 10-15 years thats still enough for 20-30 hours of illumination.

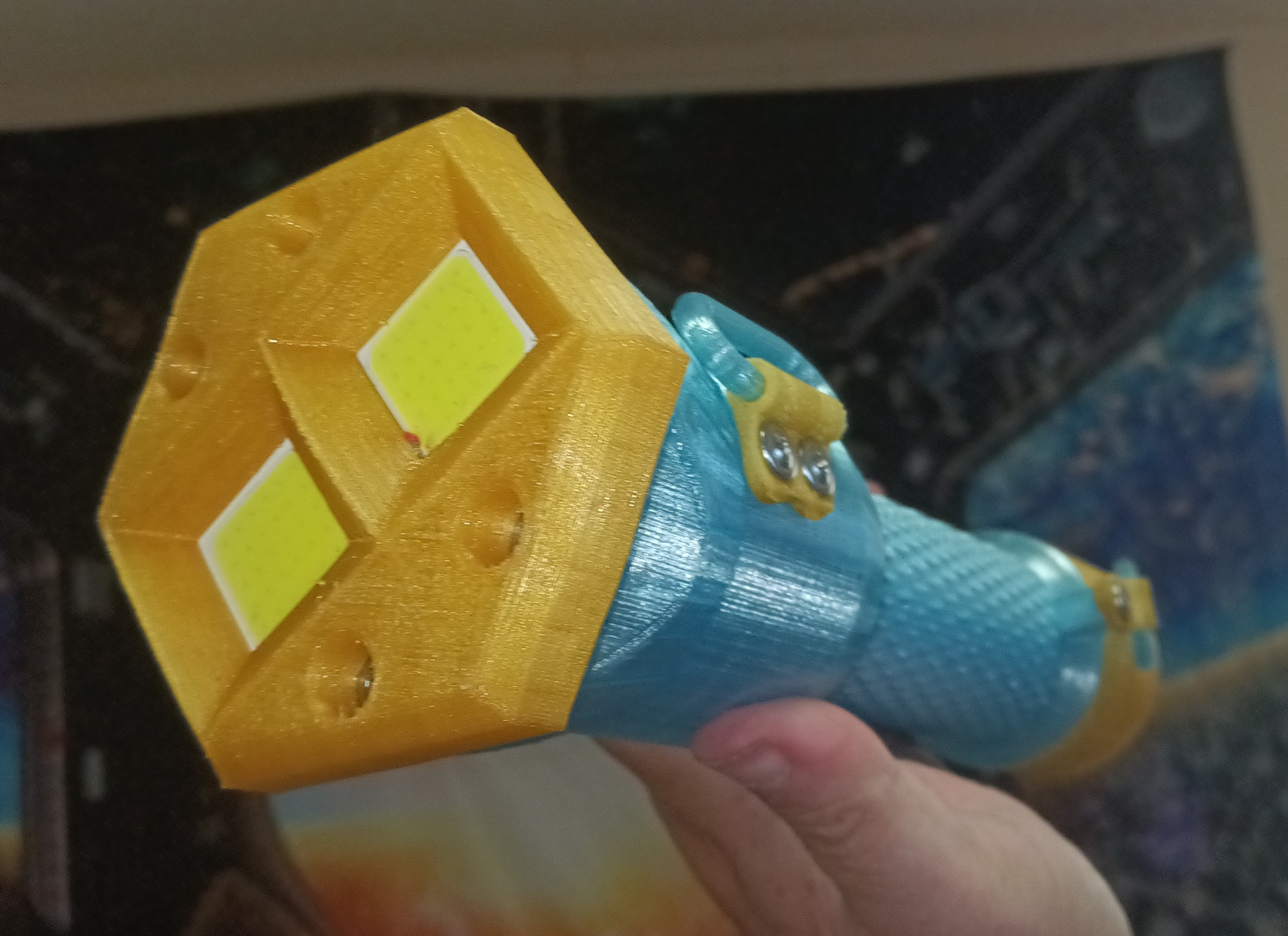

Print the body in anything you want. print the TPU parts in TPU (any kind you want) or for a truly nearly indestructible flashlight print the whole thing in TPU. I DO NOT suggest using anything but flexibles for the bumper and cap. the battery is some 2 pounds. if you drop this IT WILL SHATTER if the ends do not give a little.

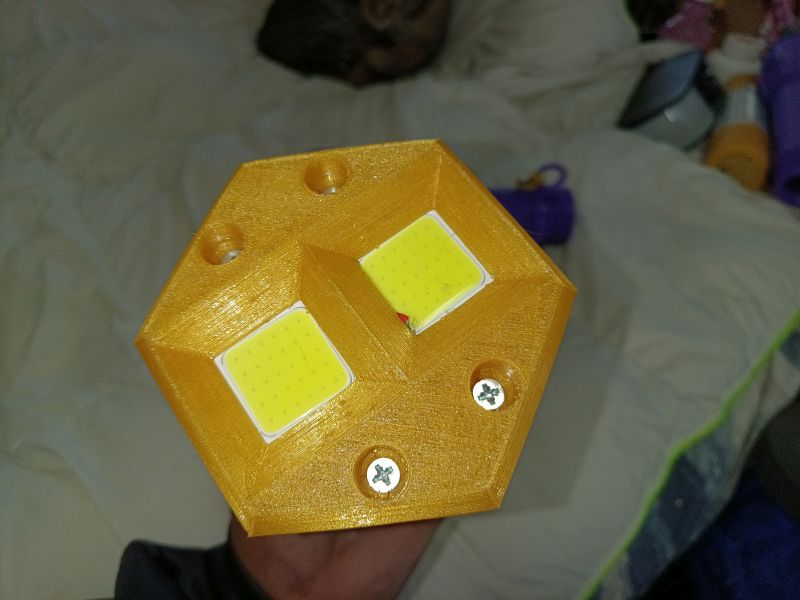

Below are some AFF Links for amazon. the prices are not actually that bad if your building 8 of them quite expensive if you want to build just one and the 3v LED cob I can't find on amazon.
EVERYTHING is available very cheaply on aliexpress in fact I think everything is in the dollar express section except the C40 battery.
use the BOM PDF to verify what you find. I can't LINK the dollar express items.
match the image use image search and the keywords. for the BMS Especially MAKE SURE you get the LIFE 3.2v versions NOT the Li-Ion 3.7v versions. Make sure to use 20awg silicone wire between the battery and BMS for everything else anything you want (very low power) but the PD Trigger WILL PERMIT 5v 5-6 AMPS if your PSU permits so you need to use 20awg silicone quality wire or it will heat up
ALSO USE A METER AND CLEARLY MARK THE BATTERY positive and negative are "NOT MARKED" on these cells.
More instructions (manual and video coming soon) also an upgrade to use this as a 20w USB C Power bank coming soon as well.
CRUDE temp video instructions
Here are amazon links for everything except the COB's (I suggest just getting all of it from aliexpress)
Amazon (EXPENSIVE/Bulk)
Switch https://amzn.to/4pMlb7t
BMS https://amzn.to/4pMEded
Battery https://amzn.to/4jUDmH5 (x8 expensive)
LED Driver https://amzn.to/4k1FuN5
Silicone Wire https://amzn.to/4k1GHnB
JST Pairs https://amzn.to/3LXs8os
Truss Screws https://amzn.to/3YMLJe1
M3 Screws https://amzn.to/49yiCkJ
