Flip-Out Clothes Hook
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Attribution
📌 Detailed Description

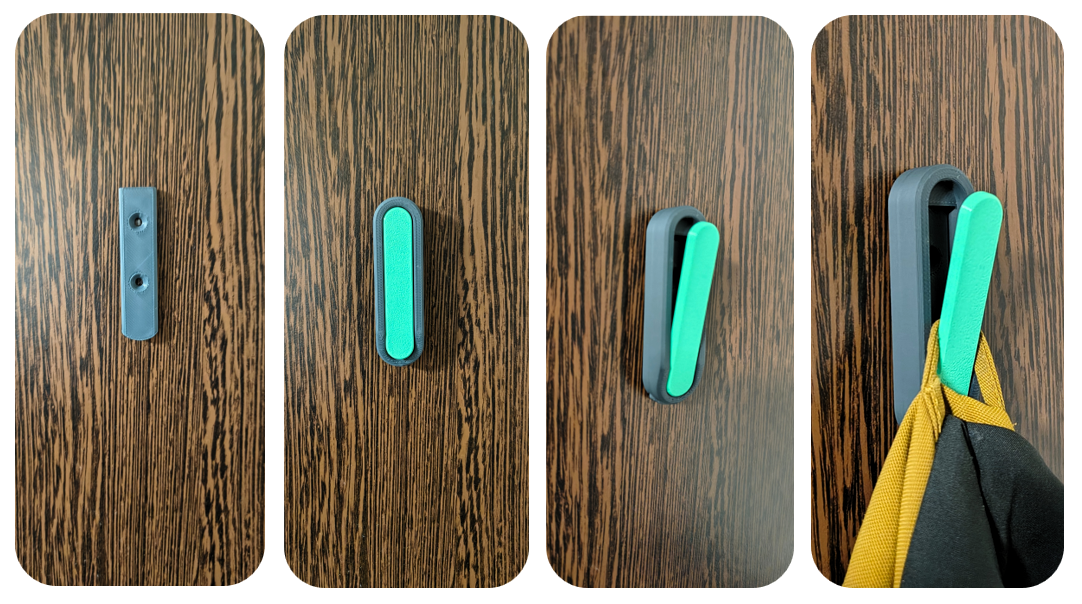

This practical flip-out hook consists of three parts:
Wall-mounted module
Hook body
Hook arm
🌀 Mechanics & Function
The hook flips out at a 15° angle, making it easy to hang clothing.
All parts are equipped with pins that keep them securely in place.
The wall module includes 3 pins that prevent the body from sliding out when removing clothes.
The body has pins guided in grooves, and the hook arm must be snapped in firmly so that its pegs properly seat into these grooves.
One pin is located at the top, acting as a safety feature to prevent the hook from flipping out unintentionally.
📏 Dimensions
Width: 20 mm
Height: 12 mm

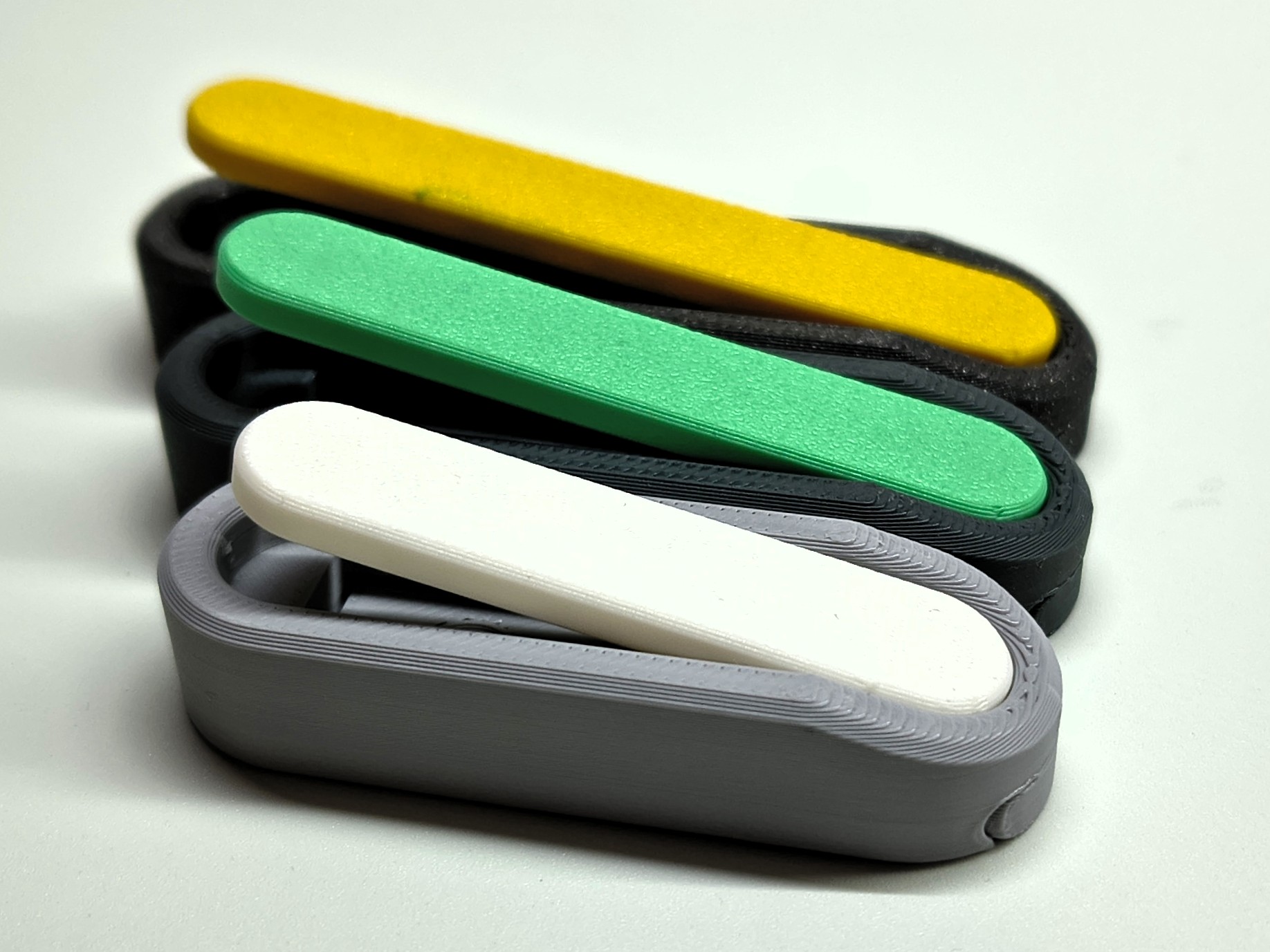

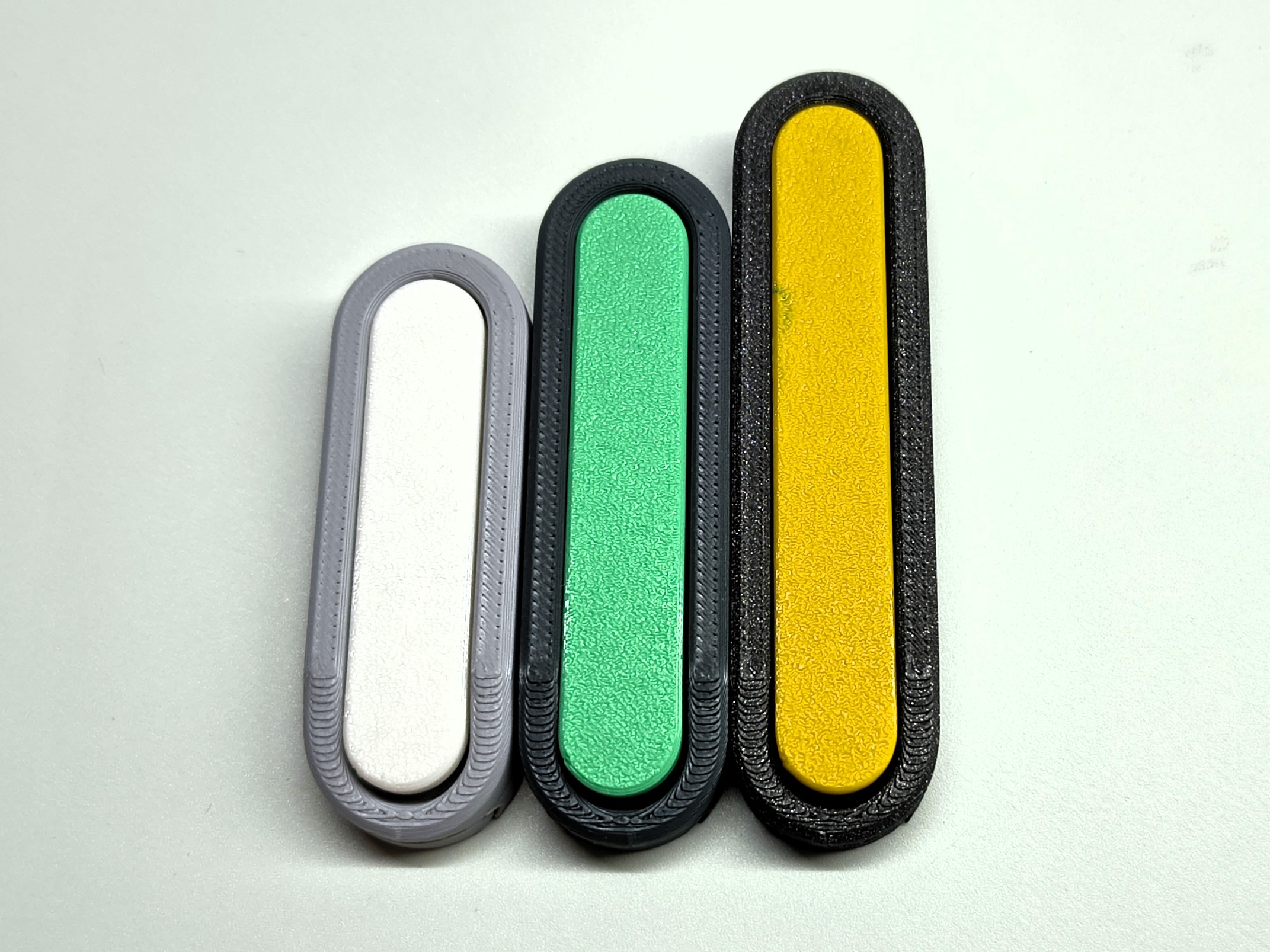

Length options: 60 mm, 70 mm, 80 mm
🎨 Customization
In your slicer, you can easily add labels, text, icons, or symbols to the hook to match your interior or intended use.
Print with supports.
