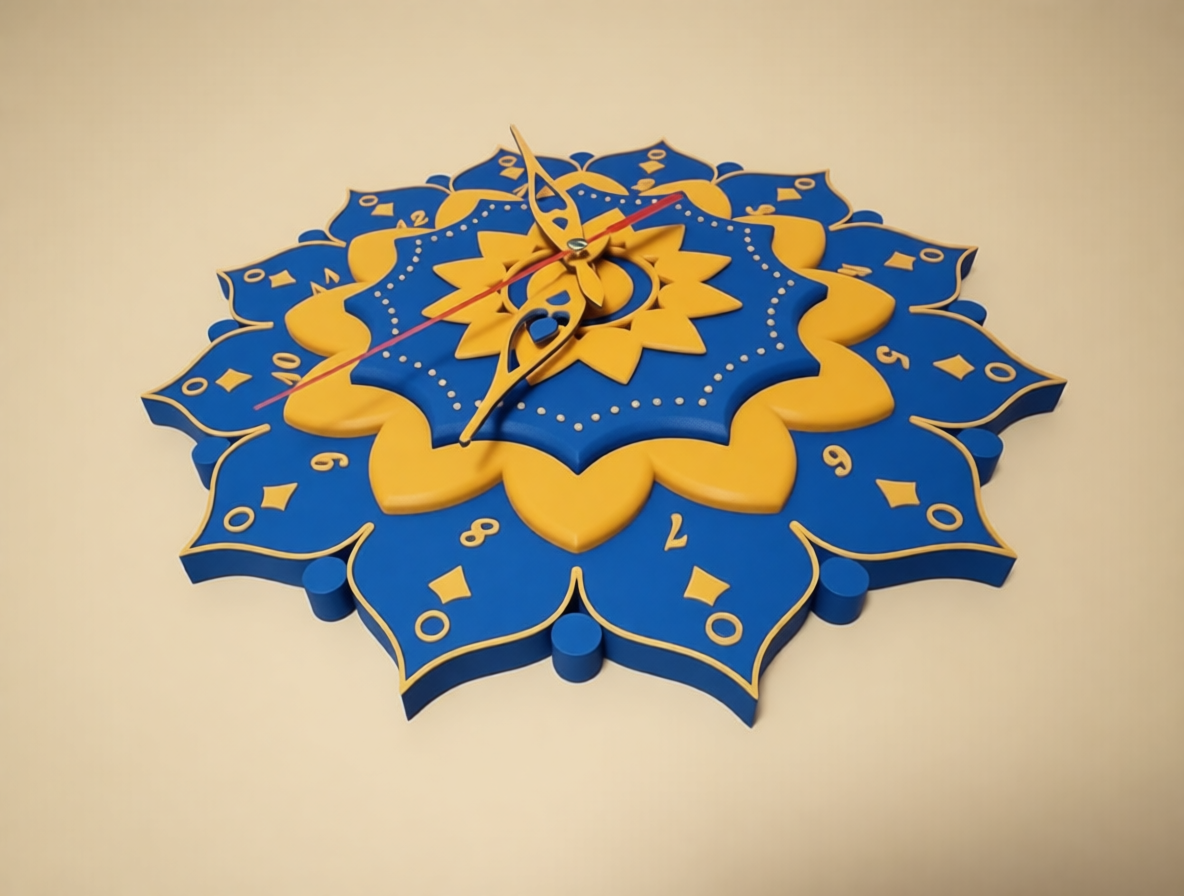

Mandala Wall Clock – Dual-Color, No AMS Required
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Home Decor
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Diameter: 25 cm
Colors: Two-color design (printed with filament swaps)
No AMS needed — compatible with single-extruder printers
Printing Instructions (0.2 mm layer height):
Clock face: Pause for filament change at layers 67, 106, and 139
Hour and minute hands: Included; print with a pause at layer 6 for two-color effect
Supports required only in:
The central cavity for the clock mechanism
The wall-mounting hole
Design Features:
Large triangular hanging slot — easy to align with nails or hooks

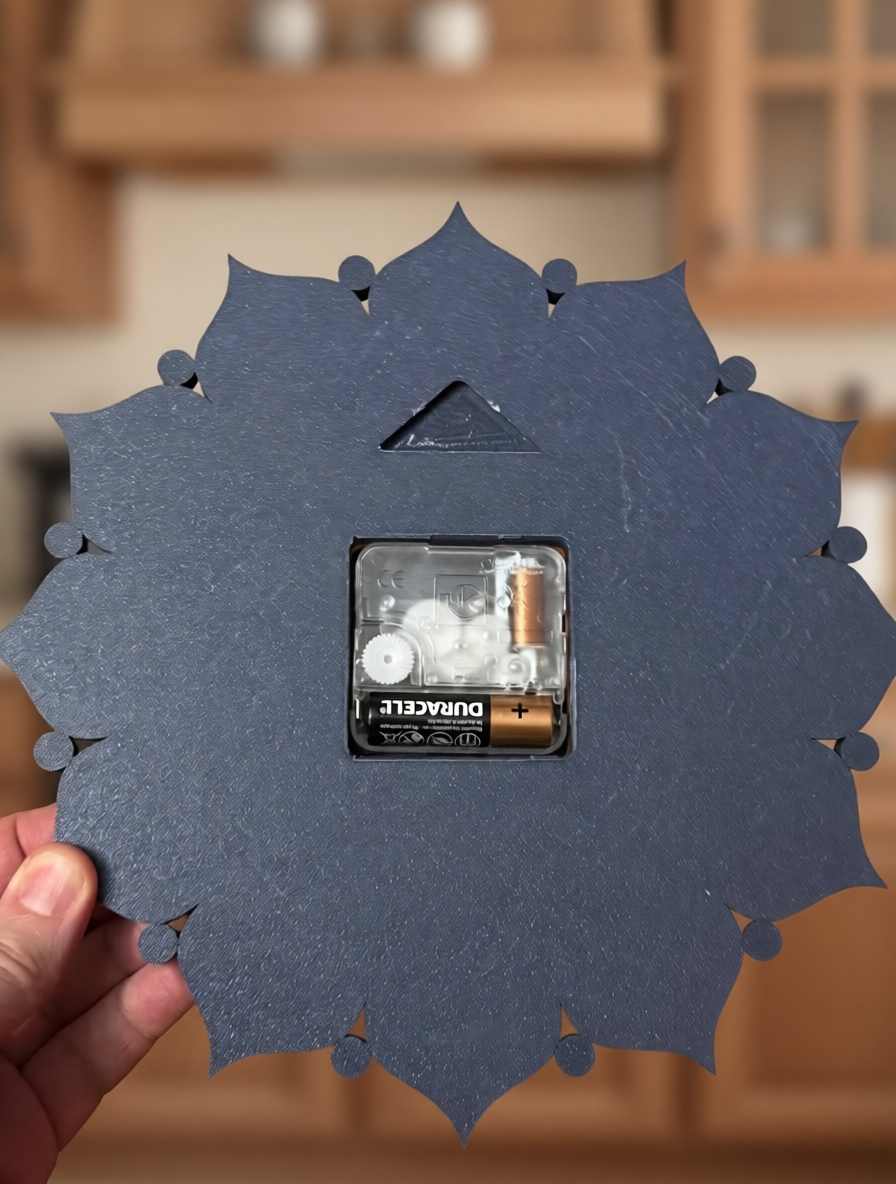

Fits standard 56×56 mm quartz clock movement with a 12 mm total shaft length (including 5 mm threaded portion)
