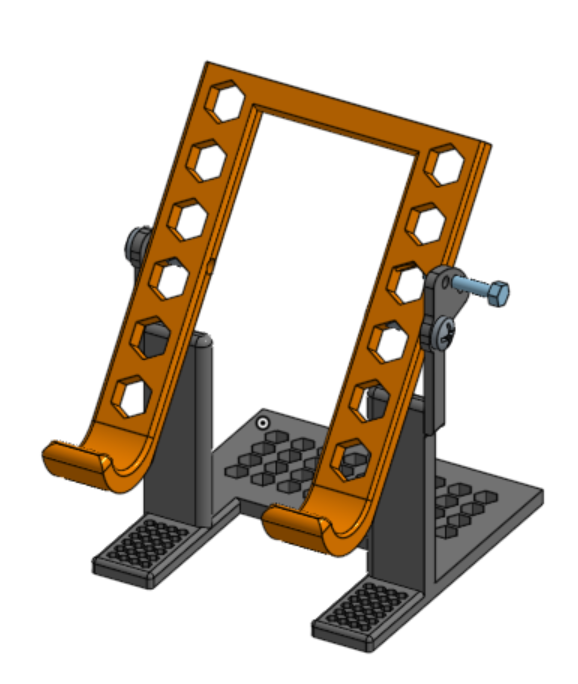

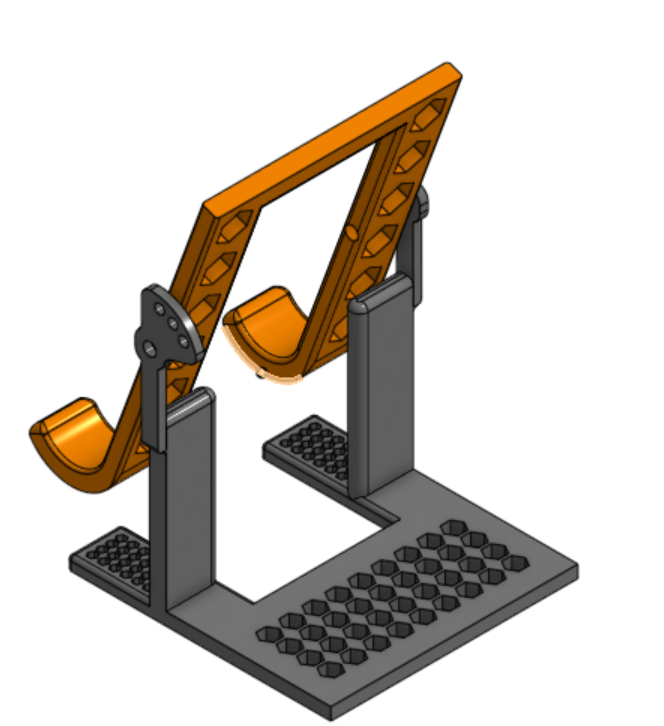

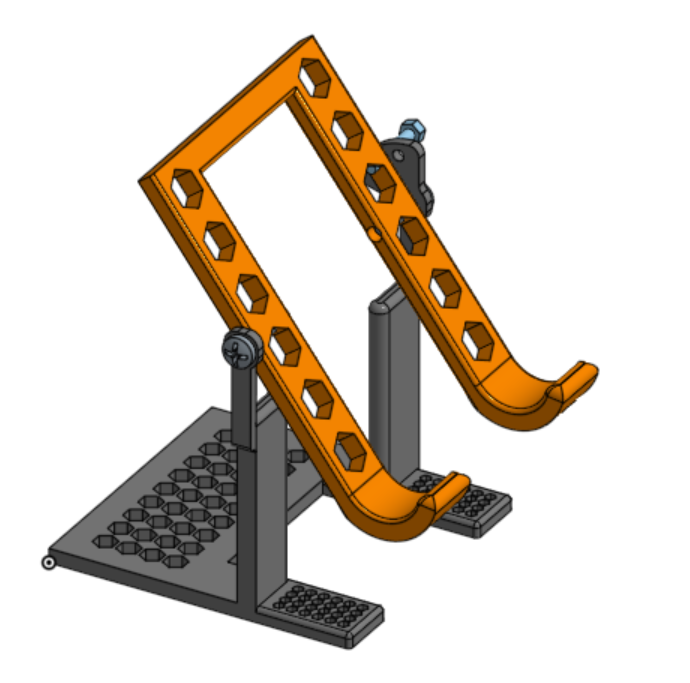

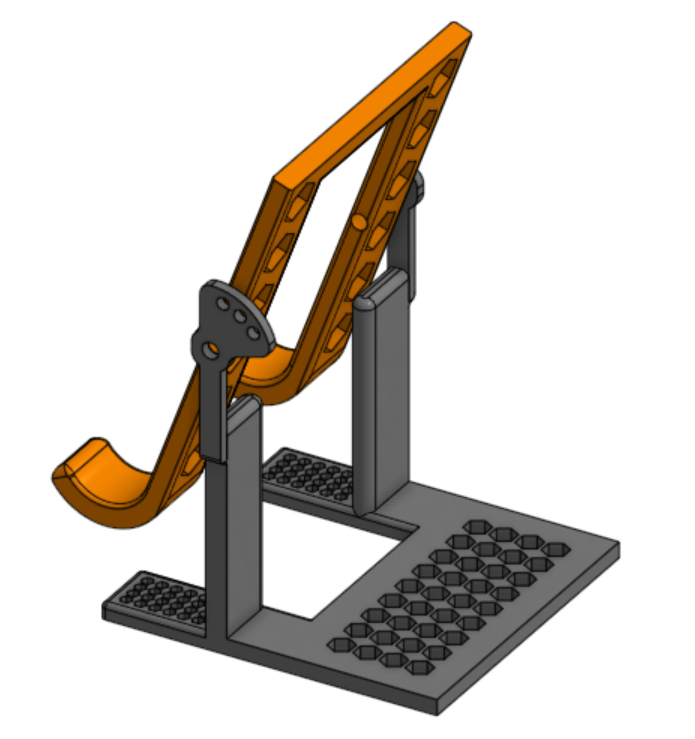

An adjustable elevated phone stand. Three positions, large phone/tablet friendly. Easy to print, few supports. Bambu A1 mini/ Prusa mini friendly. Accommodates charging cables. Holds your device in vertical and horizontal positions. With support material and 15% infill, it takes only 30g of filament. Nuts are not required, the M4 screws can screw dirctley into the plastic. What more could you want, not rhetorical, please let me know!
Infill: 15-20% for upper part 25-35% for lower base )
Layer Height: 0.2mm
Supports: yes, organic are best and very easy to remove
Material: PLA, PETG, or ABS (PETG and ABS are recommended for more durability)
Required
2xM4x10 screw
Recommended
M3x10 (Longer is better) screw
2xM4 Nut

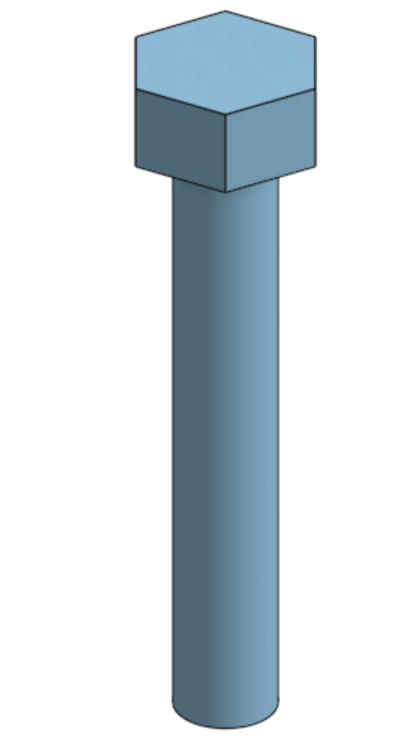

A alternative to the M3 screw is the included bolt. For more durability, the M3 screw is recommended.
Print all parts using settings above
Insert M4 bolt through the arm and base at the main pivot point
Add washer between moving parts for smooth rotation
Secure with M4 nut - tighten enough to allow rotation but provide some friction

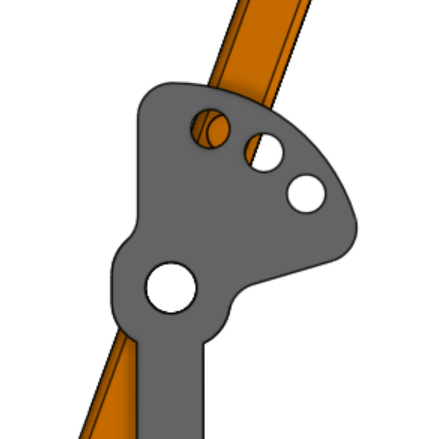

Insert locking peg (printed or M3 screw) into desired angle position
Feel free to remix this design! If you make improvements, I'd love to see them. Here is the link to the cad Document.
Found this useful? Please leave a like and share your make! Your feedback helps me create better designs.
Having issues? Drop a comment and I'll help troubleshoot.
