Einhell vacuum hose rotating coupler 35mm (36mm Einhell system9
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Public Domain

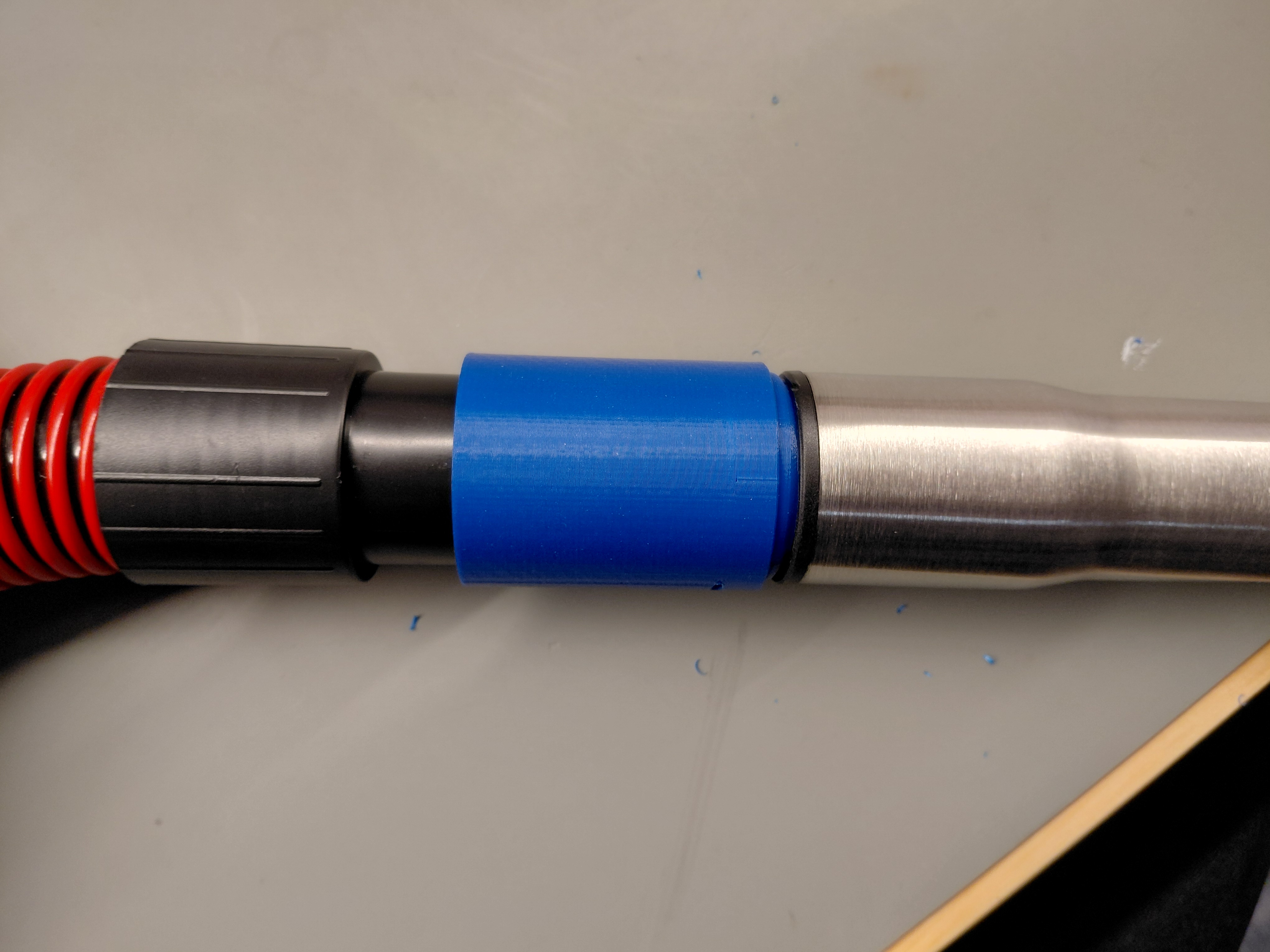

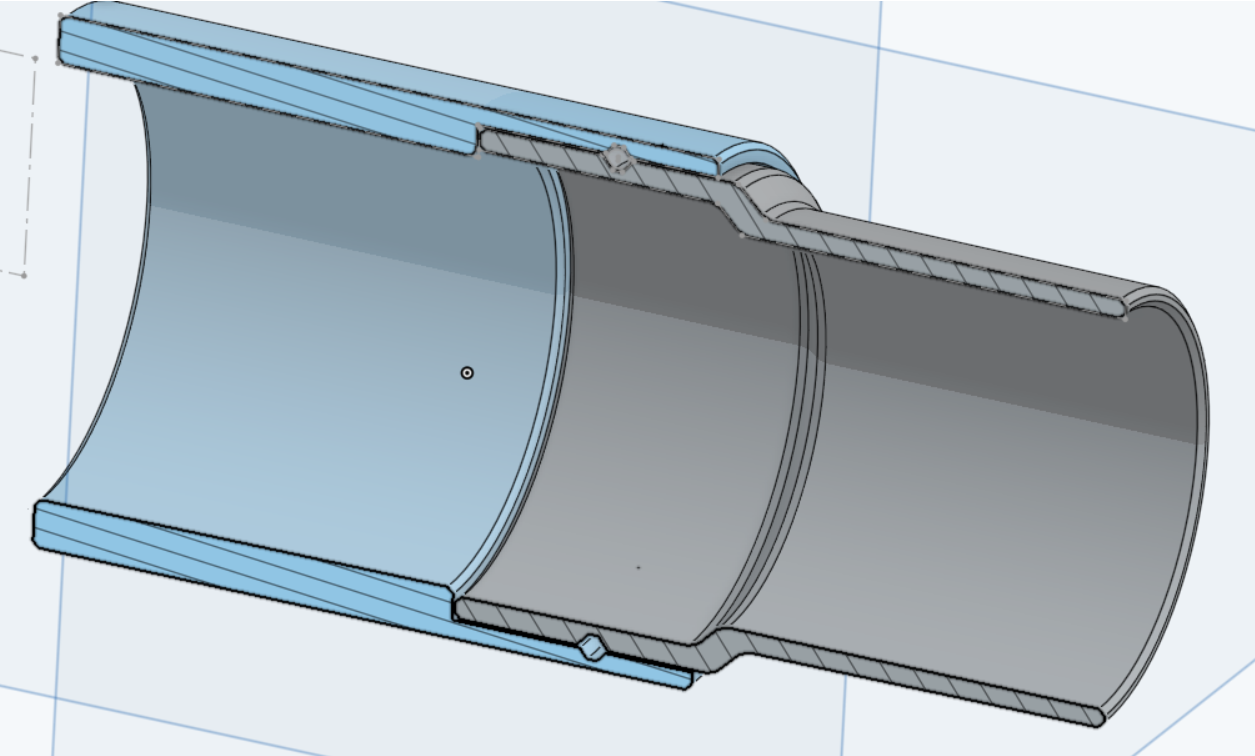

Can be plugged between hose adn accessories
Is designed to rotate 360°

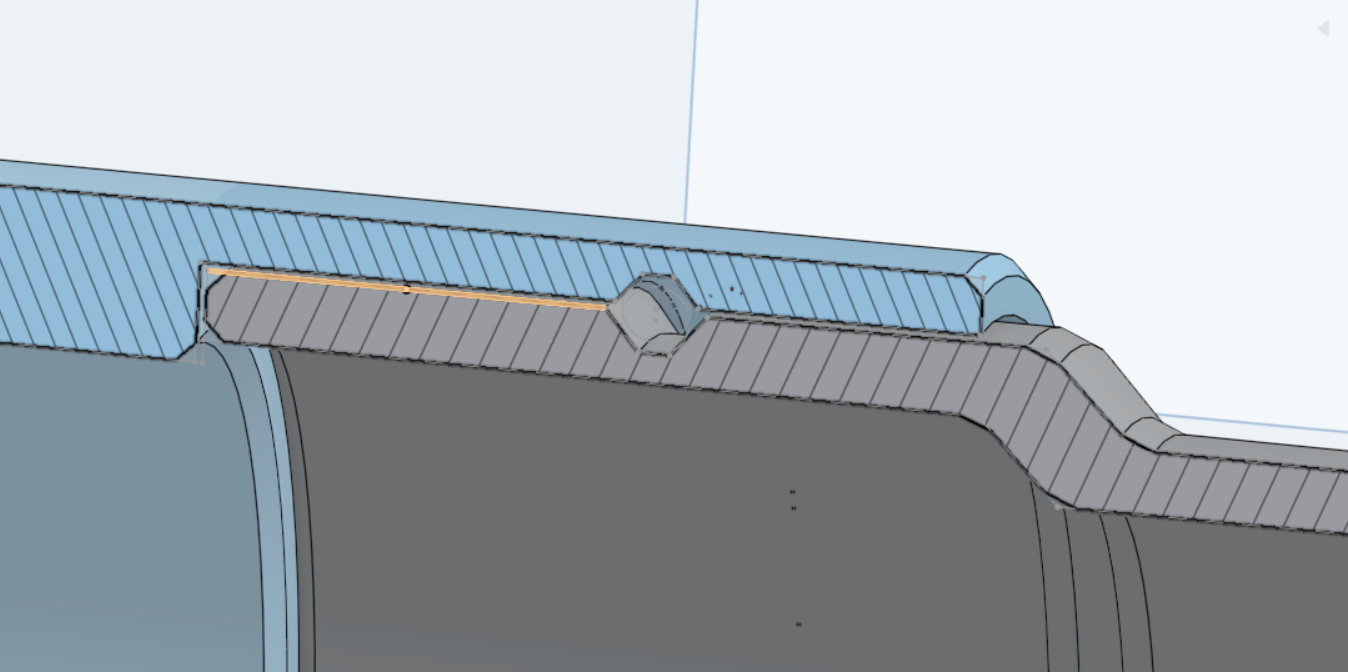

Held together by 1.75mm fillament
According to Einhell 36mm Hose.
Hose fittings measure 35-35.5mm (conical friction fit)
Print instructions:
0.2mm leigher height
Maybe prefer PLA over PETG as the hardness might be beneficial minimal friction rotation
Both pieces have a preferred printing direction (part facing the vacuum onto the print bed), no support needed.
Assembly instructions:
Ensure the bottom (the end facing the back piece) does not have an elephant foot or it will cause friction when rotating. If it has -> cut/sand that bit off
clean up the filament insert hole at the bottom piece
Pre-shape/bend a piece of filament for interlocking in a circle. Measure it and cut to length.
Having 5-10mm space between the ends where the window in the base is might help reducing friction.Insert front into back piece
push in pre-formed filament piece
If you do not pre-form the filament for locking the two pieces together, the ends of the filament piece will be straight and cause friction when rotating.
