Here is the perfect Smore Detector tester Funnel !

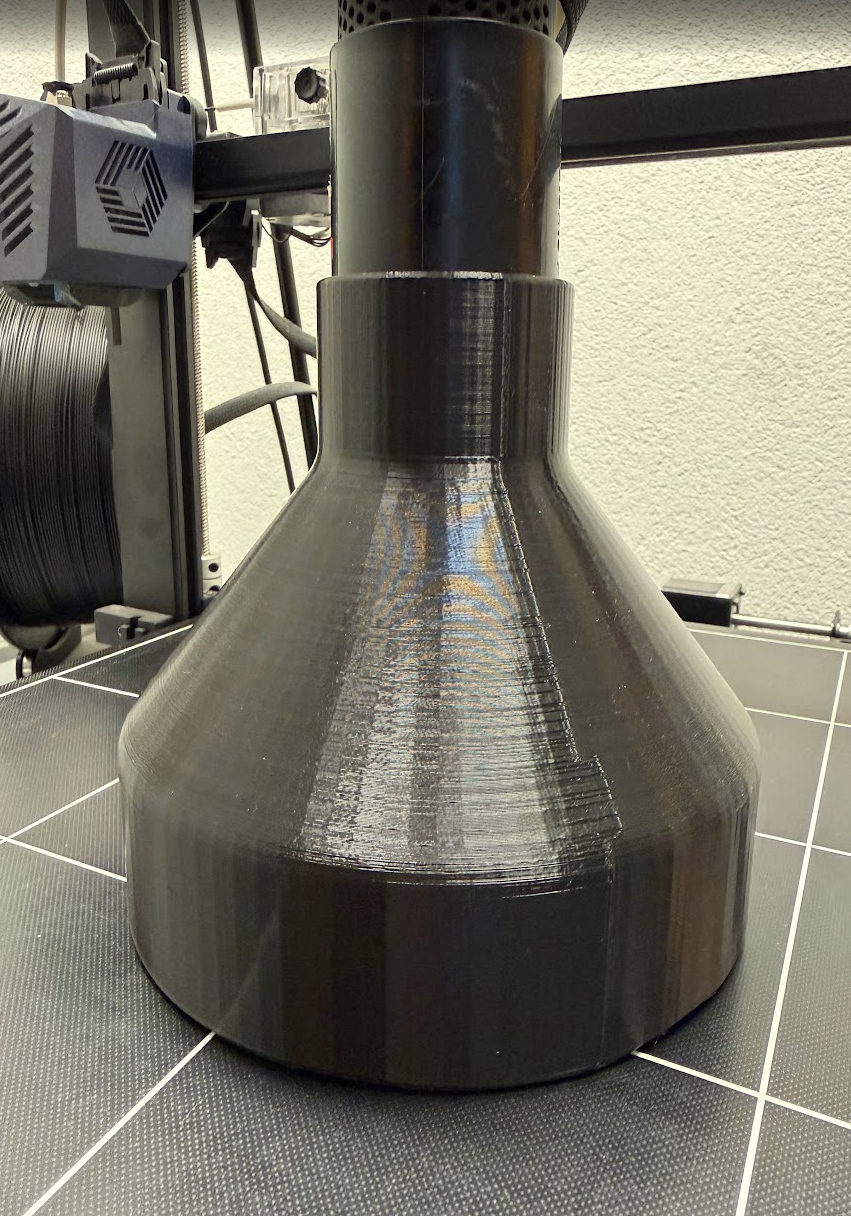

This smoke detector test funnel is designed to maximize smoke concentration around the detector, allowing reliable tests with less smoke and better consistency.

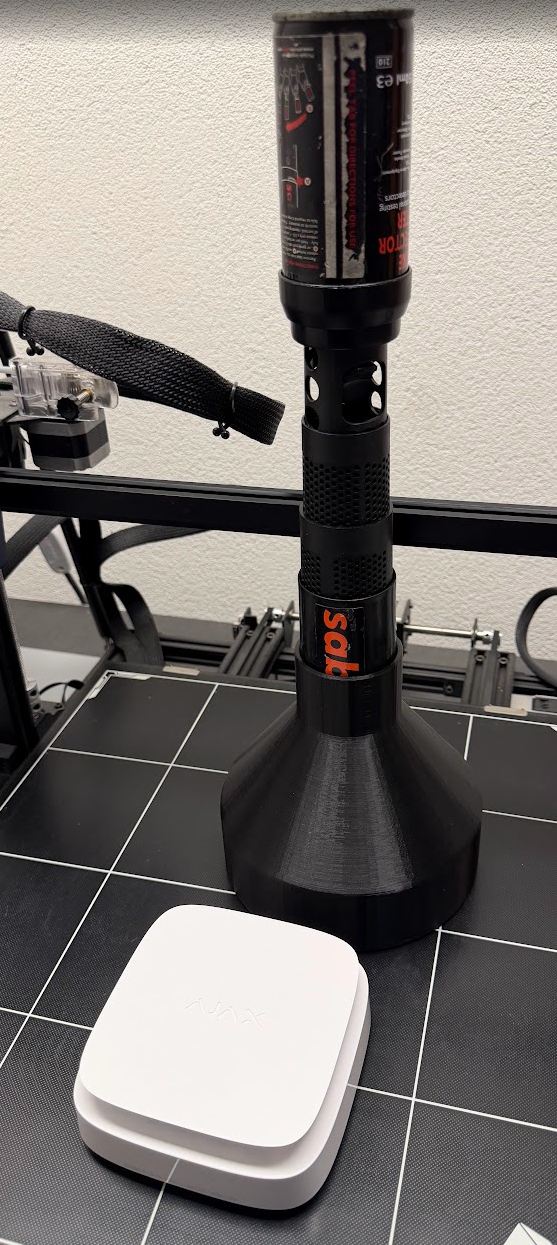

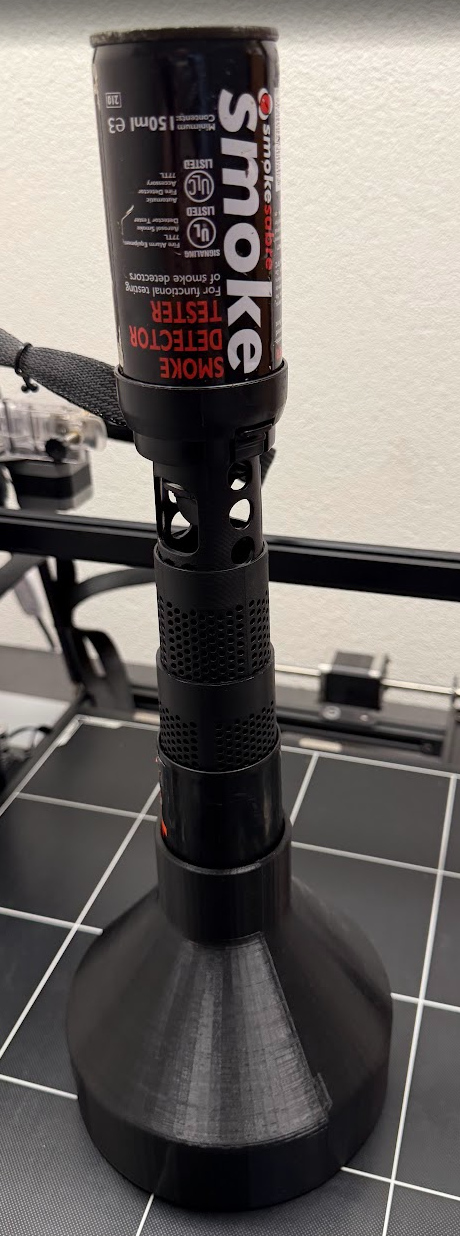

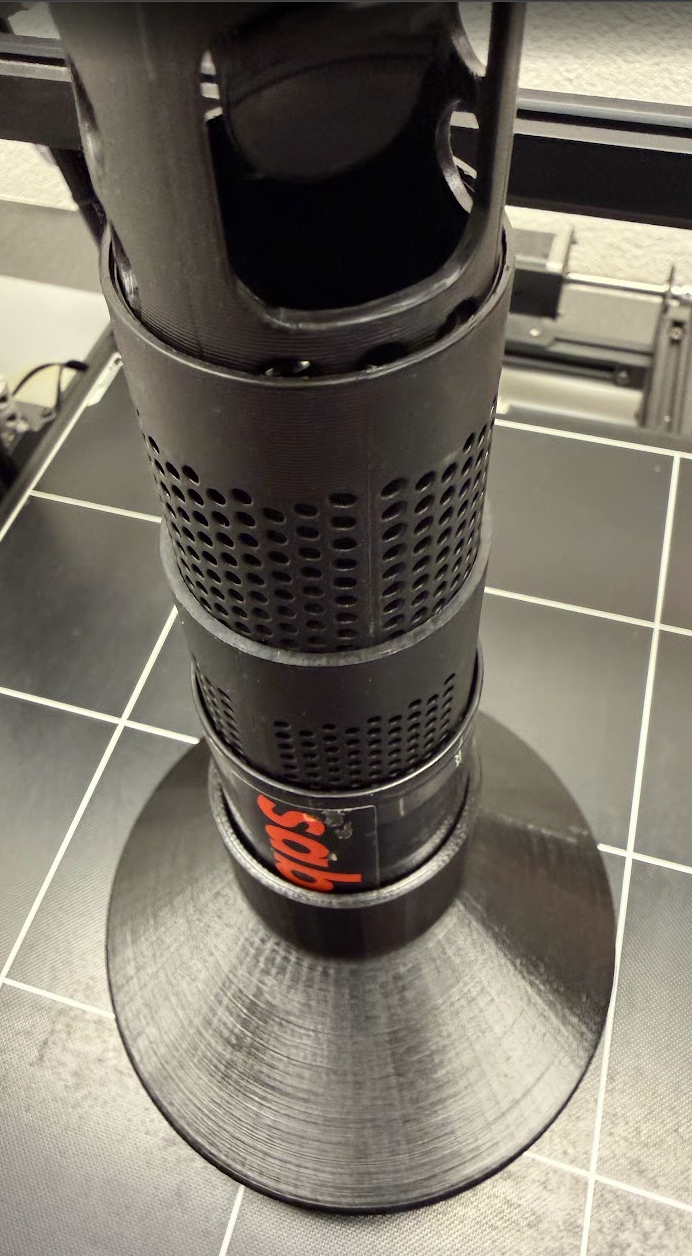

Specifically designed for SmokeSabre / Smoke Sabre smoke testers, it securely holds the tester and directs the smoke exactly where it’s needed.

Ideal for electricians, maintenance professionals, and home users who want accurate and repeatable smoke detector testing.

Features:

  • Perfect fit for SmokeSabre / Smoke Sabre testers with sufficient grip

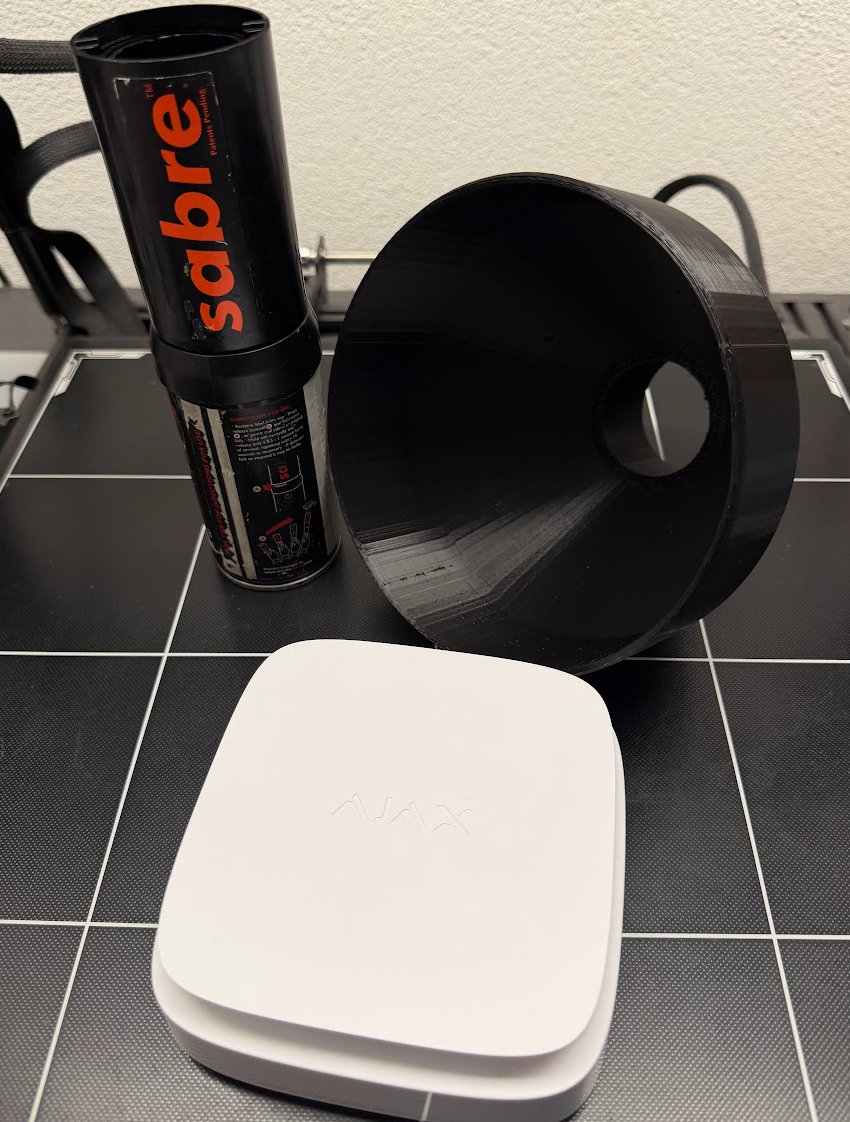

  • Inner retention lip at 40 mm prevents the smoke tester from passing through

  • Smoke-efficient design – requires less smoke for effective testing

  • Wide compatibility – fits most smoke detectors (max diameter: 150 mm)

  • Simple, robust geometry – easy to print and durable

Printing recommendations :

  • Supports: YES (Tree supports recommended)

    • Support Overhang Angle: 50° (important)

  • Brim or Raft: Recommended (prevents warping)

  • Infill: 25%

  • Layer Height: 0.2 mm

  • Walls: 3

  • Top / Bottom Layers: 6 / 6

  • Material: PLA or PETG

Notes

  • Designed for functional use, not decorative purposes

  • PETG recommended if used frequently or in warmer environments
