Adjustable Foot Ivar
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Attribution — Noncommercial

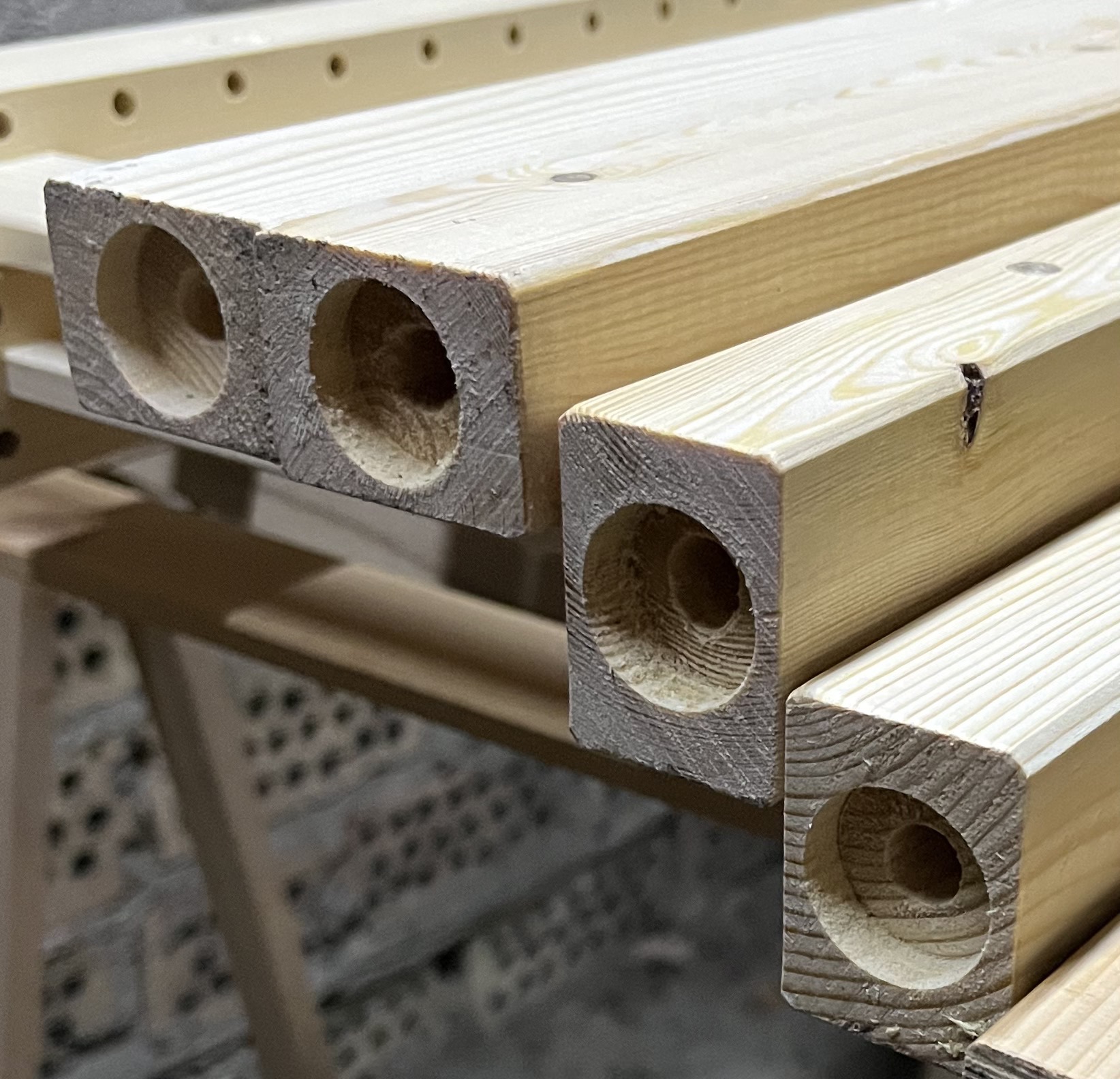

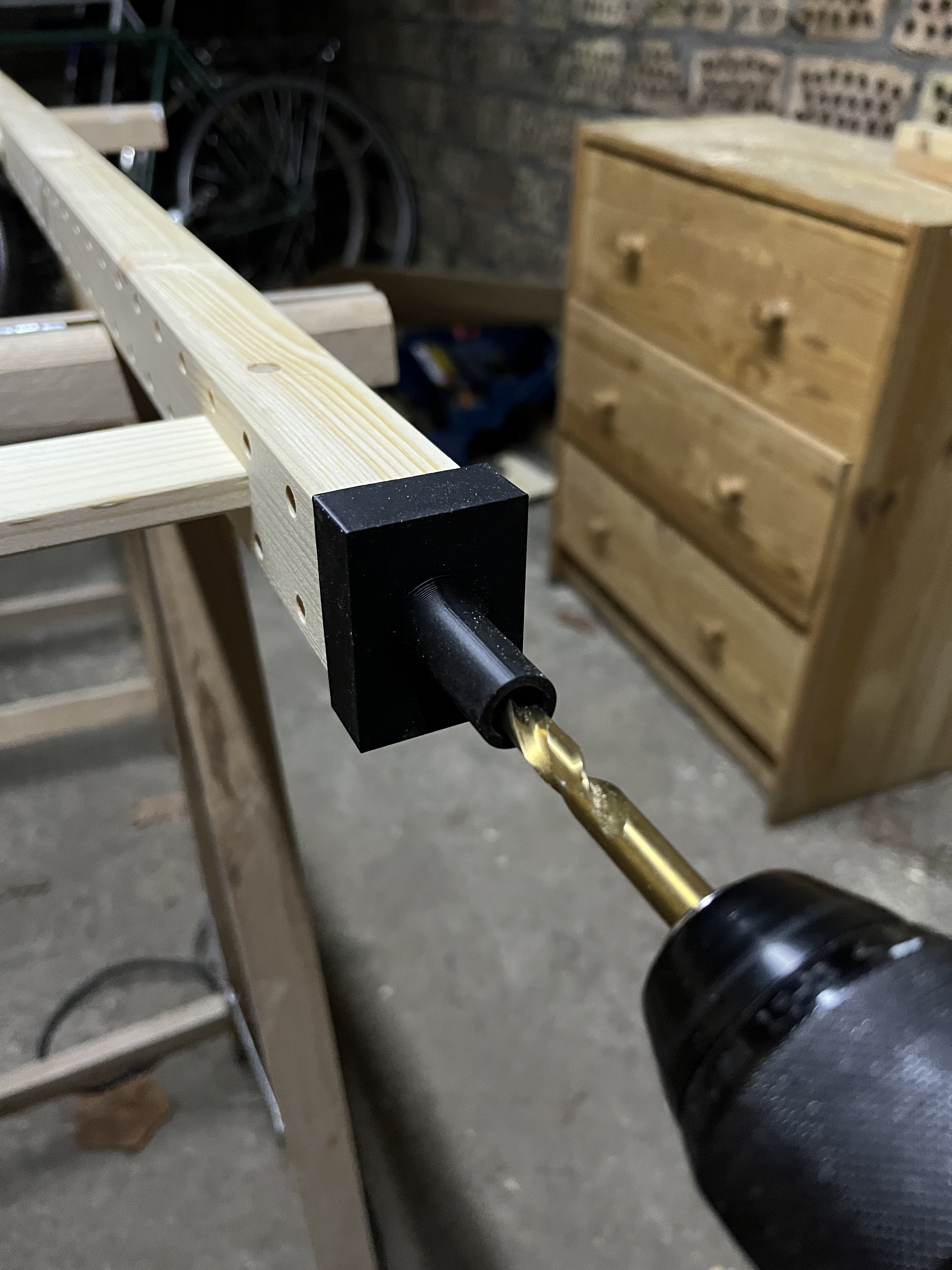

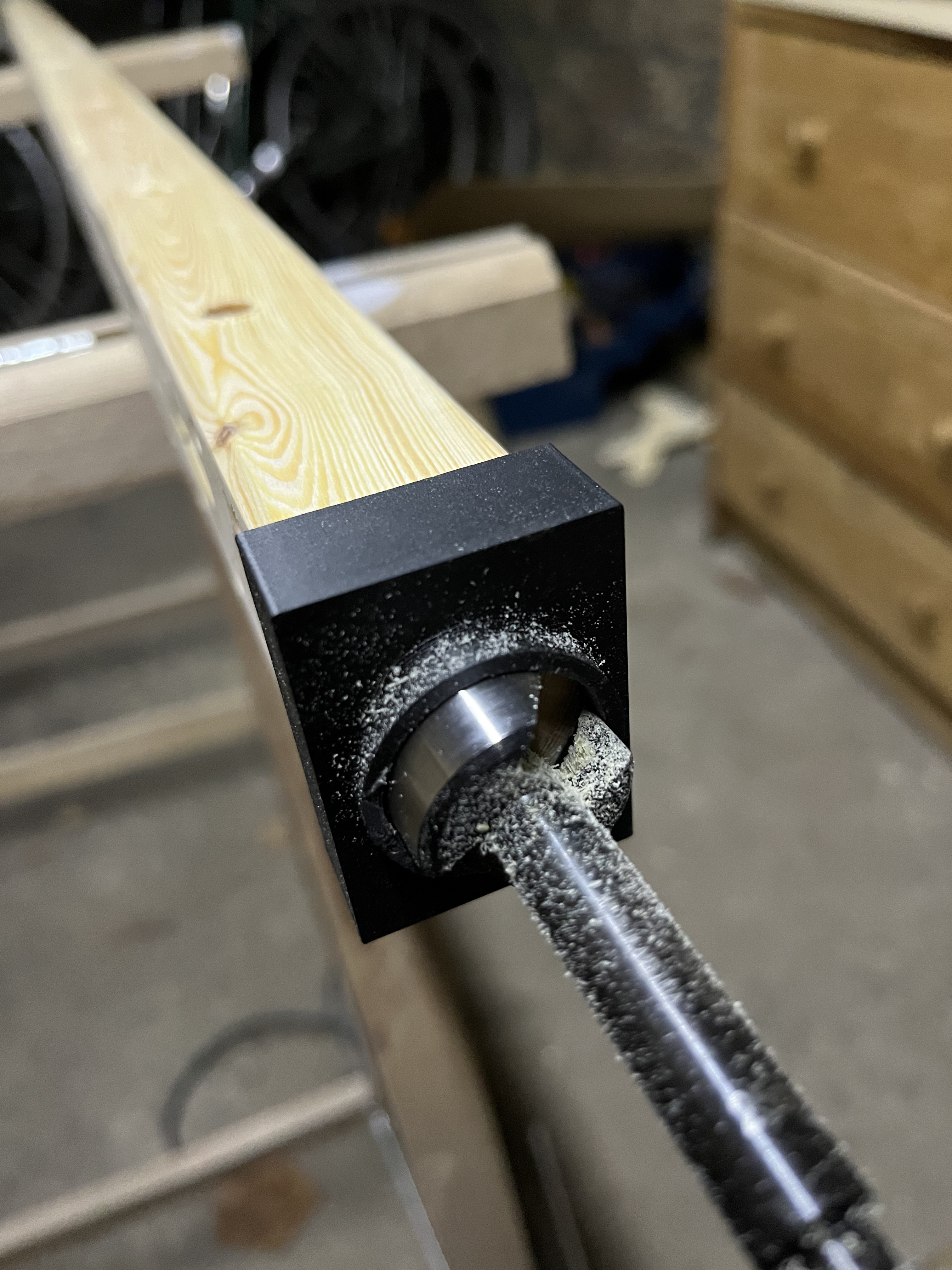

There are two little drill guides. One for a 25mm Forstner drill, the other for a 10mm wood drill. Use a sharp one ;)
The length of your drill obviously limits the length of your screw.

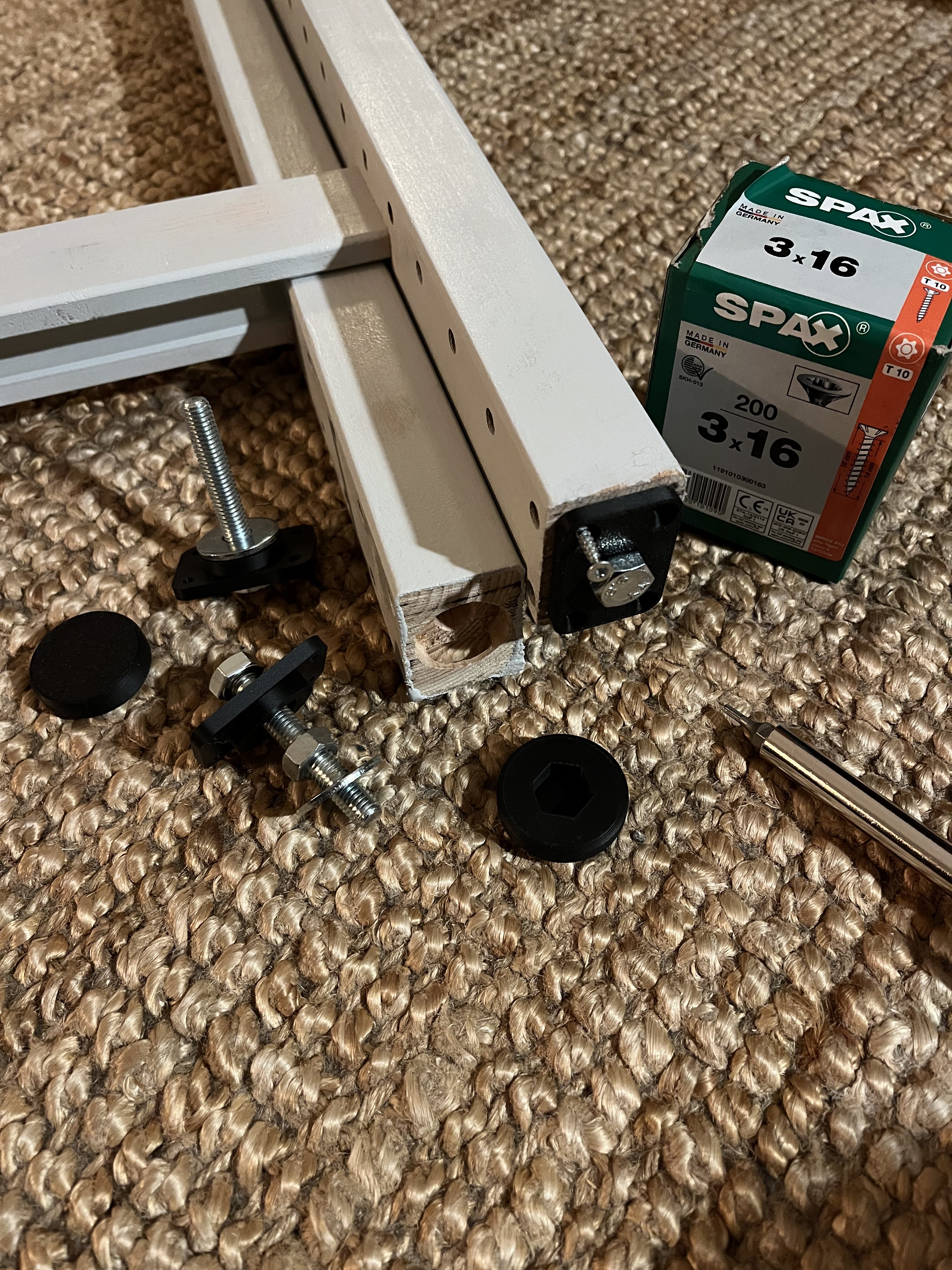

After you made the wholes you can put the parts in the leg like you see on the pictures. Washer - Nut - Plastic - bolt - plastic.
List of materials I used:
- Hexagon Head Bolt M8 x 50
- M8 Nut
- M8 Washer
- Countersunk screw 3x16 with Torx Head
- Forstner Drill 25mm
- Bosch Wood drill 10mm
- Screwdriver
- Torx Bit
