Pattern Modifiers
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Use these as negative modifiers in your slicer to make nice surface finishes.
- Rating
- 0 / 5
- Likes
- 1
- Downloads
- 24
- Makes
- 0
- Views
- 72
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- 2D Plates & Logos
- License
- Creative Commons — Public Domain
Beyond making your surfaces look nicer, this can serve a functional purpose too, by breaking up tension in the lower layers to reduce warping on long thin parts.

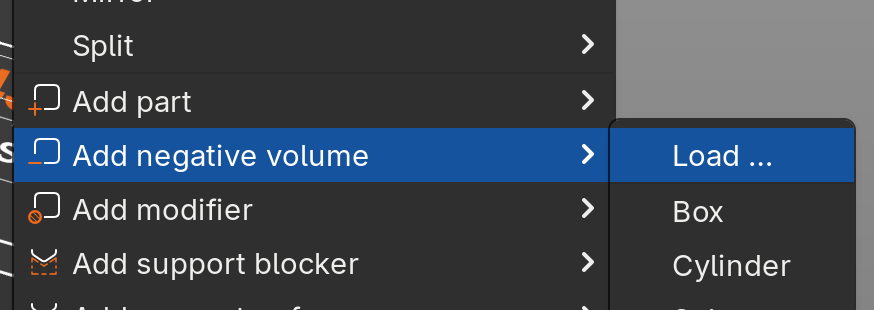

To add this in Prusa Slicer, right click your model and select "Add negative volume > Load". You'll have to tinker with the scale and rotation a bit.
I have only tried this on the bottom layer, but it should work on other surfaces. Some manual clean-up is likely needed after printing for best results (images above are mostly raw, just a couple small burs clipped off).
NOTE: You may need to sink these negative volumes into the floor a tiny bit for them to slice correctly. Always inspect the sliced preview carefully before printing.
I used this to create the voronoi pattern: https://github.com/WebSVG/voronoi
And I got the wave pattern from here: https://pattern.monster/waves-7
Update 1: Leaf pattern, https://pattern.monster/leaves-5 WARNING: very difficult to print as a bottom layer, unless scaled up a lot. Using a glue stick is a good idea.
Hacked the STLs together using Blender.
If you have an SVG you'd like to see added, you can send it my way and I can convert it!
