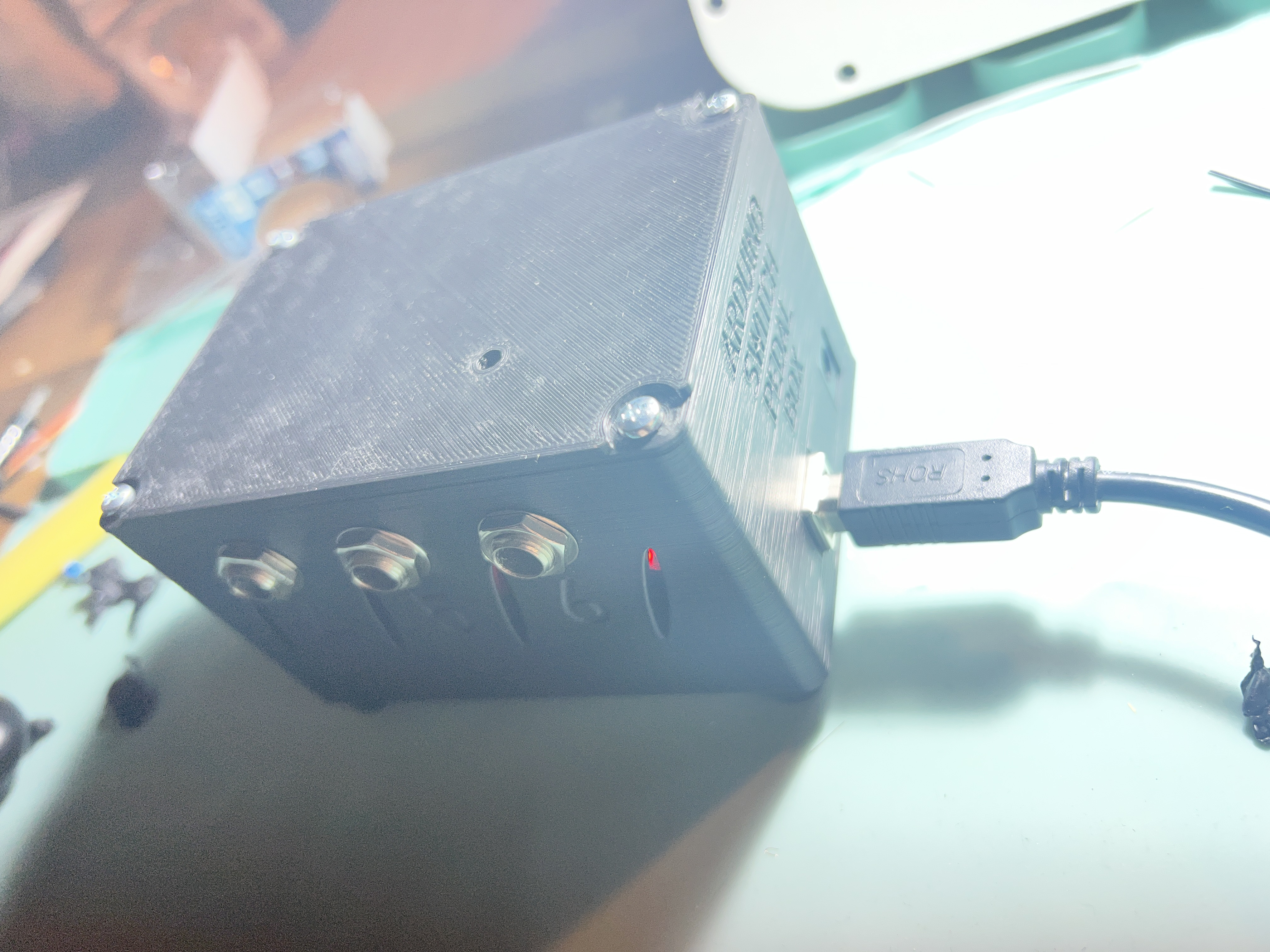

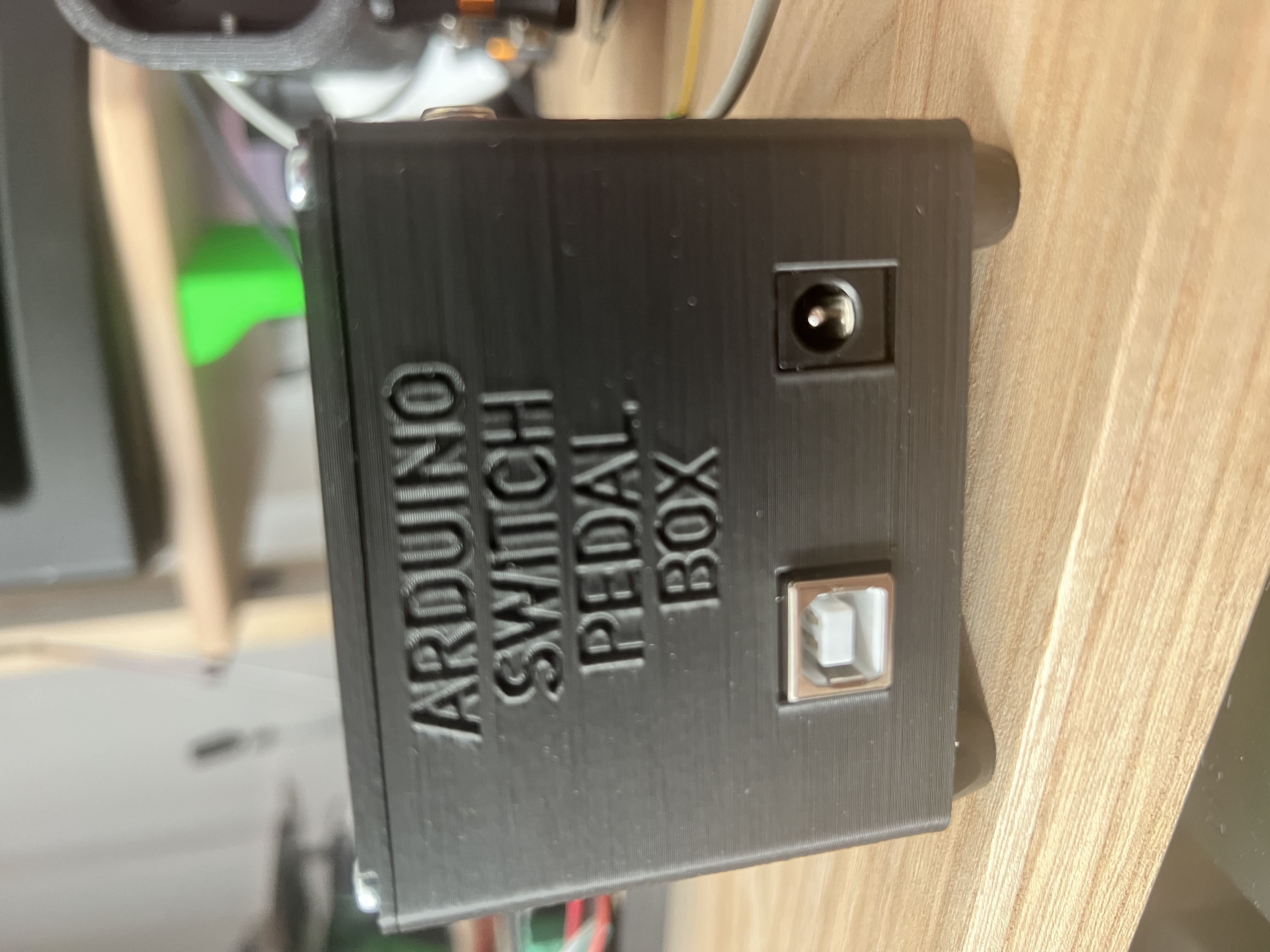

This is an arduino box, designed to host 6 jack cables - as I needed to get the signals of switch pedals and get the info into puredata.

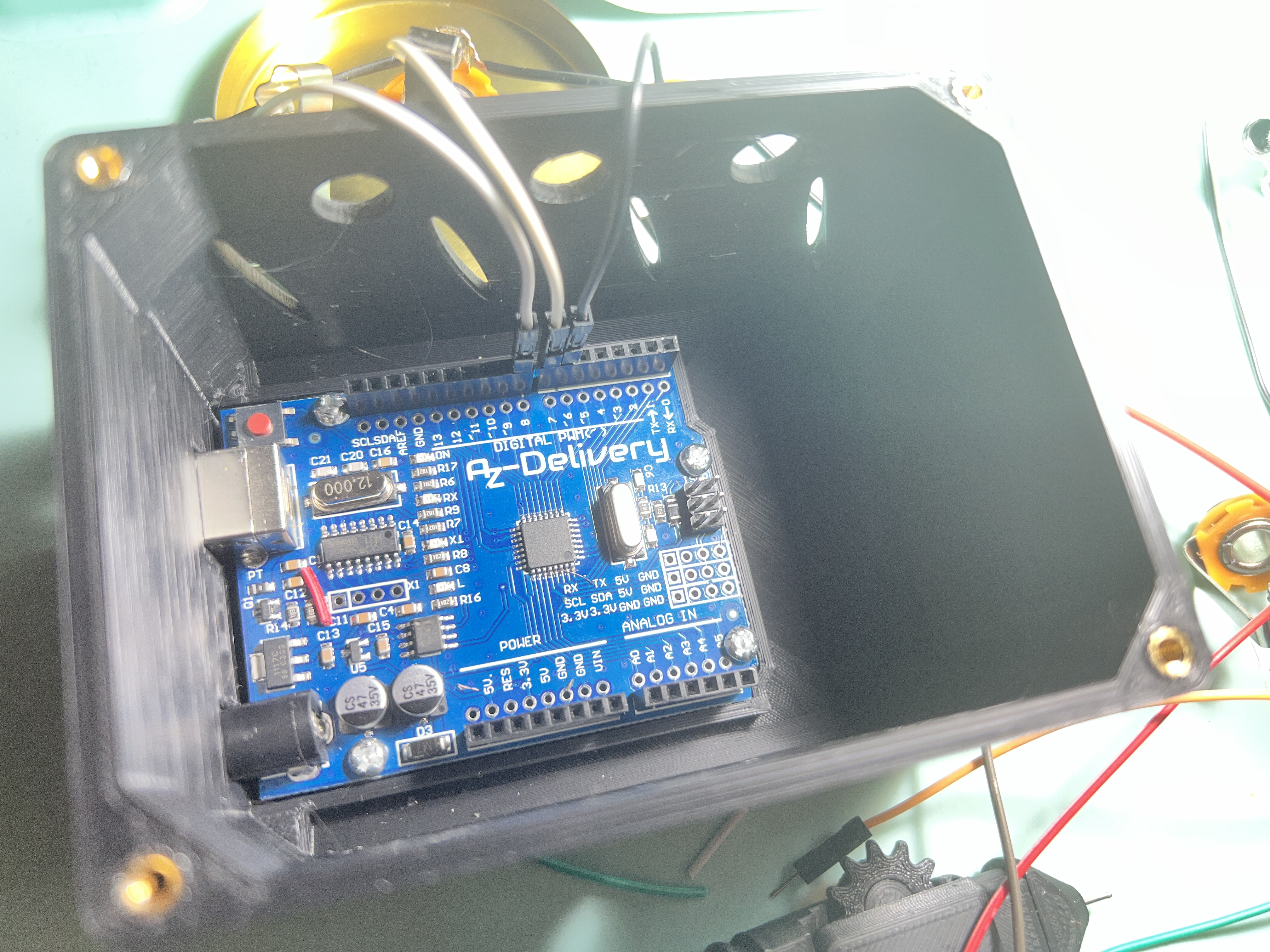

I had some elegoo boards laying around - it fits perfectly - but it should fit an original UNO.
I used this arduino UNO model as a reference for sizing and largely inspired myself of this cnc shield box for the general design. Although it's a fully new design.

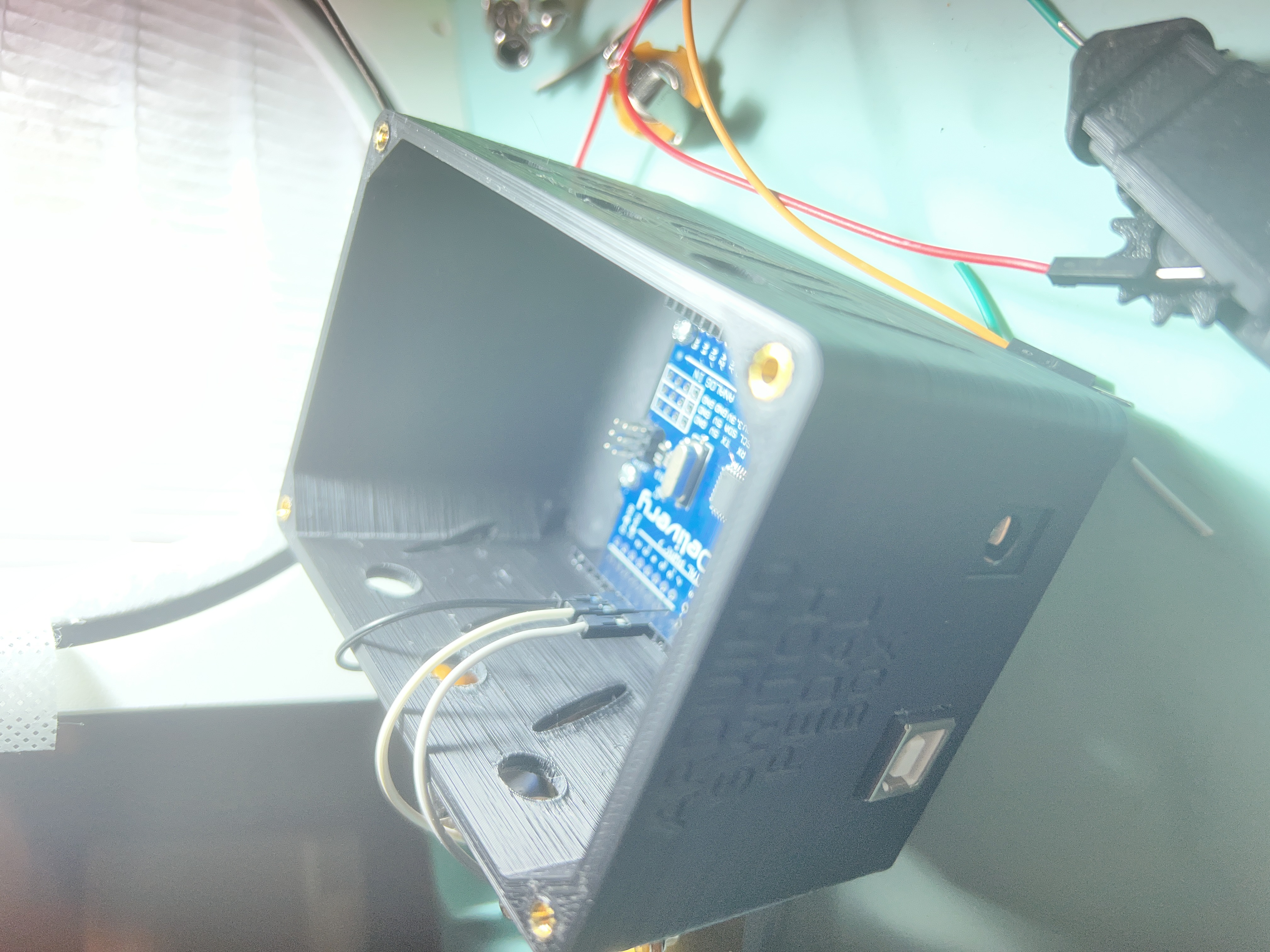

Designed with inserts holes for Ruthex M3.
It needs 4x M3 5mm for fixing the board, 4x M3 10mm for fixing the lid.
Optional, there are Ruthex M3 inserts holes ready under the box in order to fix 1cm rubber foot.
