CCU/CC2 Flap Switch (Parametric/Customizable)

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

Source
Printables
Category
Other Gadgets
License
Creative Commons — Public Domain
DetailsMakes & commentsRemixesCollectionsRelated

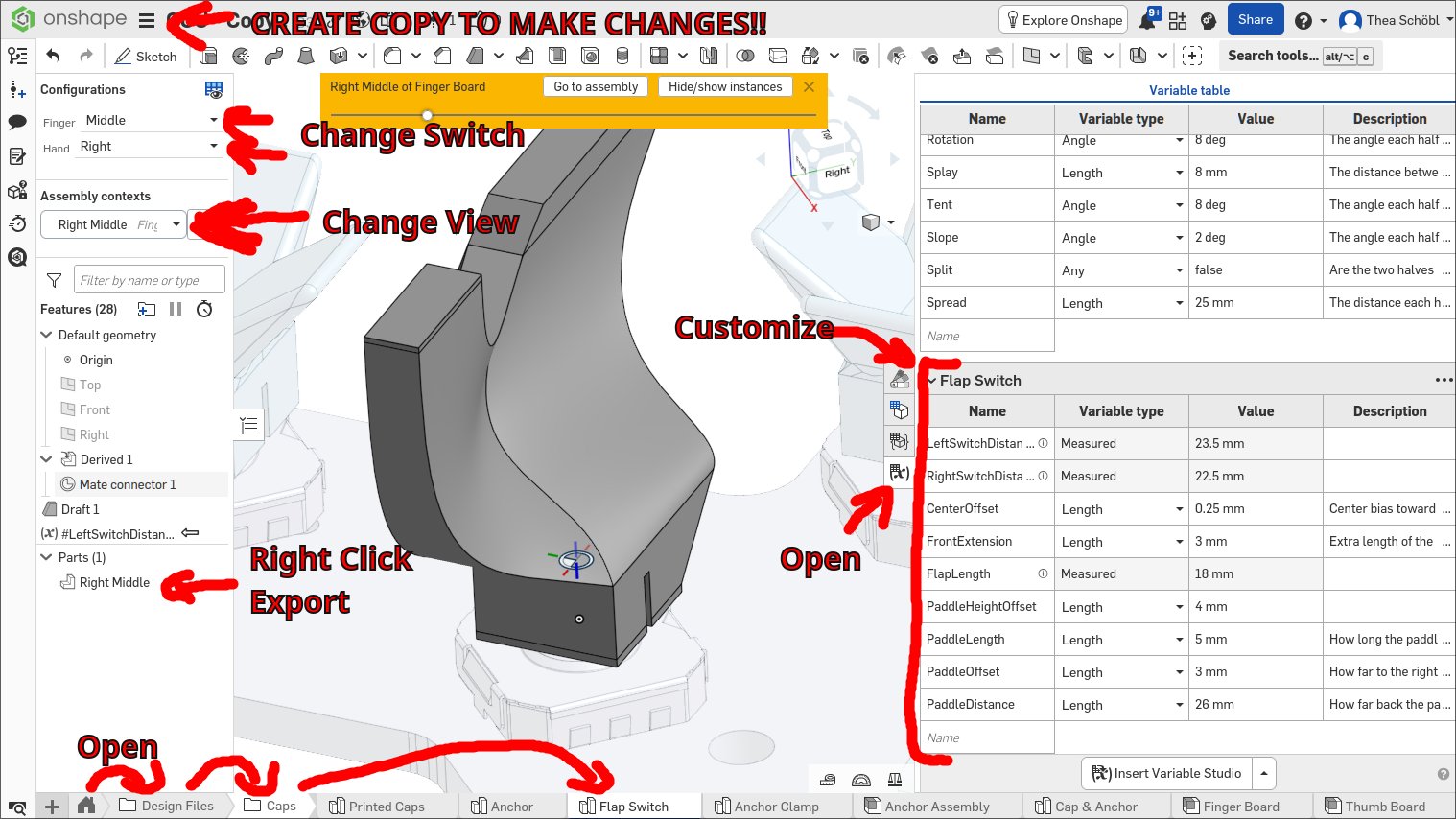

Customize: https://cad.onshape.com/documents/2fd32d9a2340abb3b9dcd234/w/7ed79db938ef18619022ecc7/e/d3194962b0ebb6097fb08ad5?configuration=List_GY3JZoOynomunP%3DRod_cap%3BList_McM9AFfiUPD5hd%3DDefault&renderMode=0&rightPanel=variableTablePanel&uiState=6995ea893e6ae27d31501bc8

PRINT SETTINGS

  • SUPPORTS ENABLED!!

  • 0.08mm layer height

  • NO SHAME IN USING A BRIM if your print doesn't stick. Or get a Biqu Cryogrip Glacier build plate and never have issues with PLA bed adhesion ever again.

  • ELEPHANT FOOT COMPENSATION is a MUST. 0.2mm, or more for at least 2 layers until you get NO MATERIAL STICKING OUT at the bottom.

DO NOT FORCE YOUR SWITCH ON THE STEM, you WILL DAMAGE the soft resin.

If your switch won't go on with light force reprint, increase scale in the slicer by 0.1-0.5% (or the other way around if it sits too loosely).

  • Too loose will wear out the stem!

  • Too snug and you will damage the stem putting it on!

Tags

ccucharachordercc2
