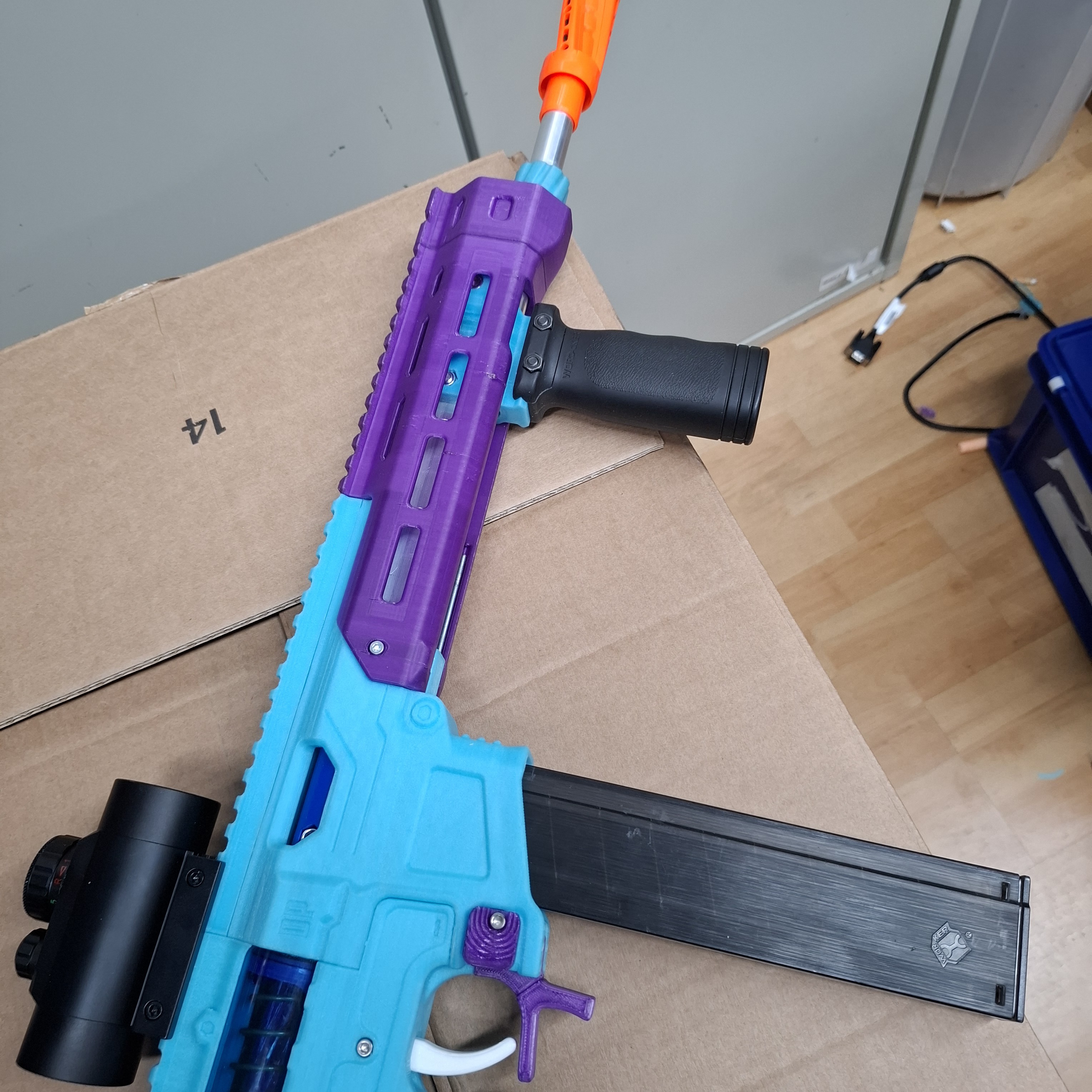

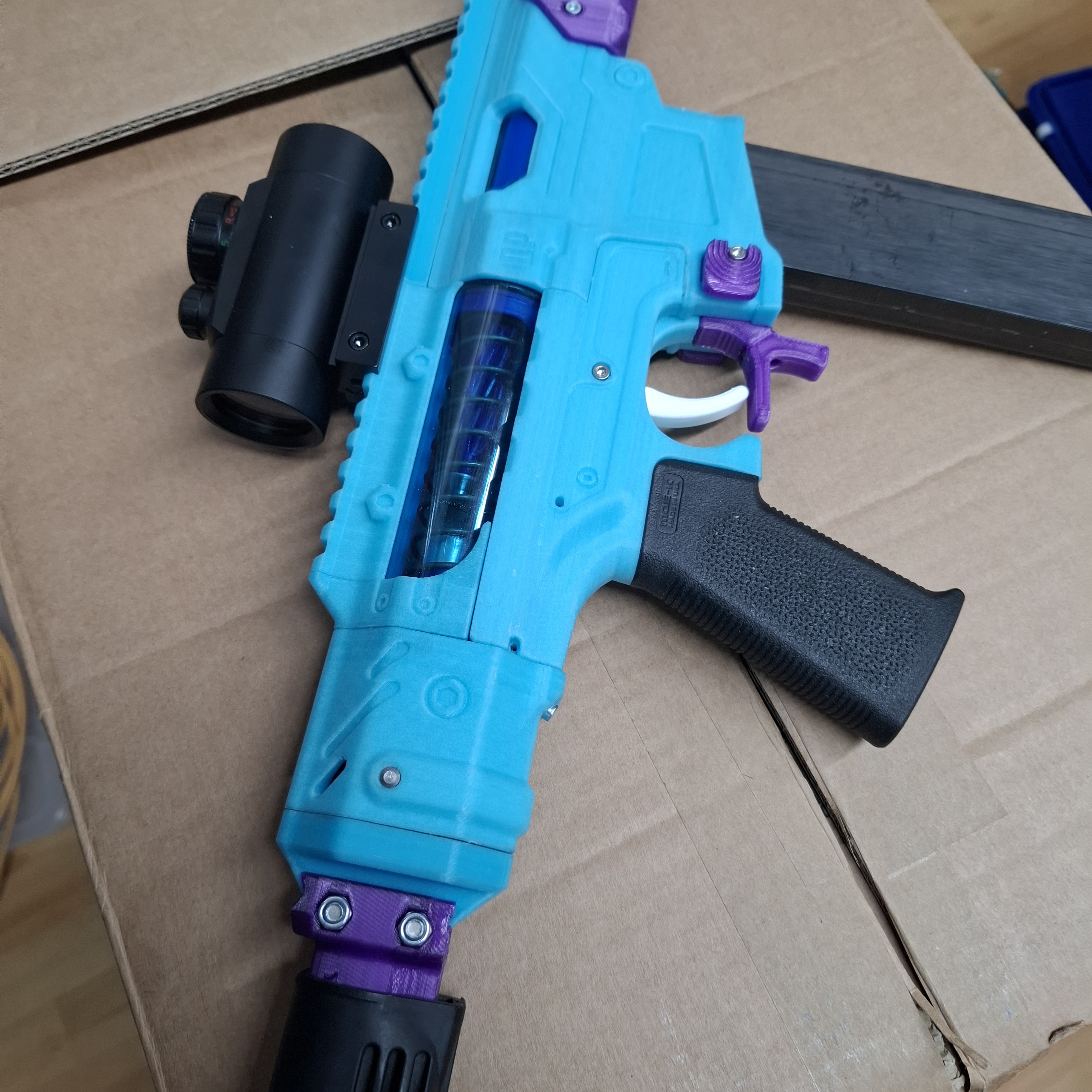

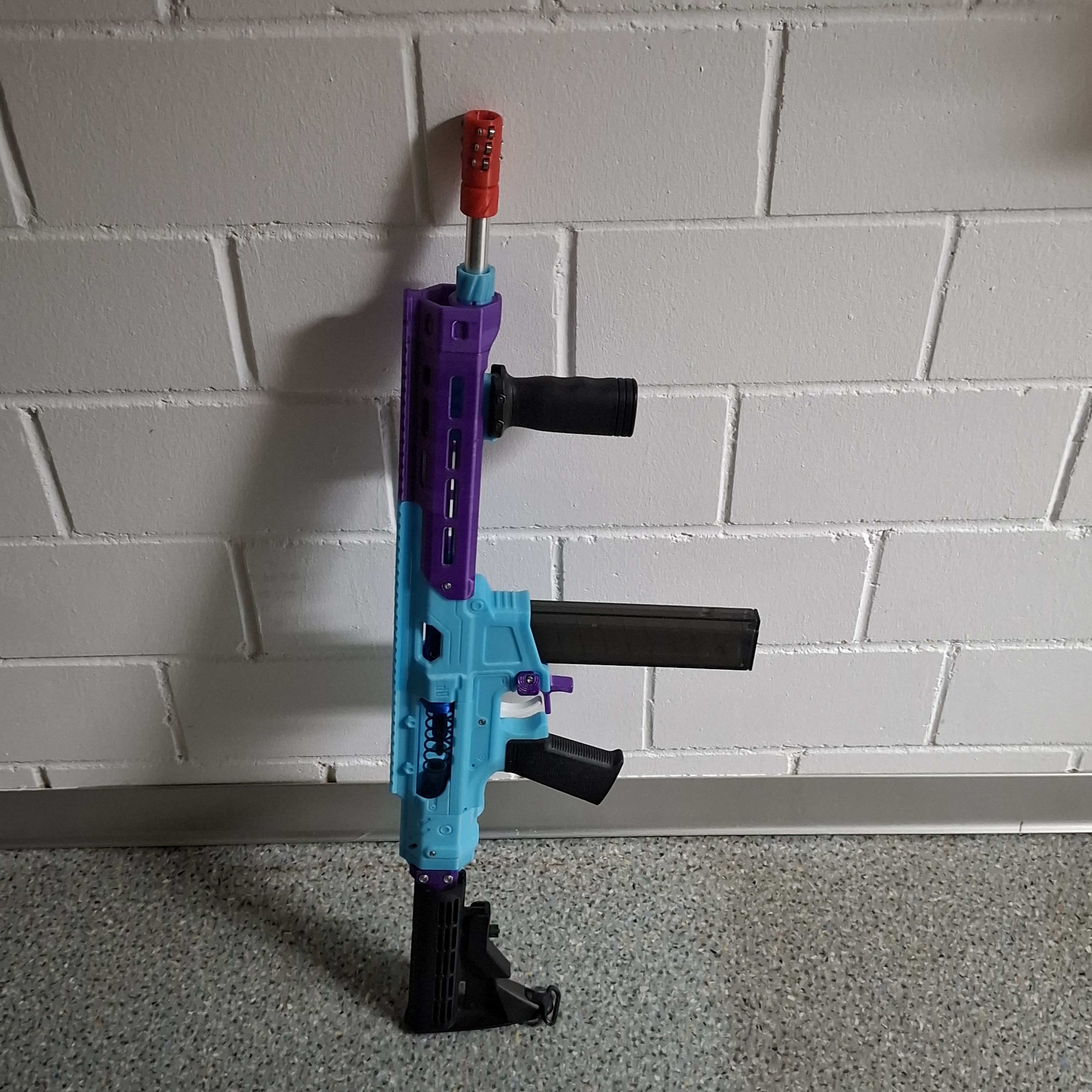

Metric Hardware Demophage

A Basic Fileset of a Demophage with metric hardware. Other than Conversion i made following changes:

  • Using AR Style Grip

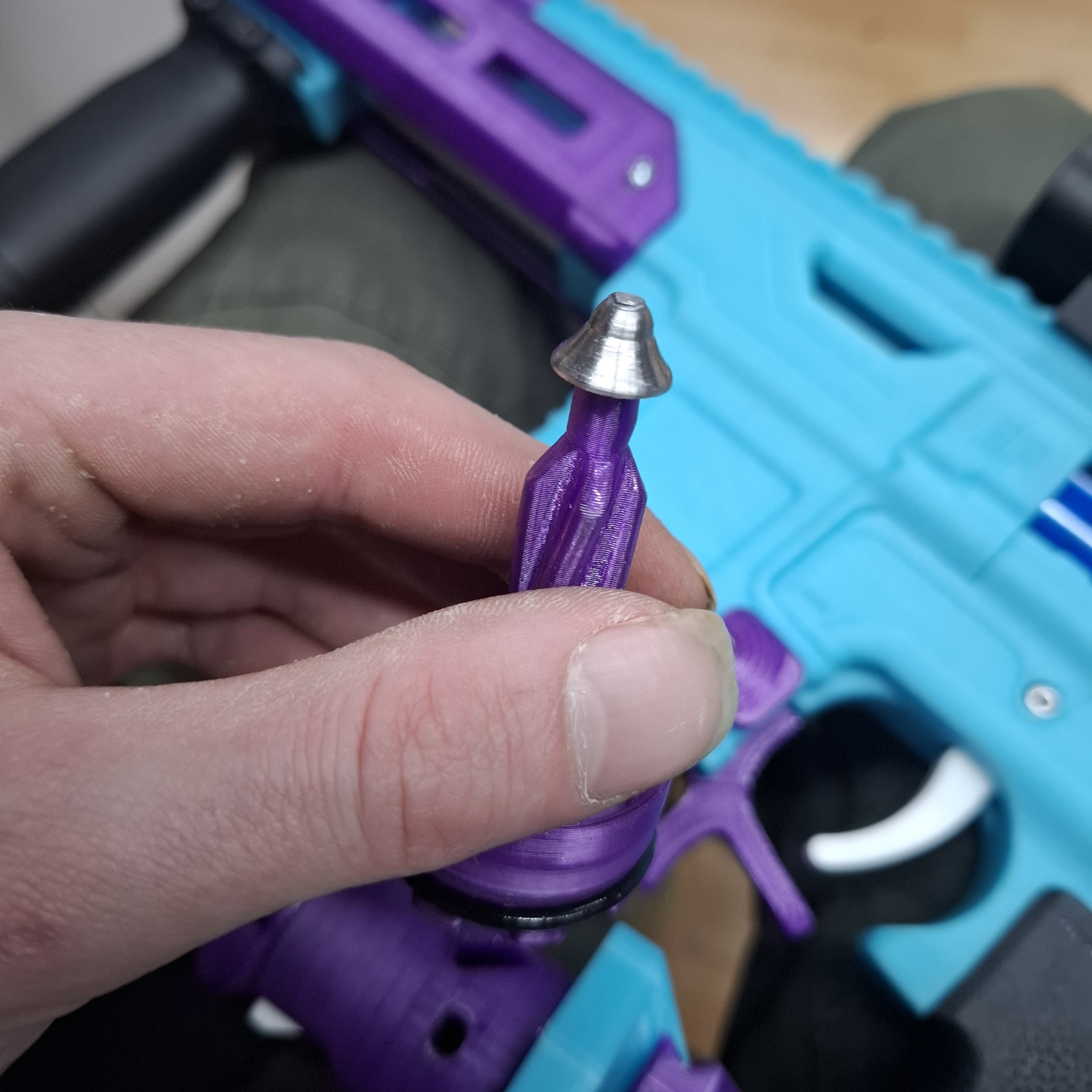

  • I suggest not using a Nut for The Back of the plunger but catchier catch would accomodate for the smaller diameter of the metric flange Nut.
    i used 12mm od stainless steel turned down as seen in the pictures.

  • I created a Metal Ram which has no skinny pusher. i did this because the original kept breaking on me. Refer to the Drawing in ther zip for manufacturing information.

  • there is original spring spacer and plunger spacer but i created one for k25 as thats what i had laying around.

  • Tweaked the Trigger and sear a bit so it would reliably release on trigger pull

  • Added 2 More screws for thestock attachment, just didnt trust my stock hanging on one M3 screw

Planned Changes

  • accomodate washers for the m3 rods in the back, they eat into the part when i tighten it....

    • added PicatinnyStockWasher.stl to use DIN9021 or DIN134 Washers on the back of the Threaded rods on feb 25.2026

  • add Drawing for Metal Catch Ring and Catch Nut

  • bom is a bit of a mess. all relevant info is there but i'll tidy up

CAD files

i can add step or freecad files if wanted but they are pretty messed up.
and need fixing before printing.

contact

if there is anything missing not working hmu on the blasterparts discord lolipop333
or here

cheers and goood luck printing
