2020 cutting and tapping alignment plates
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution

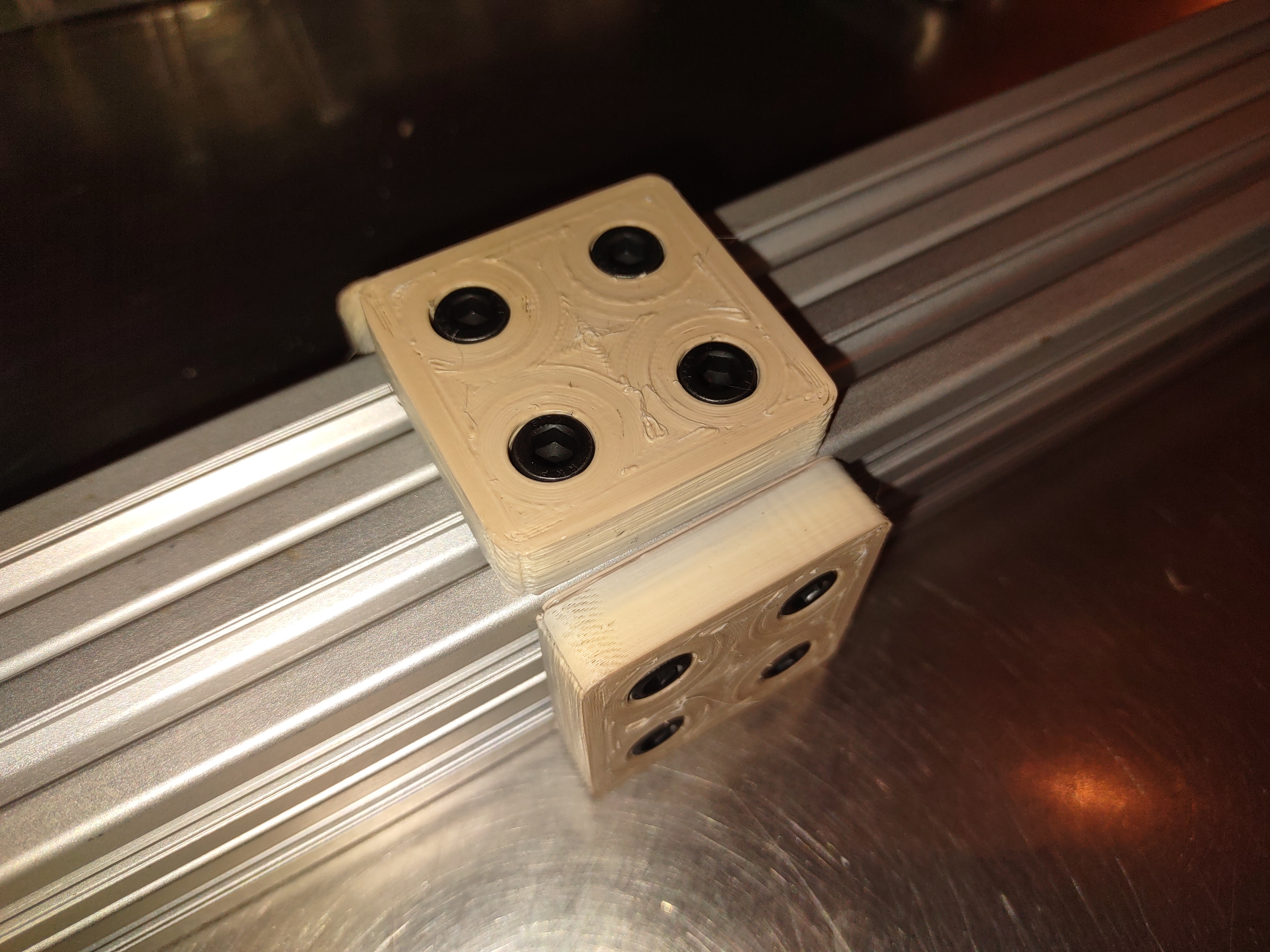

These jigs help keep the extrusions aligned so you can cut up to 4 at once for very accurate lengths.

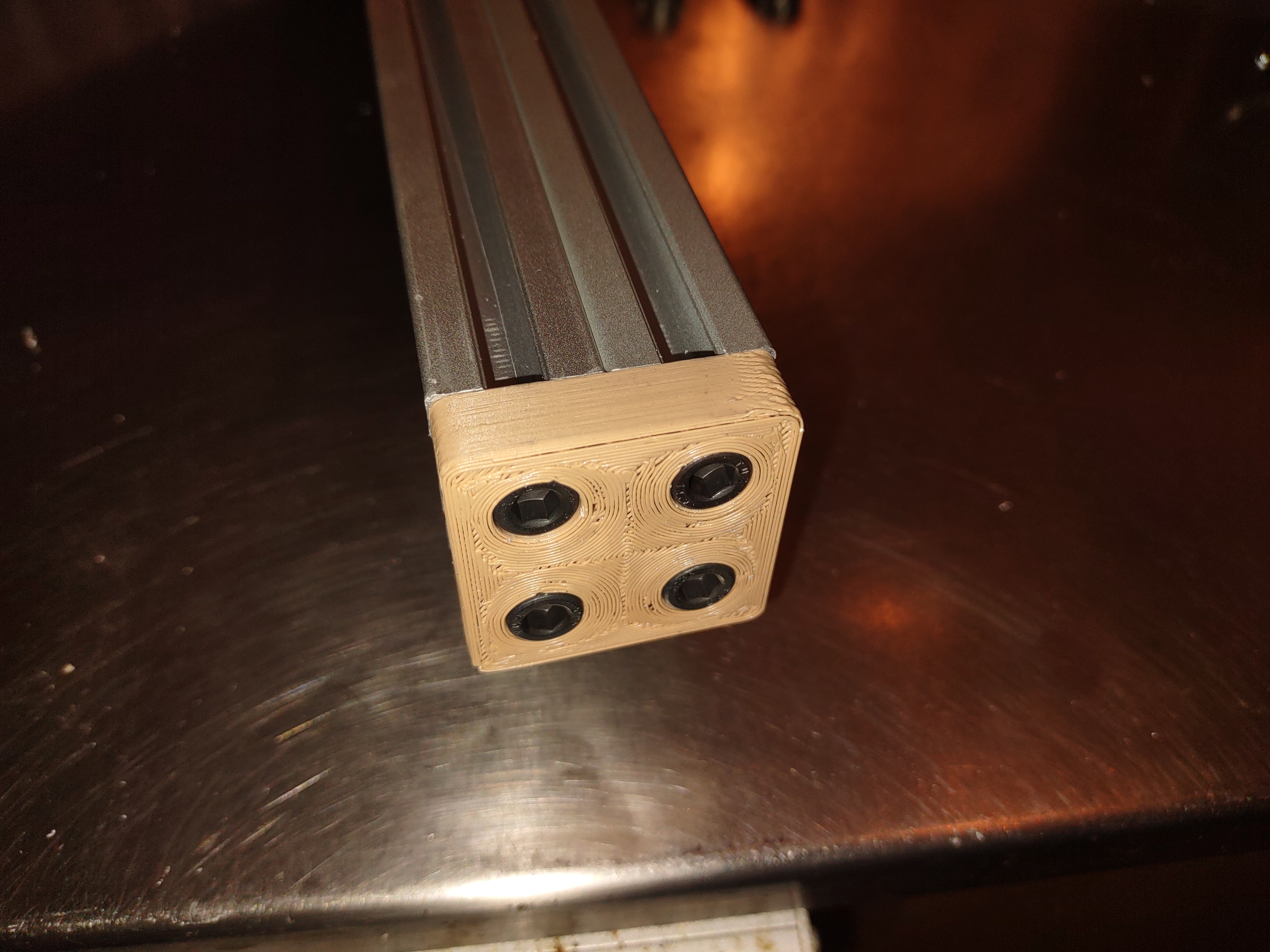

The side plates are designed for M5 cap head screws. My extrusions have an M6 center hole but I've included M5 also.

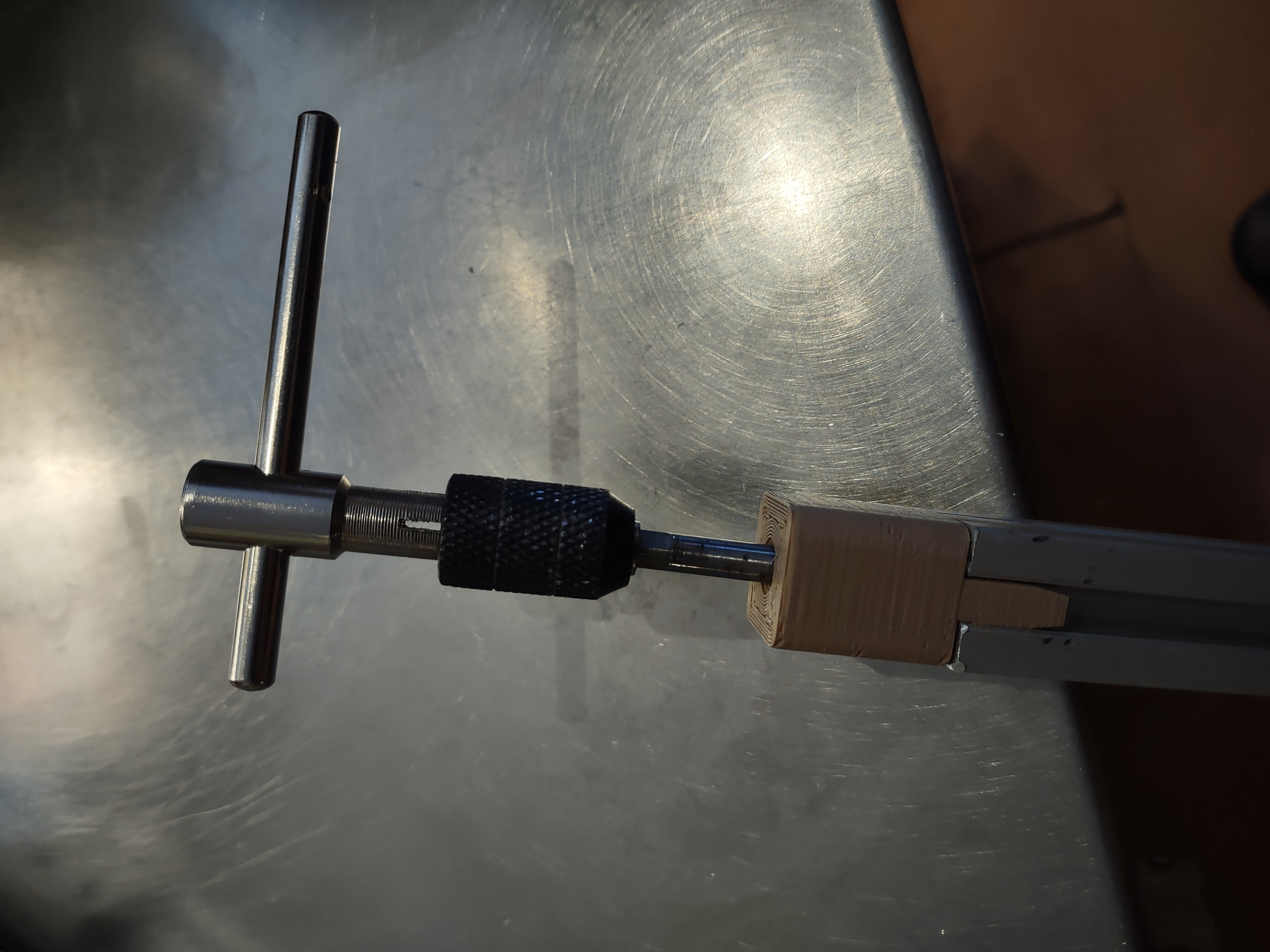

Also an alignment jig for tapping the M6 threads for the ends
