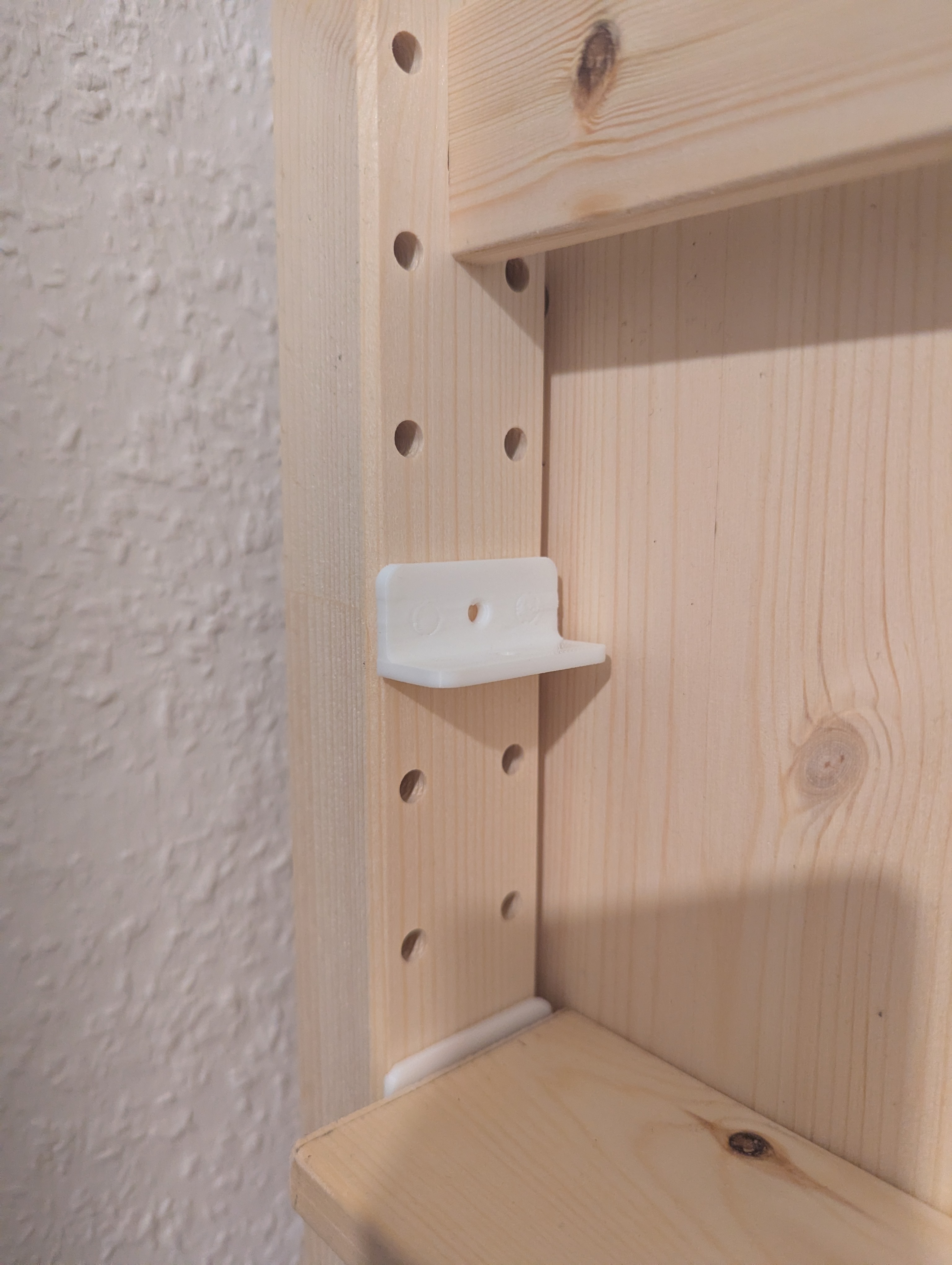

3D printable holder for the IKEA IVAR system. It plugs into the side uprights and supports a board to create a compact spice shelf or small side rack.
Design Notes

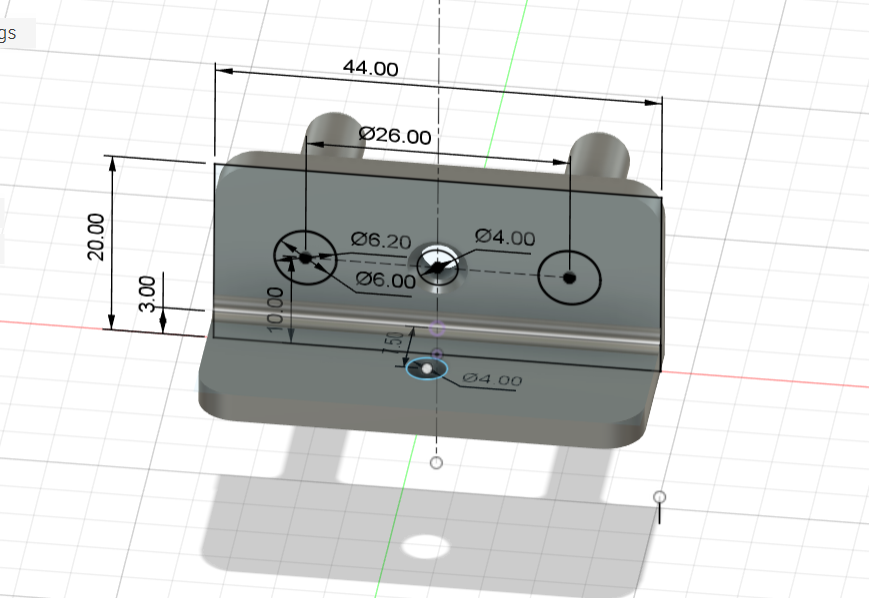

A small round hole was added so the pins pass fully through the model. This improves layer connection after slicing and increases overall strength.
The ..._hole-left and ..._hole-right STL versions are intended for positions with the IVAR cross brace. Screws cannot be placed there, so these variants provide clearance.
Print Tips
Support is needed in any print orientation:
Pins facing down usually give the best quality and fit.
Pins printed sideways reduce material use and print time. Pin deformation can happen in this orientation but function remained fine in tests.
Assembly Infos
The use of the hole toward the IVAR shelf is optional. The shelf can be fixed using screws from below only. This setup already showed good stability.
