Playseat Trophy Rear Riser
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Video Games
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

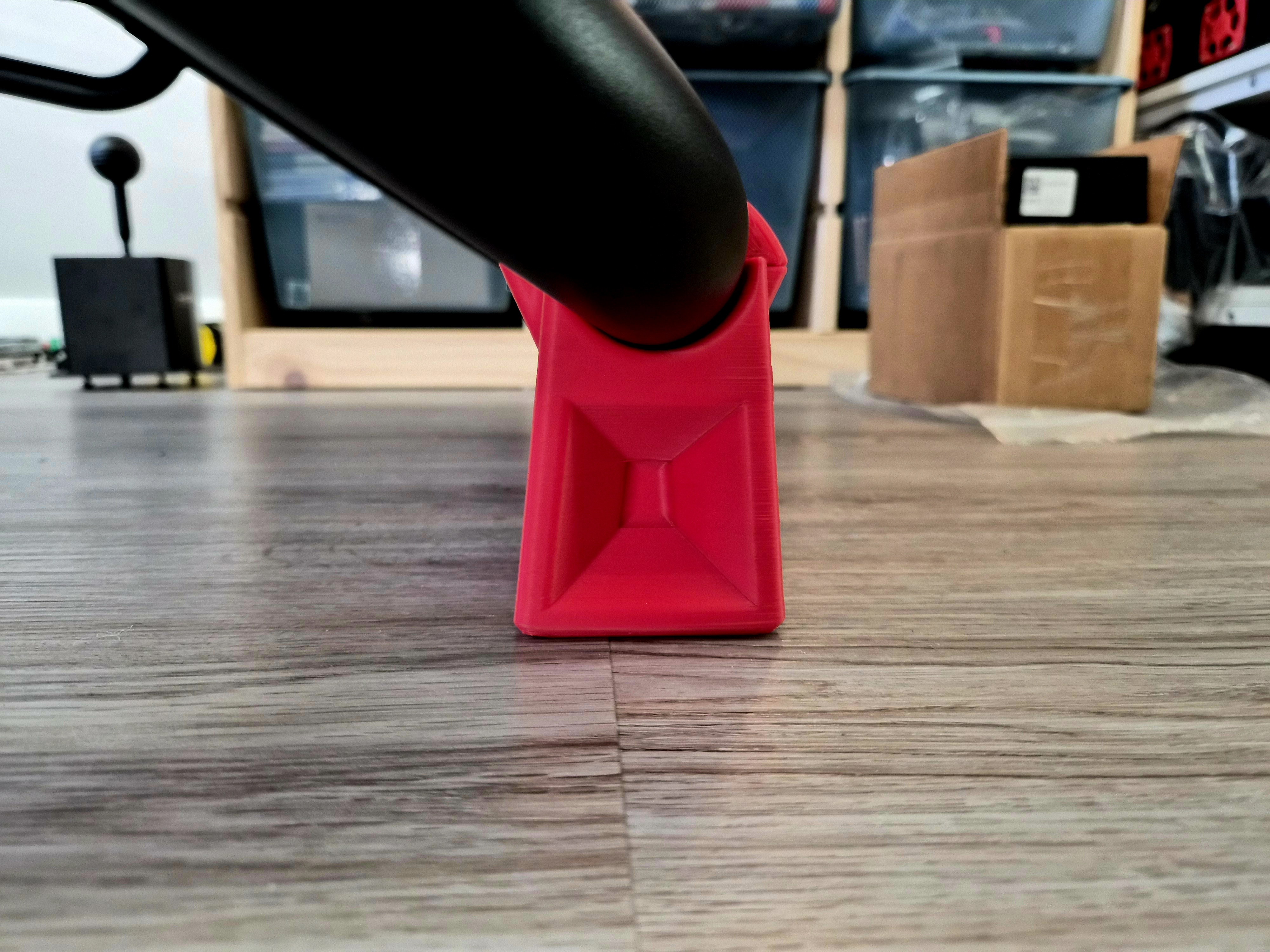

I made these to lift the rear by 70mm (2 3/4 inches). Just one held my weight of 81kg (179 lbs), but print 2 or 3. It's a long, but low-risk print. Add some foam tape or similar to the bottom if you're worried about scuffing floors.
The bolts shouldn't be super-tight. Ideally, the riser could rotate slightly as the rear of the chair is lowered to the floor.
If you want to test the fit, print 2 of the upper brackets first. Each surrounds 50% of the tube.
Print Settings I used:
- 0.4mm nozzle
- 0.24mm layer height
- 2.4mm walls
- 25% cubic infill
- Add a brim
- No supports needed!
Hardware:
- 4x M5x12mm bolts (or longer)
- 4x M5 nuts
- Foam Tape (Optional but recommended)
Created in Onshape:
https://cad.onshape.com/documents/bf33bf5e8df1d0dcc0809824/w/ca728ac807383902045687d8/e/99f17aa2cb2123fee774ce99?renderMode=0&uiState=699dec644faf8df4b036456f
