Kapton tape dispenser designed to be used with tweezer.

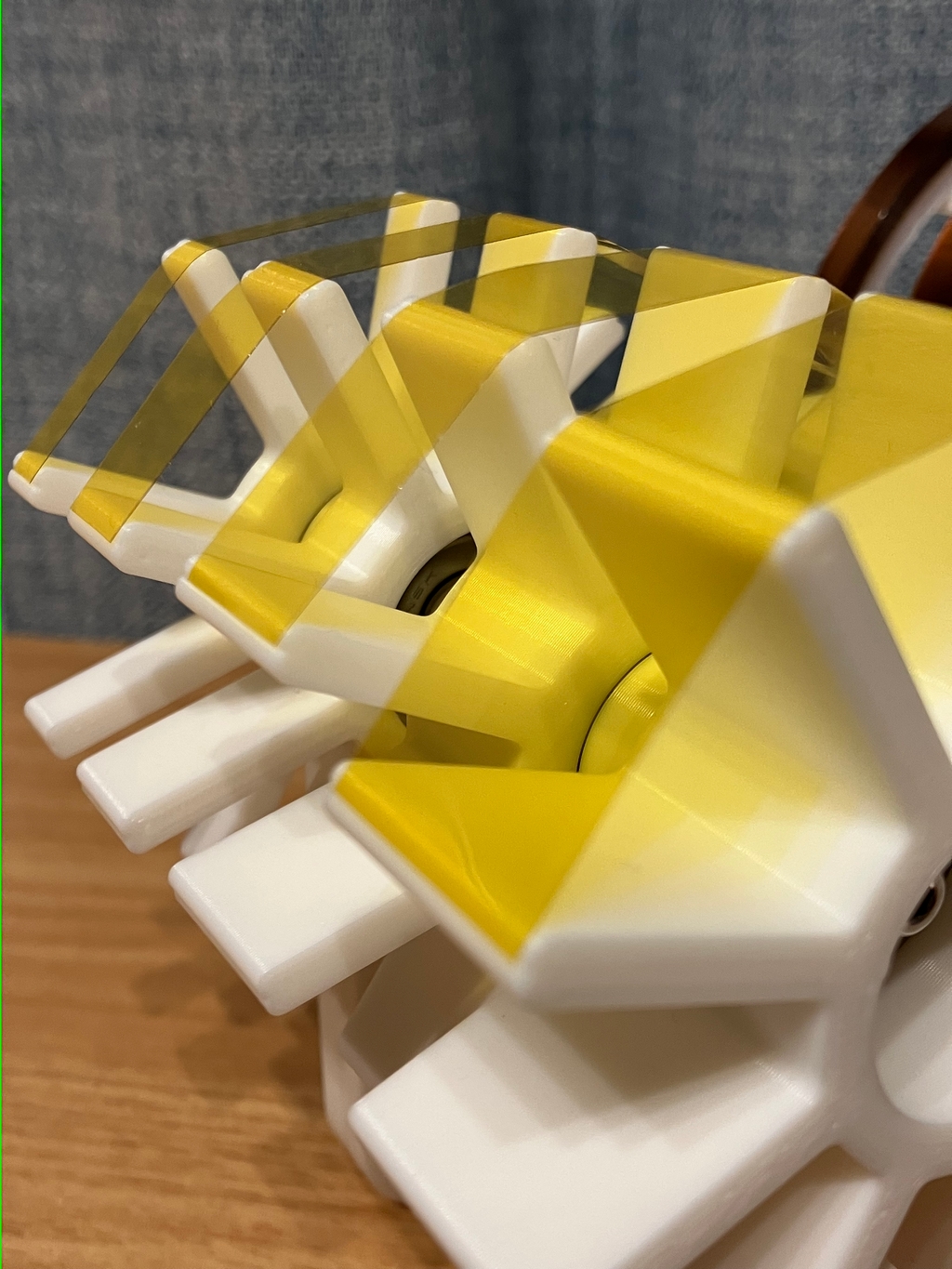

There is tiny groove on each "arm" allowing easy cutting with knife. Spacing is 25mm.

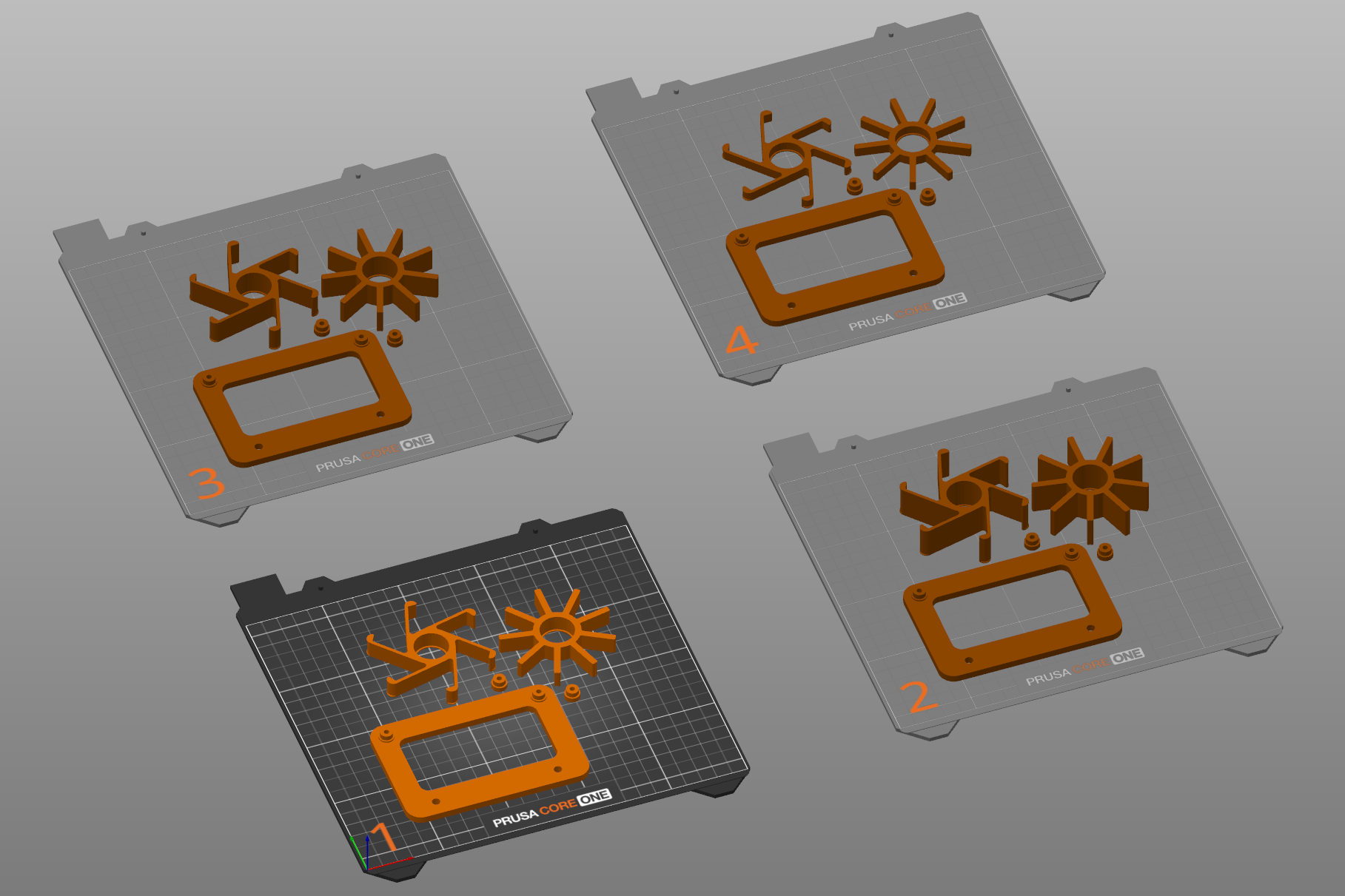

4 different widths: 5mm, 10mm, 15mm, 20mm.
Each set need:
- M3 nut (x2)
- M3x16 screw (x2) // M3x15 works too
- 608ZZ bearing (x2) // you could print your owned 8x22x7 brushing
Secure to 20x20 alum extrusion using two 5mm holes at bottom of side frame.
I do double stacks on each side to form 4 taps mount, using single 20x40x100mm alum extrusion.
Designed to be printed with 0.25mm height.
