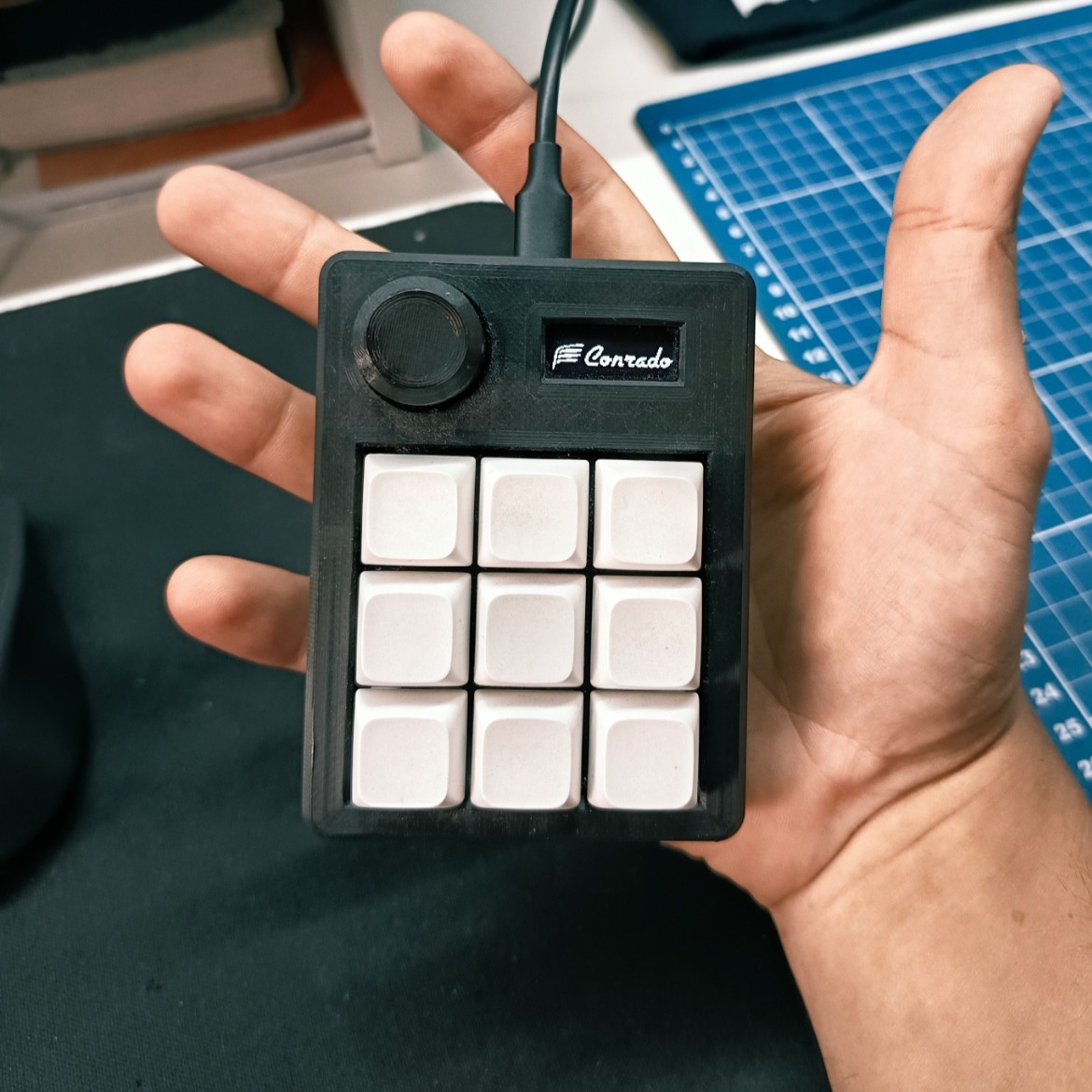

Custom macro keyboard
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Computers
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Bill of Materials (BOM)

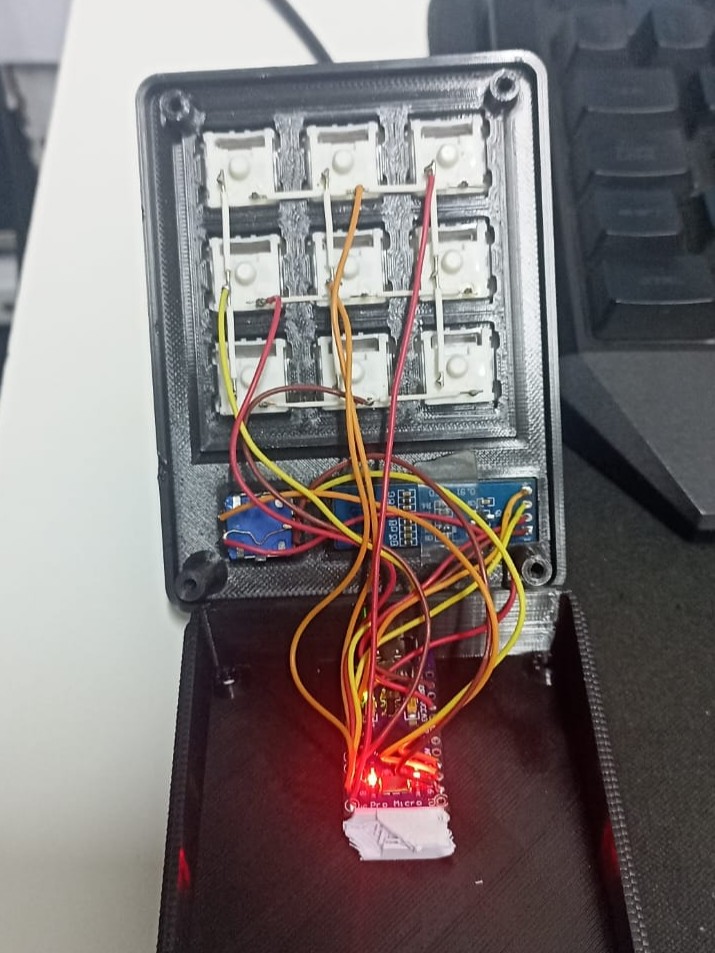

Controller: 1x Arduino Pro Micro (ATmega32U4).
Switches: 9x Outemu Red Mechanical Switches.
Display: 1x 0.91" OLED Module (128x32, I2C).
Encoder: 1x EC11 Rotary Encoder.
Keycaps: 9x 1U Keycaps.

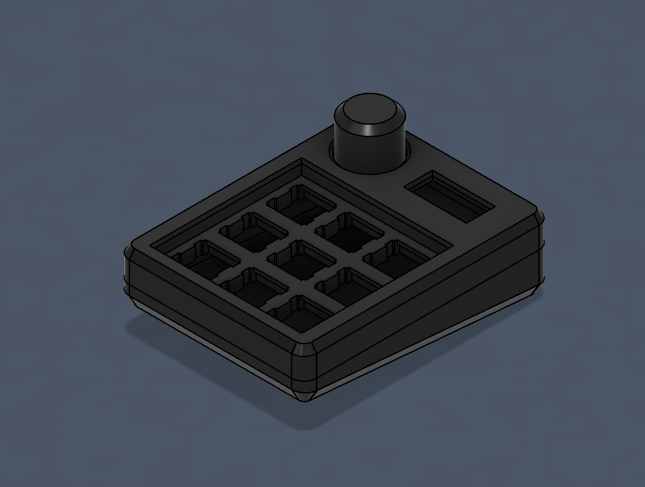

Print Settings
Printer: Printed on an Ender 3 Neo.
Layer Height: 0.2 mm.
Material: All parts were printed in Black PLA.
Infill: 10% Gyroid.
Supports: Required for both the Top and Bottom cases.
Special Note: The Rotary Encoder Knob should be printed with at least 3 solid bottom layers to ensure structural durability for the fit.
