Resin Funnel Insert Filter
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Accessories
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

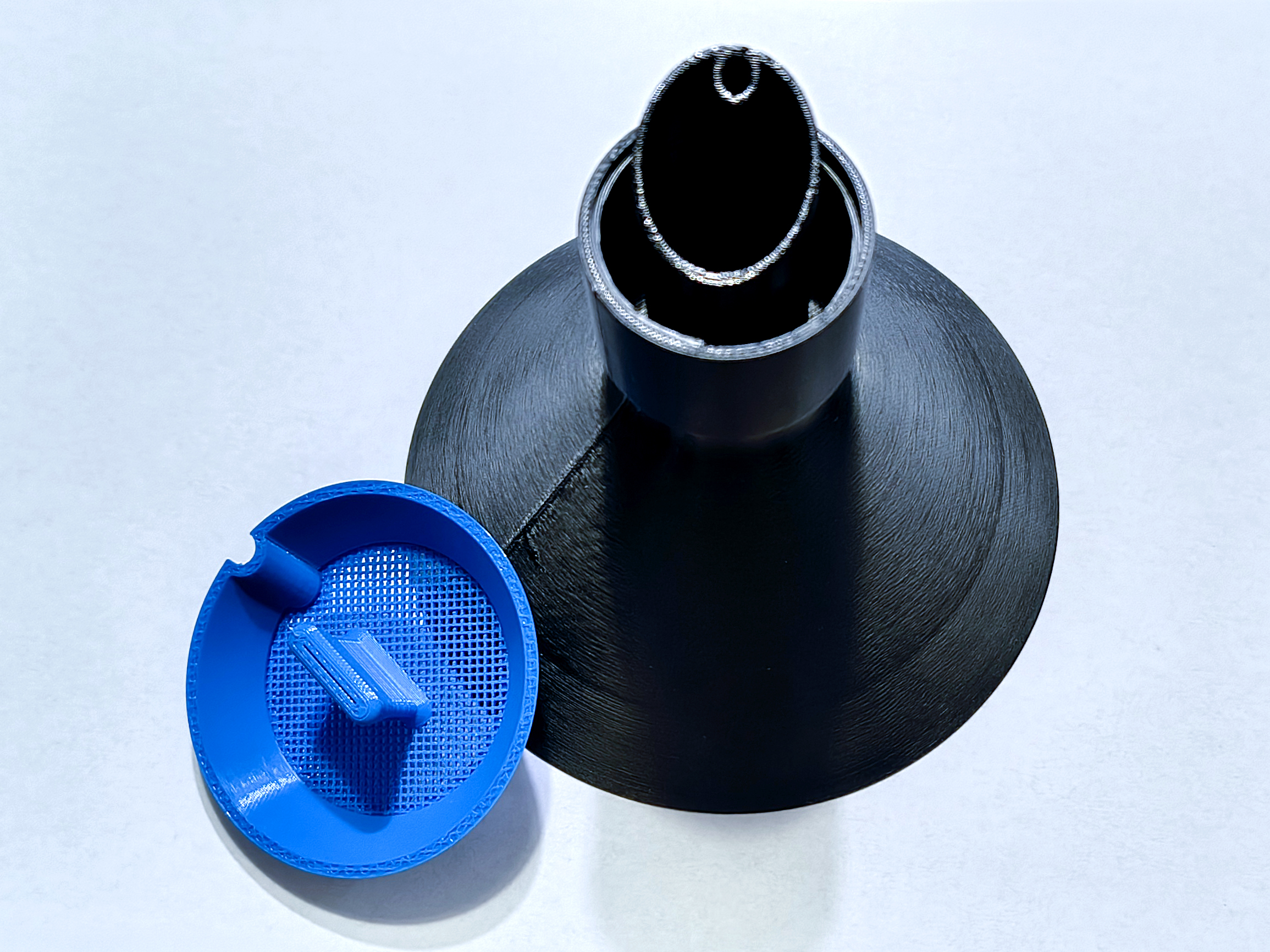

This insert filter is designed to fit into the Funnel for resin bottles by Anycubic and helps capture cured particles and debris when pouring resin back into the bottle. The model is based on Resin Filter with printed screen.
🔧 Model Parameters
Height: 12 mm
Mesh thickness: 1 mm
Recommended material: PETG (chemical‑resistant and durable)

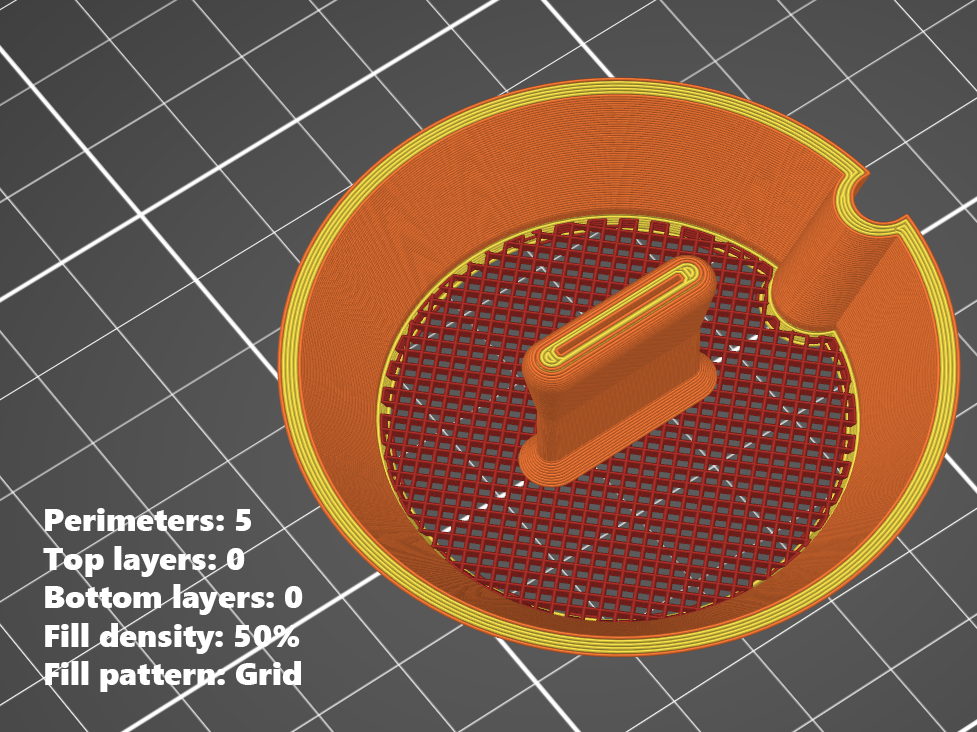

🖨 Print Settings
Perimeters: 5
Top/Bottom layers: 0
Infill: 50%, grid
No supports
0.4 mm nozzle recommended
Infill percentage can be adjusted depending on how fine you want the mesh to be.
💡 Notes
The printed mesh makes the filter reusable and easy to wash.

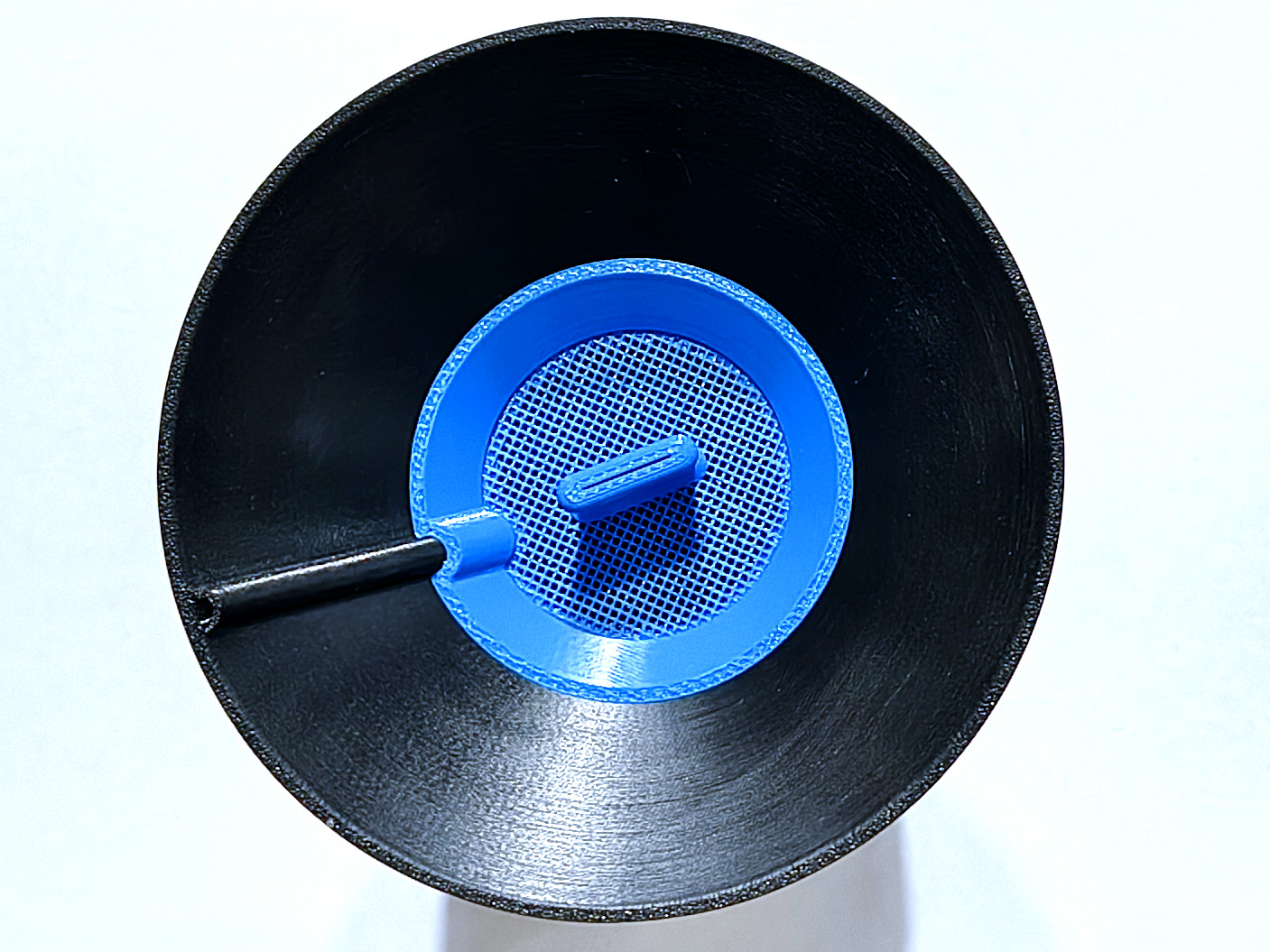

Fits directly into the funnel.
