Optimized TPU O-Ring
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Mechanical Parts
- License
- GNU General Public License v2.0
O-Ring optimized to be printed in TPU. Has a flat bottom and a maximum overhang of 45 degrees.
Attached, there are STLs for all combinations of the following inner diameters (id) and cross sections (width).
width (mm): 2, 3, 4, 5, 6, 8;
id (mm): 5, 6, 8, 10, 12, 15, 18, 20, 22, 25, 28, 30, 40, 50, 60, 70, 80.
🖨 Print settings recommendation:
0% infill;
Adjust number of perimeters to change hardness.

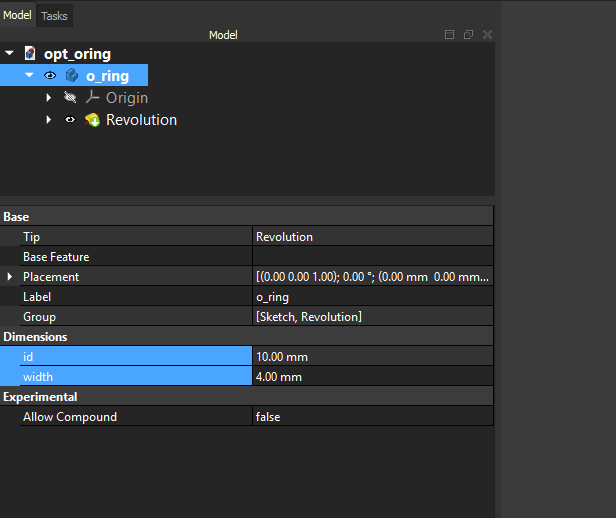

FreeCAD file included for further customization.
