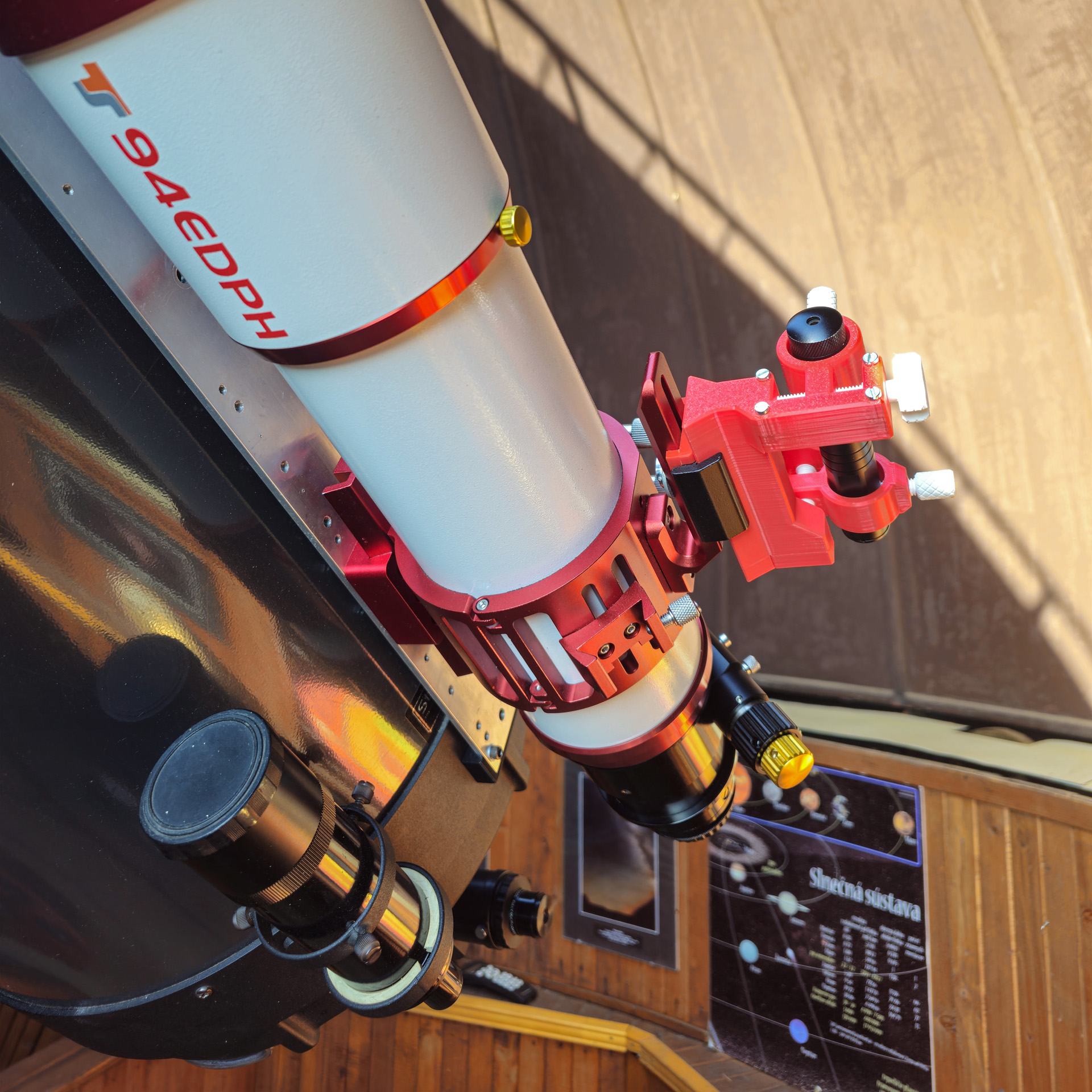

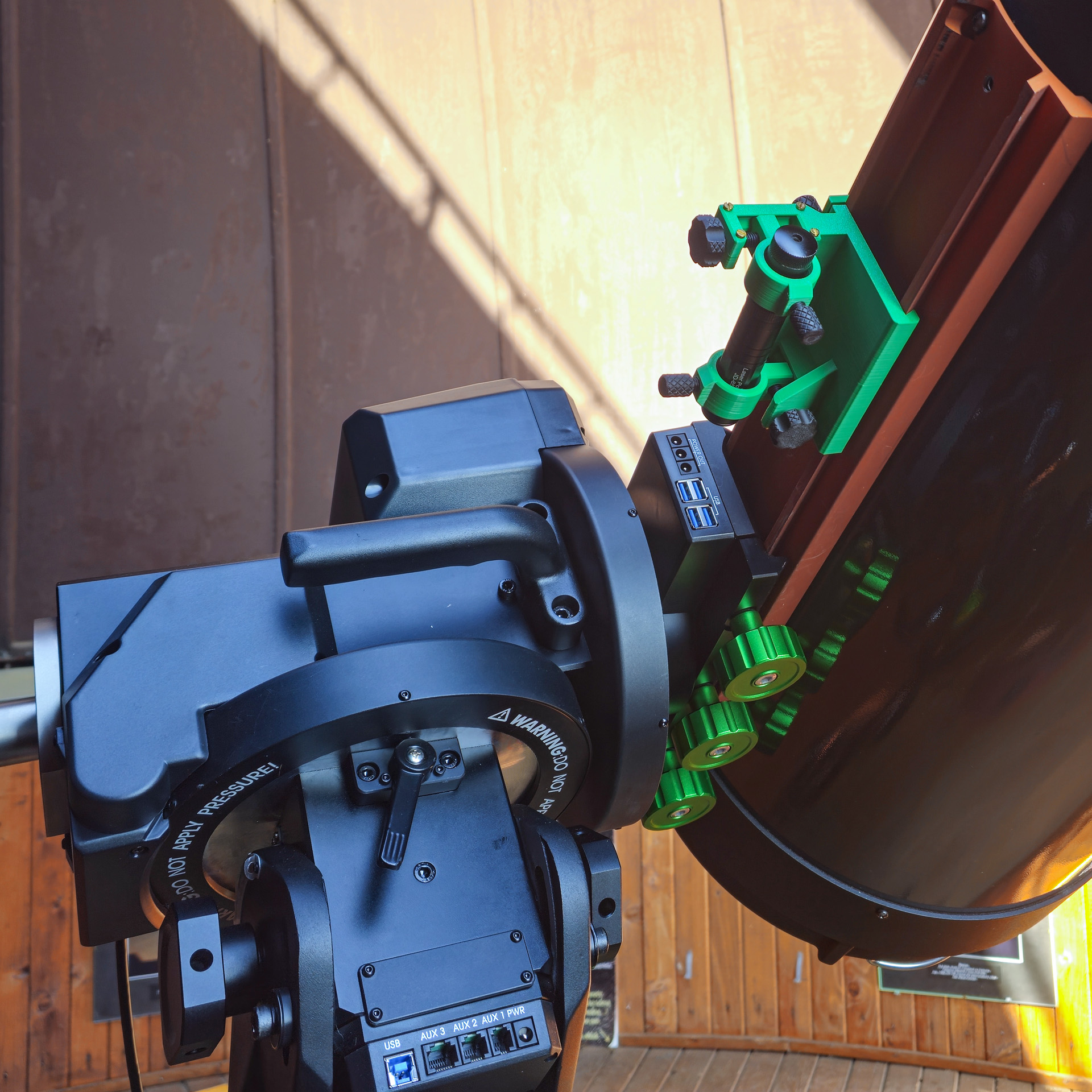

There are two versions of the models available, designated as "small dovetail" and "big dovetail".
The holder is suitable for laser pointers up to 22 mm in diameter.
The guide screws allow adjustment within a range of +/- 8 degrees in both axes.

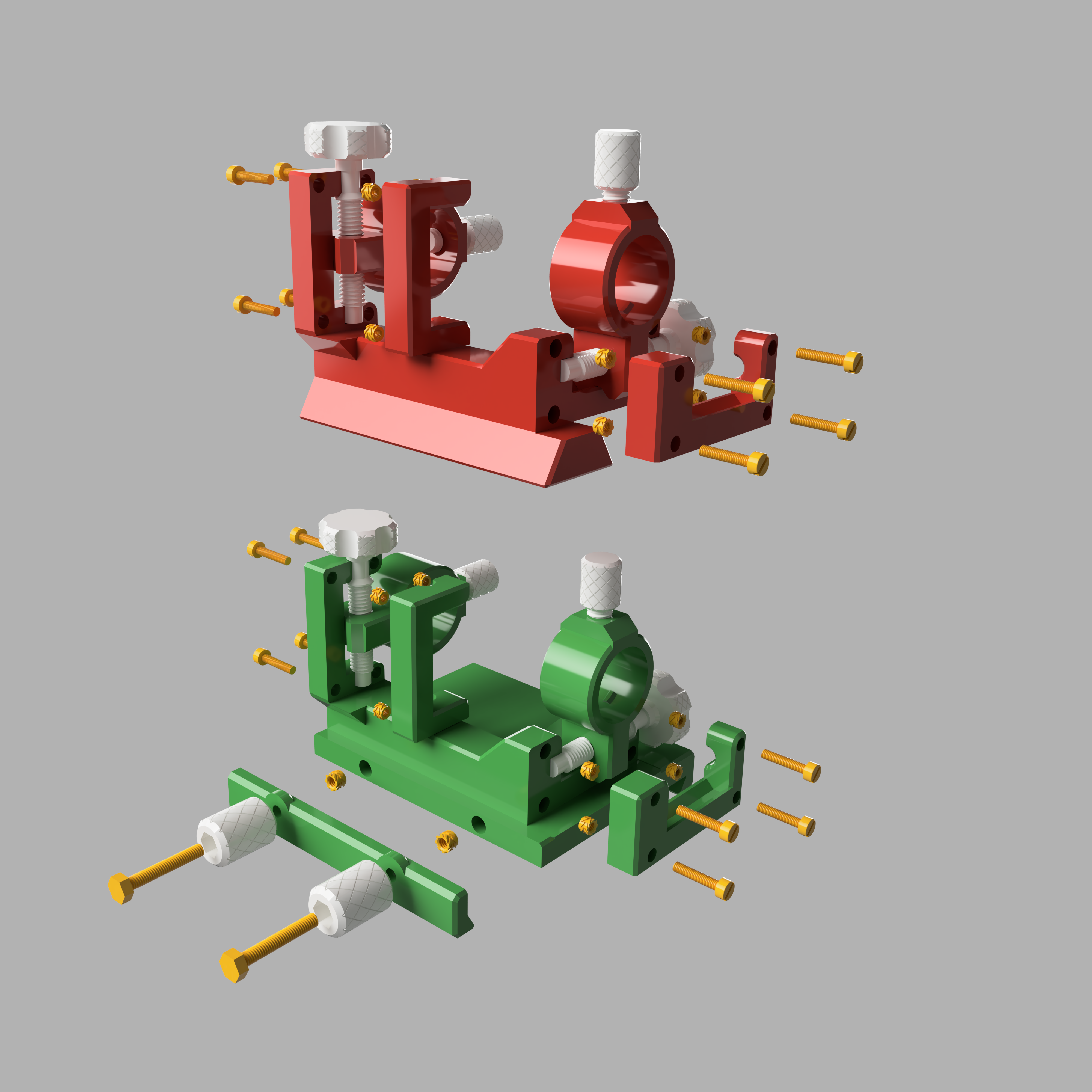

The holder uses 8 x M3x16 screws. The big dovetail lock has two M4x30.
Heat-Insert Nuts are inserted into the holes.

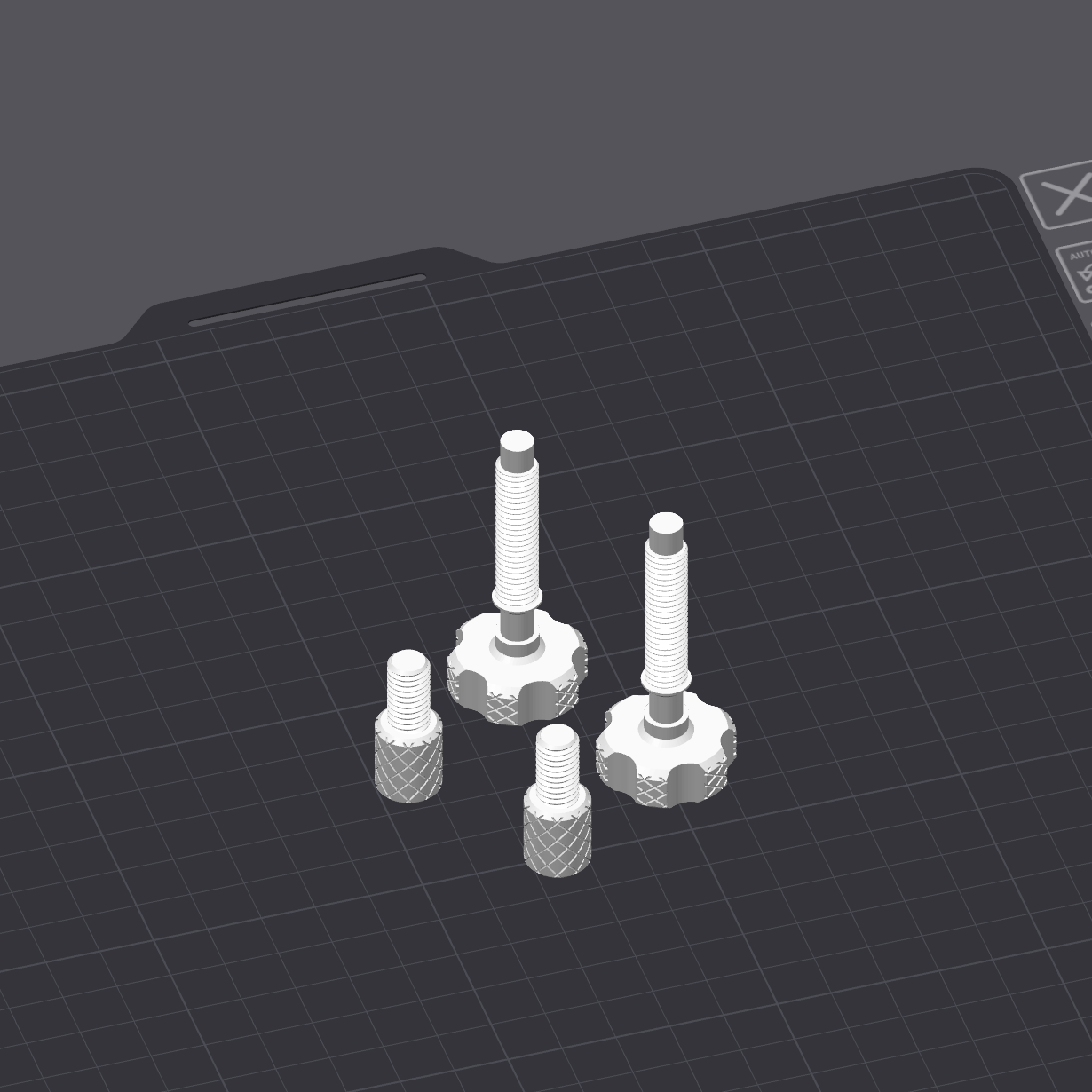

The large threads are M8. If necessary, cut them with a screw tap - slowly to avoid overheating and damaging the plastic.

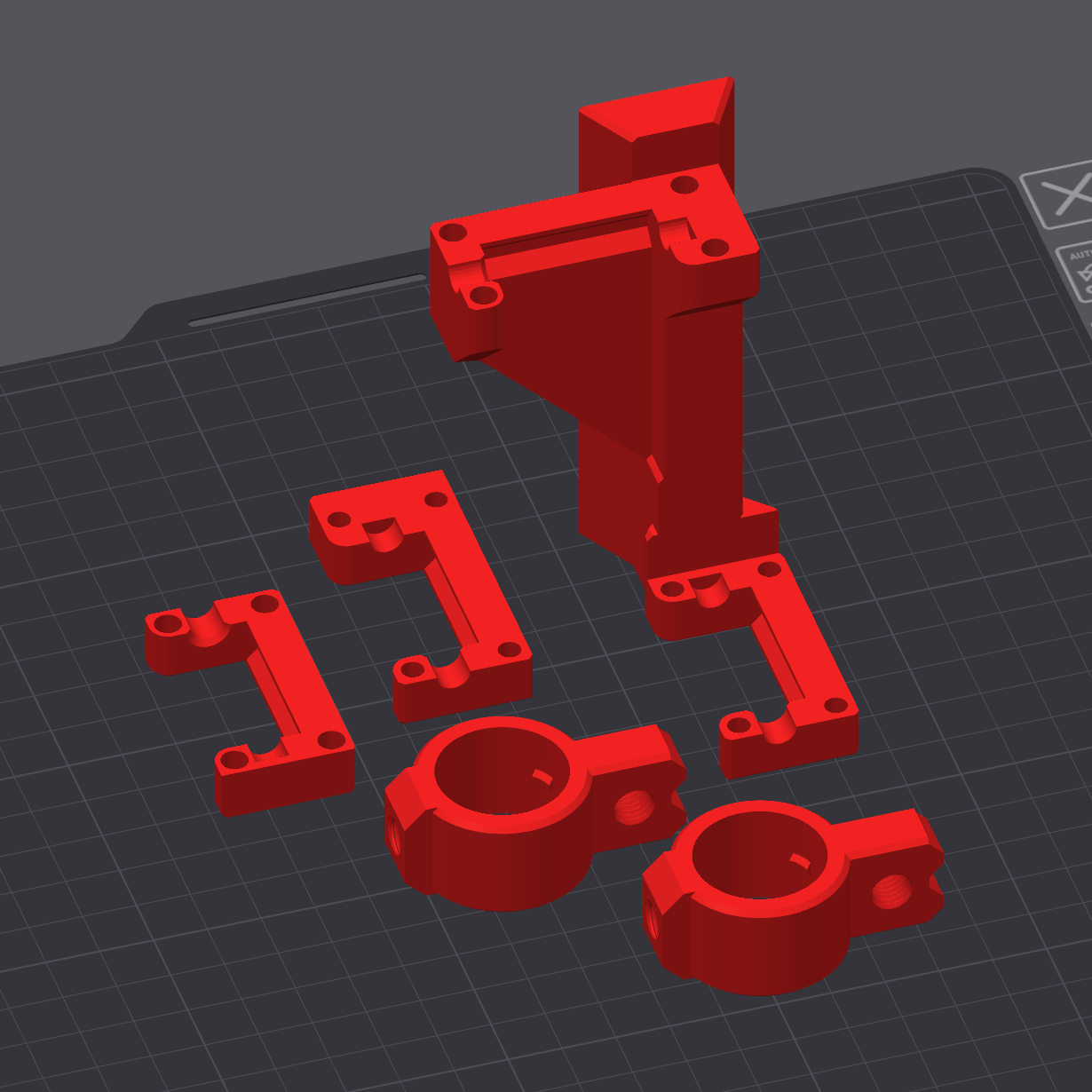

No support is required when printing.
