Variable Power Supply Case
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution — Noncommercial

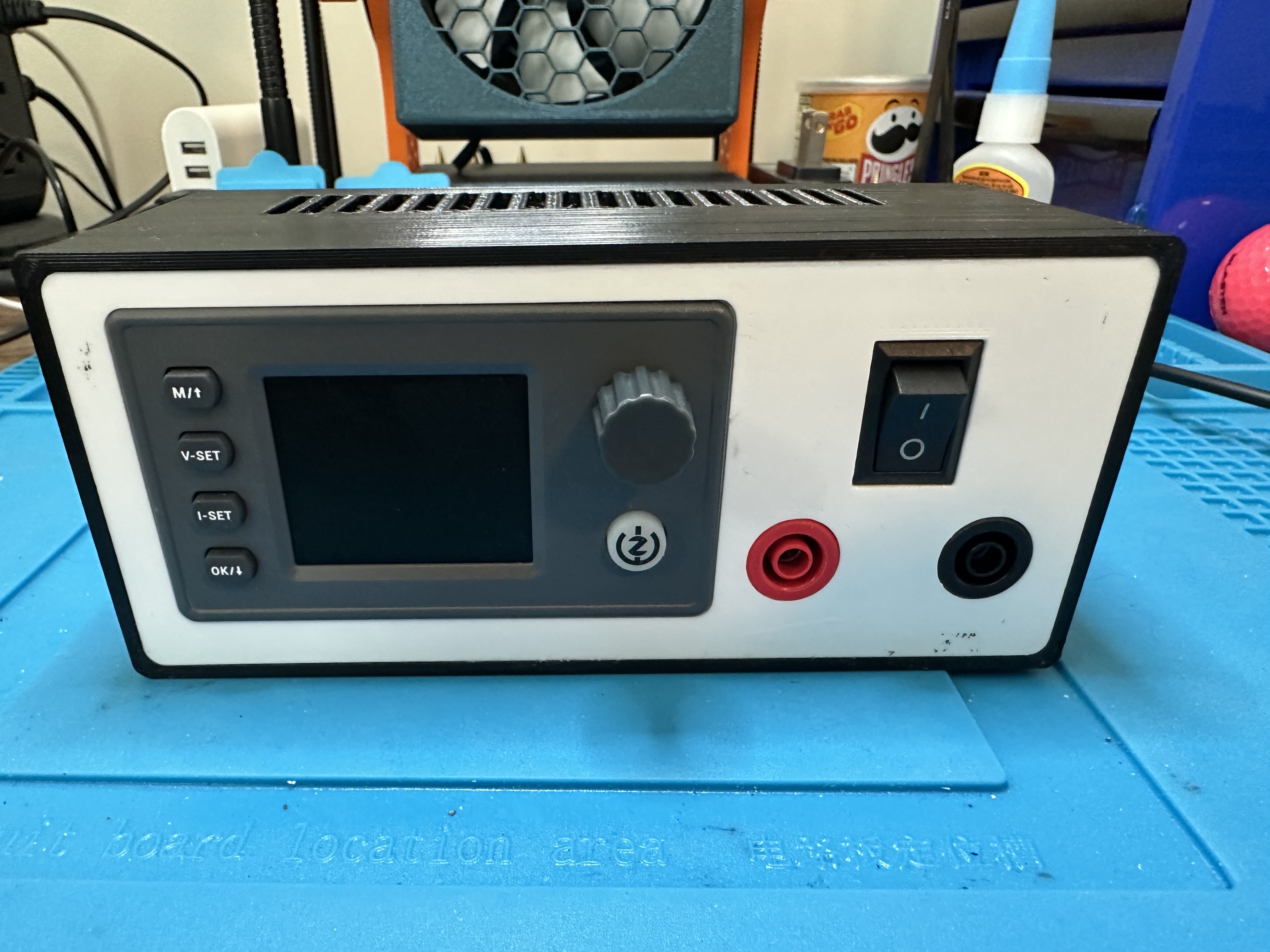

This is a Variable Power Supply which uses a laptop power brick. The case requires no hardware but I did superglue the front and back faces on. The buck converter I used is from Amazon.
I use ferrule and Spade connectors so no soldering is required. Make sure the wire you're using is capable of handling the current you plan on using.
Updates:
Added Step Files: please let me know if they are trash. This was originally designed in Tinkercad and I imported the STLs into OnShape in order to export the Step Files. Not sure how useful that is. Ultimately I'm going to use this a learning object for OnShape or Fusion.

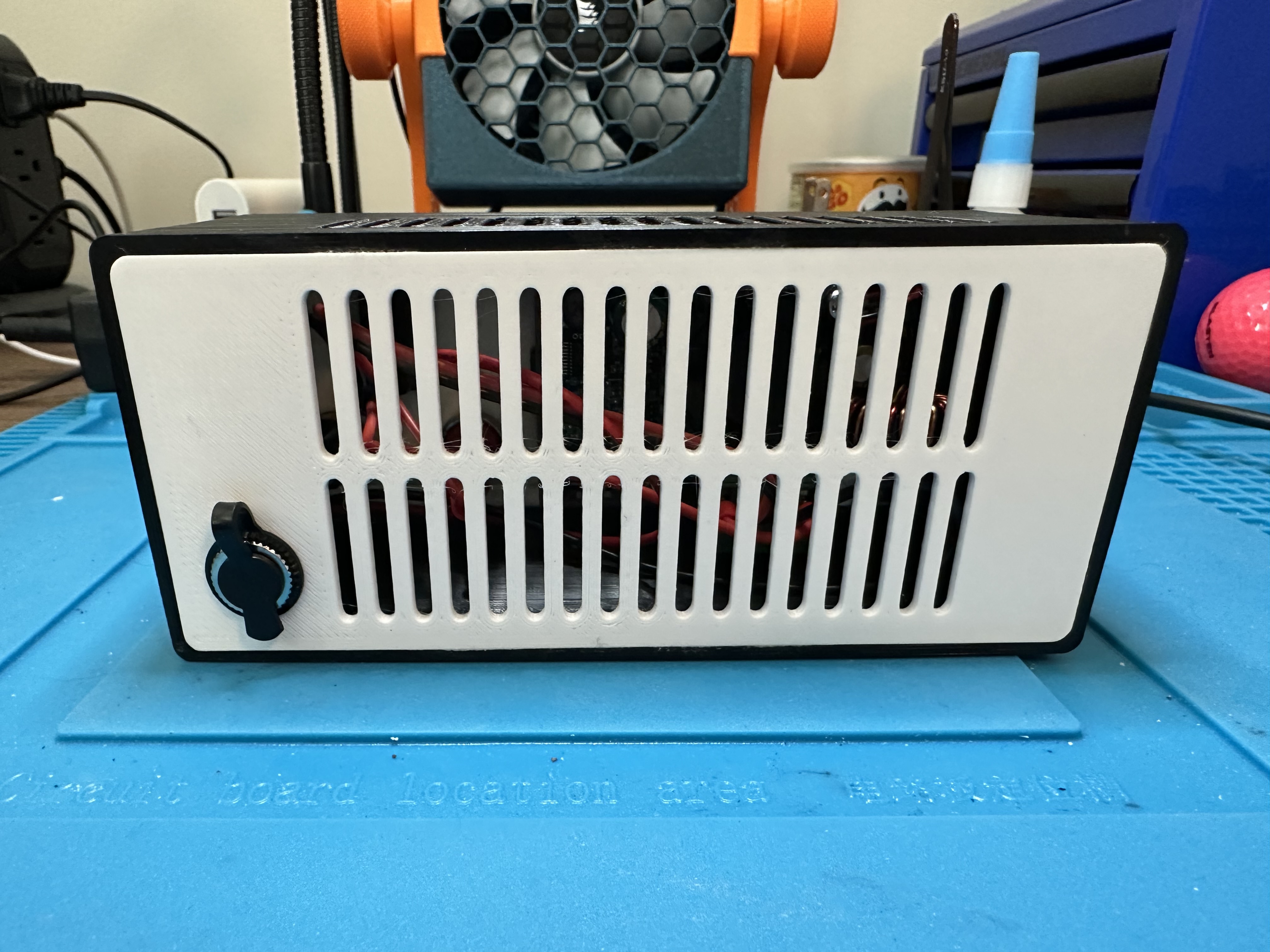

Added a version 2 of the faceplates and body the previous version had to be glued. The version 2 has 4 clips which secure it in place with no additional glue or hardware needed.
Reduced the dimension of the faceplates by 0.1 mm to provide a better fit.
The version 2 faceplates can be removed by gently prying with a screw driver from the top or bottom edge and then working around the perimeter of the plate.
BOM:
https://www.amazon.com/dp/B0F1MDPSWZ?ref=ppx_yo2ov_dt_b_fed_asin_title
90W DC DC Buck Boost Converter CNC Regulated Power Supply Module Adjustable Boost/Buck with Protection Constant Voltage Constant Current Controller.
https://www.amazon.com/dp/B0D3Q2BQJZ?ref=ppx_yo2ov_dt_b_fed_asin_title
Heyous 10PCS Banana Jack Female Panel Mount Banana Socket Terminal Adapter Suitable for 4mm Banana Plug Connector
https://www.amazon.com/dp/B0C8SHDJPT?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
6Pcs On/Off Boat Rocker Switch 2 Pin 2 Positions Snap 12V 250V/15A 125V/20A Rocker Toggle Switch for Car Auto Boat Household Appliances
https://www.amazon.com/dp/B07MJ4YWQ8?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Tegg 5pcs DC-099A DC Female Panel Mount Charging Wire Threaded Socket Jack Connector with Dustproof Plug IP67 68 Water-Proof Large Current Power Adapter 5.5x2.5mm
Any 12v+ power brick with a 5.5x2.5mm jack
Printing:
Material: PLA / PETG (Haven't tried it with ABS or ASA)
Grid Supports everywhere for faceplates
Grid Supports only from build plate for the body
3 walls
3 top and bottom layers
15% infill
