Stacking Storage Tray Collection (10 sizes)
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Organizers
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

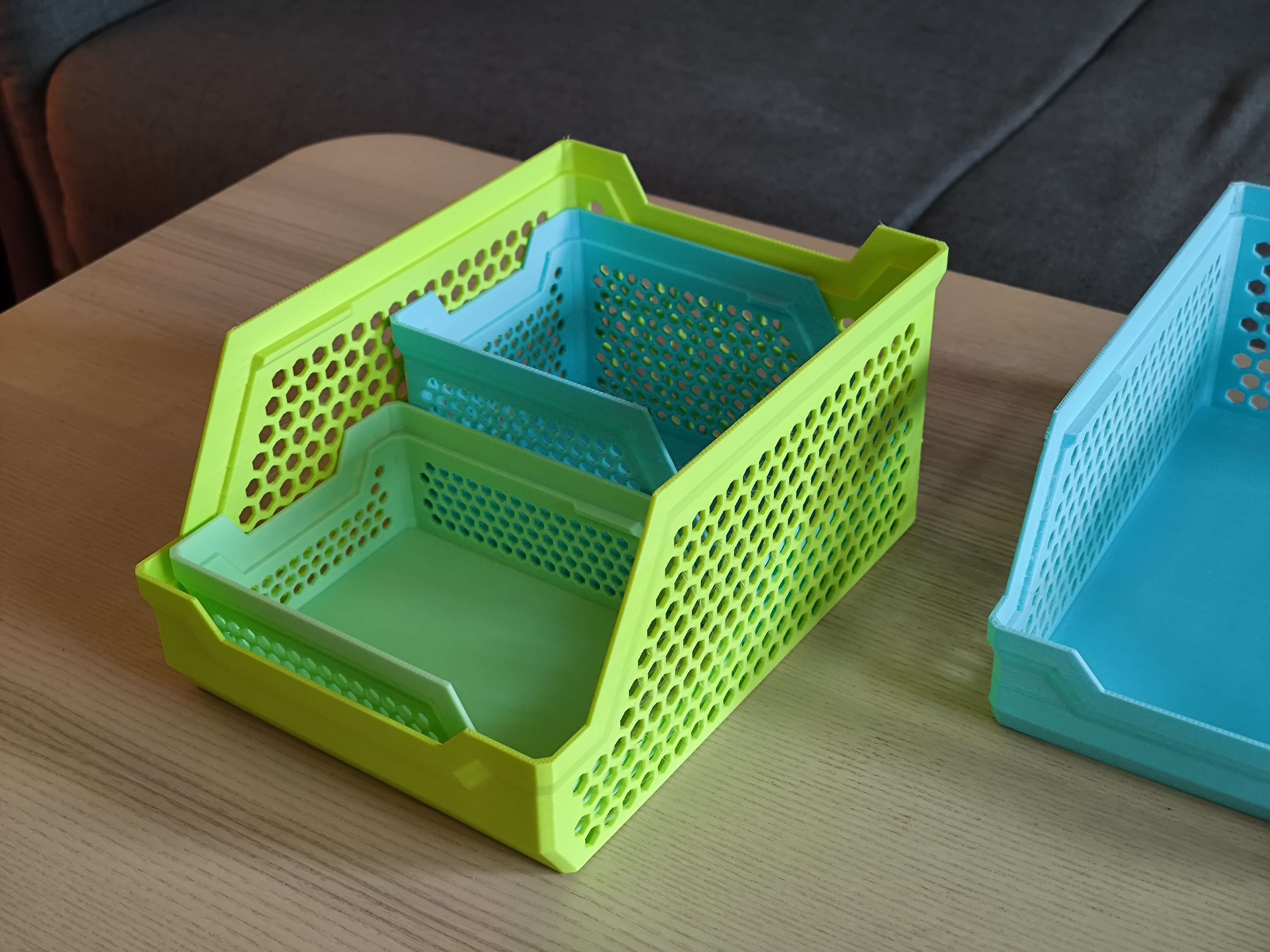

This collection is designed for straightforward, space-saving organization.

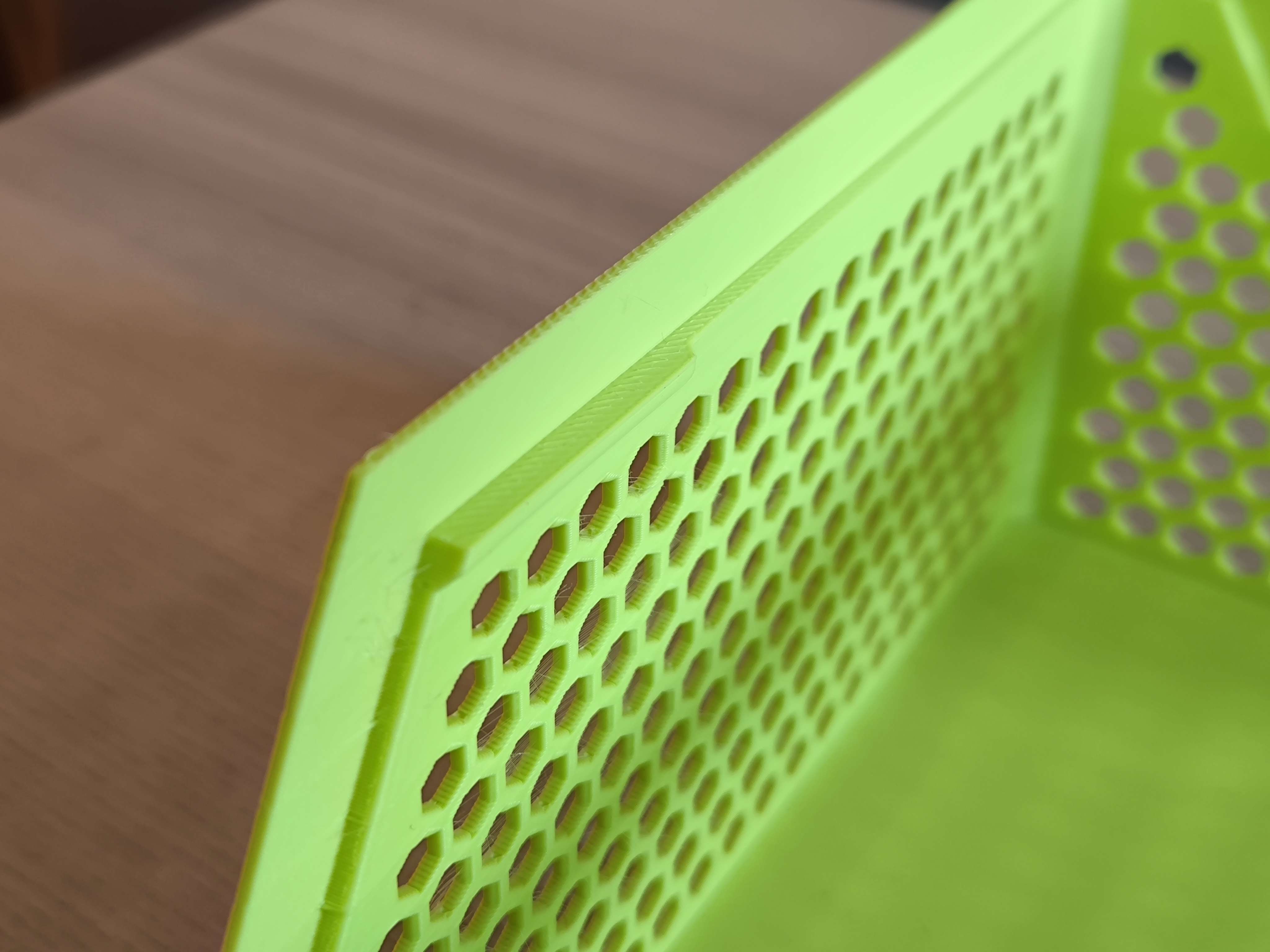

It includes 10 different sizes that stack securely thanks to a widened front lip, keeping your workspace tidy and accessible.
Nesting Design: Smaller trays fit inside larger ones for added versatility.
(Note: Due to the front wall geometry, the XL/XXL 140x200 trays won't fit two 92x131 trays side-by-side).Material Efficient: The models are optimized to use as little filament as possible while remaining sturdy enough for daily use.
Compatibility
This model is inspired by Eternity Labs Stacking Storage Basket 140x200 and 92x132.
It is fully compatible and can be stacked on top of each other.
Dimensions
Large Baskets 140x200 [Outer (min. Inner)]
Size | Width [mm] | Depth [mm] | Height [mm] |
|---|---|---|---|
S | 144 (140) | 204 (193) | 71.6 |
m | 144 (140) | 204 (190) | 86 |
L | 144 (140) | 204 (187) | 100.4 |
XL | 144 (140) | 204 (184) | 114.8 |
XXL | 144 (140) | 204 (181) | 129.2 |
Small Baskets 92x131 [Outer (Inner)]
Size | Width [mm] | Depth [mm] | Height [mm] |
|---|---|---|---|
S | 96 (92) | 135 (125) | 47.1 |
m | 96 (92) | 135 (123) | 57.2 |
L | 96 (92) | 135 (121) | 67.3 |
XL | 96 (92) | 135 (119) | 77.4 |
XXL | 96 (92) | 135 (117) | 87.5 |
Print Settings
0.28 mm layer height
0.6 mm layer width
3 walls
15 % Cubic Infill
Arachne Wall Generator
1 additional slow layer
10mm Mouse ear brims
Can be printed in PLA
