Pixel 10 Pro Bike Phone Holder
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Public Domain

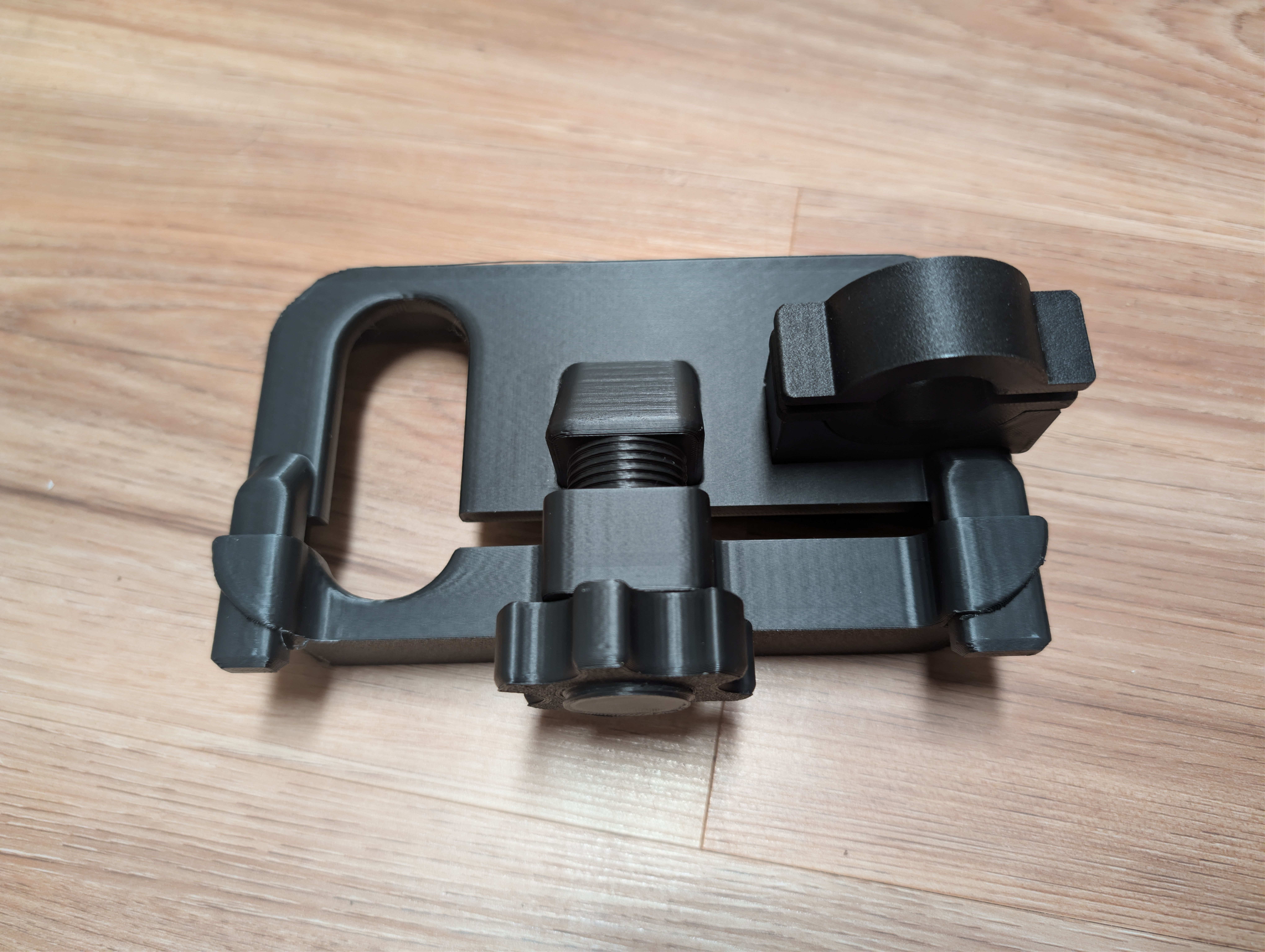

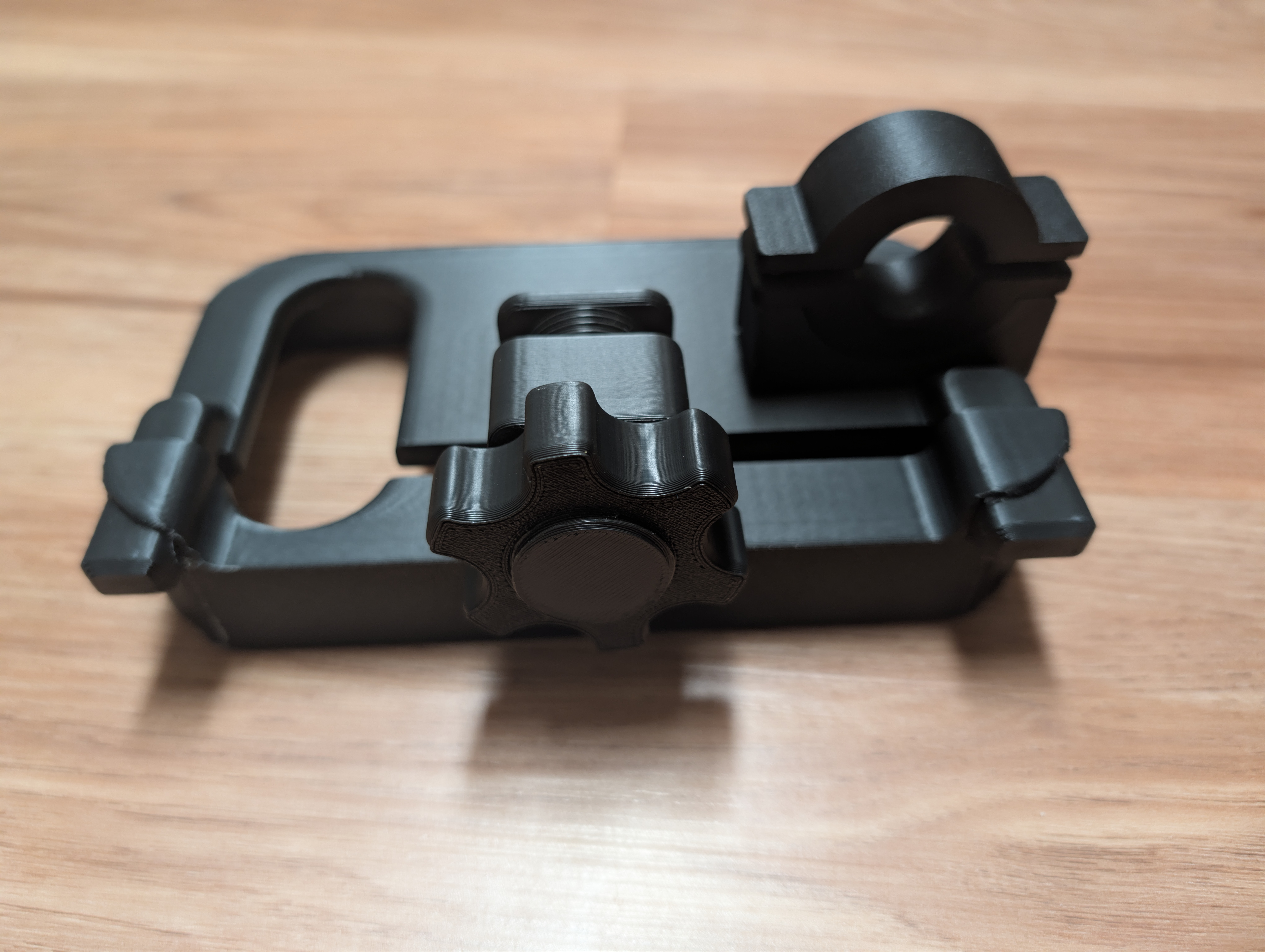

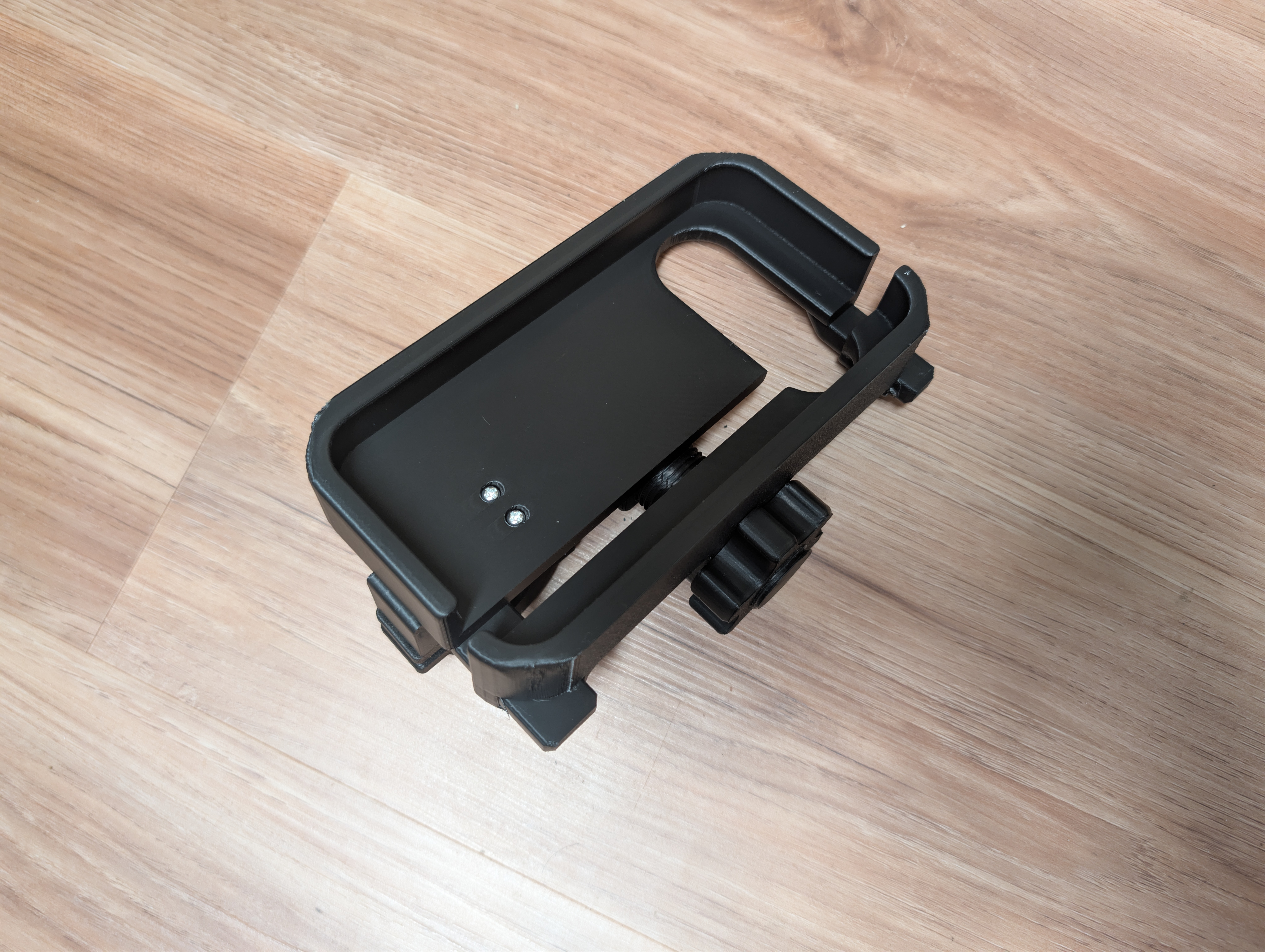

This is a bike phone holder intended to work with the Pixel 10 Pro. The original model is designed to work with a bike handlebar diameter of 22 mm, but this can be easily changed in Fusion 360 with one parameter.
For printing, tree supports are advised for small holes, but they are not needed for the threads.

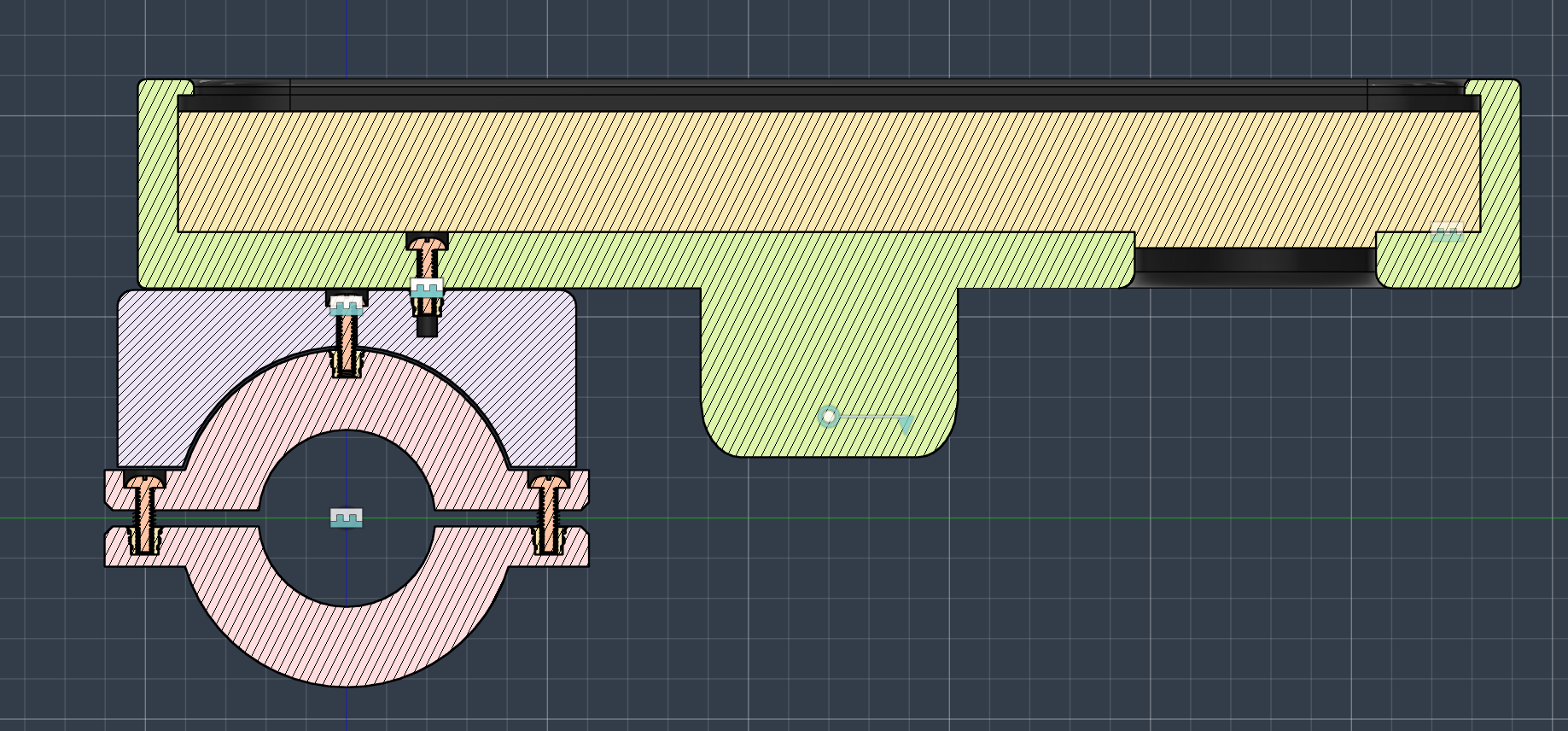

For assembly, refer to the .step or .f3d file to see where the heat set inserts and the screws are supposed to go. Most of it is very self-explanatory.
Required Materials:
8x - M3 heat seat insert
8x - M3 8mm screw
