I wanted to upgrade my Lowrider v3 to a Jackpot 3 controller but could not find a case I liked, so here is a remix of one of design8studio's excellent designs.
The three main differences from the original are:
It's for the Jackpot3!

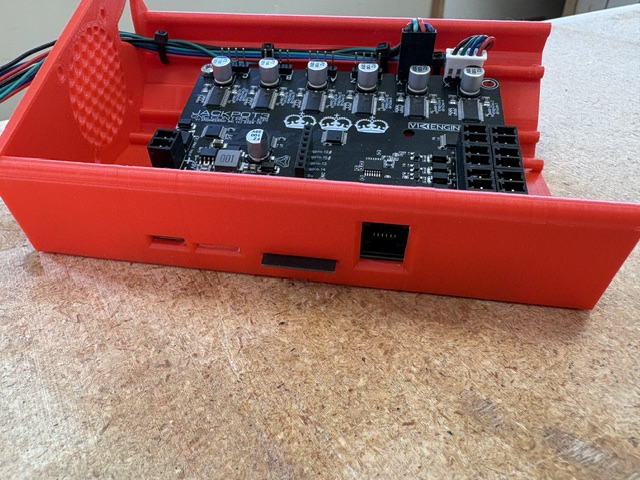

Front access to ports. The Jackpot3 has all the ports on one edge of the board. The case allows access to the USB port, the SD card slot, and the RJ12 jack from the front of the case. The WiFi antenna also protrudes from the front.

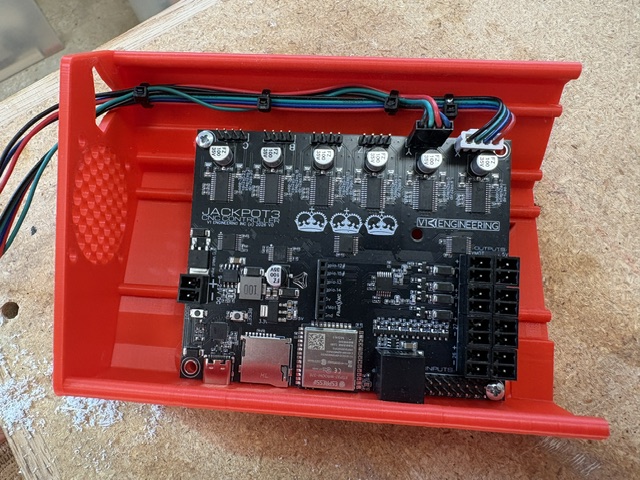

There are 4 internal "tie-down" rails (see photos for example). These have slots that will fit cable ties enabling neater internal wiring. There are 4 rails total - 2 along the back, and 2 running underneath the mounted board. You'll need small ties for these.

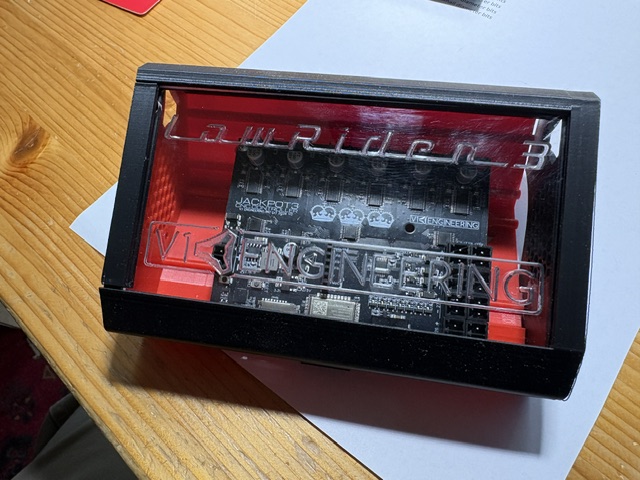

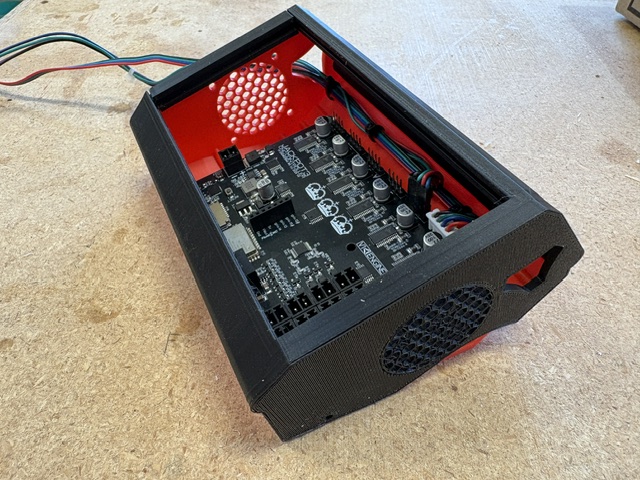

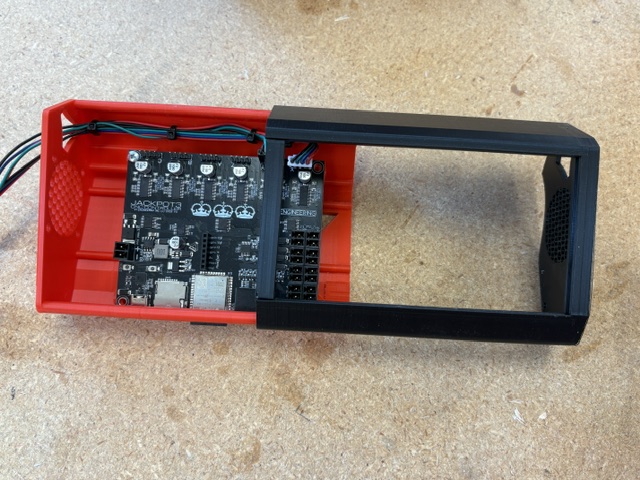

The same Plexiglas window designs used in the original should fit this model. There is a small end piece that holds the window in place, with a drop or two of CA glue. Like the original, it supports a 40mm square fan, if desired.
The Jackpot3 mounts with 3mm screws.
This is my second model on Printables - feedback is welcome!
