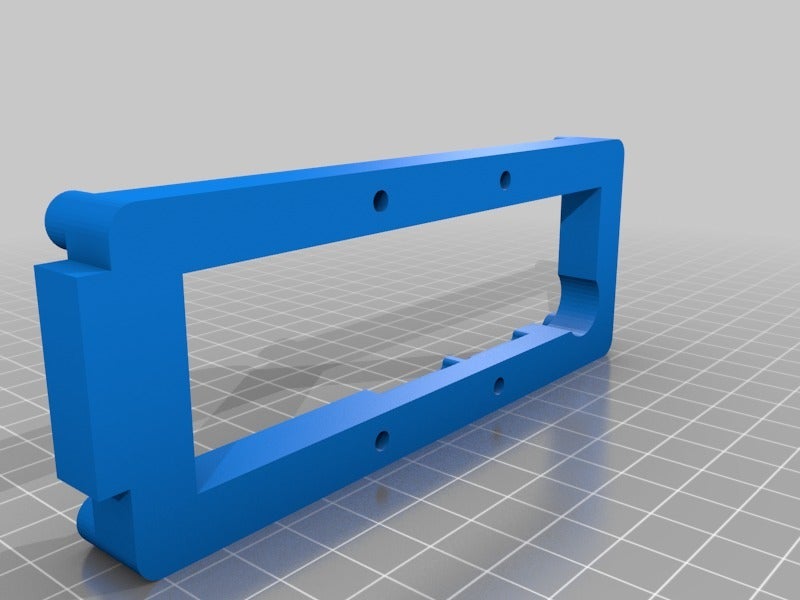

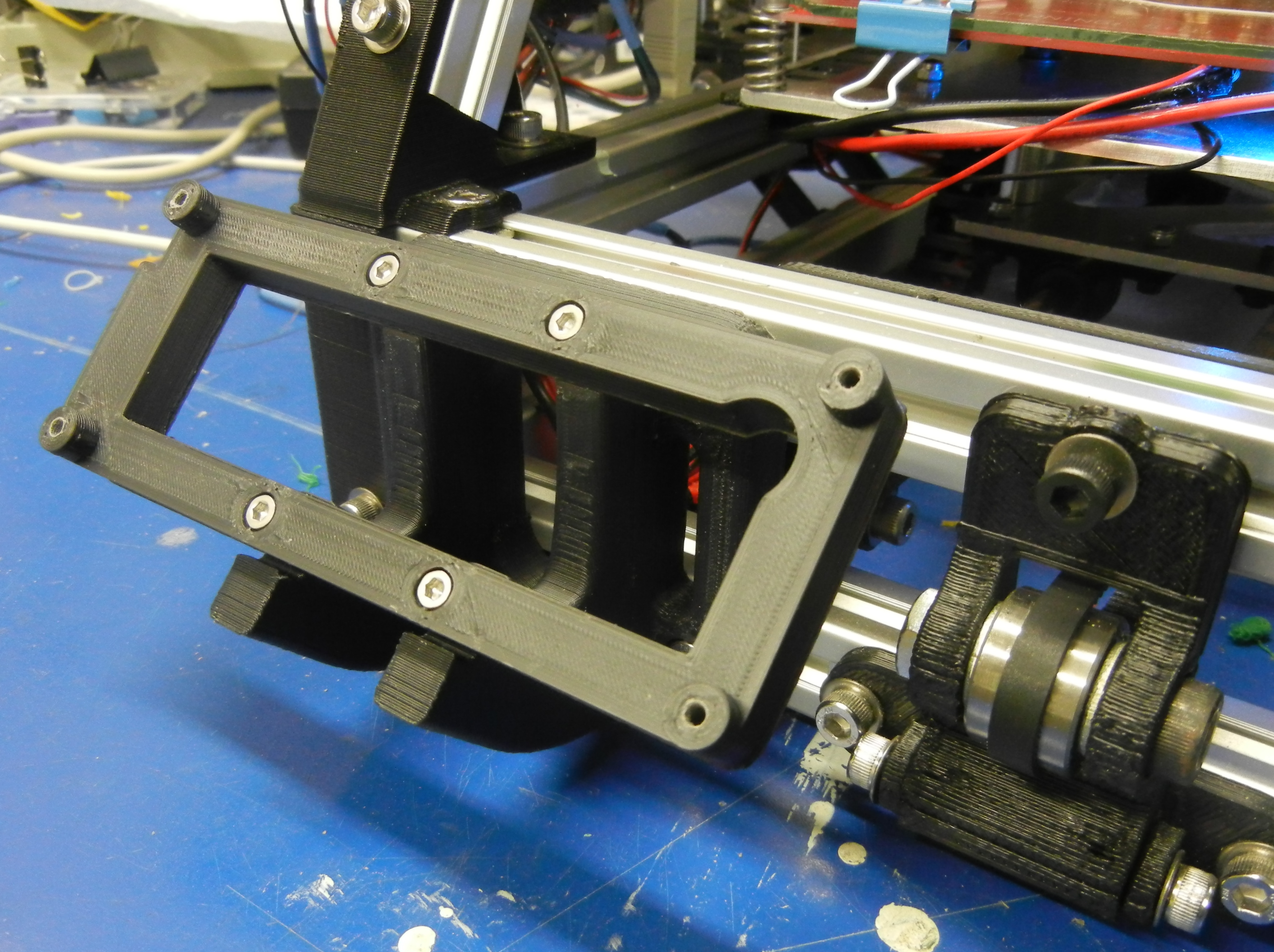

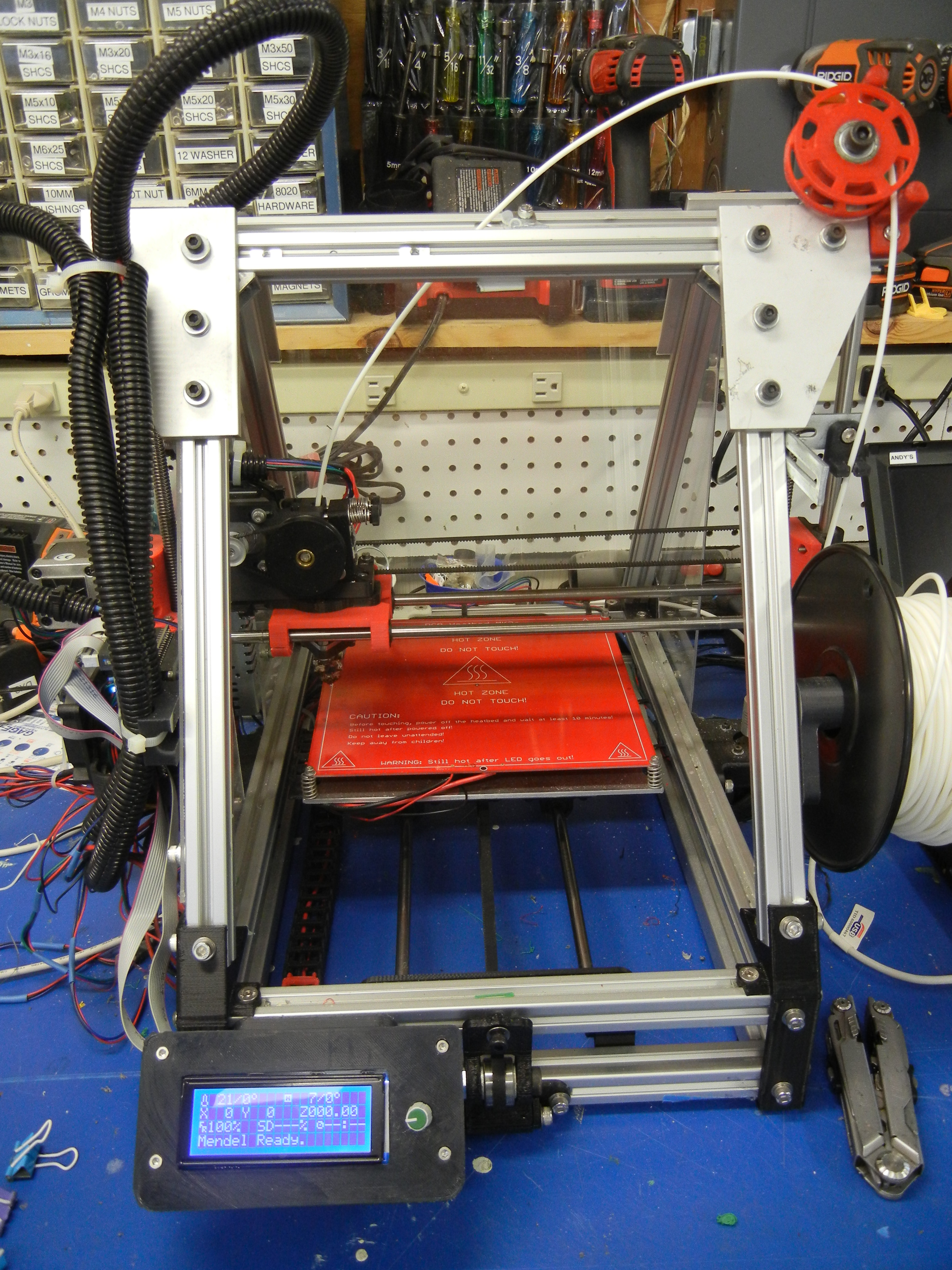

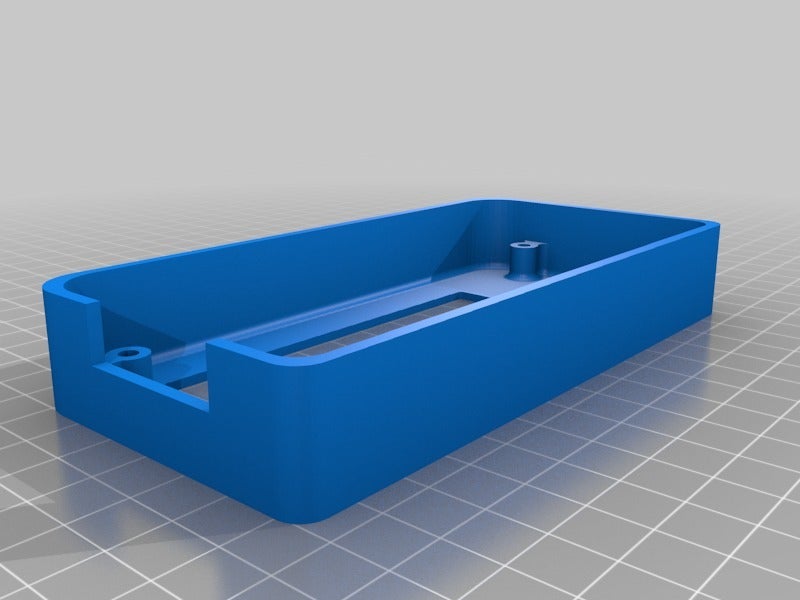

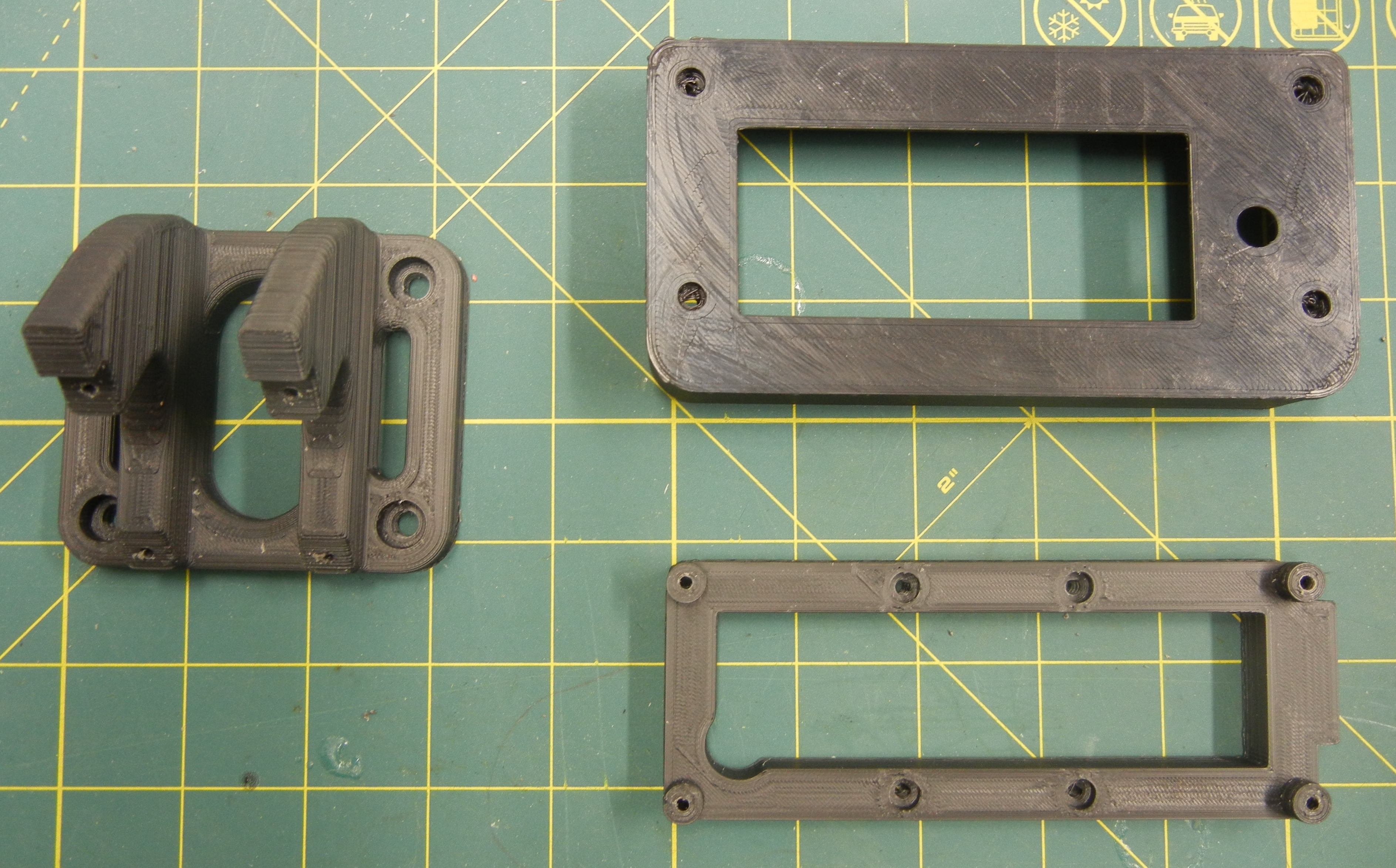

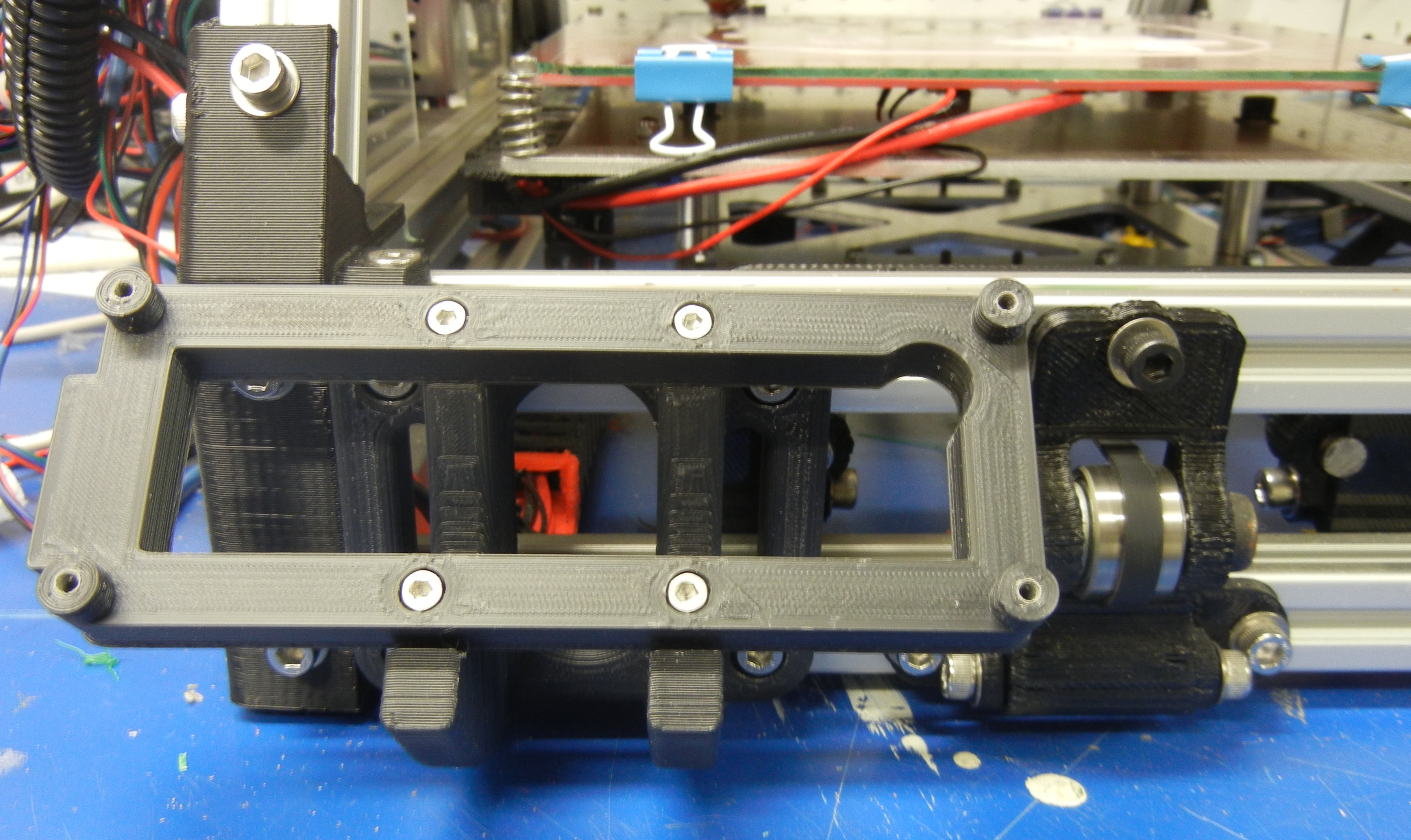

This is a heavy duty, rock solid mount to attach the Gadgets 3D LCD to a MendelMax or any other printer that uses extruded aluminum profile as its frame.
Original solid model files are in Solidworks 2013 format.

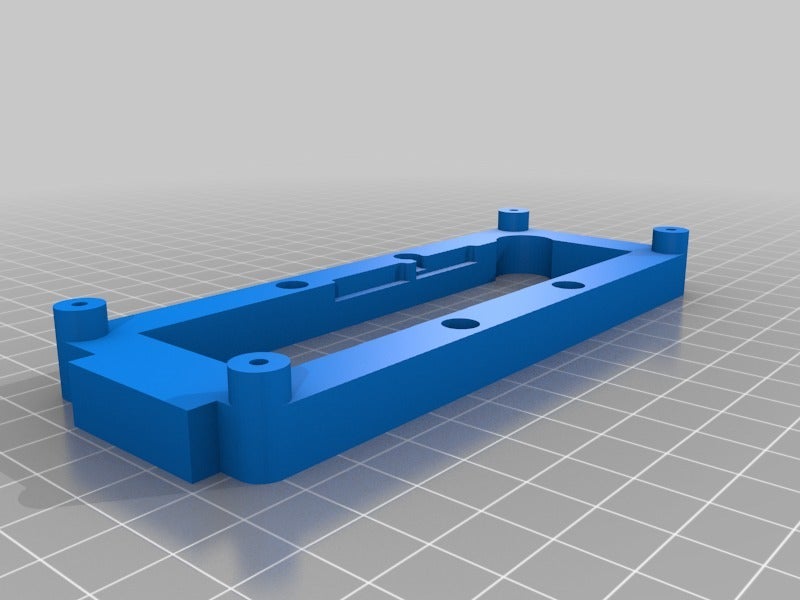

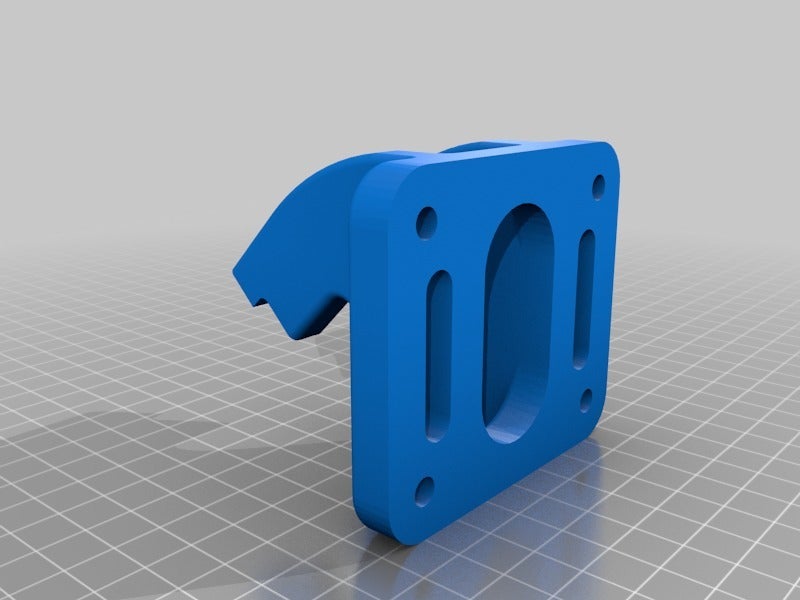

2014.06.21 Update: Added "reoriented" part files with the "bottom" down for the bracket and mount.
Print instructions
Category: 3D Printer Parts Instructions
Need:
4x M3x15mm (or so) SHCS
4x M5x10mm SHCS
4x M5 thread weld nuts or other appropriate hardware for aluminum channel
M3 tap
1) Tap appropriate holes for M3 screws
2) Assemble
