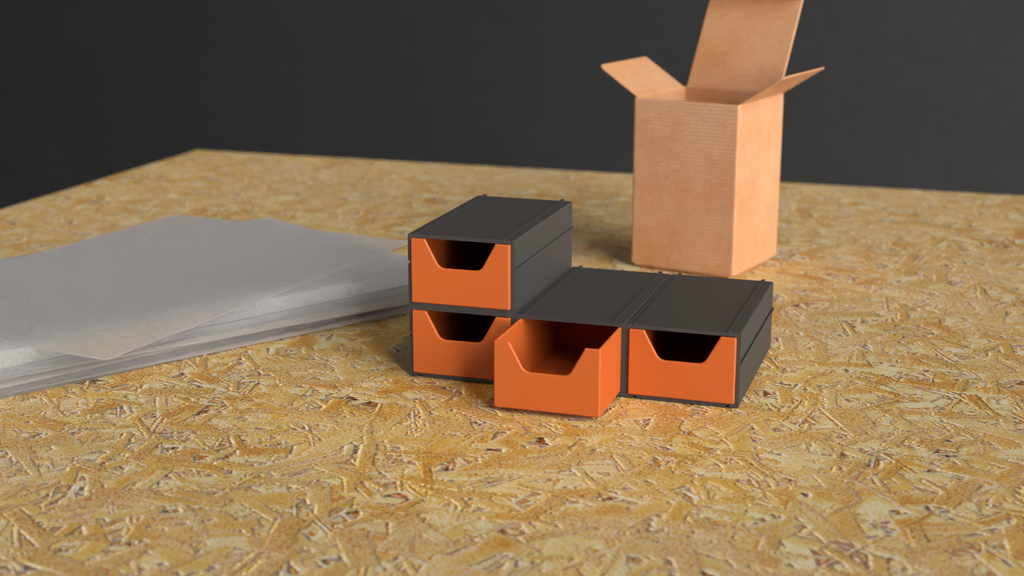

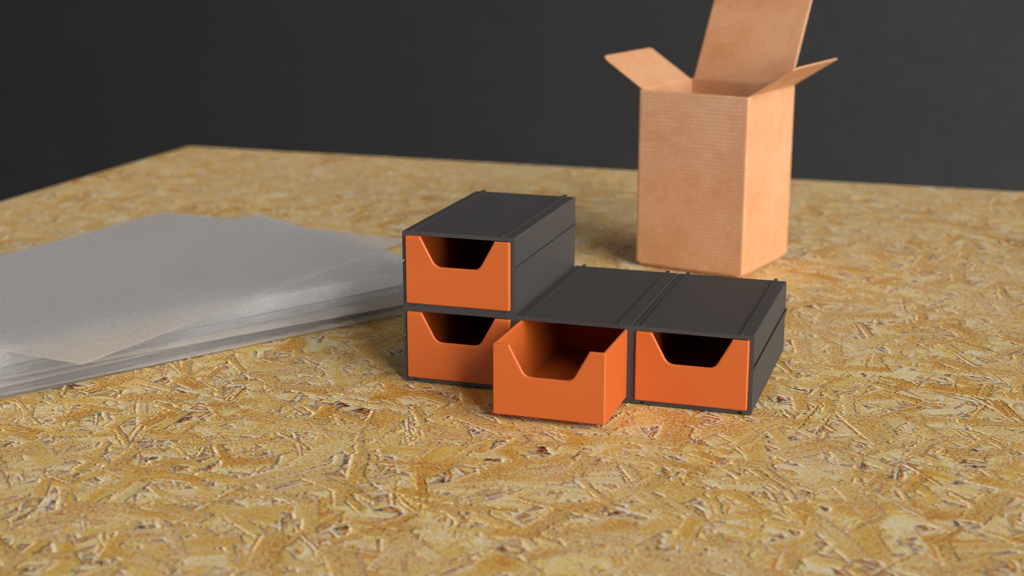

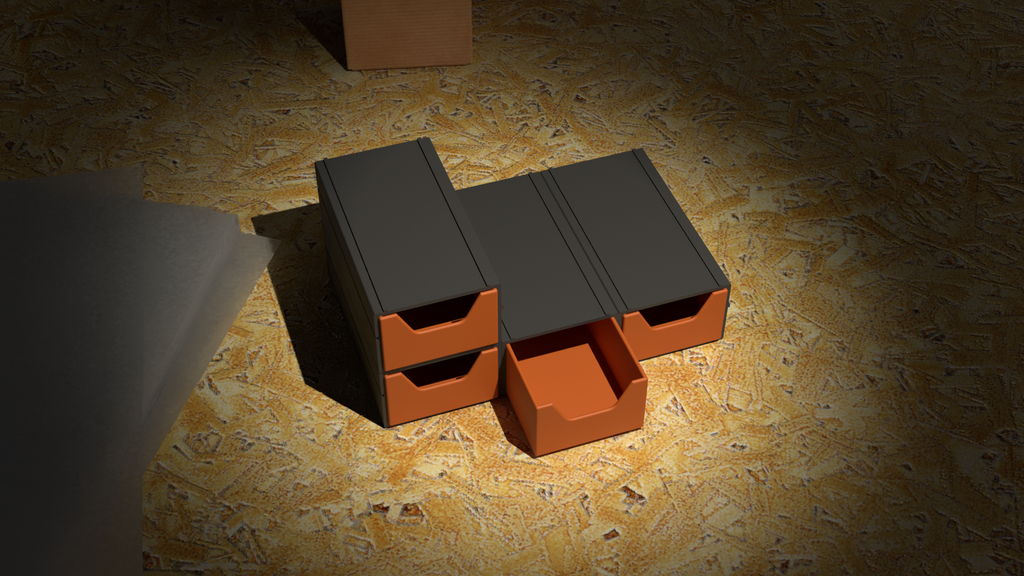

Modular Workbench Drawers – Dovetail Sliding System (3D Printable)

Organize screws, bolts, nuts, electronic components, and small hardware with these 3D‑printable modular drawers, designed to be stackable and connectable using a dovetail sliding system on all sides.
The design is compact, sturdy, and optimized for FDM printing with no supports required.

🔧 Key Features

• Modular system: each drawer connects to others horizontally or vertically.

• Dovetail rails: stable locking mechanism with smooth sliding and zero play.

• Compact footprint: ideal for workbenches, makerspaces, garages, and electronics labs.

• Easy to print: no supports, clean geometry, reliable tolerances.

• Professional design: based on full technical drawings (included).

• Perfect for small parts: electronics, mechanical hardware, modeling accessories.

📐 Main Dimensions

(Extracted from the technical drawing)

• Module width: 109.8 mm

• Height: 60 mm

• Depth: 40 mm

• Inner drawer space: 105.8 × 34.8 mm

• Fillets: R5

• Dovetail angle: 118.6°

🖨 Recommended Print Settings

• Material: PLA or PETG

• Layer height: 0.2 mm

• Walls: 3–4

• Infill: 15–25%

• Supports: none required

• Orientation:

  • Drawer: front face upward

  • Body: dovetail rails printed horizontally

🧩 Suggested Uses

• Screw, nut, washer storage

• Electronic components (LEDs, resistors, jumpers)

• Modeling and hobby parts

• 3D‑printer accessories

• Small tools and repair items

🔍 SEO Keywords

modular drawer, stackable drawers, 3d printed organizer,
workbench storage, tool organizer, hardware storage,
electronics parts drawer, dovetail drawer system,
small parts organizer, 3d printed storage, modular storage system

📄 Summary (Thingiverse “Summary” Field)

3D‑printable modular drawers with dovetail sliding connections. Stackable in any direction. Perfect for organizing small hardware and electronic components. Prints without supports.
