4in to 2.5in Flexible Duct Reducer (100mm to 60mm)
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
A fully parametric OpenSCAD reducer designed to connect a ~4" duct to a ~2.5" outlet. I built this to adapt the exhaust from a Creality Falcon A1 (~60 mm ID) to an AC Infinity inline fan (~102–103 mm ID). The model uses matched inner/outer chamfers to keep wall thickness even and print support‑free on FDM printers.
You can adjust the inner diameters directly:
inlet_ID = 103; // ~4" side inner diameter
outlet_ID = 60; // ~2.5" side inner diameter

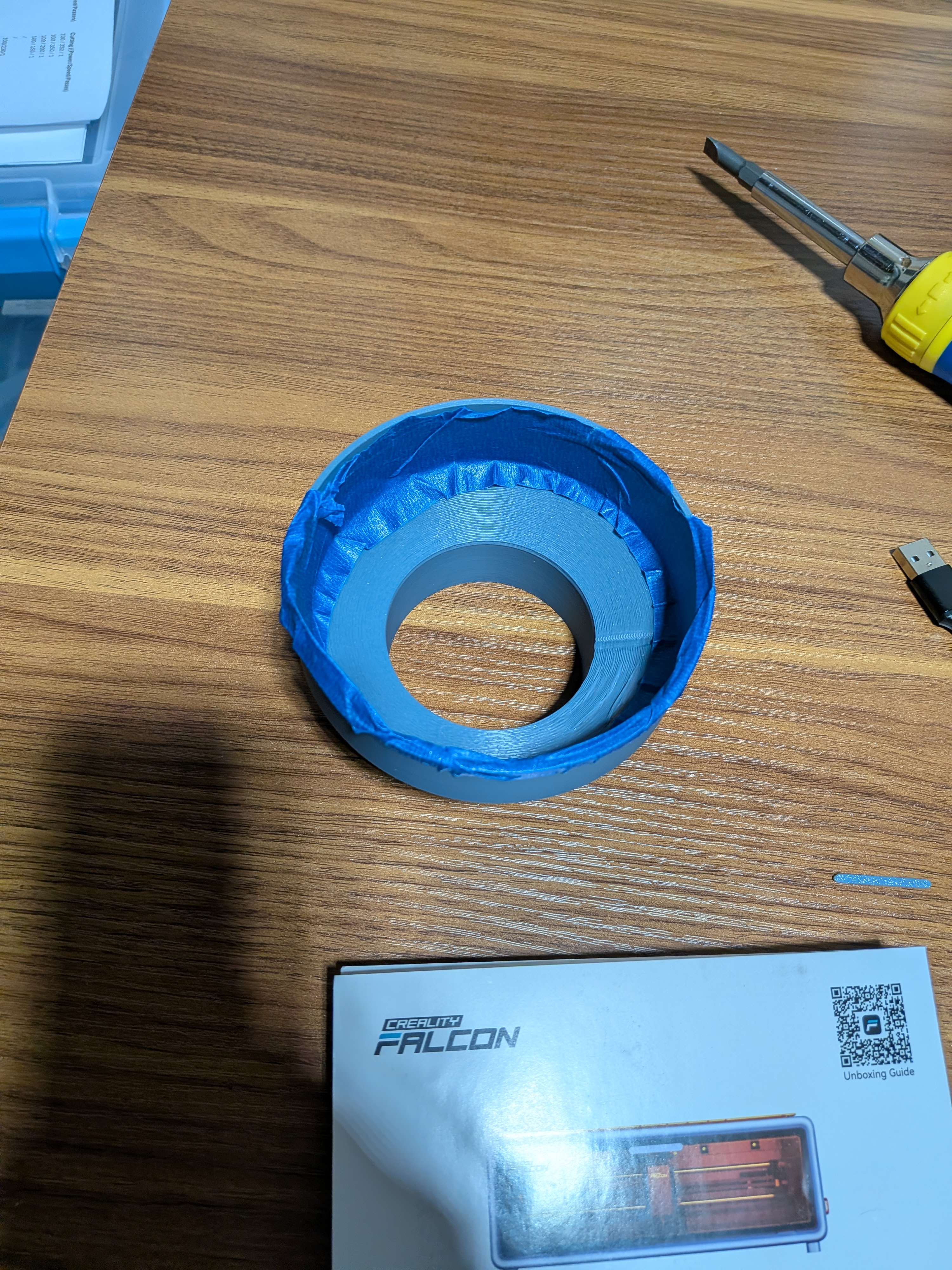

For my setup, 103 mm was slightly loose on the AC Infinity fan; 102 mm would likely be perfect. I tightened the fit with a wrap of painter’s tape and it sealed well.

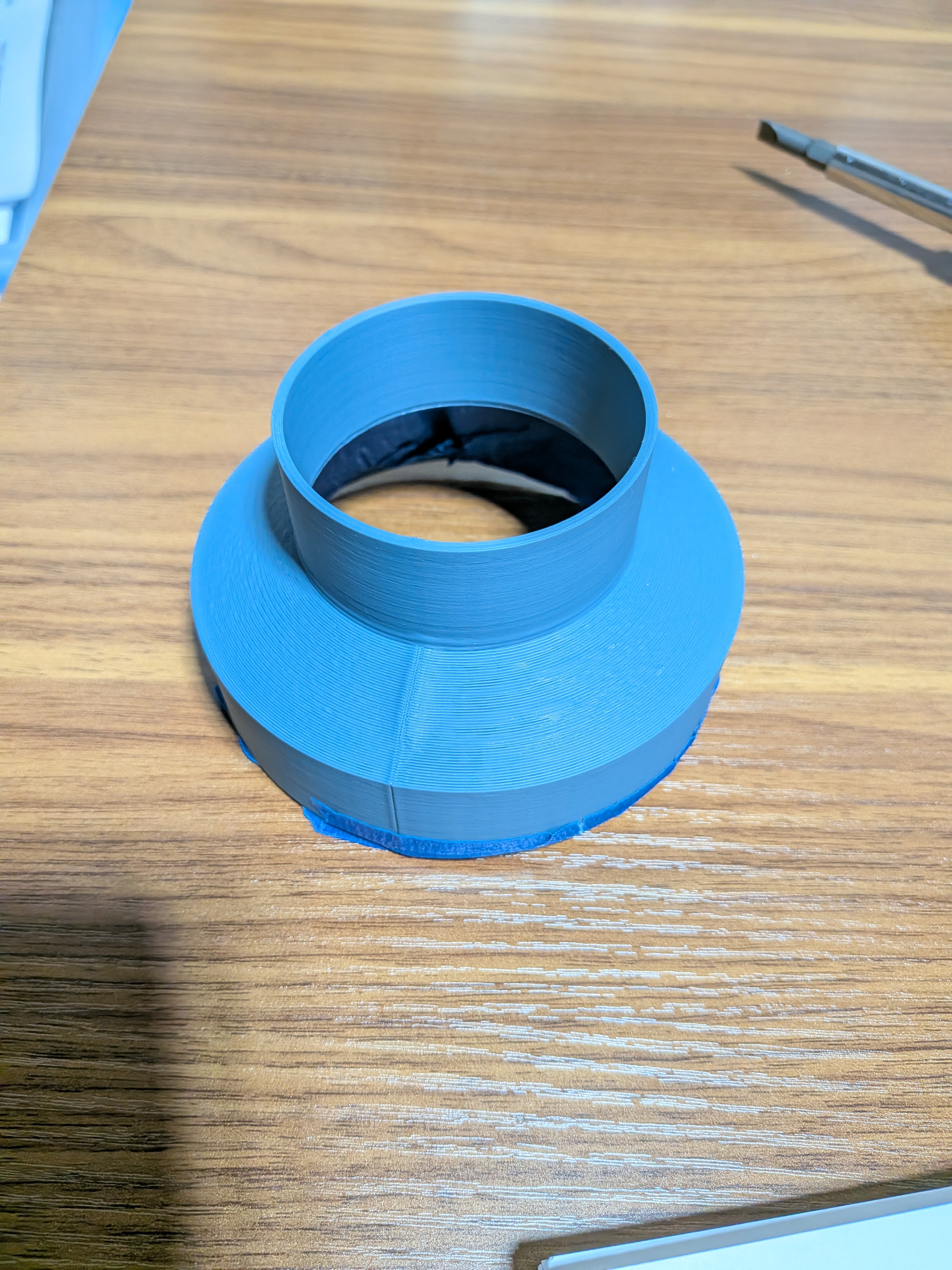

Printed on a FlashForge Adventure 5M Pro in PLA Pro (grey). No supports required. Print time was about 1 hour.
This was written with the assistance of Copilot, I am constantly blown away of just how easy it is for these models to create OpenSCAD/parametric models for this type of stuff.
As I went to post this it looks like there are a few other models on here, but I didn't find them because I was originally looking for a 4" to 2.5" reducer, if you find yourself trying to use this with a Creality Falcon A1 take a look at some of the other models as well which appear to have arrived at a very similar design.
