A parameterized version of several other polarizing lens filter shroud designs. The polarization filter is supposed to reduce glare and reflections from glasses. https://www.makeuseof.com/polarizing-film-on-webcam-for-glasses-glare/
I do not own any of these cameras or lenses. I have not tested this model. I had to tweak the design for a friend with a different filter size, and made the model parameterized while doing this. I based the dimensions on other shrouds or covers I found for these cameras, so you may have to tweak the tolerances.
You can purchase lenses from Amazon.
Configuring the Model
Start by opening the onshape model. No account is needed.

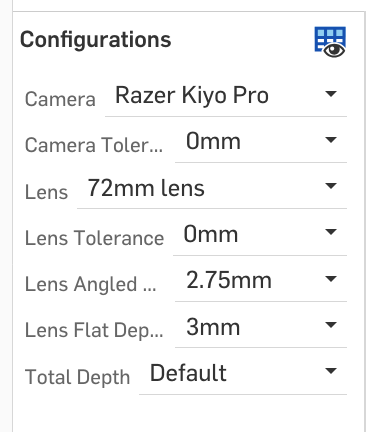

Find the configuration panel at the top left of the screen. You can resize the panel as needed.
Select your camera and lens size. Leave tolerances at zero, and adjust them later as needed.
Exporting a Custom Configuration
On the large horizontal toolbar at the bottom of the screen, find the download icon.

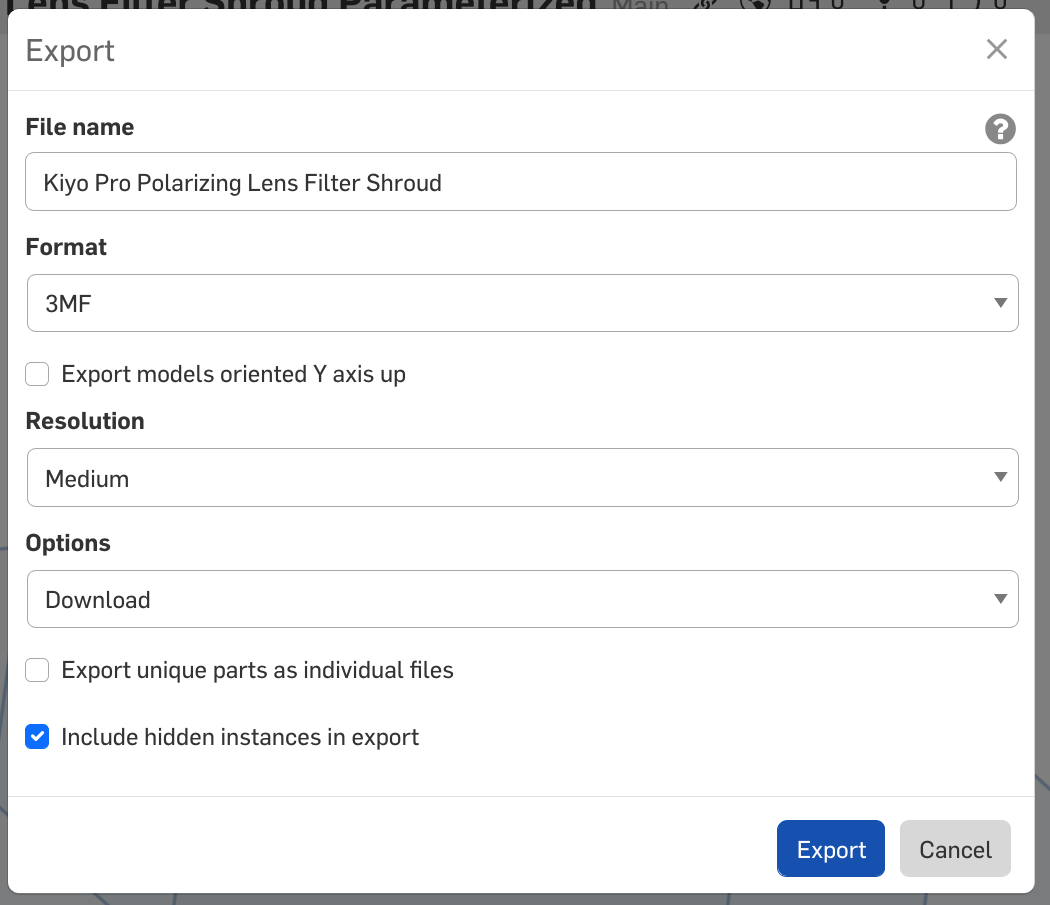

After clicking the download button, a dialog box will appear giving you export options.
Important: Change the Format from PARASOLID to 3MF.
Wait a moment for the download to begin after the export is complete. The exported file should contain the correct orientation, ready to be printed flat on a bed. The model is designed to avoid overhangs greater than 45 degrees for wide compatibility.
