Gaggia Classic Pro / Evo / E24 Lamp Replacement

It's nearly impossible to get replacement Gaggia neon bulb assemblies, so here's a replacement design.

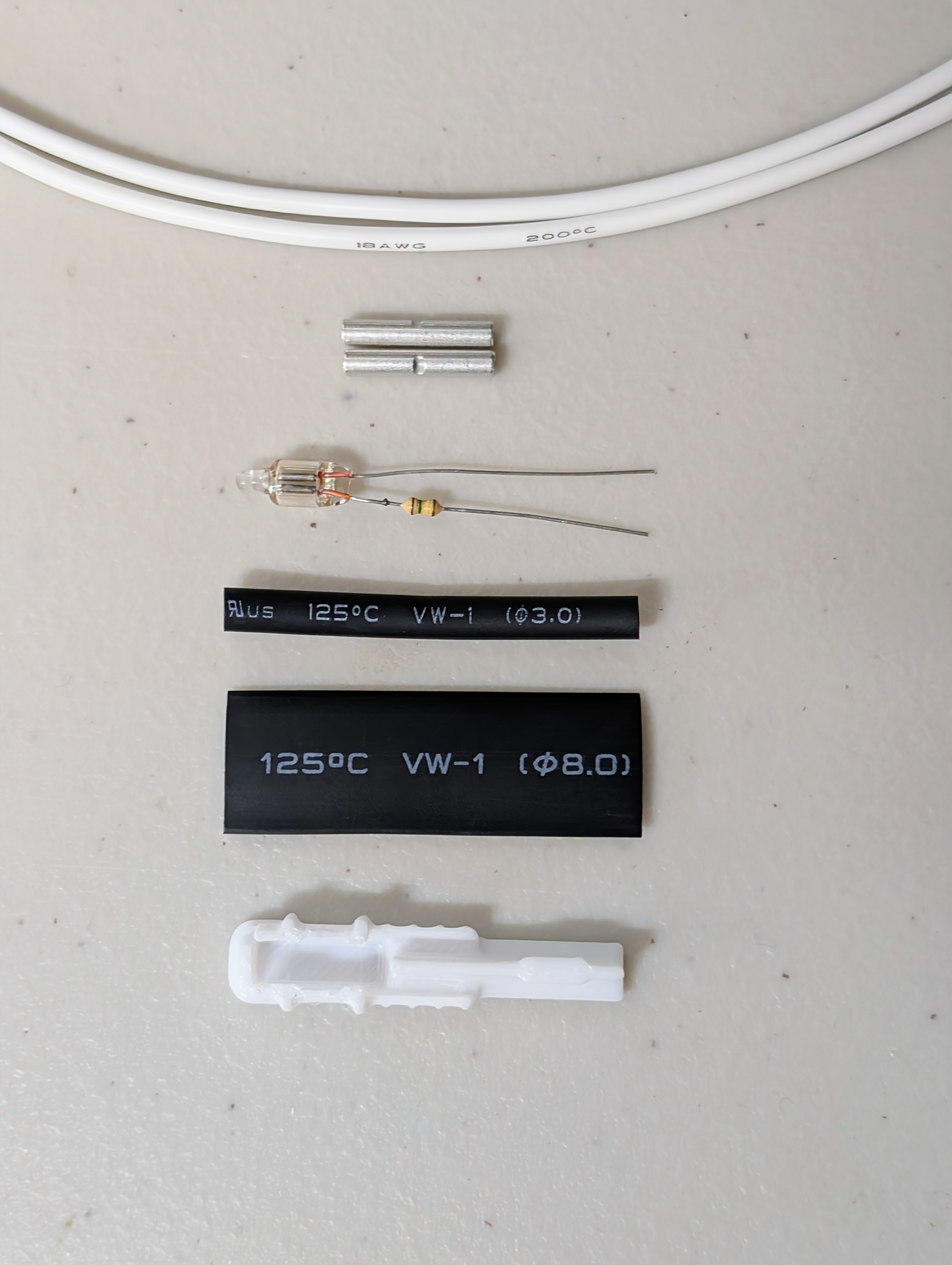

Parts:

• 18 AWG silicone jacket wire

• BN 0.75 (22-18 AWG) crimp ferrules

• 230 VAC Neon Lamp - 5mm x 12 mm or 5 mm x 13mm https://www.aliexpress.com/item/3256805272160130.html

• Heat shrink tubing
  ⌀3 mm and ⌀8 mm (2:1 or better) or ⌀10 mm (3:1 or better)
  ≥125 C continuous use rating

• This 3D Printed Snap-In Housing



Print Details:

• Material: HDT 0.45 MPa of at least 95 C (PC, ASA, PA6, PA12…), white is ideal

• Designed for 0.4 mm nozzle, 0.2 mm layer height

Assembly:

Install:

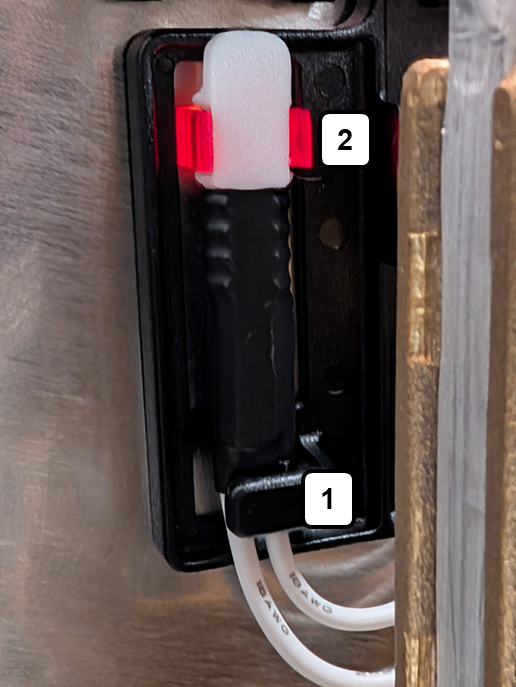

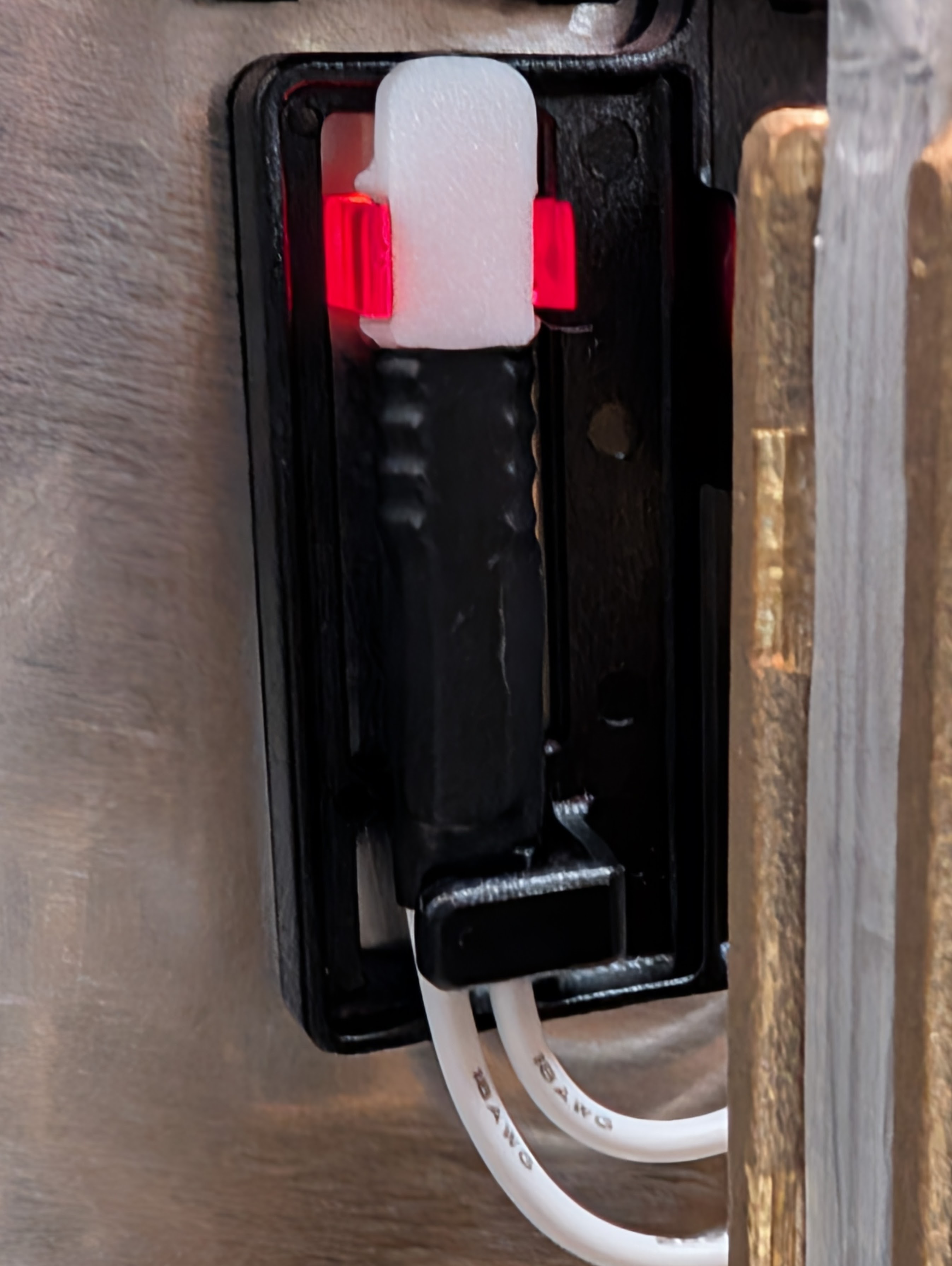

Slide wires under black retaining clip with the lamp opening facing forward, then snap the area between the guide rails into red lamp clip.
