Estes Engine Block Spacer Tools

These spacer tools replace the cardboard spacer tube that typically comes with the Estes kits. The tube is used to position the engine block when glued inside the engine tube. These reusable spacing tools have a base that will stop the engine block with a 6.35mm (1/4-inch) overhang or a 12.7mm (1/2-inch) overhang

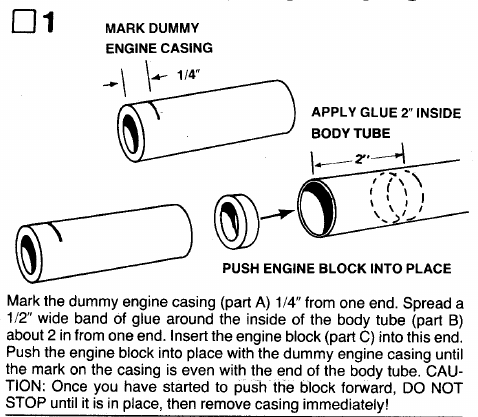

Chances are if you have built just a few model rockets you have come across the instruction for installing an engine block in the engine mount tube. In the Estes kits they typically provide a yellow tube the same size as the engine the rocket will use. The instructions will then tell you to mark the tube a certain distance from the end (typically 1/4-inch or 1/2-inch). You then mark the yellow tube at the stated distance, add some glue to the top of the engine mount tube, insert an engine block and use the yellow tube to push it into place.

These 3D printed engine block spacers replace the cardboard tube. They have a stop at 1/4-inch and at 1/2-inch. The STL files include all of the Estes engine casing sizes
