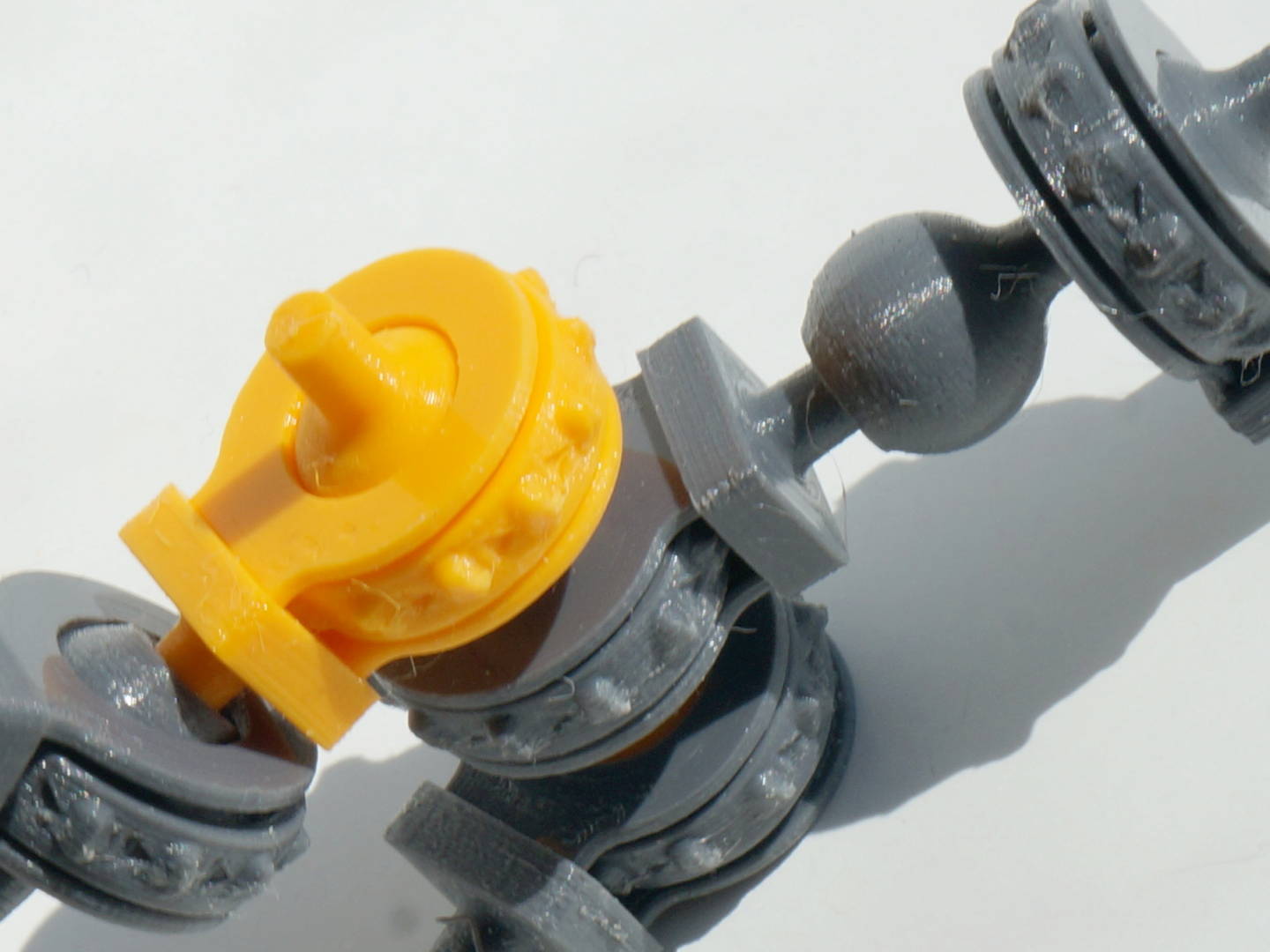

Heim joint (lockable)
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Mechanical Parts
- License
- Creative Commons — Public Domain
Assembly

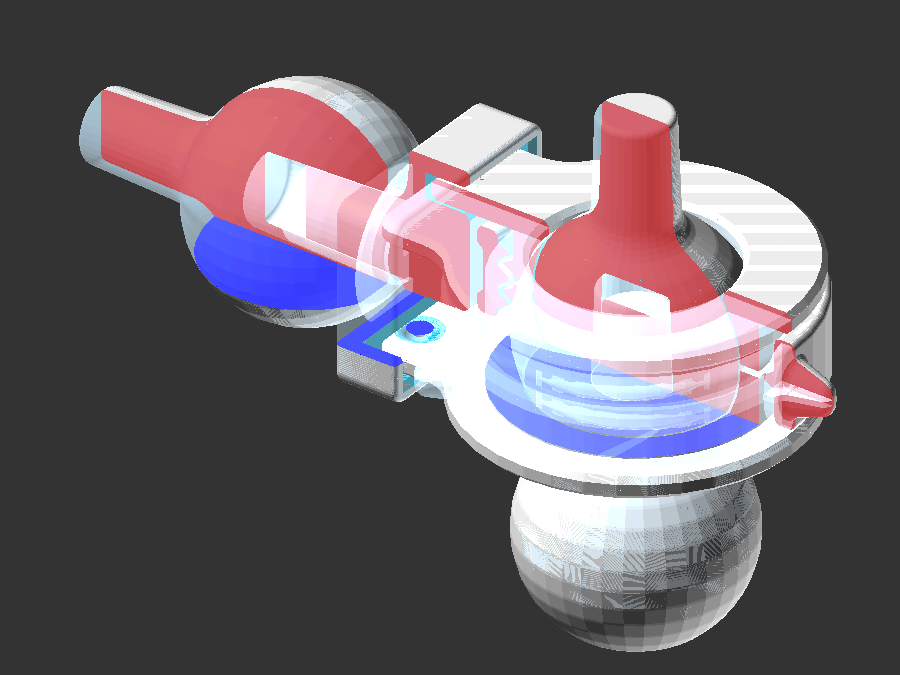

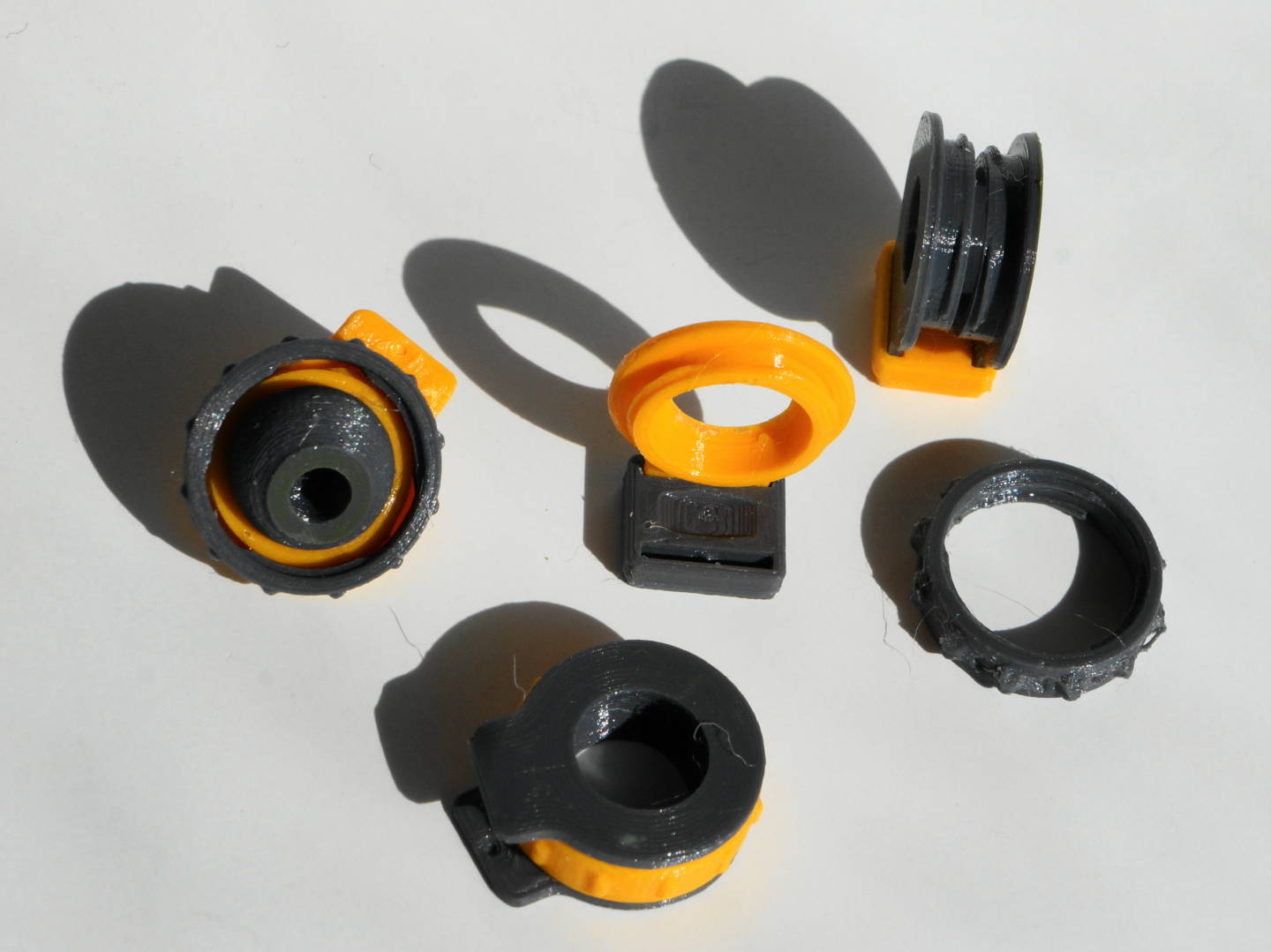

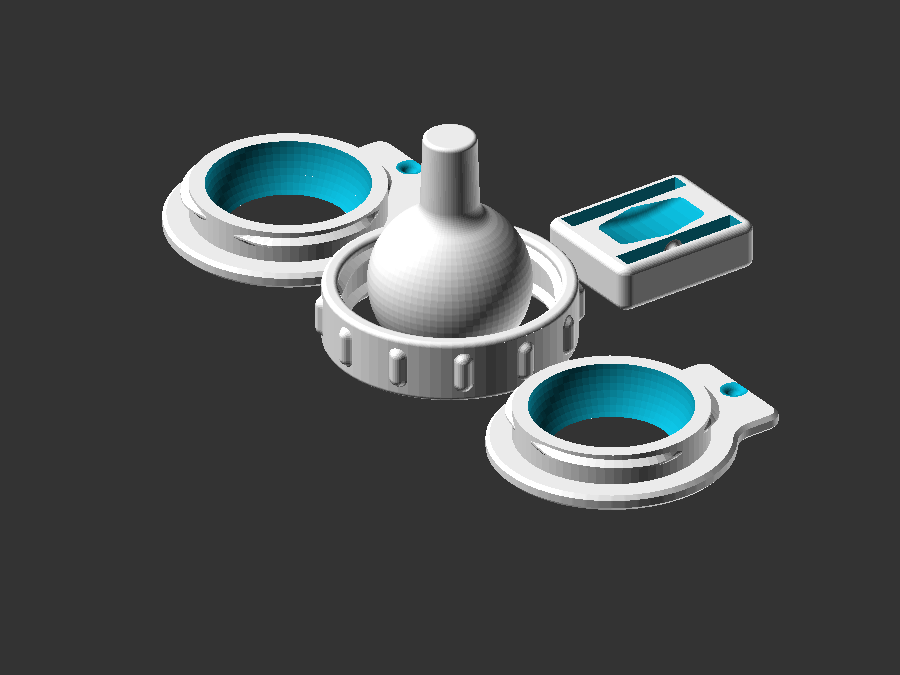

- Position the ring between the two halfs and ball.
- Align the two halfs notches with the ring notch.
- The threads on the halfs form an arrow that must match the direction of the rings arrow
- Press until snap in and turn the ring against arrow direction (lock) ~ 30°.
- Now press the end block on the halfs notches.
you may also like the articulated arm
