BabyTrains - Snap-in Coupler (Spřáhlo)

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

Source
Printables
Category
Vehicles
License
Open Community License v1
DetailsMakes & commentsRemixesCollectionsRelated
🤓New alternative version of the coupler, fully SMART. No need to worry about magnet orientation anymore. Easyier assembly.

related: https://www.printables.com/model/1571868-babytrains-mini-bogies-podvozky

BOM for 1 pcs of coupler

  • 1× neodymium ball magnet🧲diameter 4.6 - 5 mm (NeoCube and alternatives)

  • 1x anything from M1.6 x 6 to M2x 10 screw  (M1.6 x 6 DIN912 recomended)

  • 1x Printed Top and Bottom part - Use files without suffix, or any combination. The only difference is the size of the gap between the assembled parts if someone wants no gap assembly.

🔧 Assembly Instructions

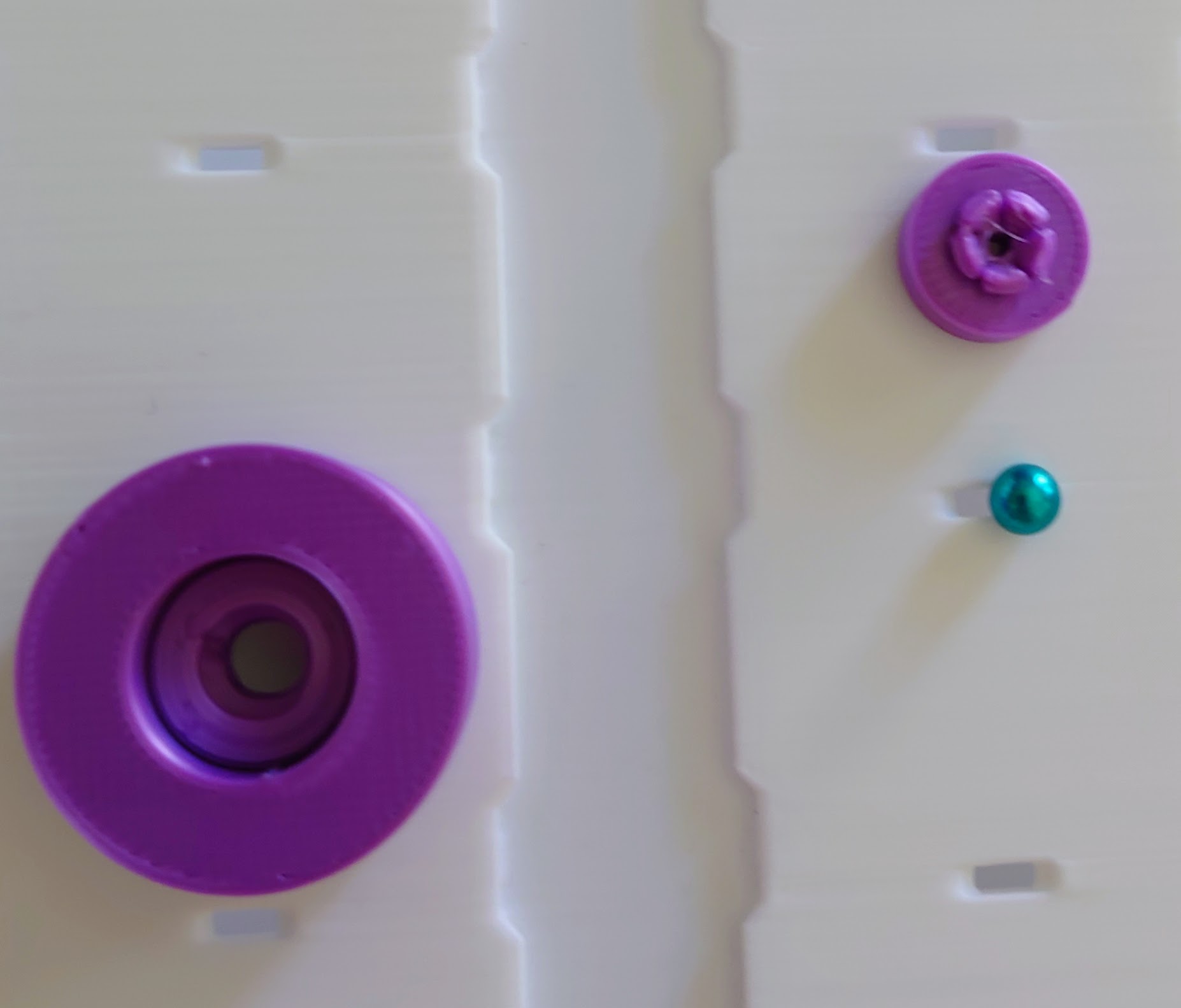

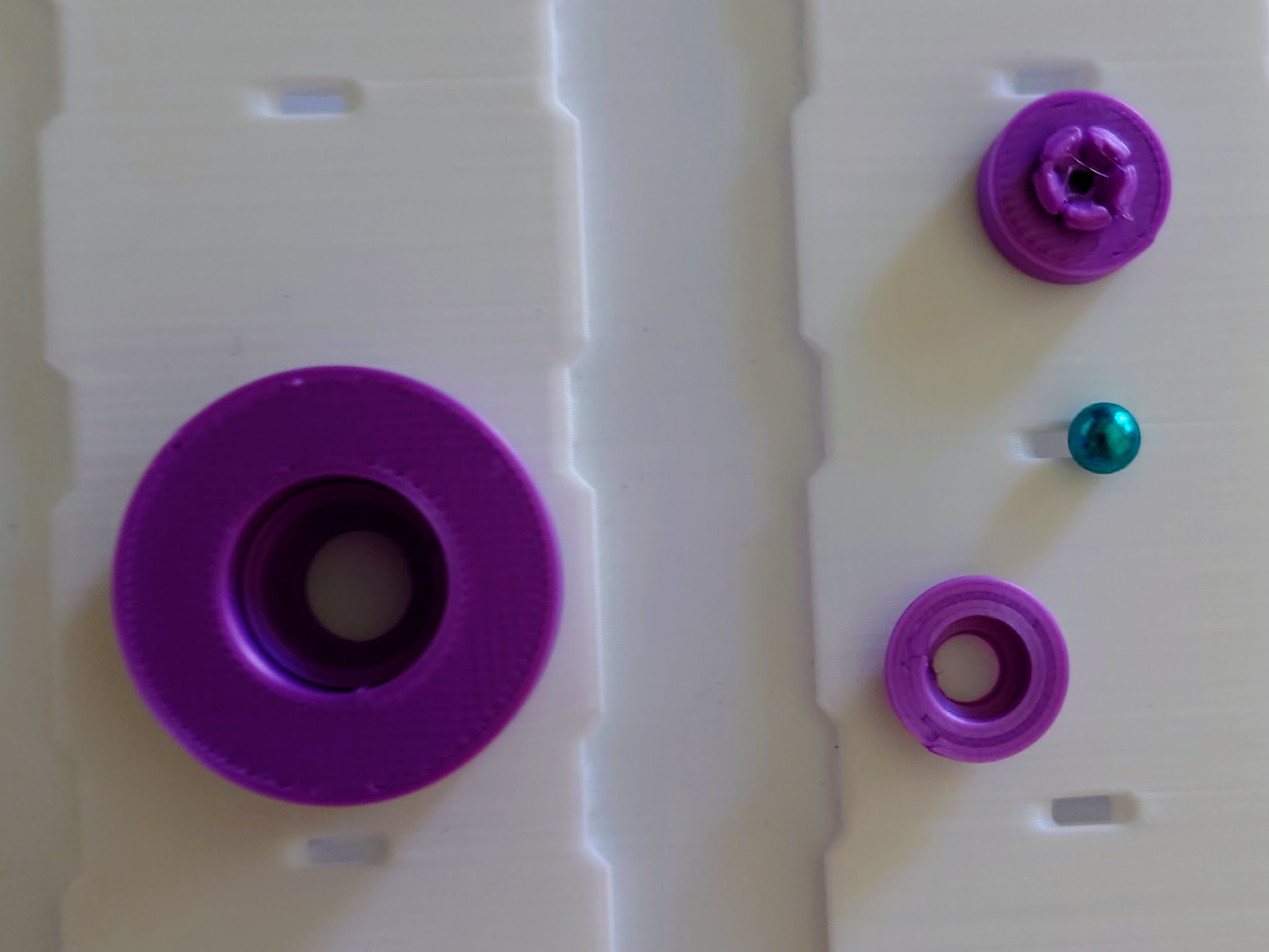

  1. mfg_helper (jig) and parts

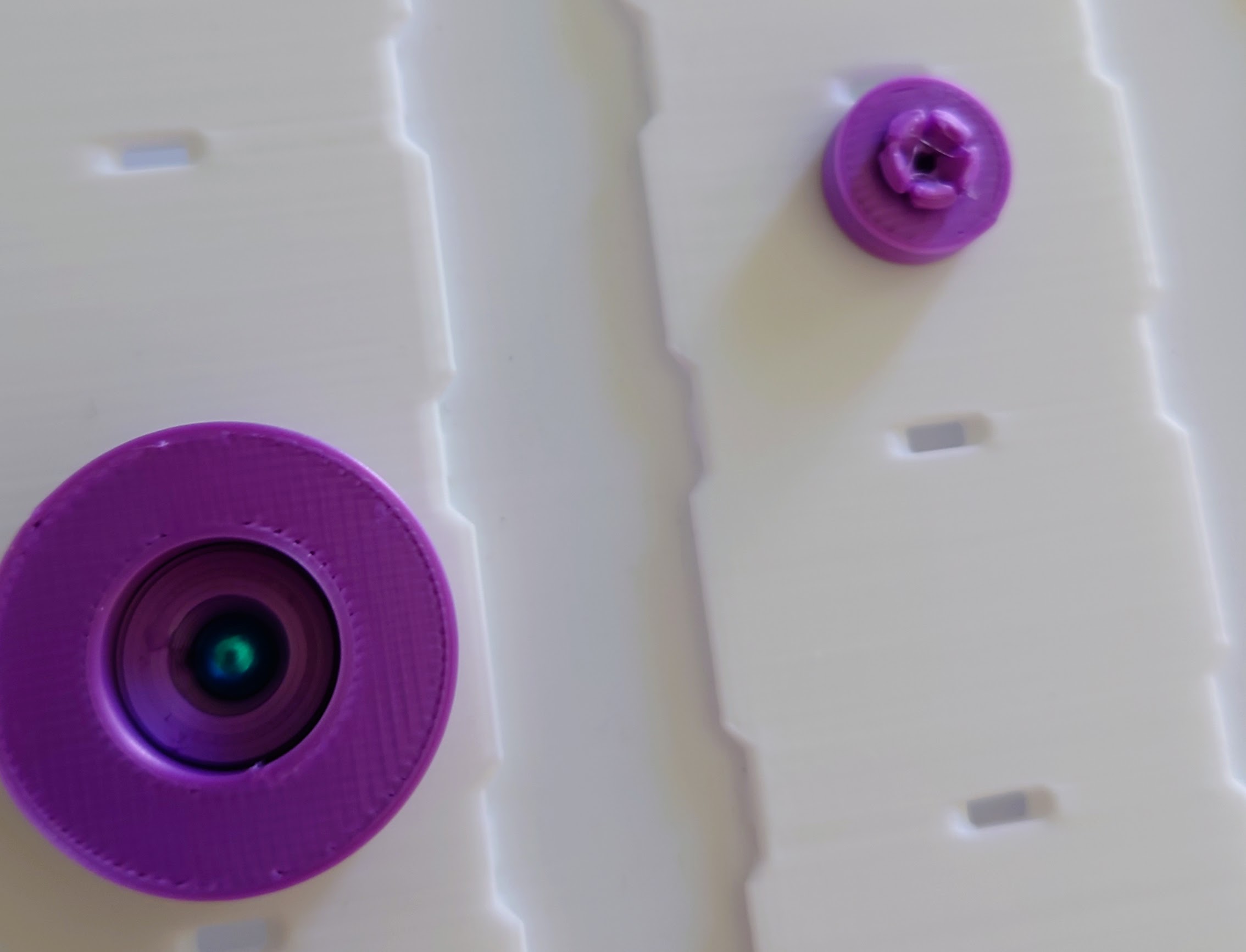

  1. put TOP part into jig

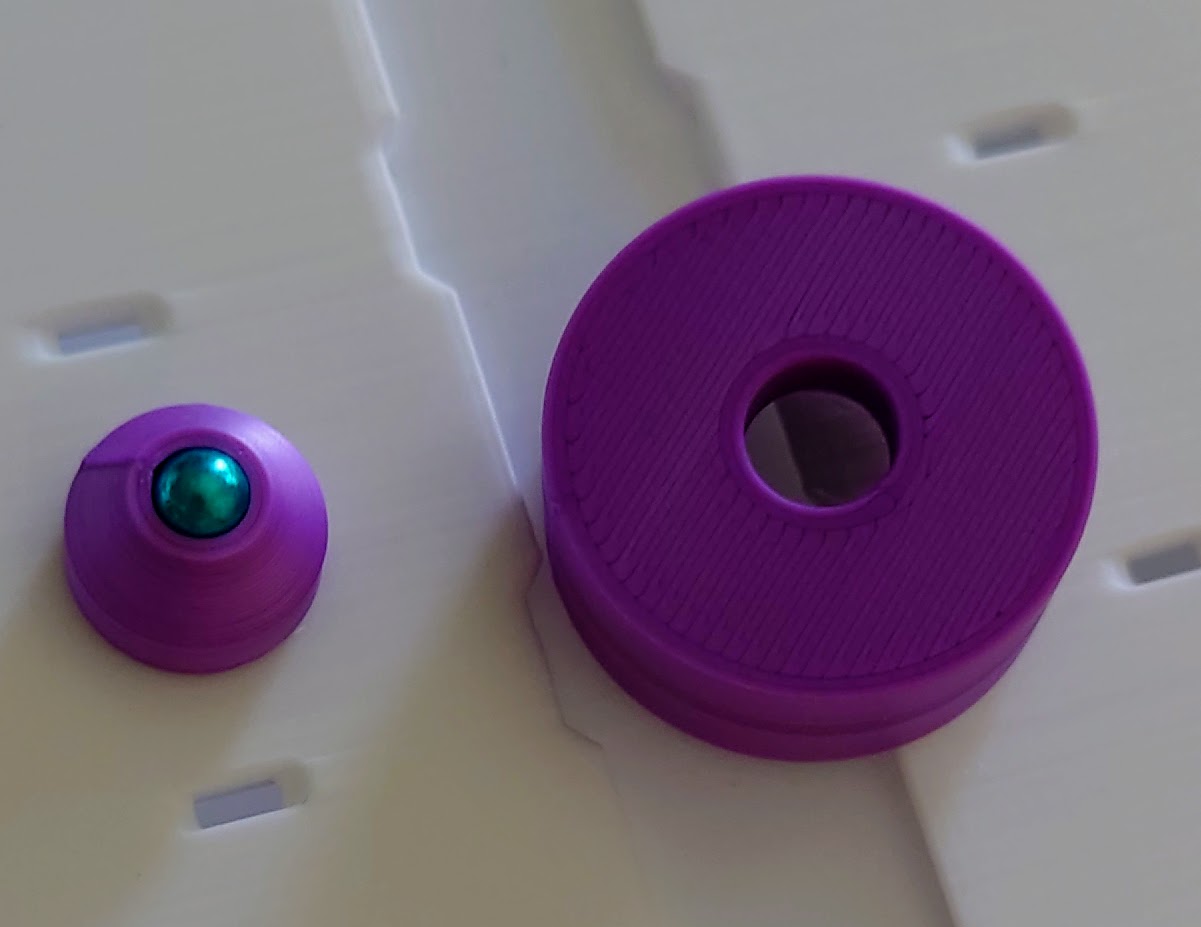

3.🧲 Insert ball magnet into TOP part

4.

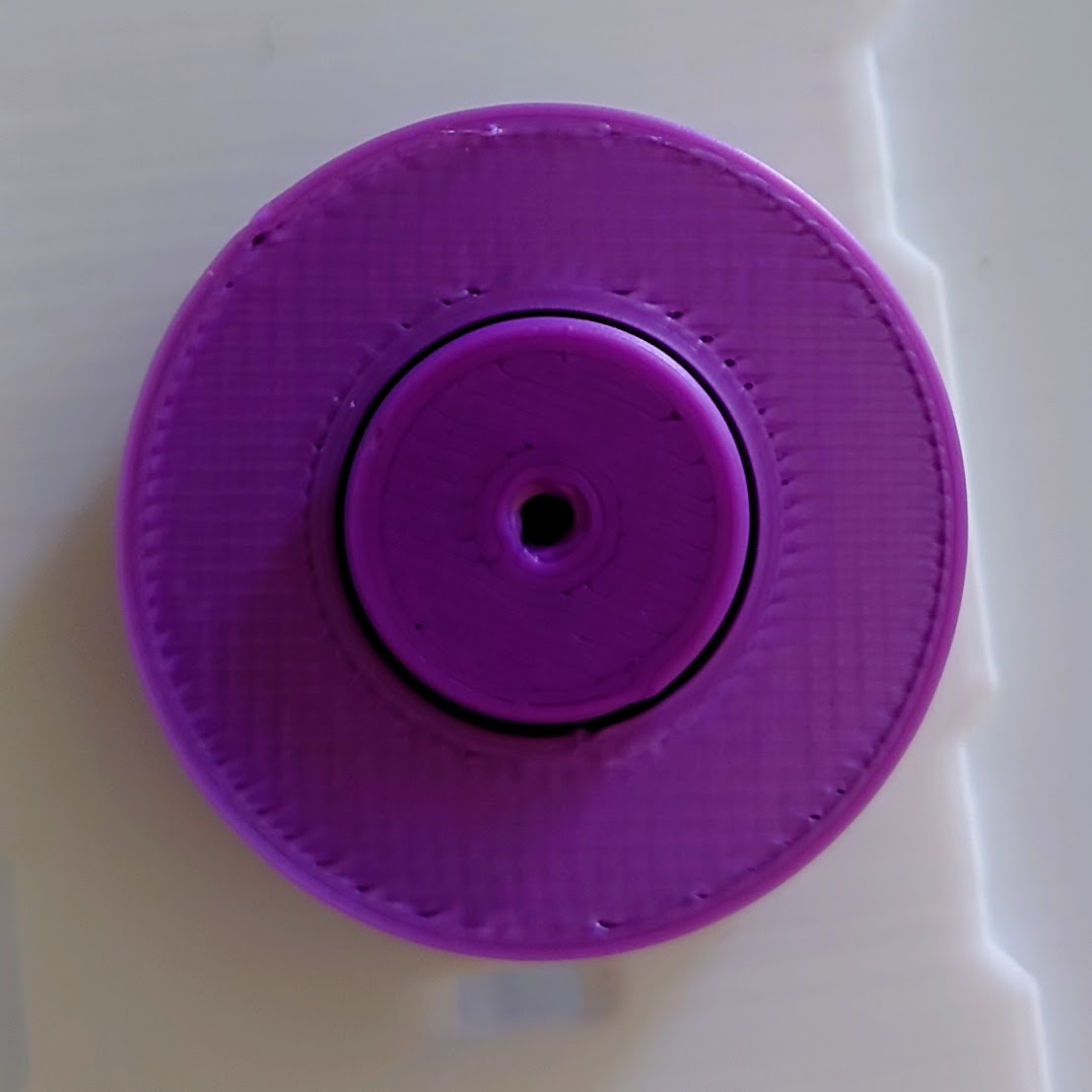

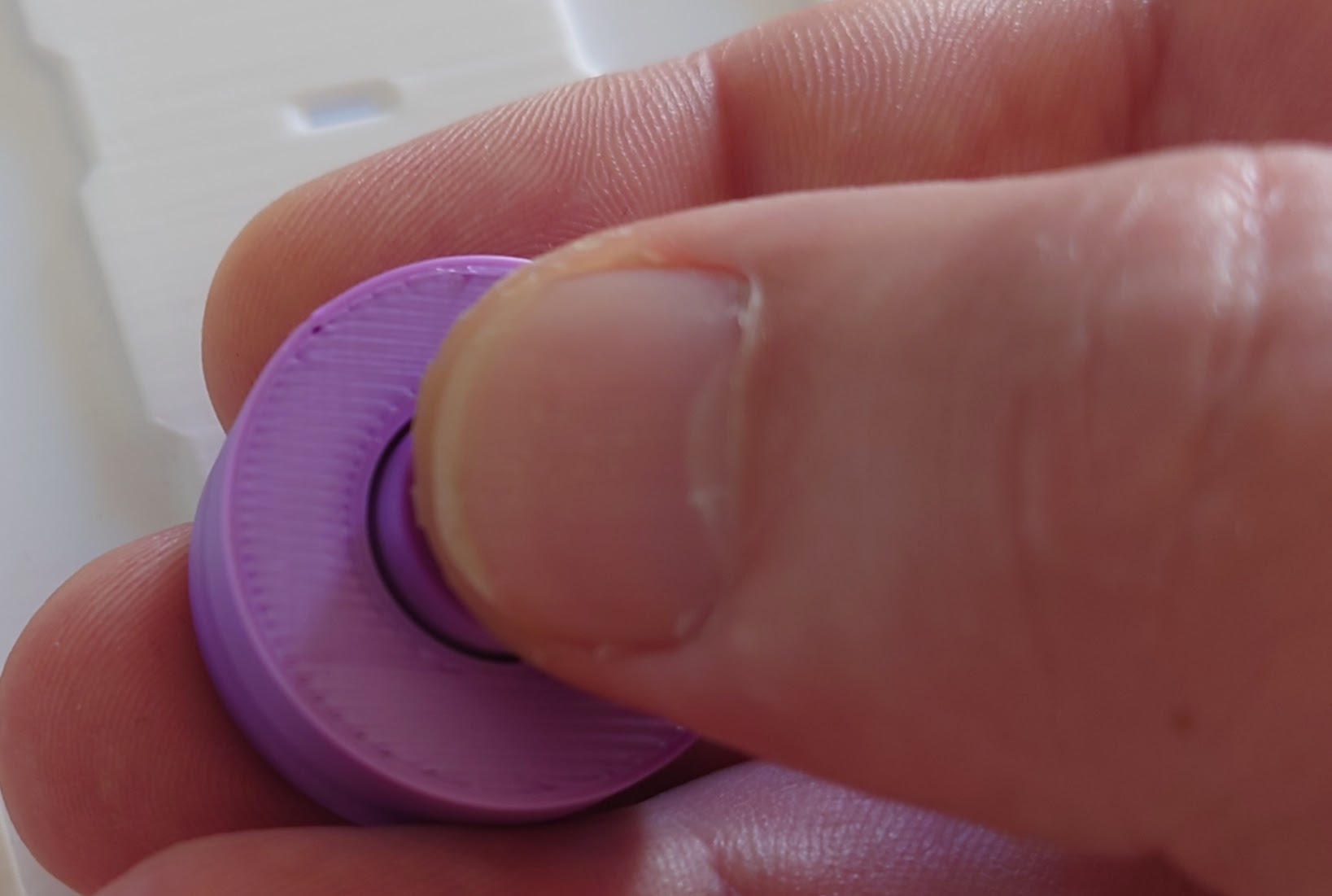

5. Snap-in BASE part to TOP part.

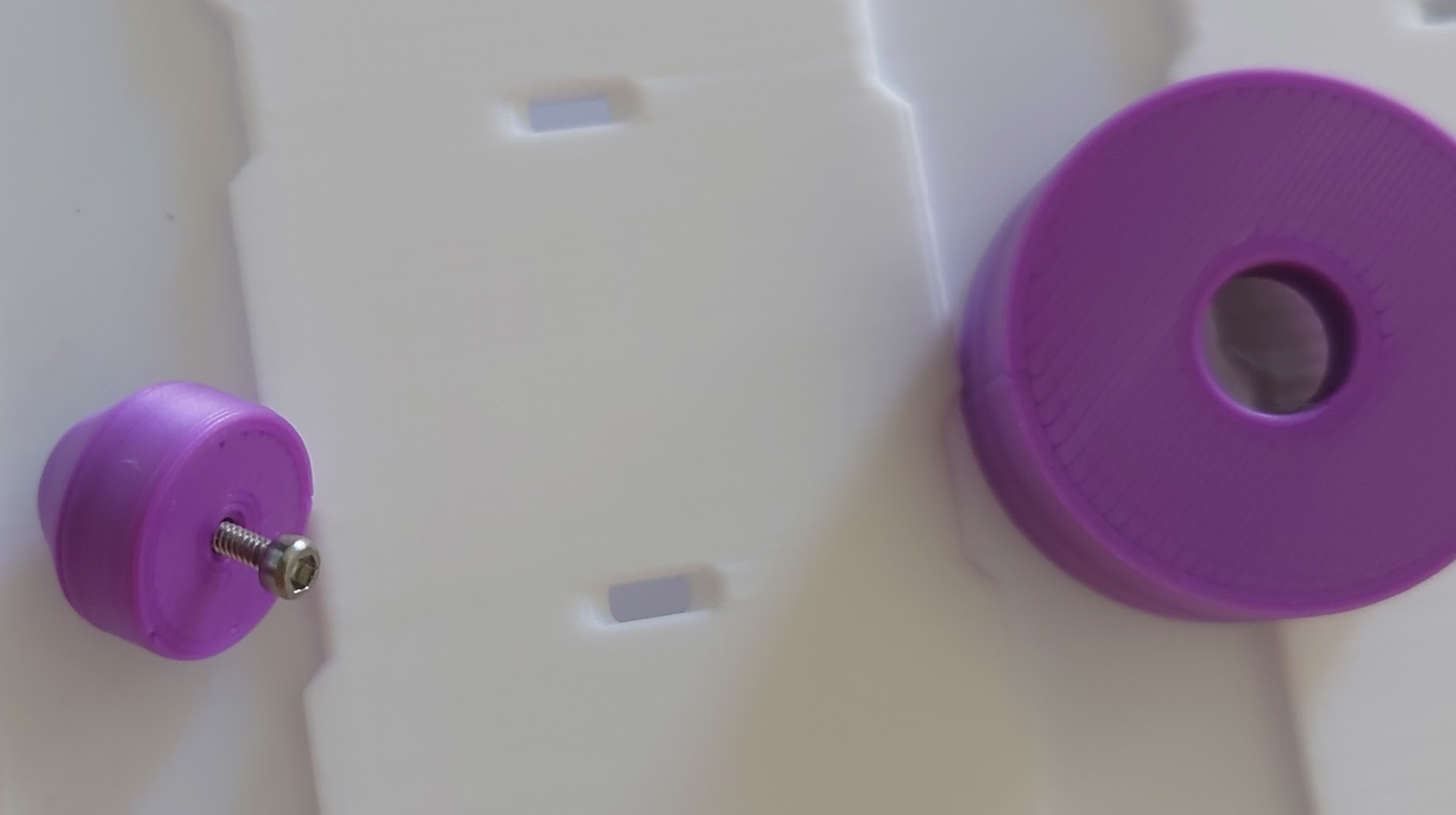

7. 🪛 Tighten the screw into the BASE part.

Print Settings

  • Nozzle: 0.4 mm

  • Layer height: 0.2 mm

  • Walls/perimeters: standard settings

  • Supports: NO

🚅 BabyTrains | Printables.com                🚂BabyTrains MINI | Printables.com
