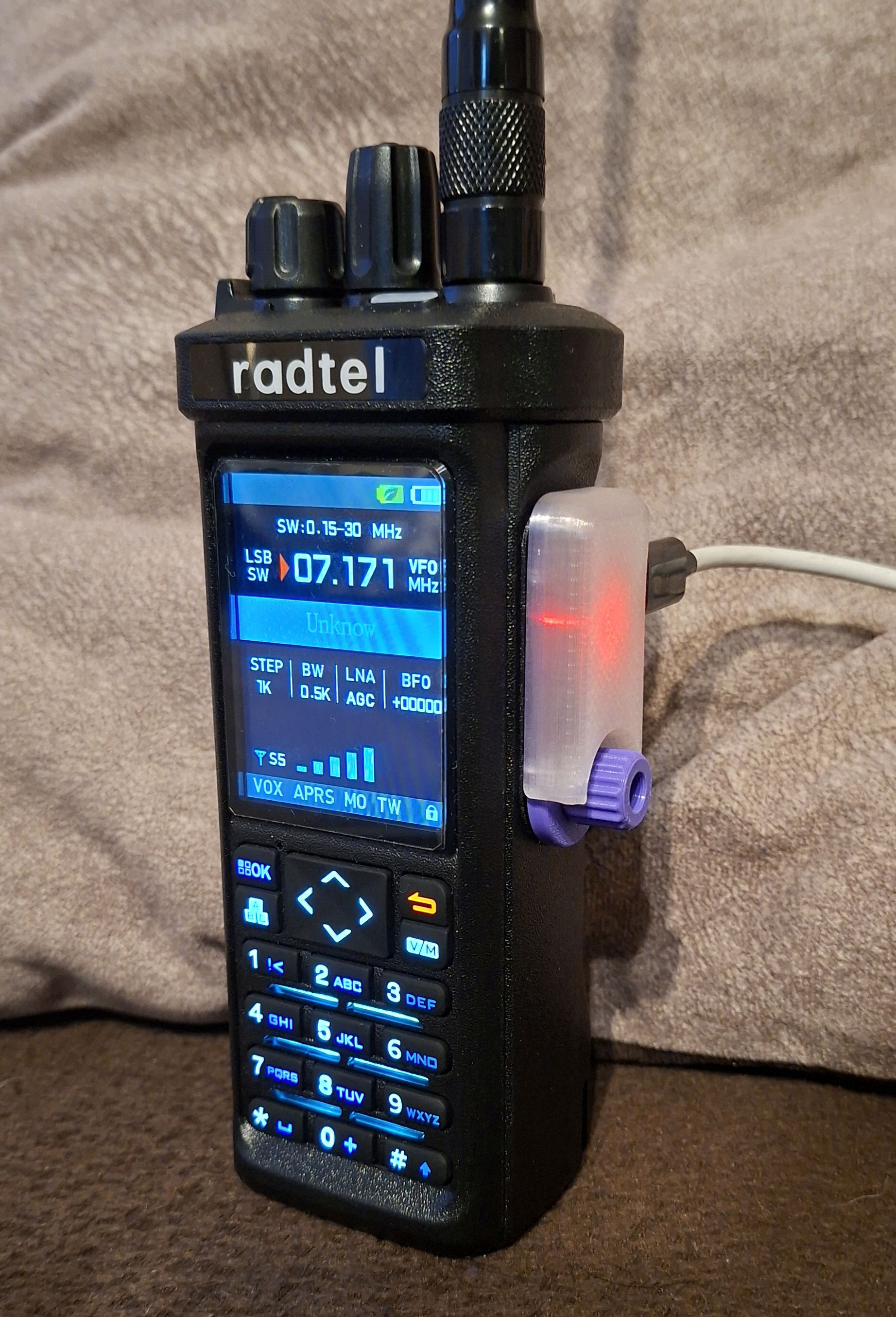

Radtel RT-950 Pro USB-C programming interface

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

Source
Printables
Category
Tools
License
Creative Commons — Attribution — Noncommercial
DetailsMakes & commentsRemixesCollectionsRelated

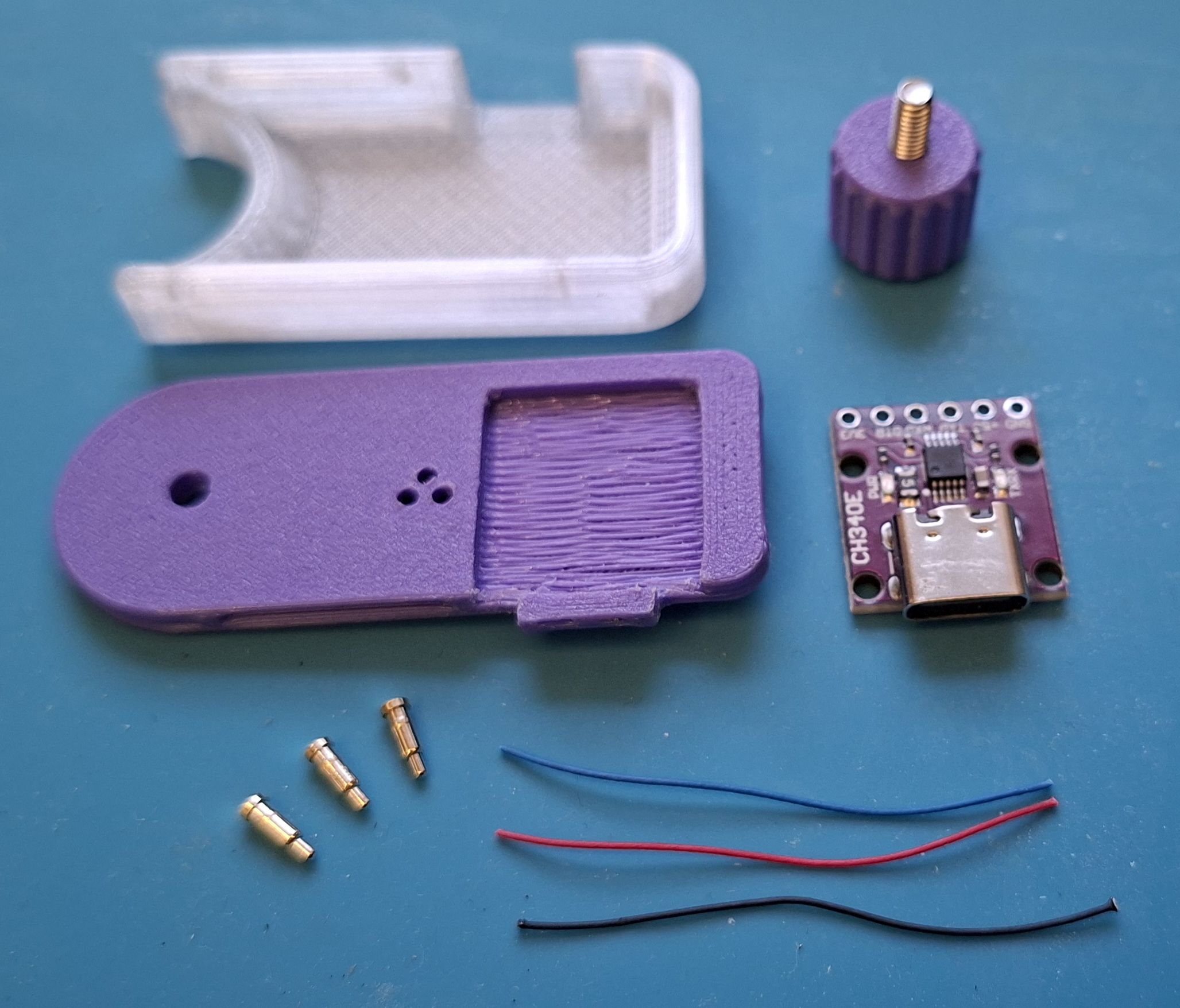

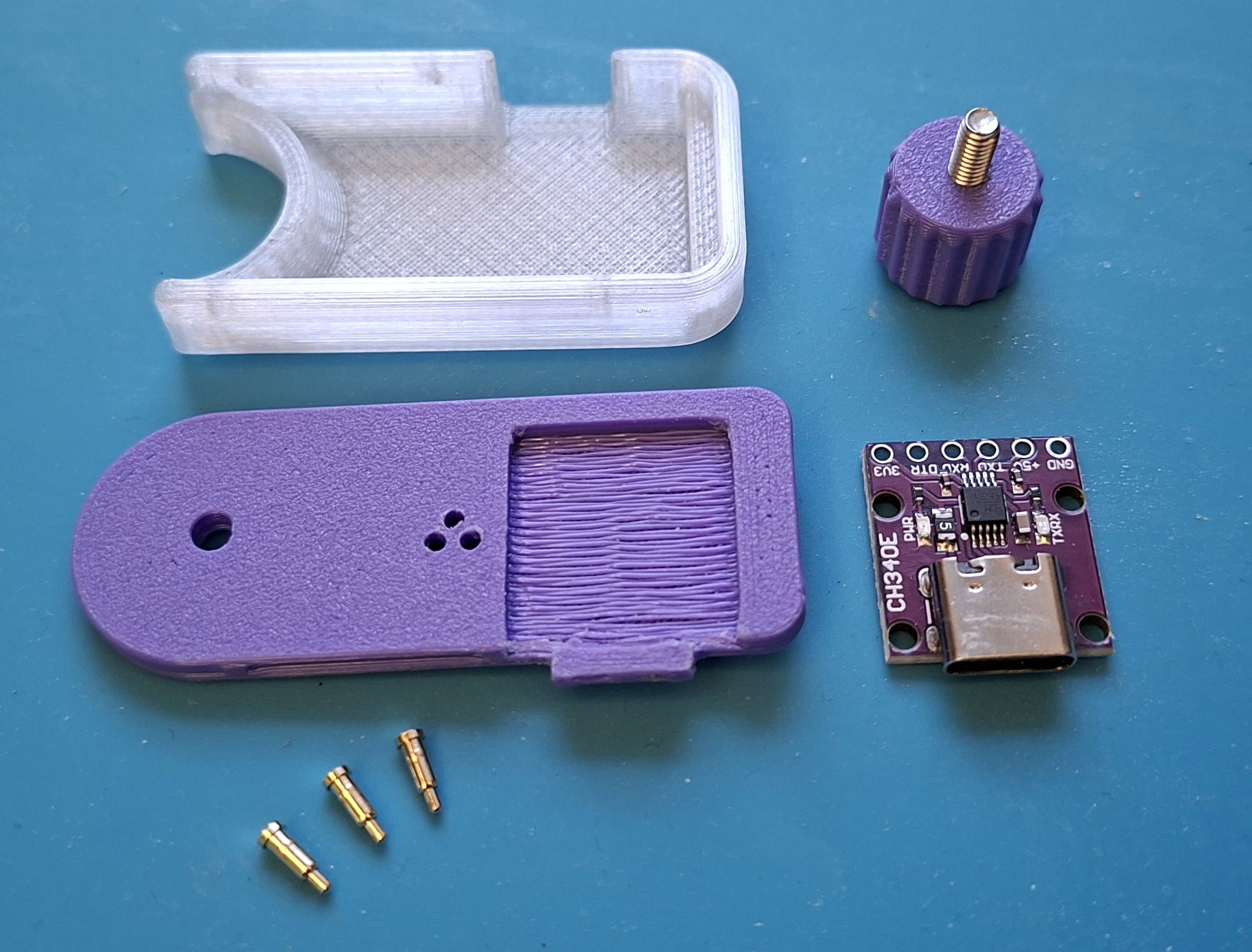

To build this interface You will need some cheap element:

  1. One USB-C to TTL interface :  https://pl.aliexpress.com/item/1005008104567290.html?spm=a2g0o.order_list.order_list_main.28.7daa1c24NlzL2N&gatewayAdapt=glo2pol

  2. Three 5,5 mm long pogo pins: https://pl.aliexpress.com/item/1005005982247106.html?spm=a2g0o.order_list.order_list_main.34.7daa1c24NlzL2N&gatewayAdapt=glo2pol

  3. One M3 x 10 screw

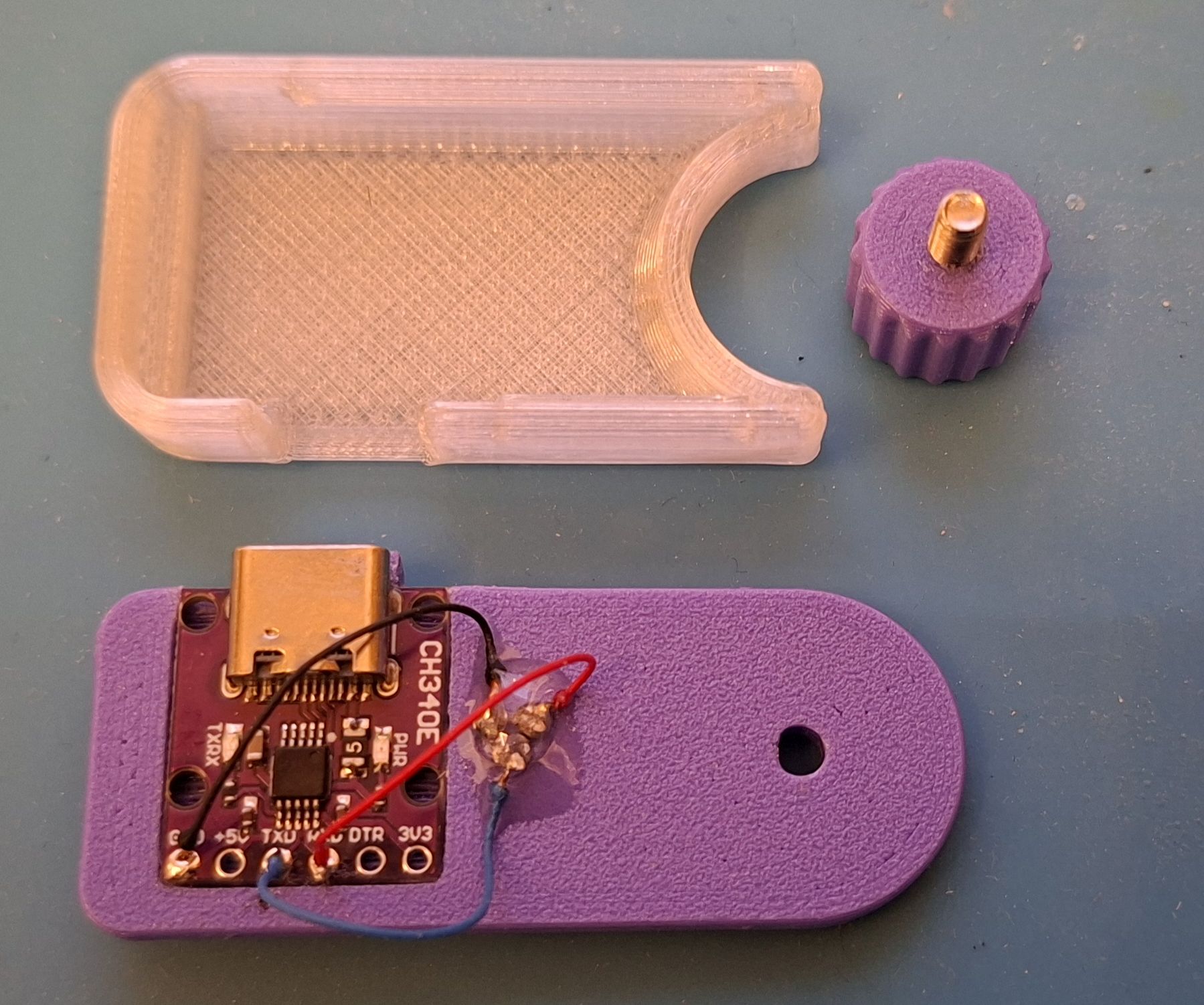

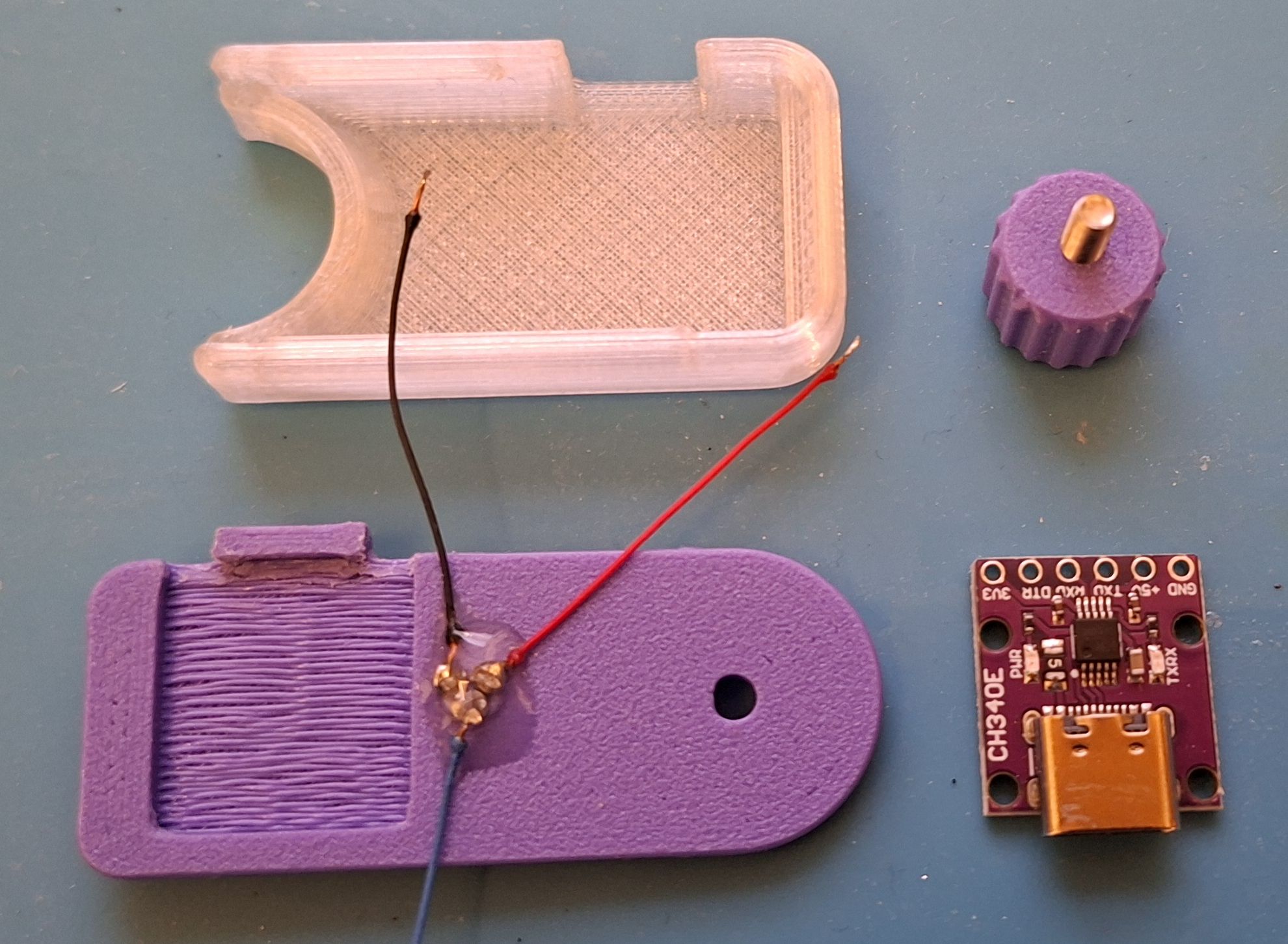

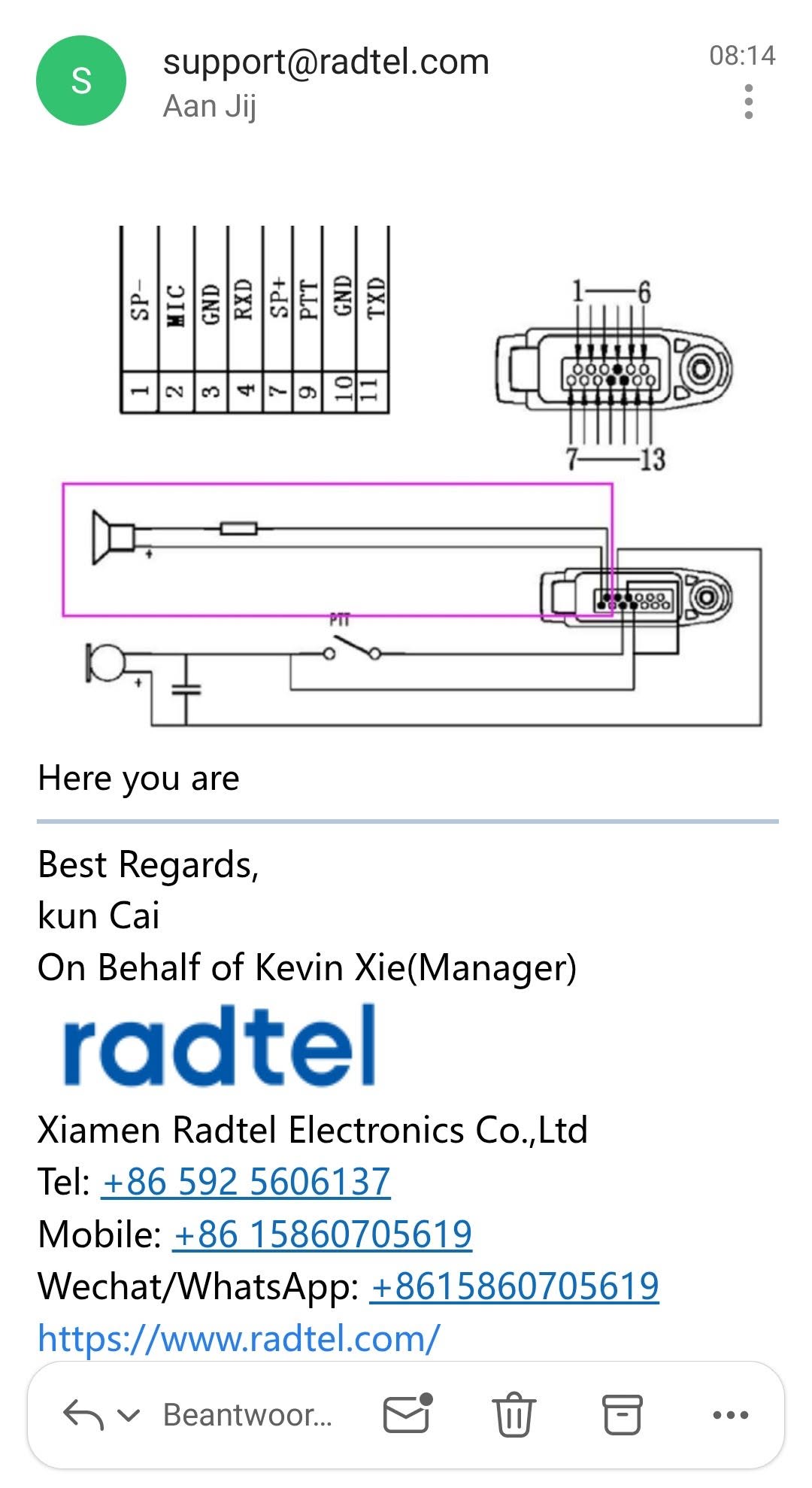

After soldering the wires to the pogo pins, ensure there is no short circuit between them; then, solder the wires to the TTL interface board according to the diagram:

GND -> GND,
RT -> TX,
TX -> RX.

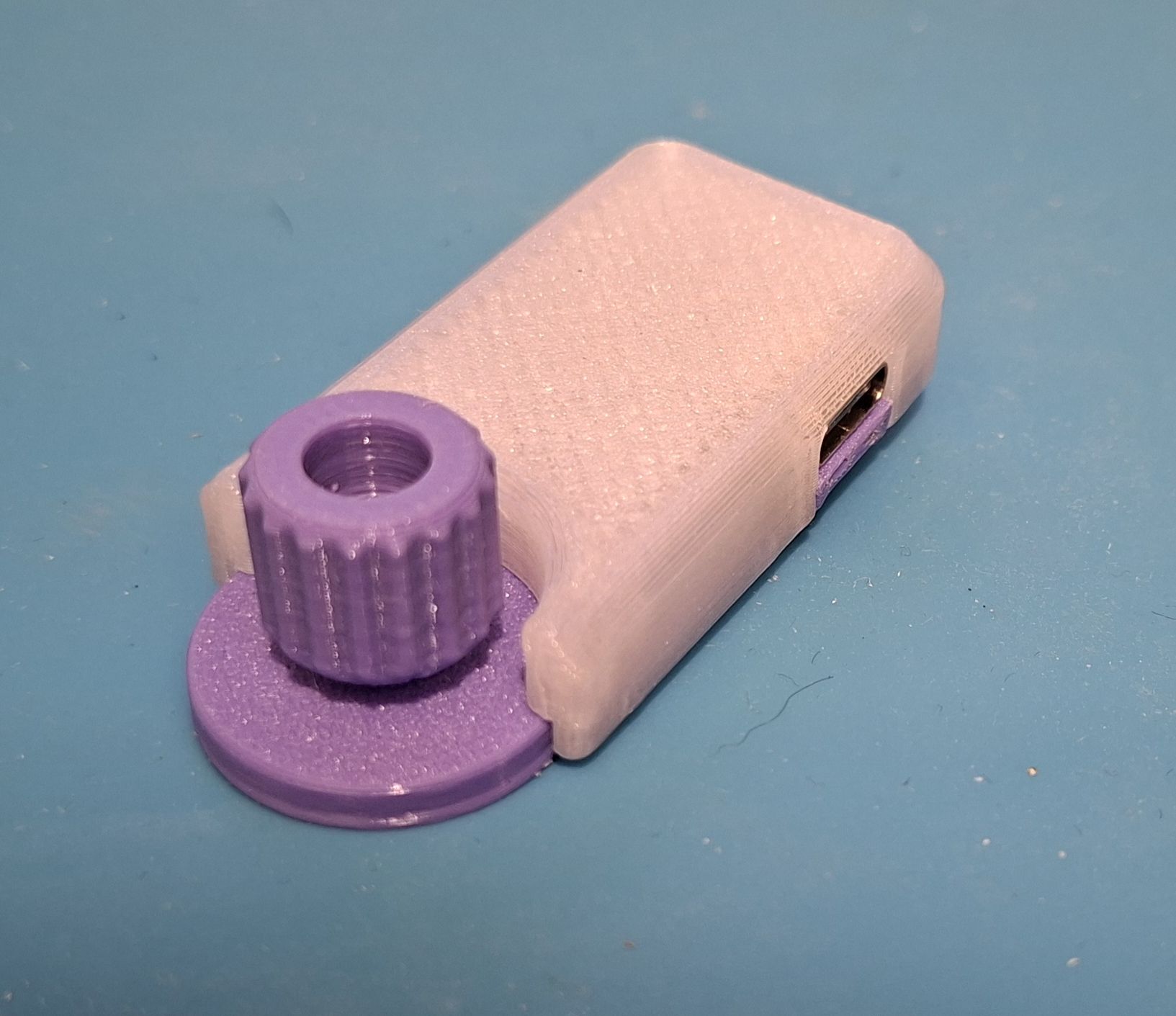

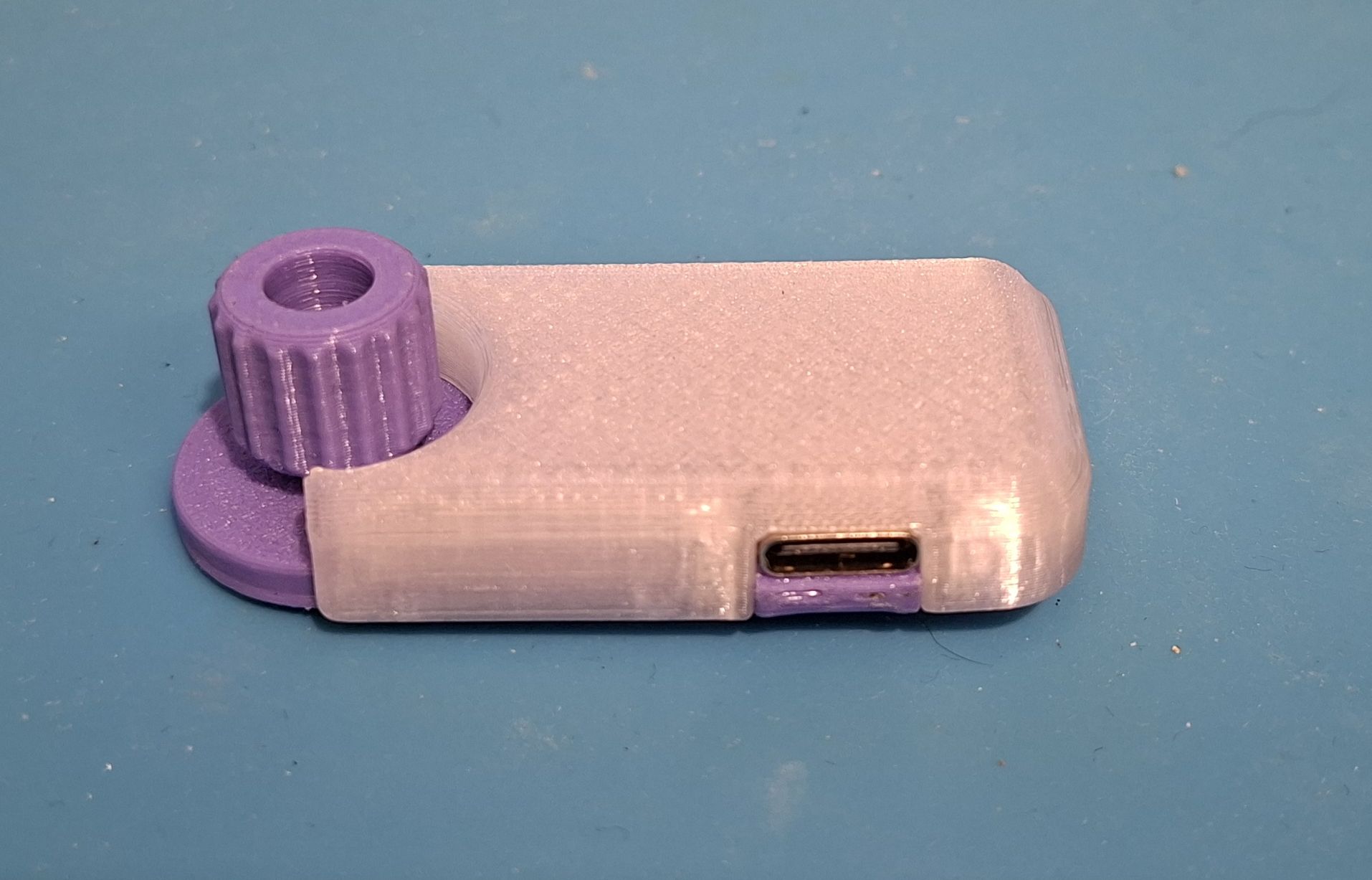

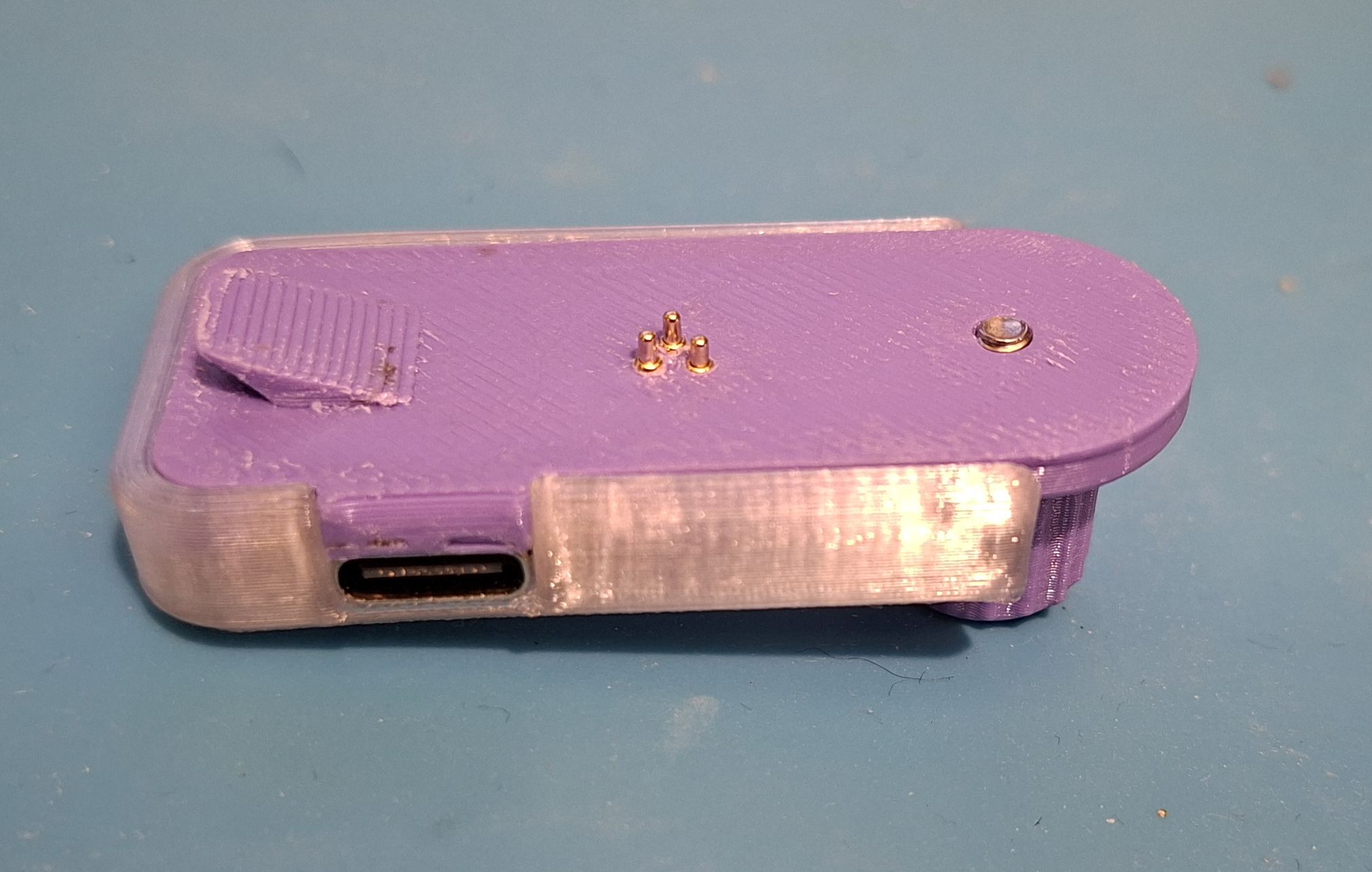

Before assembling the housing, verify that the interface is working correctly, as the fit is very tight and opening the case can be somewhat difficult.
