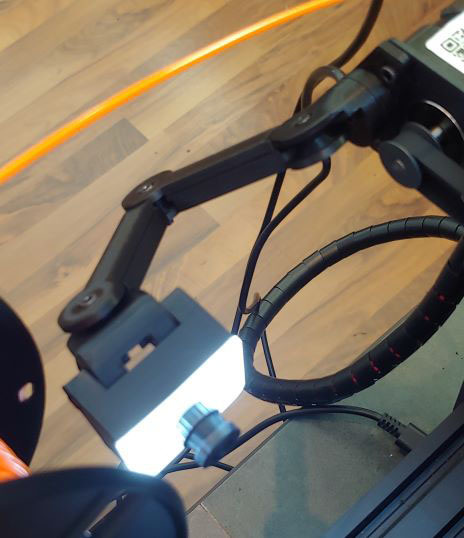

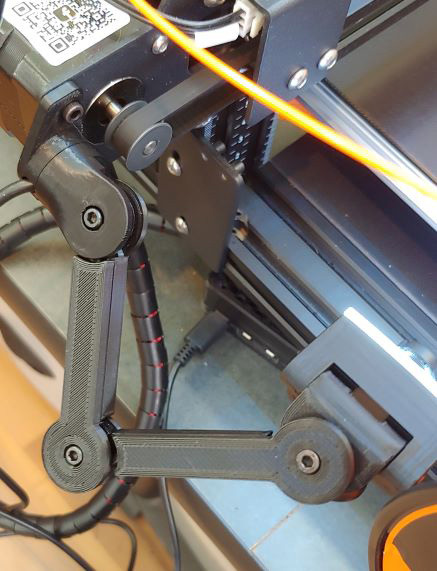

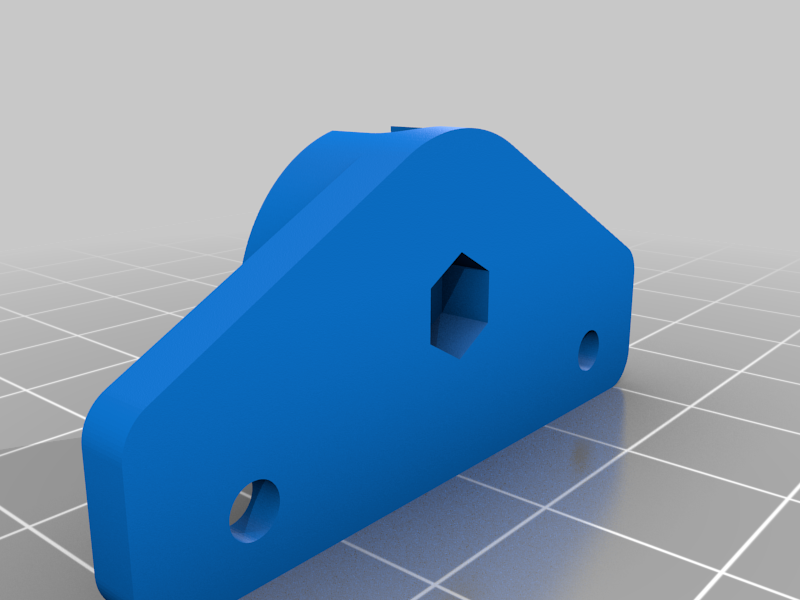

Configurable length camera for mount either to the X Axis Gantry or any Aluminum 2020 extrusion on a Eryone Thinker Series printer (may work for other brands with similar fames).
The joint arms slide together in order to be able hit the cable inside, should support up to a 5mm in diameter cable.

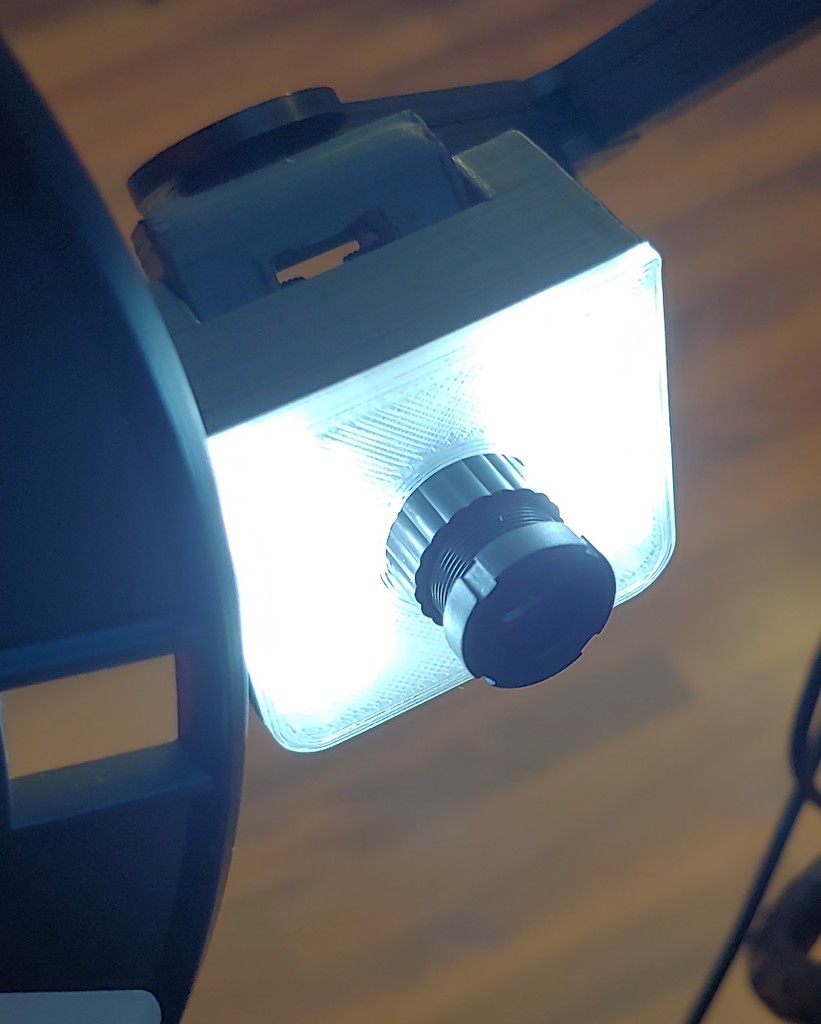

Camera used was from Amazon, which I solder LEDs for extra lighting.
Please post makes, it's nice to see the makes.
Print Settings
Printer:
Eryone Thinker S
Rafts:
No
Supports:
Yes
Resolution:
0.2/0.15
Infill:
20%
Filament:
Mech Solutions PLA
Black Post-Printing =============
Assembly

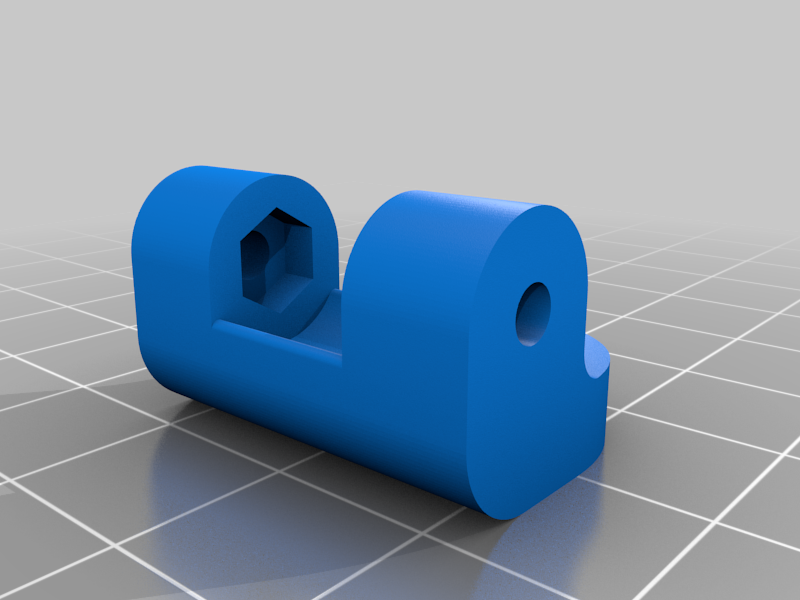

Assembly should start from the Camera Head and and down from their to hide the wire.

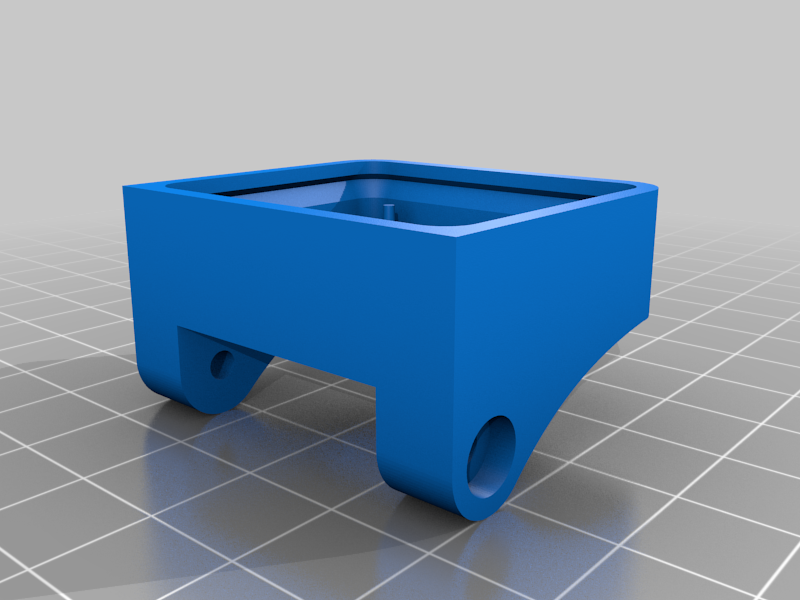

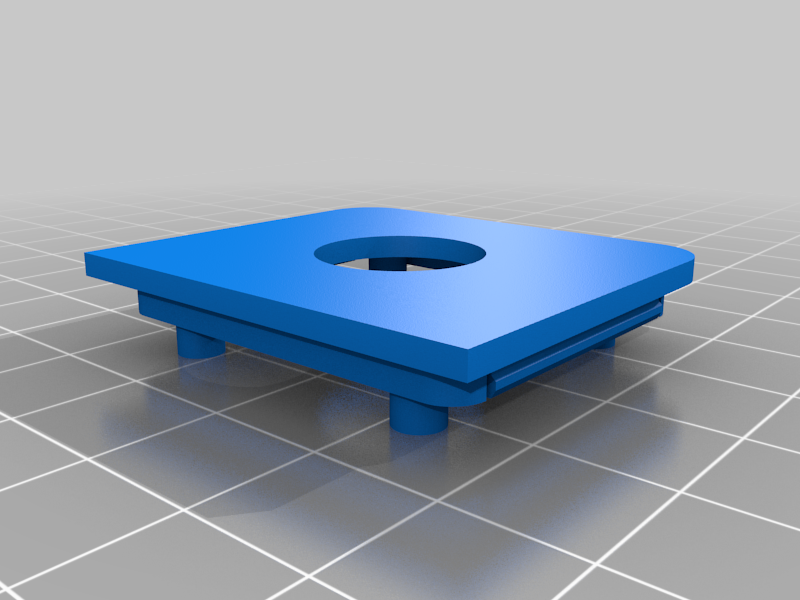

Camera Face is a snap fit and the hinge here will require a 2xM3 12mm screw and nuts.

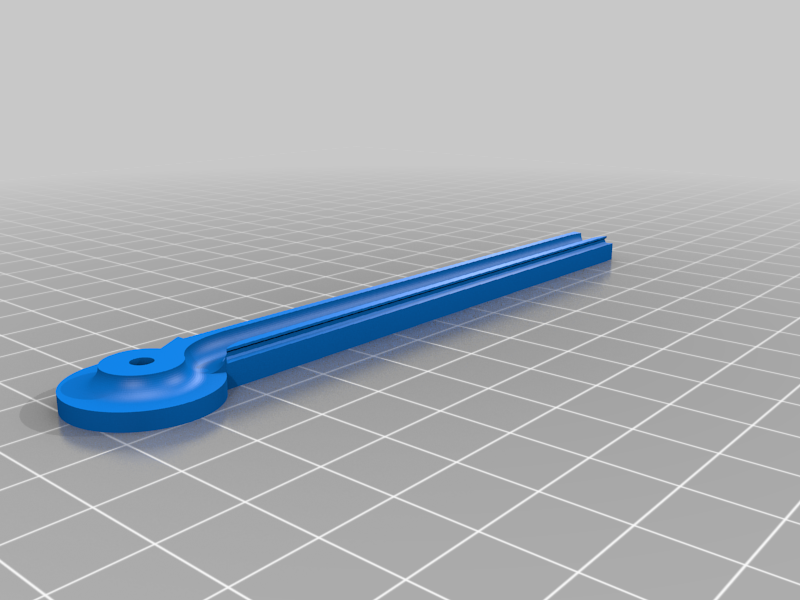

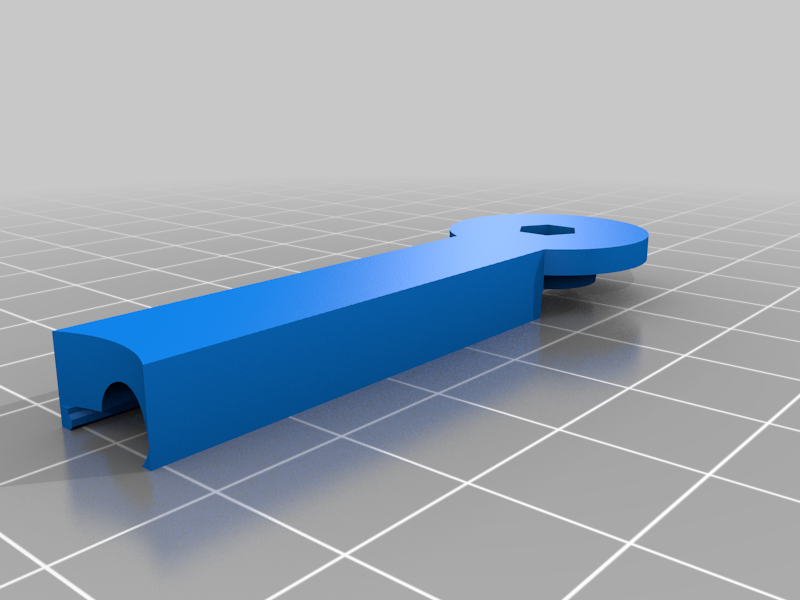

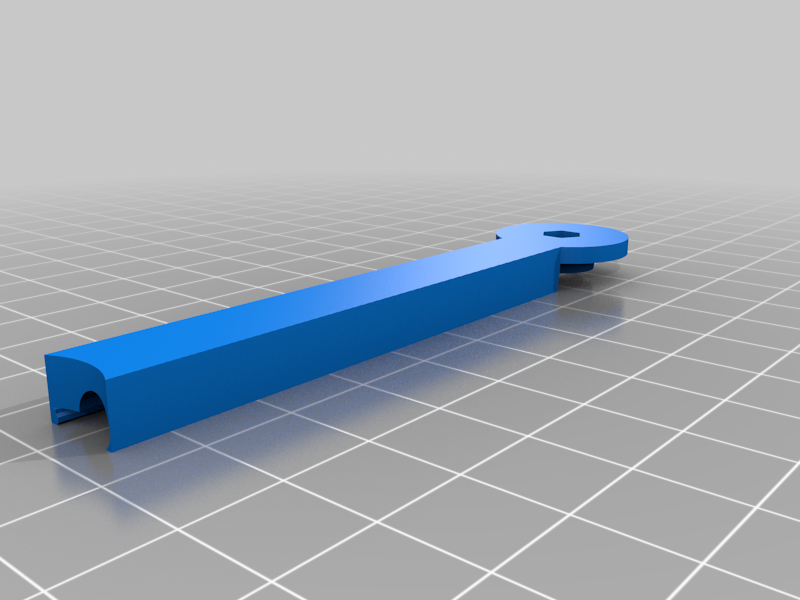

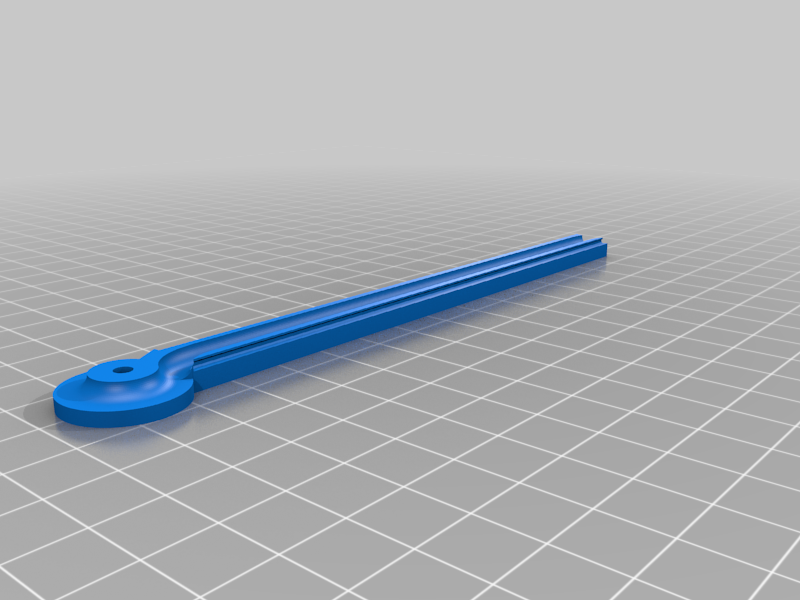

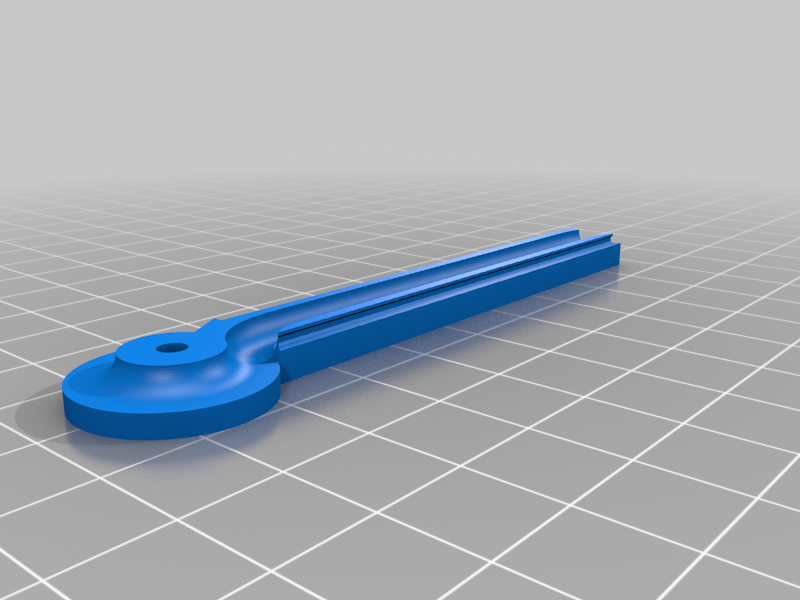

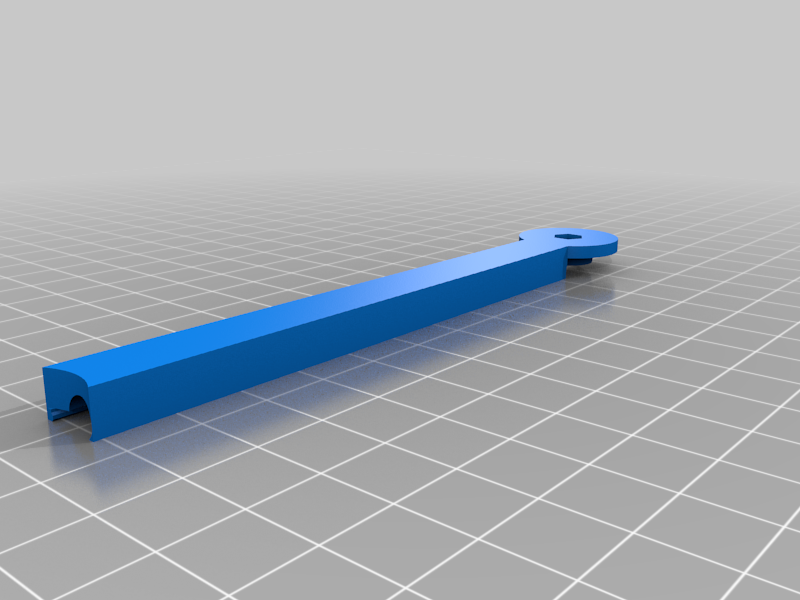

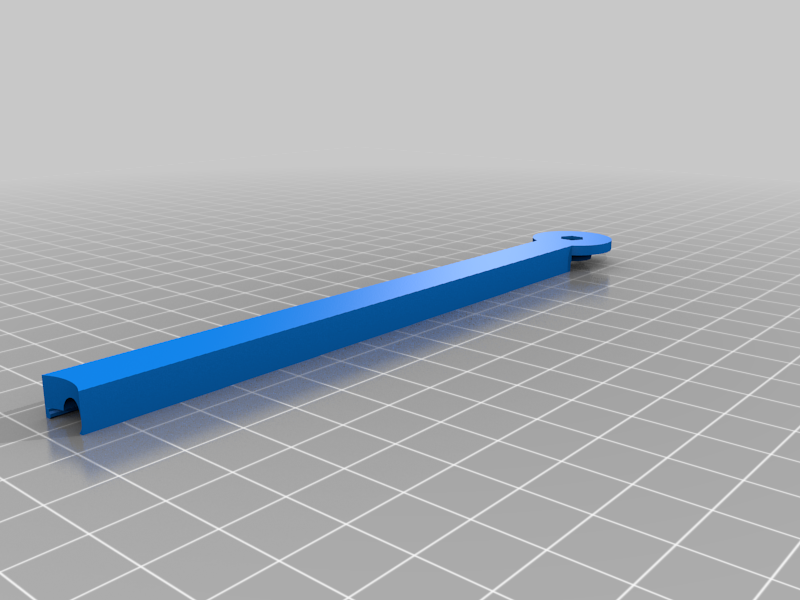

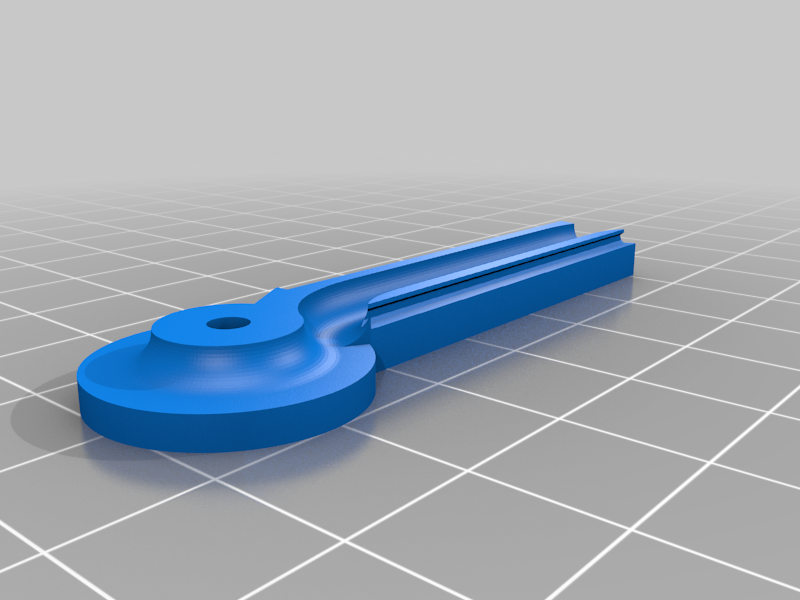

Arms parts are slide together to hide the cable.

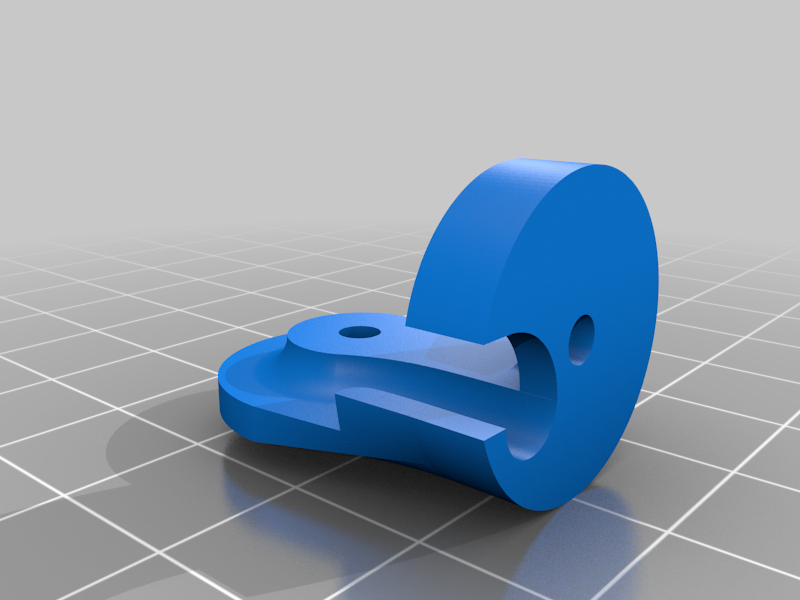

Each joint use a M3 10mm screw and nut, 8-12 in length should do fine too.
Nut are tight fit, so I usually use a longer screw to pull them into the part.
