Modular component storage
We calculate the final price from your selected file. You review and accept it before payment.
Preliminary estimate for PETG
€0.69 – €0.84 net (excluding VAT)
For file: drawer_tiny-v4_02mm_pet_mk3s.gcode
This is an estimate for one file. You’ll confirm the exact price before ordering.
File and estimate settings
File used for this estimate
Average indicative estimate: €0.76 excluding VAT (range midpoint).
- Weight reported by the author
- 9 g
- Print time reported by the author
- 49.2 min
- Source material
- PET
- Estimate material
- PETG
- Estimate printer
- Bambu Lab P1S - 0.4 nozzle
- Estimate process
- 0.20mm Standard
Indicative estimate for the selected file only, based on the author’s weight and print time. File variants are not added together. The final price is calculated after file analysis.
Saved on this device.
This is a small modular cabinet with side rails and top/bottom indentations/extrusions for interlocking and stacking…
- Rating
- 4.5 / 5
- Likes
- 85
- Downloads
- 386
- Makes
- 1
- Views
- 3,987
- Reviews
- 4
Updated at source:
Model information
- Source
- Printables
- Category
- Organizers
- License
- Creative Commons — Attribution

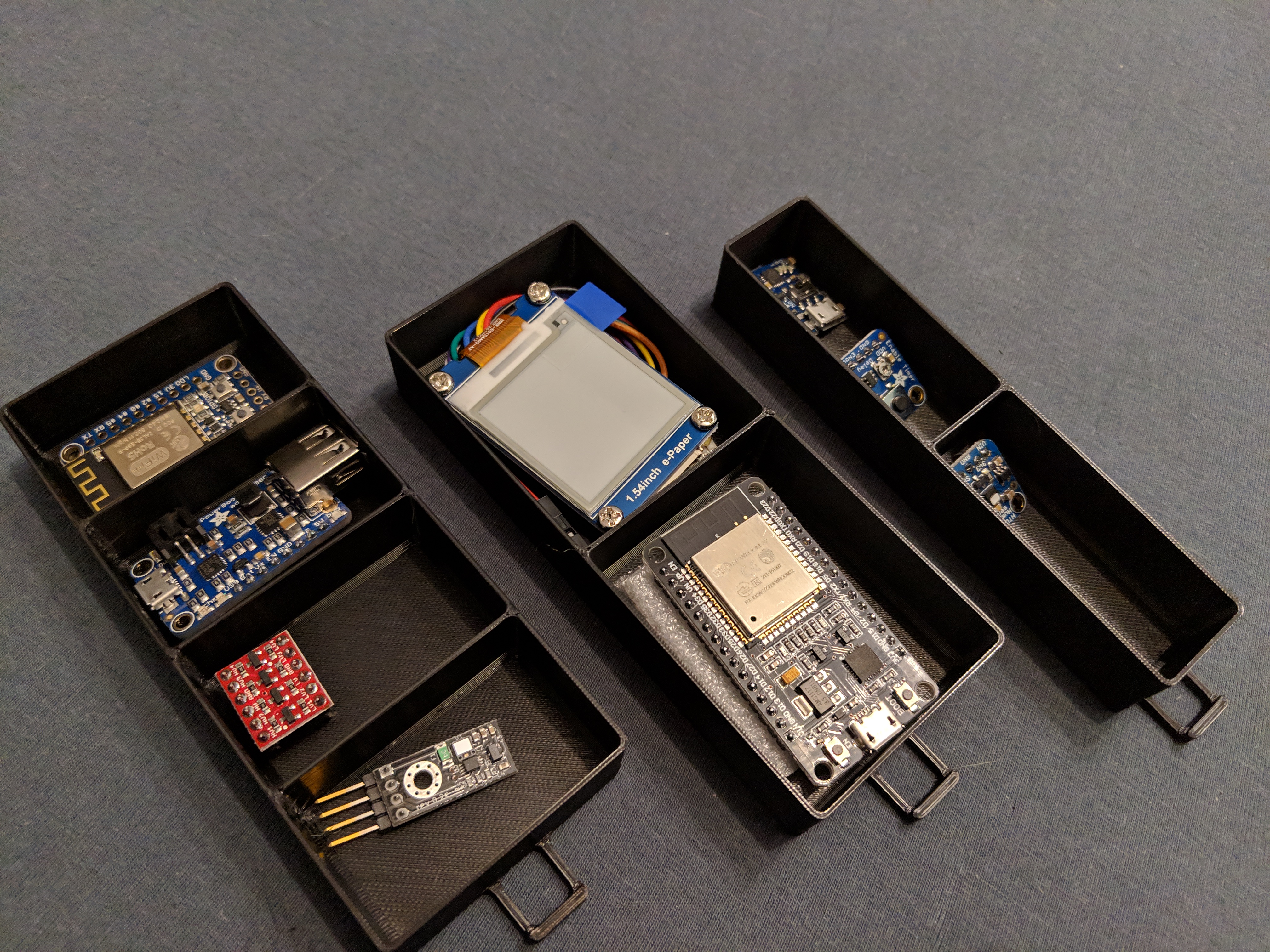

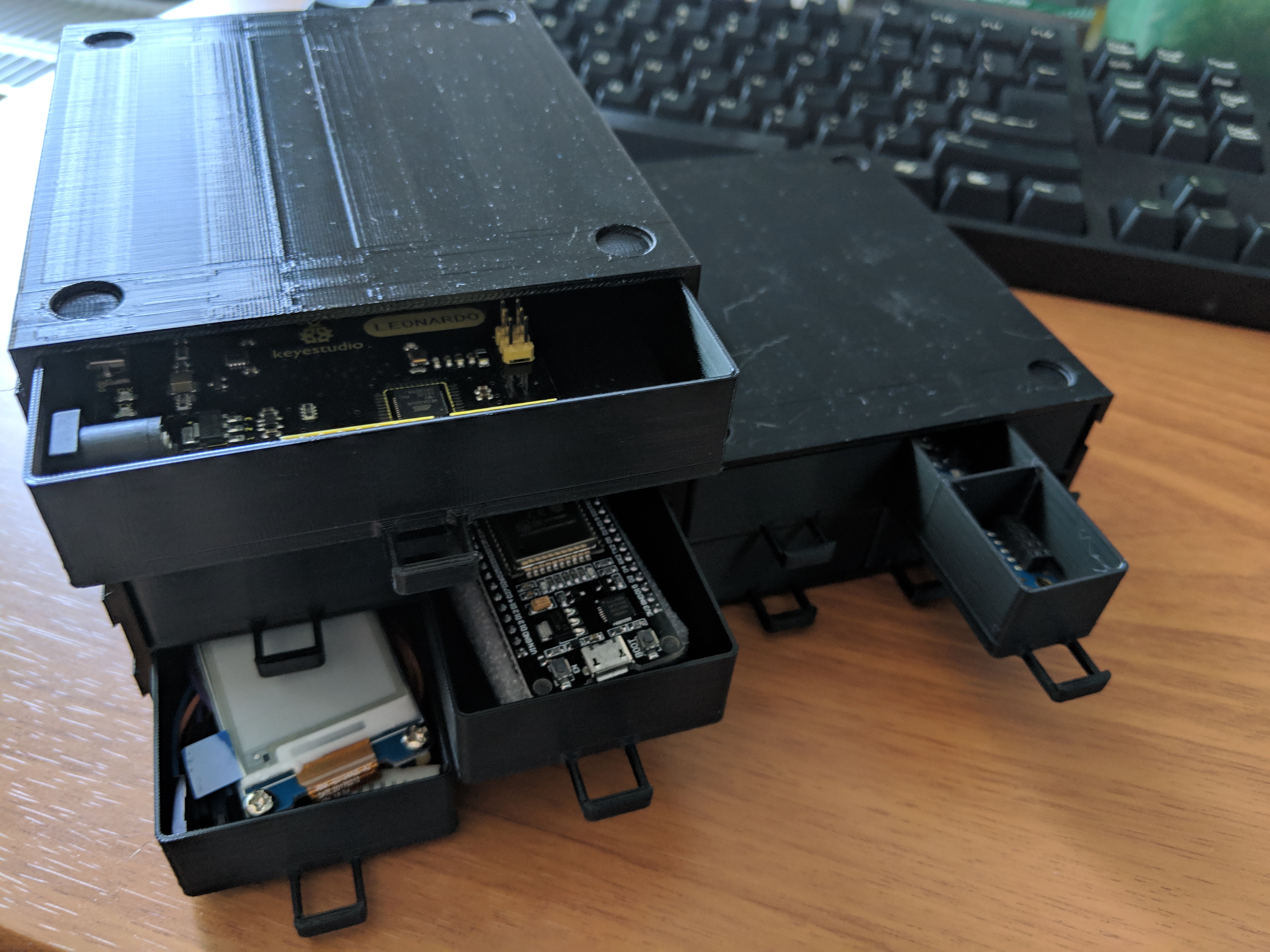

This is a small modular cabinet with side rails and top/bottom indentations/extrusions for interlocking and stacking multiple cabinets together :)
The cabinet module is roughly 100x45x120mm (WxHxD) not counting the side rail (1.5mm) and bottom feet (1mm).
It features 2 horizontal slots for drawers.
There are 4 available drawer sizes to choose from with several variations of internal compartments each (1-4). The number of internal compartments for each drawer is indicated by the _Yxh suffix where Y is the number of available compartments. Each separator is 1mm thick so you can do the math how much space gets lost ;)
Internal drawer width:
big - ~93mm
normal - ~45mm
small - ~ 21mm
tiny - ~ 9mm
All of the above have a usable depth of ~116 mm (not counting separators) and height of ~17mm.
In each cabinet slot you can fit:
1x big OR 2x normal OR 4x small OR 8x tiny
Or... you can also mix and match them however you like :)
Print instructions
Rafts: No
Supports: No
Resolution: 0.2mm
Infill: 10%
Infill density in the PETG gcode files has been tuned for minimal retractions during printing.
Make sure to keep that in mind as some infill settings may result in quality loss if your retraction settings are not perfectly set.
