This 3D printable object is a switch cover for an EVOLUTION RAGE5S 255MM 1500W MULTI-PURPOSE TABLE SAW.
I was always searching for the small red stop button and needed to take my eyes off the workpiece which to me posed a serious safety issue. I decided to make a switch cover with a large flat surface that I could easily find and power off the table saw without looking for the button. It has been a very good addition to my saw.

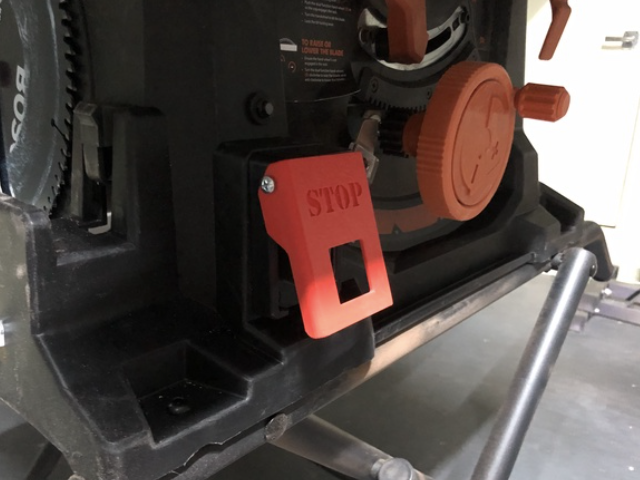

Fit it to the saw by drilling screw holes on either side of the on/off switch enclosure.
DISCLAIMER: Use at your own risk.
Update 20/12/20: Included Fusion 360 file.
Update 15/02/20: Reoriented model for easier 3D printing.
Print Settings
Printer Brand:
Creality
Printer:
CR-10
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
50%
Filament: eSun PLA+ 1.75mm Red
Notes:

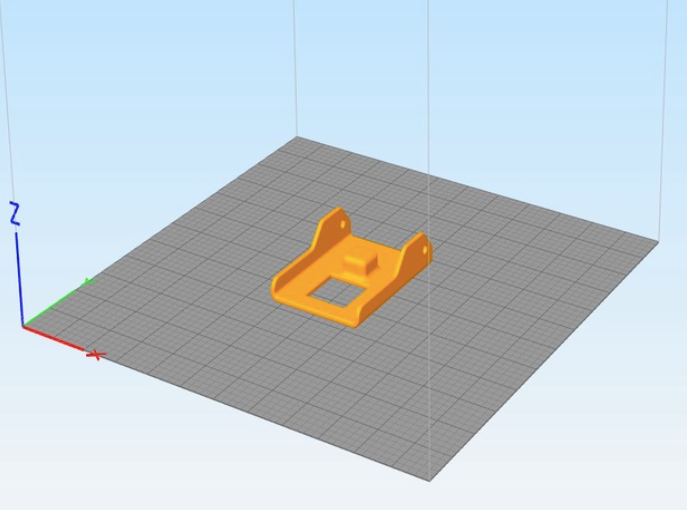

Print with the large surface flat on the print bed. No supports required.
Design process
- Took some basic measurements Designed prototype using Fusion360 Printed the prototype and performed test fit Tweaked design Printed final design and fitted
