Countersink Bit Holder
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Organizers
- License
- Creative Commons — Public Domain
This holder is for a set of countersink bits with shaft diameters of 1/4", 3/8", and 1/2". The holder has room for all of the pieces in the set, plus a few extra holes because why not!
Some features:
- Hole tops are tapered for easy insertion.
- Wells are open at the bottom for easy cleaning
- Bottom holes are rounded to enable printing without supports

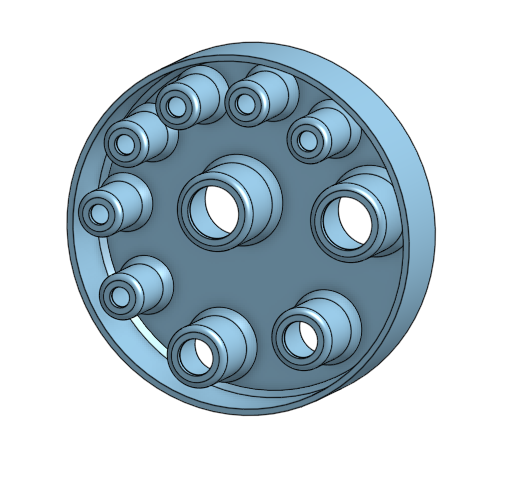

The OnShape 3D CAD file for this part is available here:
Print instructions

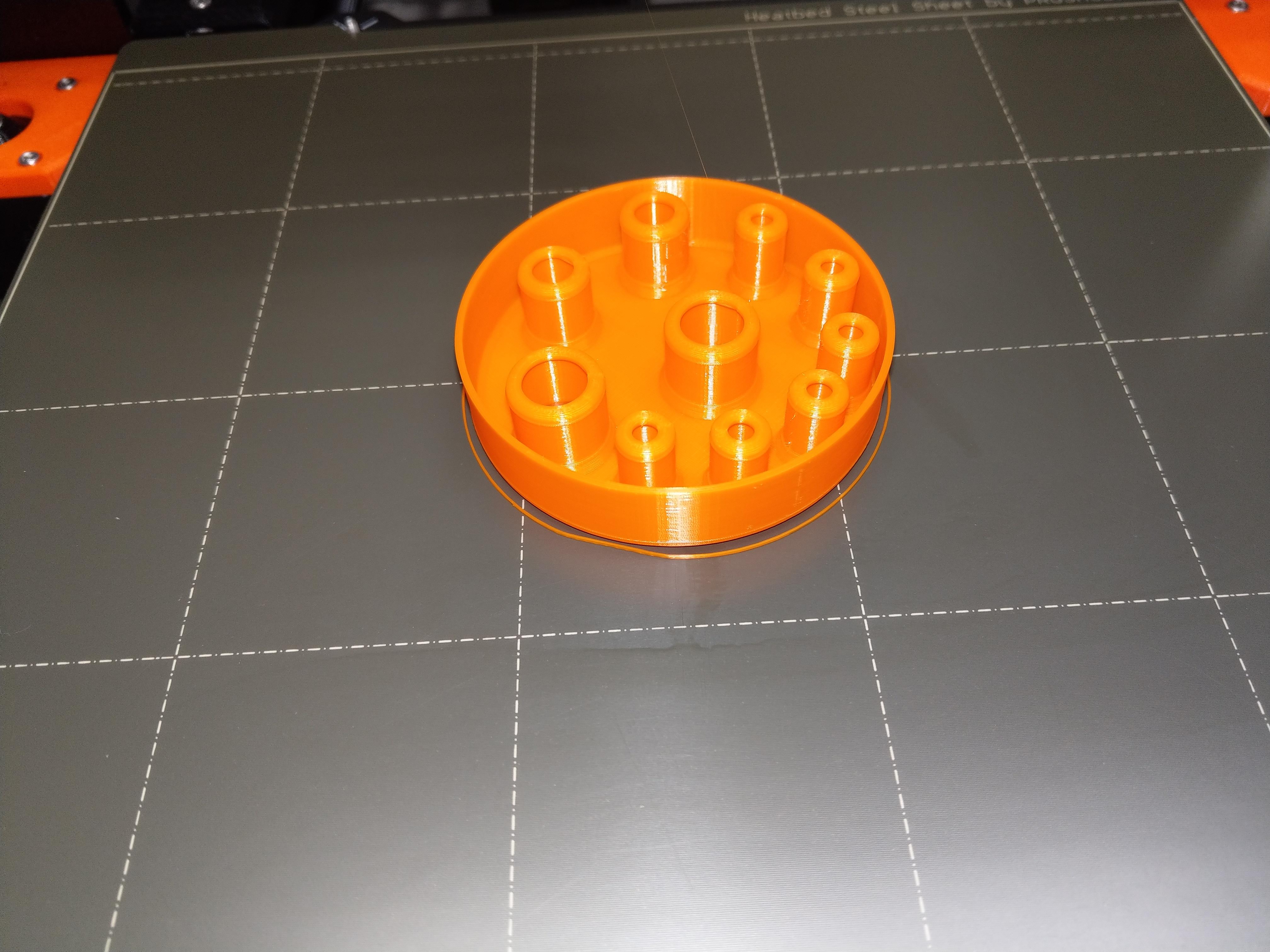

Print top side down. Fill settings are irrelevant because the part is thin-walled throughout.
No supports are needed.
