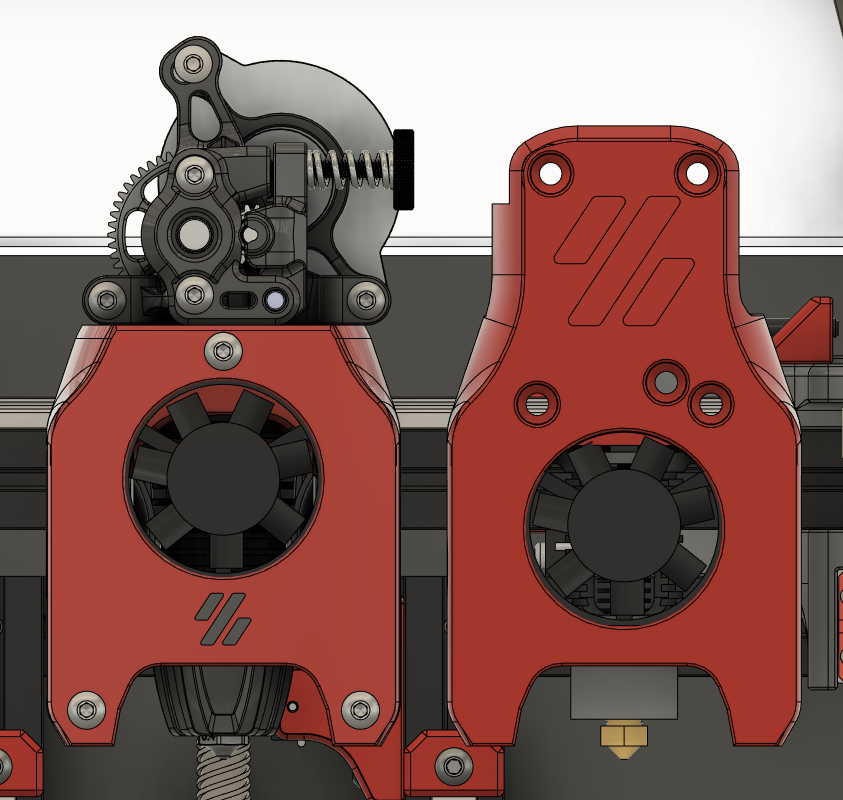

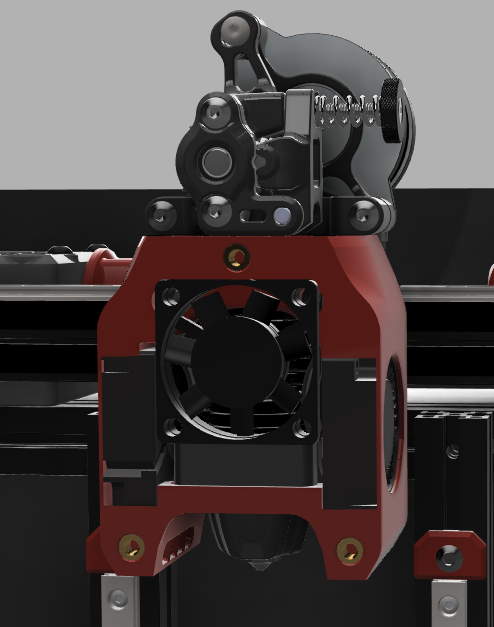

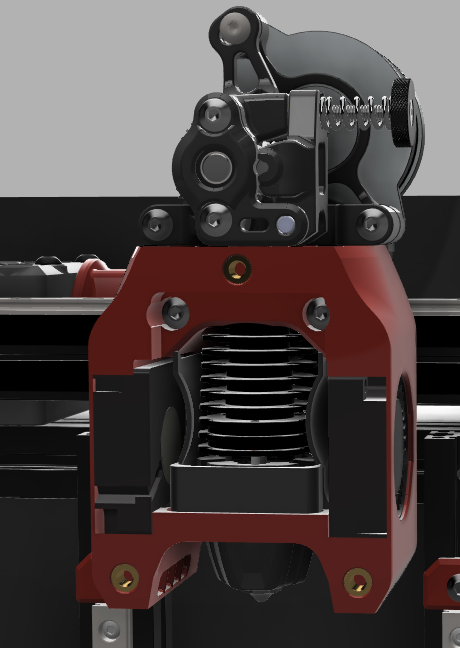

This is an UNTESTED toolhead for the Voron V0.1.
I don't currently have the parts to build this toolhead and I don't have plans to ever try it. I just got a bit bored. I'm assuming that a fan saver is required due to how close the heater sits to the blower fans. I don't think I missed anything but it's entirely possible I did.
"Supports on buildplate only" required.
Most parts are stock Mini Afterburner (3007, 3010 blowers, bmg gearset)
Mounting screws (to the x carriage) are now m3x25
3x-V0.1 speck short threaded inserts and 3x-m3x6 are needed for the front plate.
I've included all 4 mounting holes for the rapido as I wouldn't risk just 2 on a longer hotend.
note: not sure about the length of the rapido mounting screws (how far they can go into the heatsink) so I've given them an extra 1mm off the dragon mount.
Happy printing!
Original FanSaver-
https://github.com/VoronDesign/VoronUsers/tree/master/printer_mods/jappaj/FanSaver
Voron git-
https://github.com/VoronDesign
