Upgraded Low-Profile Accessibility Switch
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Video Games
- License
- Creative Commons — Attribution

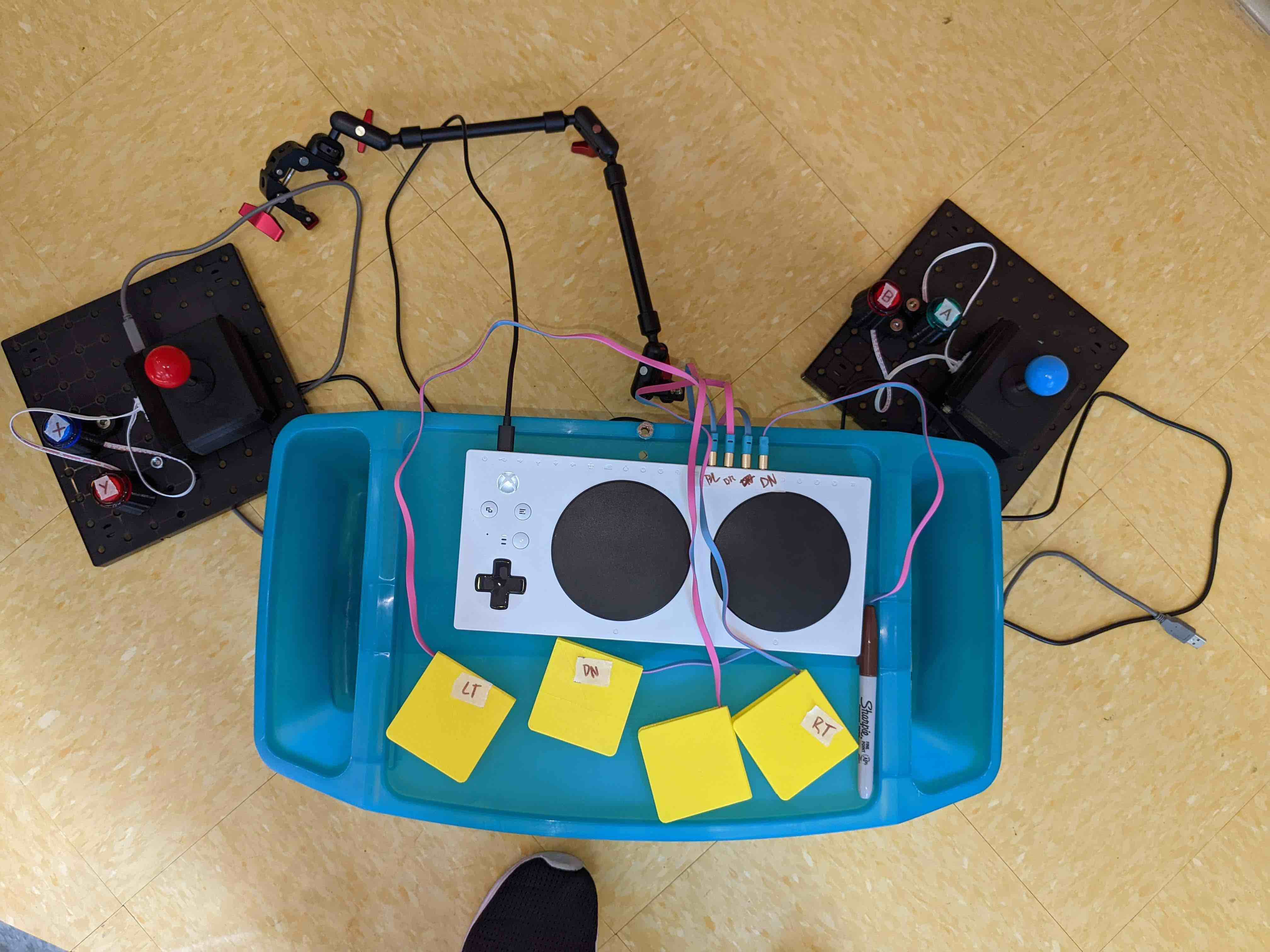

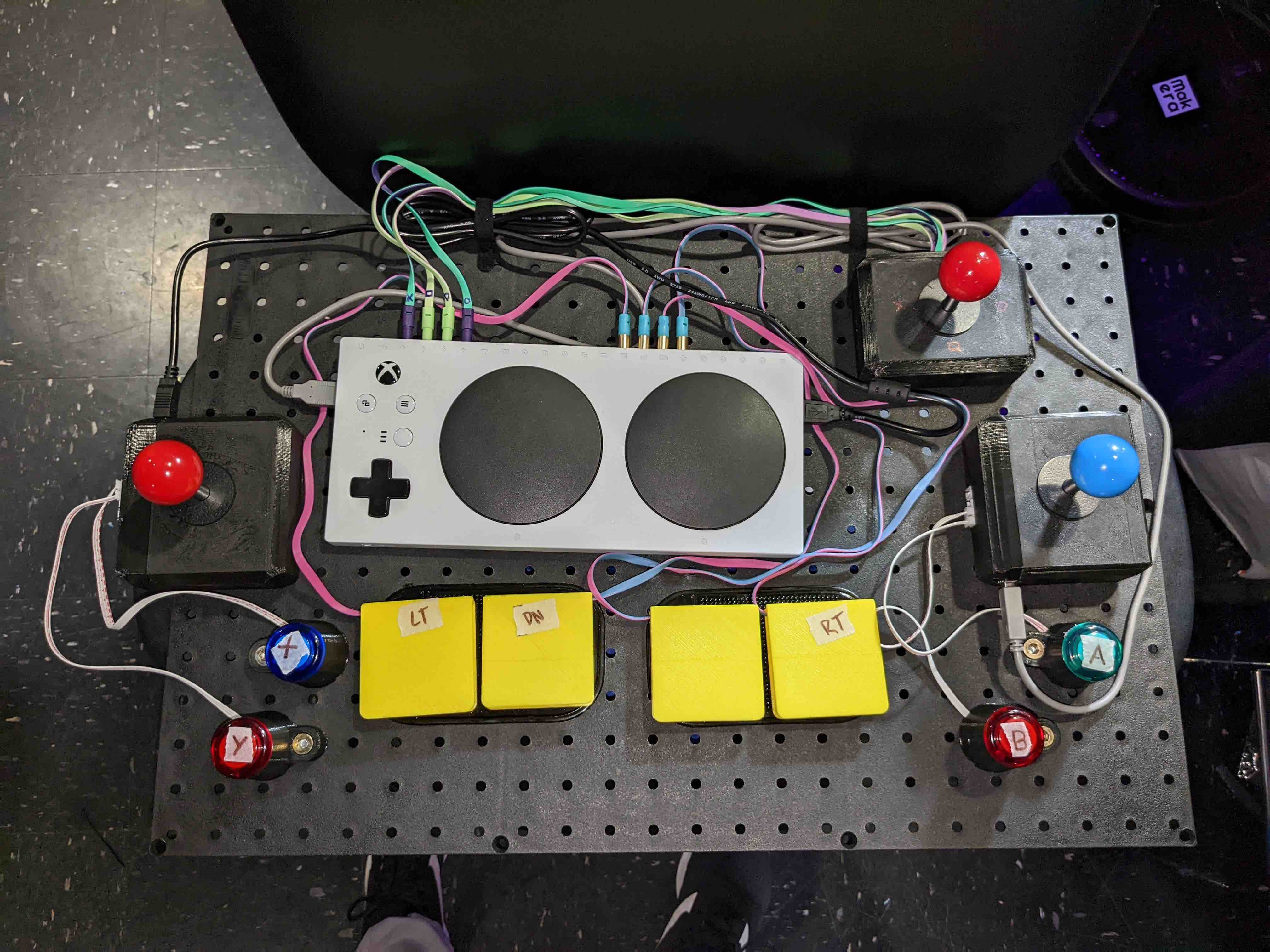

This is a remix of the Makers Making Change low profile accessibility switch.
https://www.printables.com/model/214839-low-profile-switch
This version adds:

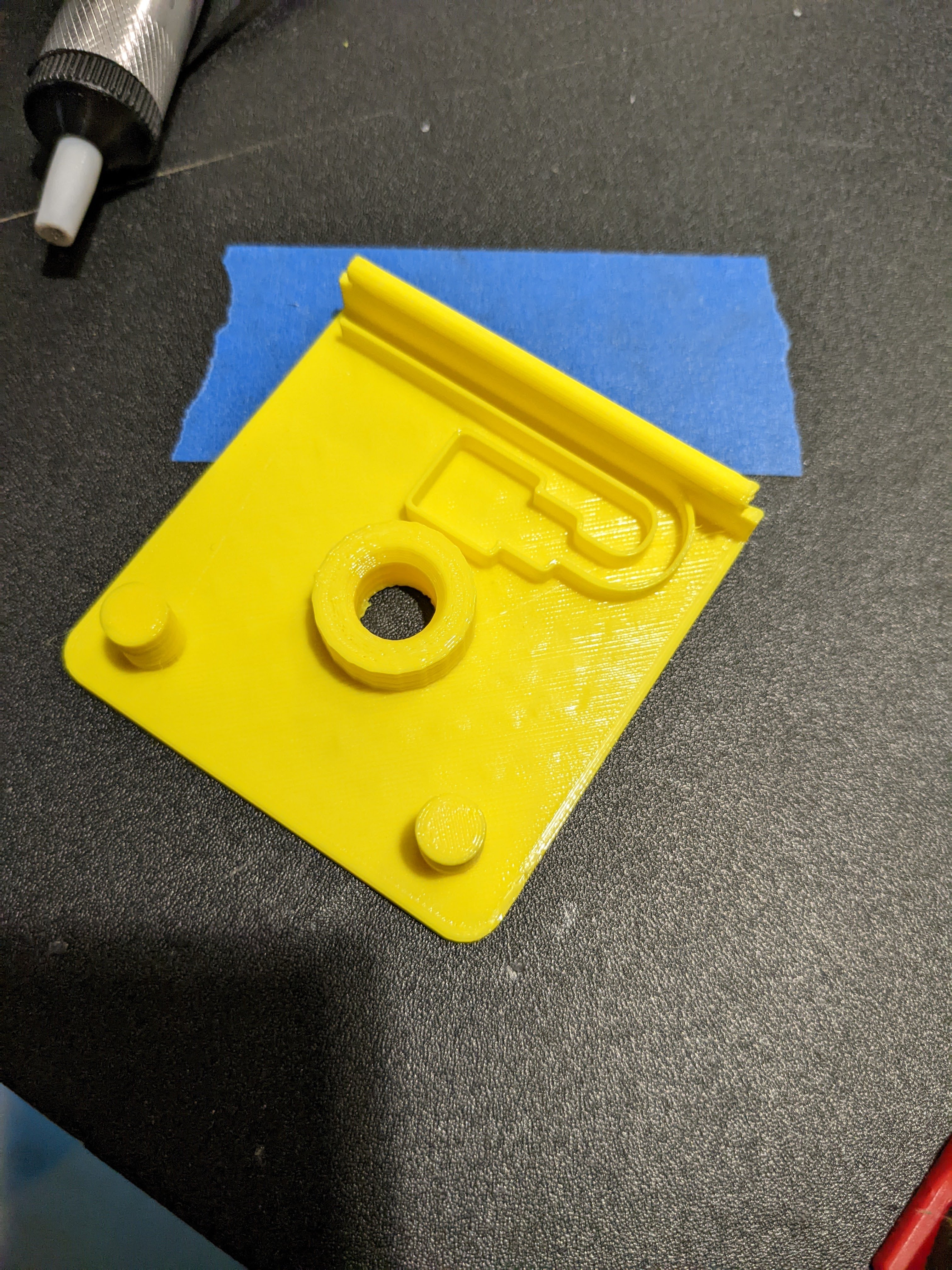

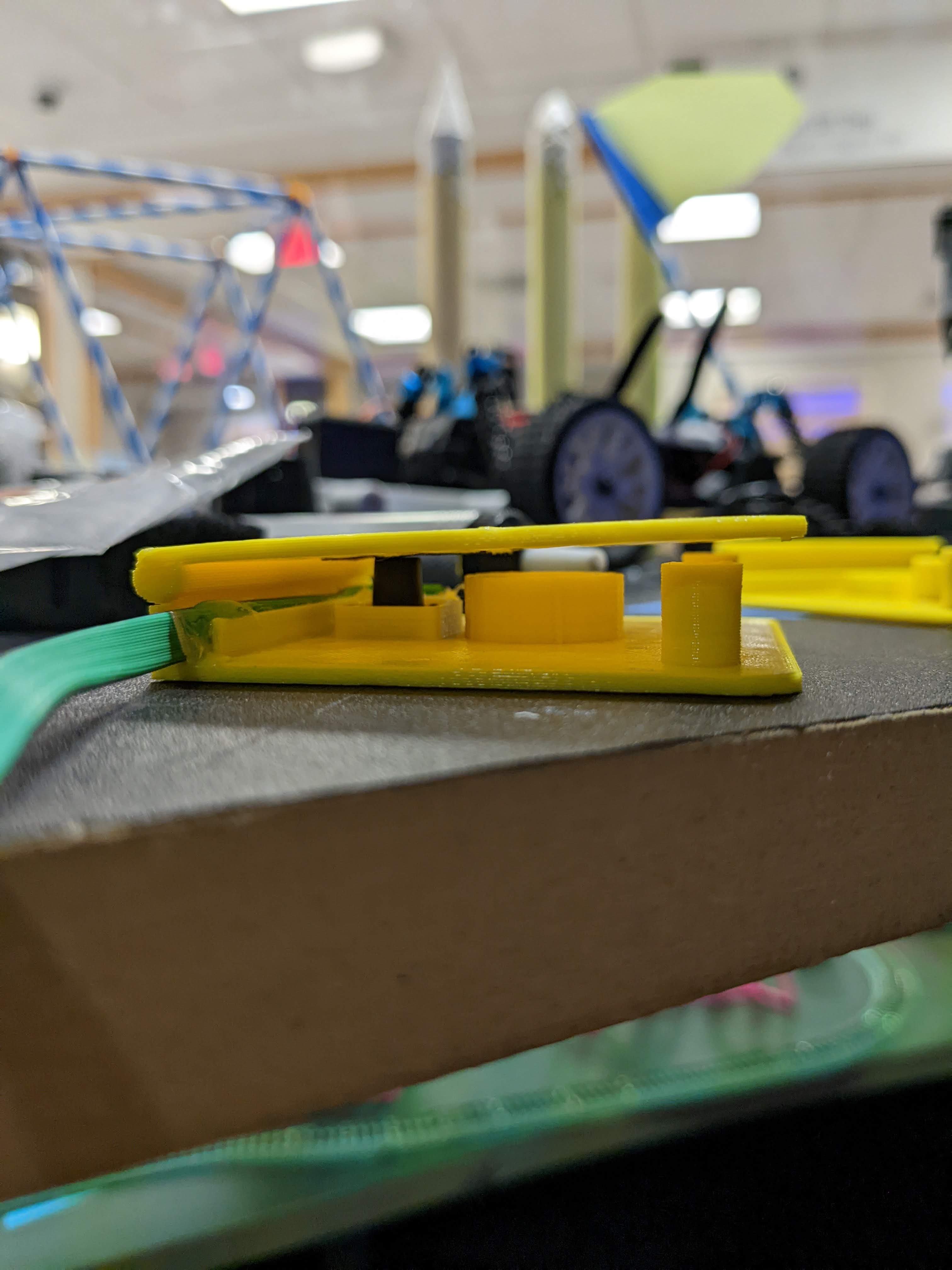

- internal posts for better "smack-ability"

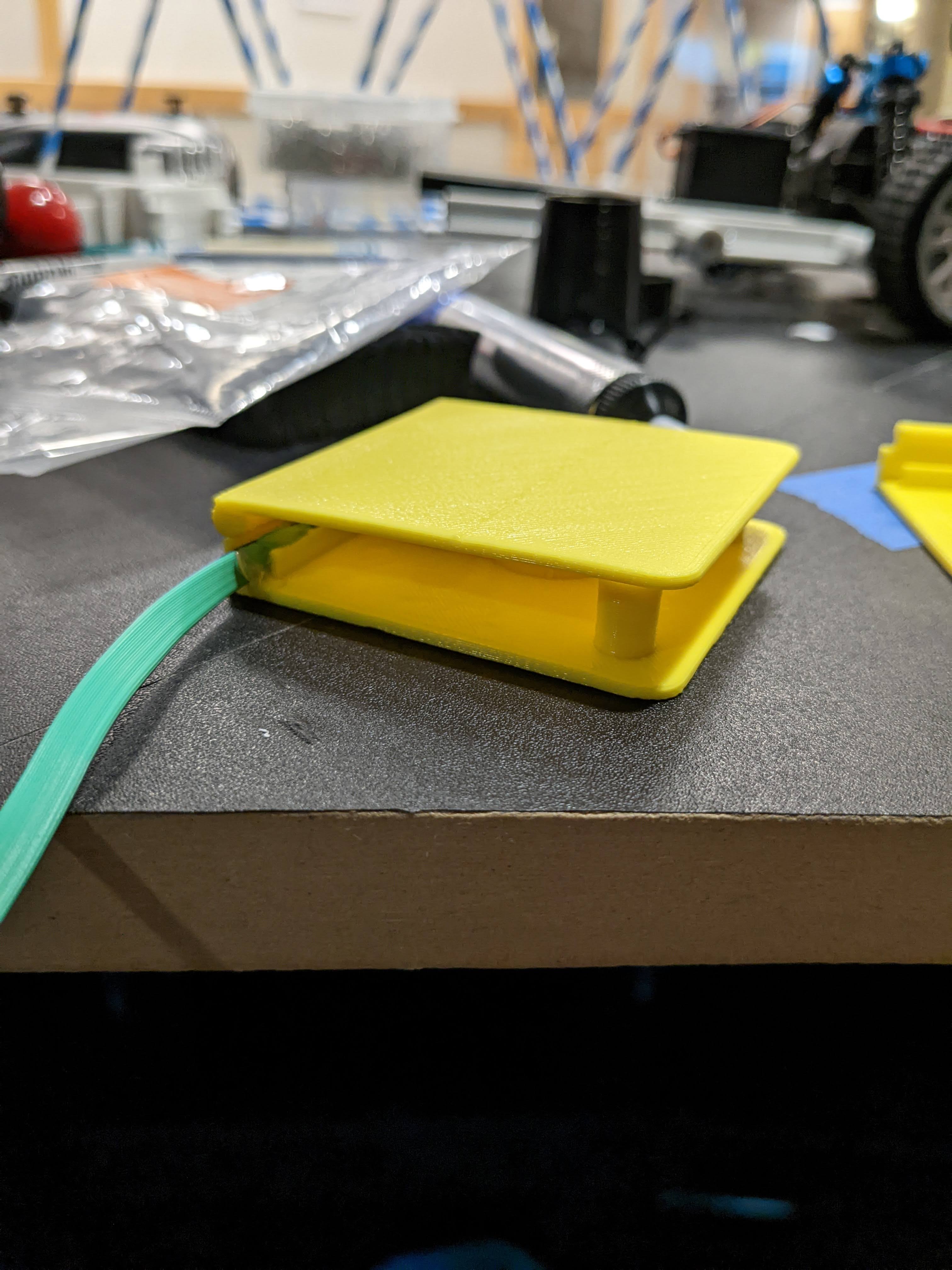

- cable routing optimized for dollar tree flat profile stereo 3.5mm cables
- a hole for a 1/4-20x10mm threaded insert.

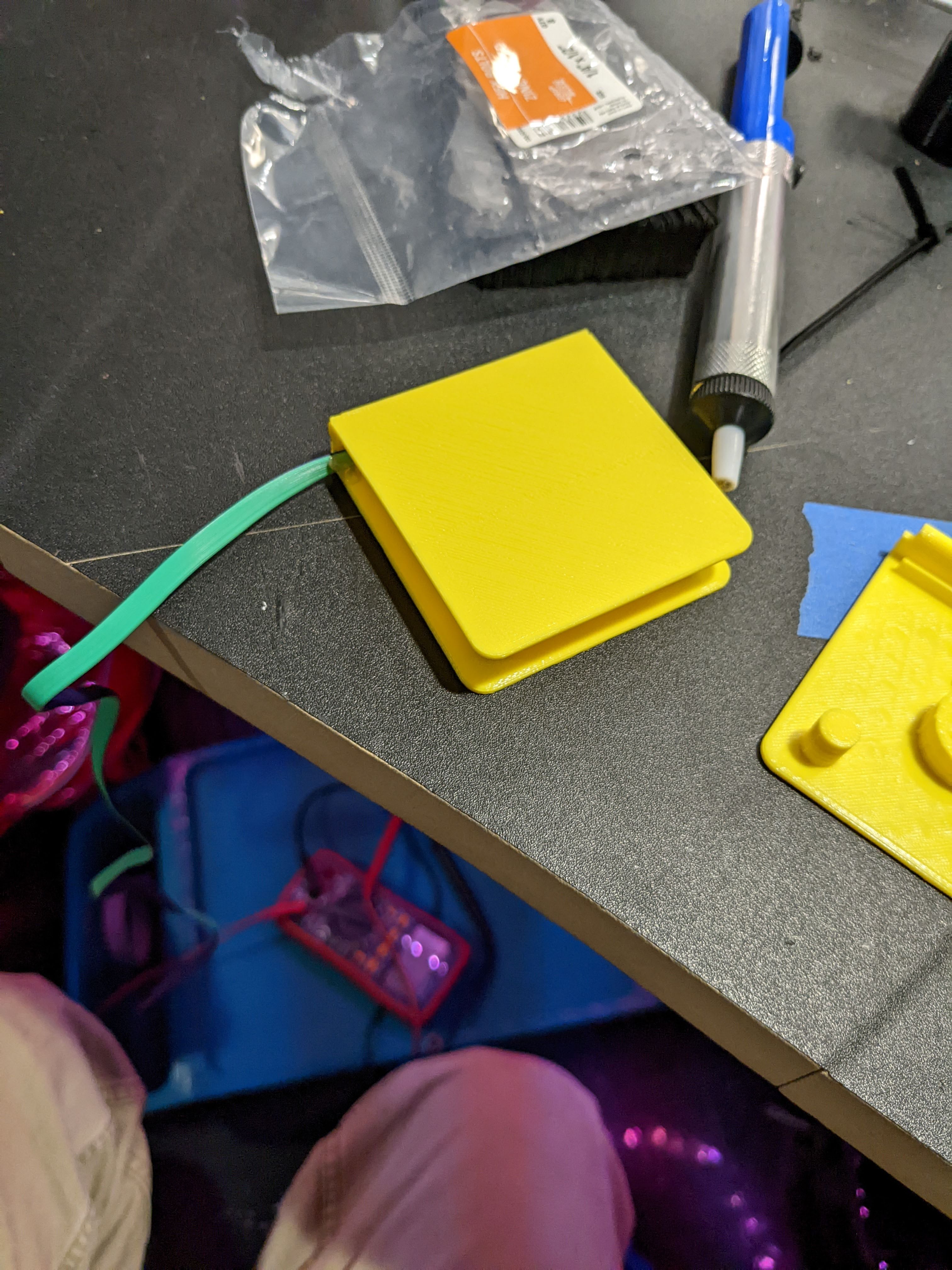

to assemble, cut any cheap 3.5mm stereo audio-jack and strip the exposed wires. you'll need to use a continuity tester to find out which wires are for the sleeves vs the tip. you can twist the sleeves (sleeve and ring) together to make the stereo-jack effectively a mono-jack.
on the button, cut the contacts off one side and bend the other side's contact out so that the switch can lay flat. solder the tip wire to one contact and the sleeve and ring wires to the other. thus, hitting the button shorts between sleeve and tip contacts on the jack.
use plenty of hot-glue to mount the switch and wires into the channels on the printed part. before snapping the flap onto the hinge and your ready to go
bone-apple-tea
