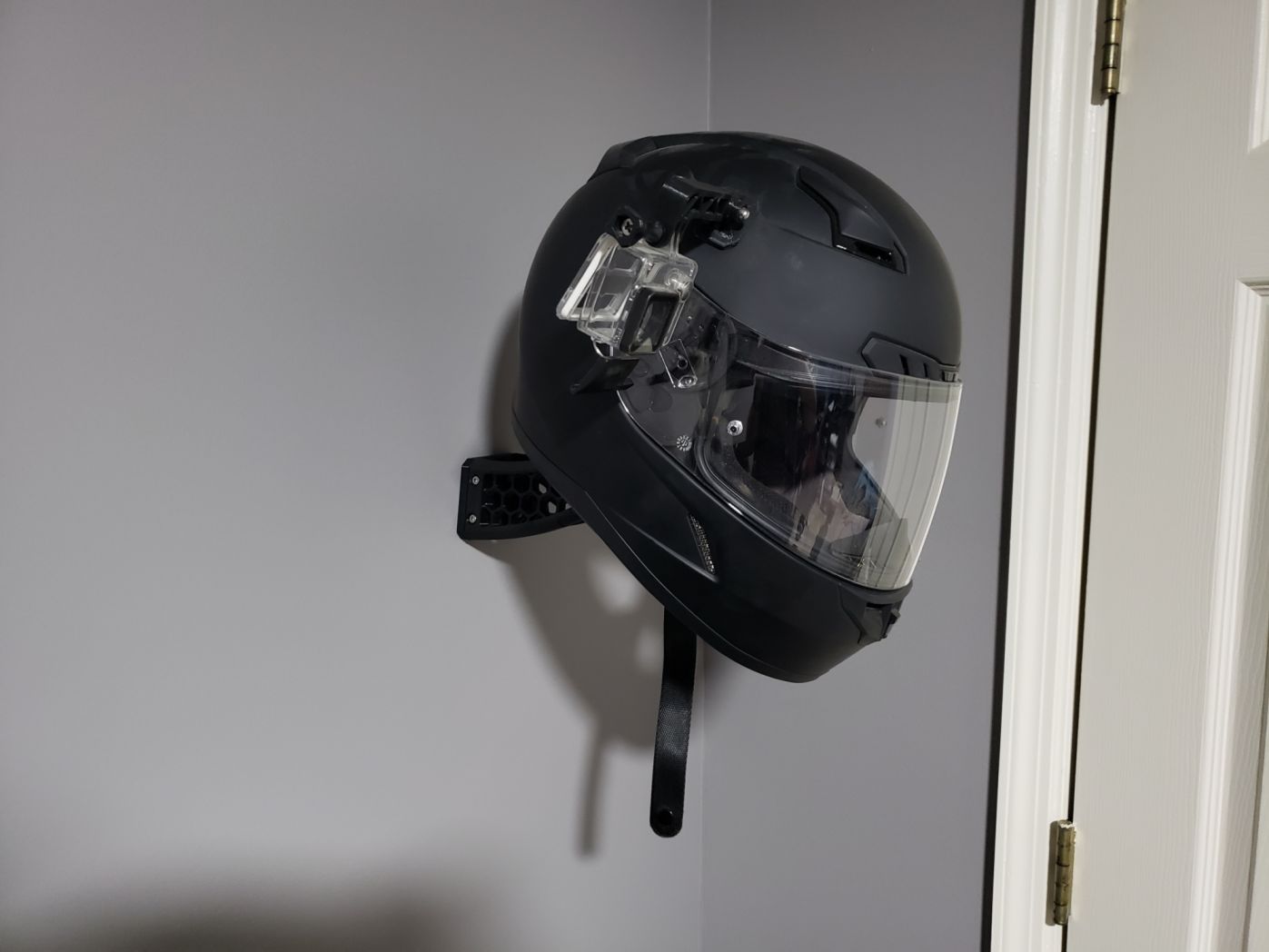

I designed this stand for my racing helmet. It attaches to the wall with 2 wood screws into a stud.
I used 6 sets of M4x20mm socket head screws with nuts and washers to hold everything together.
My Print Infill and Layer Settings:
0.4mm Nozzle with 0.32 Layer Height
BASE:
Infill - Grid 50%
Walls - 5
Top and Bottom Layers - 5
Support - No
ARMS:
Infill - Grid 50%
Walls - 5
Top and Bottom Layers - 4
Support - Yes (Needs support on one end)
TOP HAT:
Infill - Grid 20%
Walls - 3
Top Layers - 3
Bottom Layer - 6 (Make sure tab with holes is completely solid)
Support - No
For My Remix

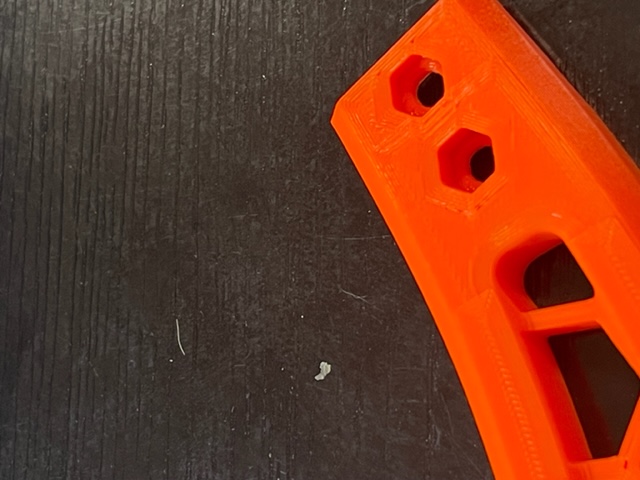

reduction of the thickness of 0.4mm in order to have a perfect flatness (lack of flatness on the original arms) and inlay of M4 nuts for easy assembly
