Hevoron

I also call this the Hyperjank

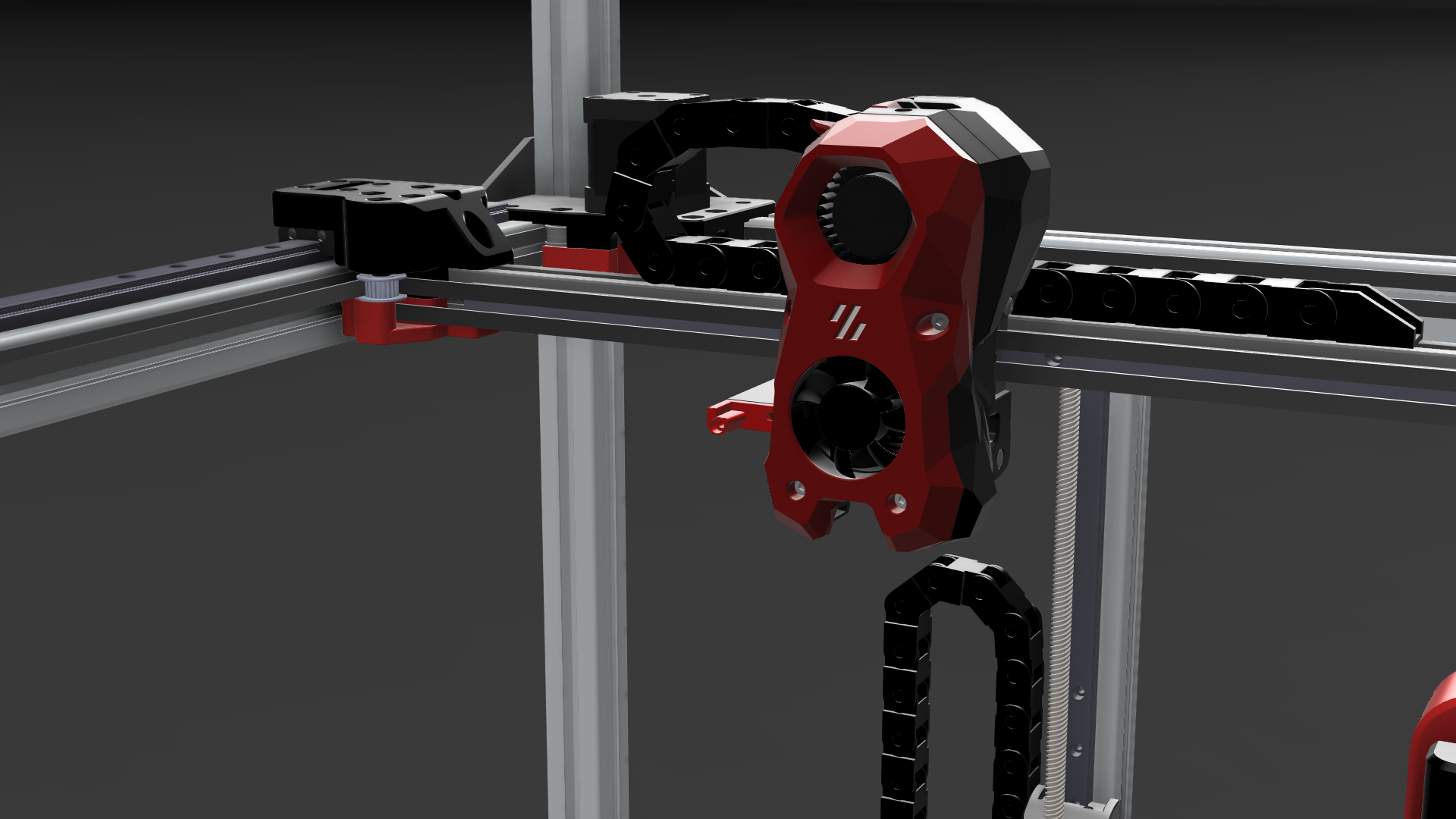

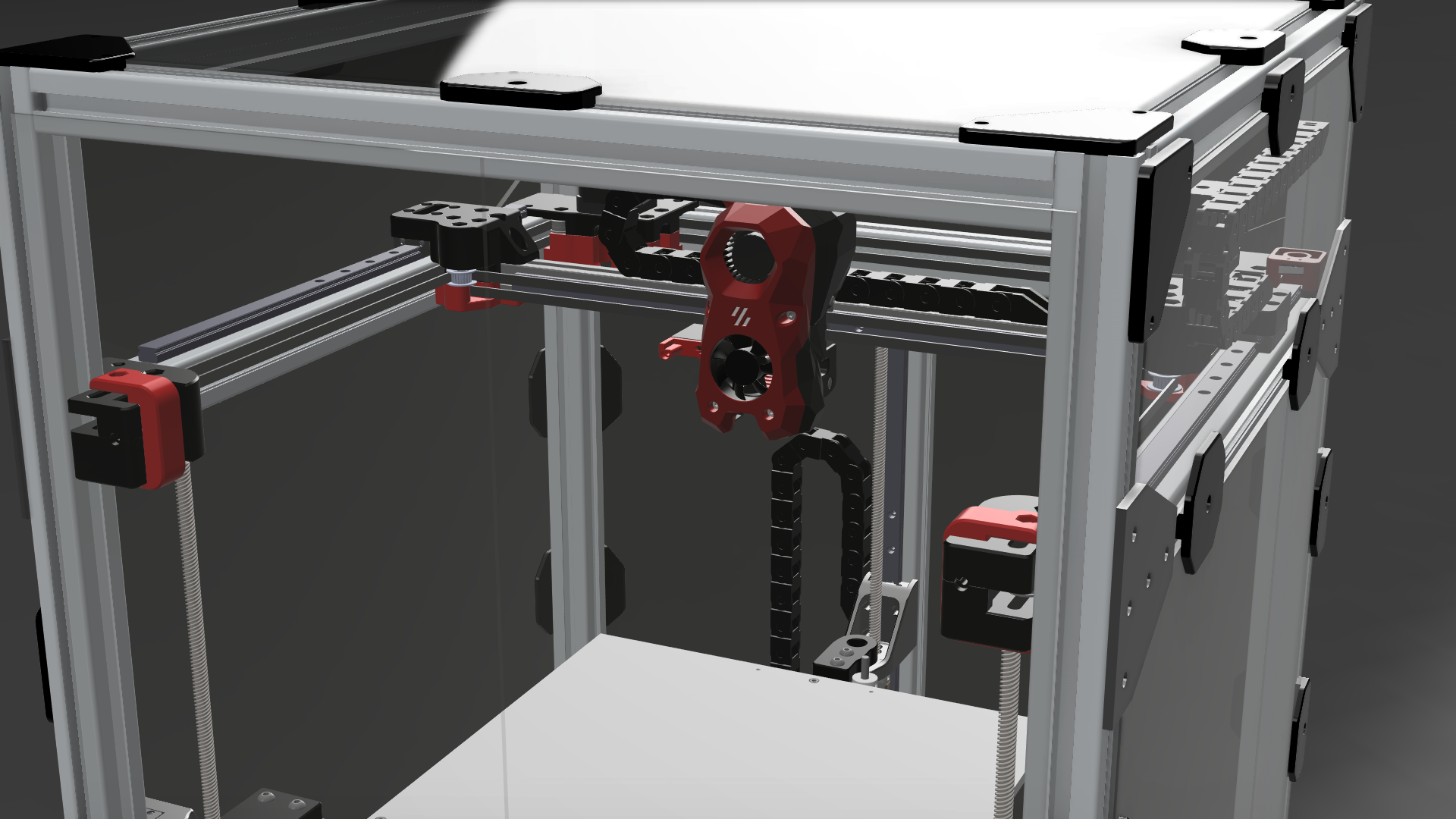

I had a Hypercube. And then I didn't want a Hypercube anymore so I made the XY gantry compatible with Voron design’s Afterburner and Stealthburner system. (also tested with Armchair Engineering's XOL and Archetype toolhead)

If you've got feedback(which would be greatly appreciated) here's a Discord:
https://discord.gg/zhmDw3Xb6A

printed in ABS

Frame and linear rails measurements are in BOM section

BOM (incomplete)
m5 45mm x18
m5 50mm x2
m5 10mm x16
m5 16mm x36
m4 FHS 50mm x4
m3 50mm x2
m3 16mm x8
m3 30mm x8
m2 8mm x8
(along with other  components in the official V1.8 Bom)

m3 heatset insert x14
m4 nuts x12

a whole lot of m3 & m5 T-nuts

Frame (for 300x300x350 print area):
 Outer frame:
  3030 470mm x 11
  3030 700mm x 4
 Hevo Z:
  2020 260mm x 2
  2020 465mm x 2
 Gantry
  2020 420mm x 1

  MGN12H 370mm x 3 (this is just what I have laying around)

  F695ZZ bearings x20
  1mm shims for idlers (stacked just like Voron bearing stacks) x20
  20 teeth gt2 6mm wide idler pulley x2

Idlers bore are 5mm

Klicky probe: https://mods.vorondesign.com/detail/6p2BbGiMg3JZPKQsRtMmqQ

Panels mounting:  https://www.thingiverse.com/thing:4620758

Spool holder:         https://www.thingiverse.com/thing:5169228

Filament Sensor: https://mods.vorondesign.com/detail/kNXodW5lMbFAYJrJU4khmQ

UPDATE: 22/03/2025

new .step file, extra stuff (like an untested 9mm belt version of the gantry)

UPDATE: 21/02/2025

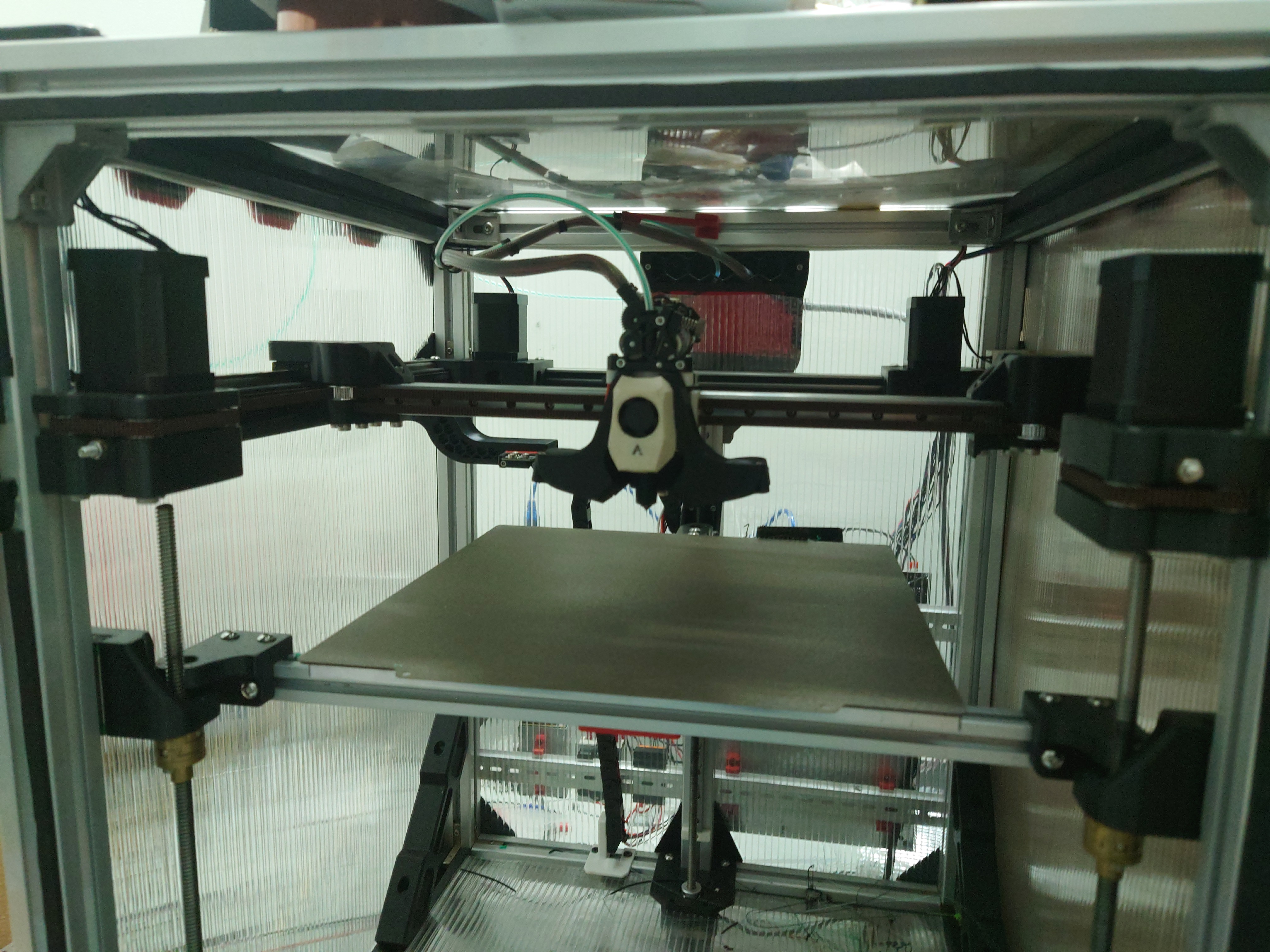

Triple Z (which I completely forgot to push to Printables for like a year)

UPDATE: 07/05/2024

A and B motor mounts are now on the right side (with the A motor mount on the right side and vice versa)

UPDATE: 29/01/2024

slightly adjusted gantry for consistency

tidied up step file

UPDATE: 24/01/2024

fixed major gantry wonkiness

UPDATE: 13/07/2023

changed to F695ZZ bearings for nontoothed idlers (for durability reasons)
adjusted gantry
general tolerances

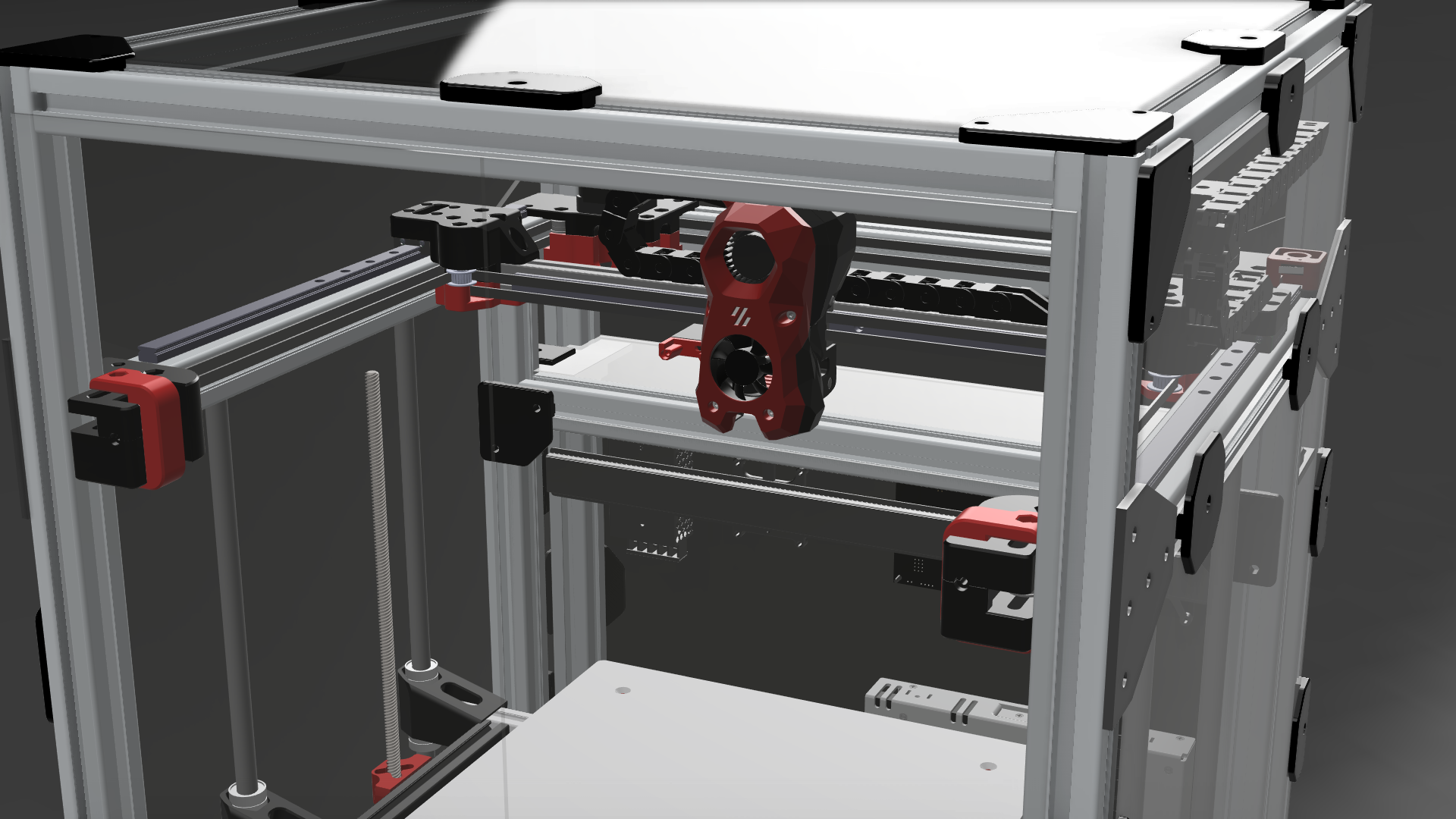

added V1.8 Z setup that reuses the lm12luu (for some reason)
also DIN rail mounts

UPDATE: 22/06/2022

added drill & tap jig for doin da blind joint
updated CAD files on Github repo

UPDATE: 19/06/2022

added janky cable routing in the B motor mount

UPDATE: 14/06/2022

made minor adjustments to the motor mounts

UPDATE: 05/06/2022

added Klicky probe dock mount. I can't test it out tho because my bed is in the way

UPDATE: 02/06/2022

added some stuff
SKR v2 mount with 40mm fan support (position that however you like)
PSU mount for putting that on the frame
Cable management thingies

UPDATE: 24/05/2022

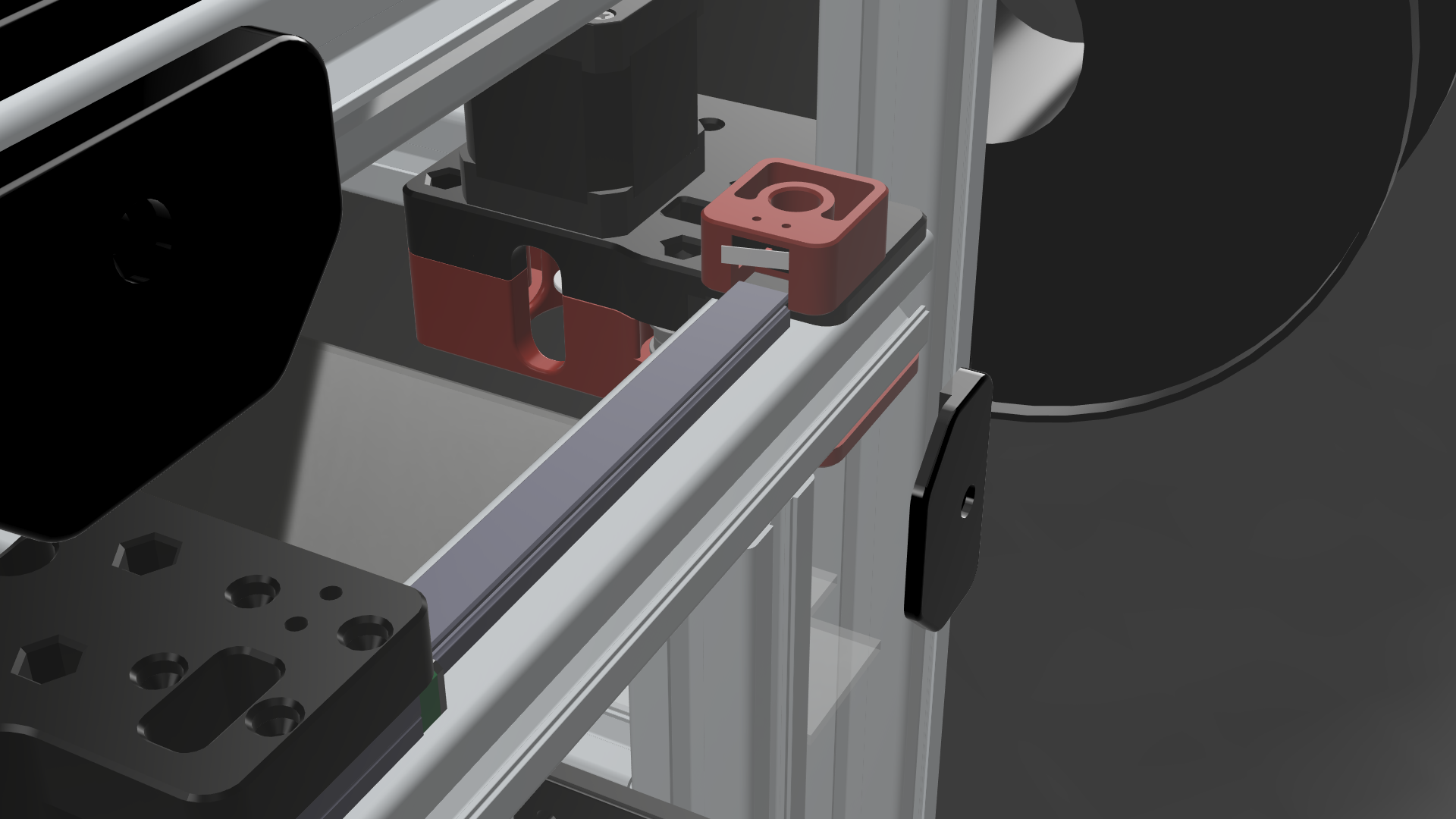

adjusted gantry and endstop pod  to allow for more X travel on the original Hevo frame
added endstop pod FB

UPDATE: 23/05/2022

Z chain

UPDATE: 11/05/2022

fixed idlers nut holes
adjusted gantry for chain clearance

UPDATE: 06/04/2022

updated tolerances

UPDATE: 30/03/2022

Flipped the gantry upside down so that I could reuse the bed from the Hevo with the added 12mm rod mount, changed endstop setup

UPDATE: 27/02/2022

added microswitch endstops for X and Y
