AtomStack A5 M40 Zeroing Block
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other Printer Parts & Upgrades
- License
- Creative Commons — Attribution — Share Alike
This is a utility part to assist in perfect zeroing your X and Y axis on an AtomStack A5 M40.
You will need to do a couple of modifications to the laser chassis while installing this.

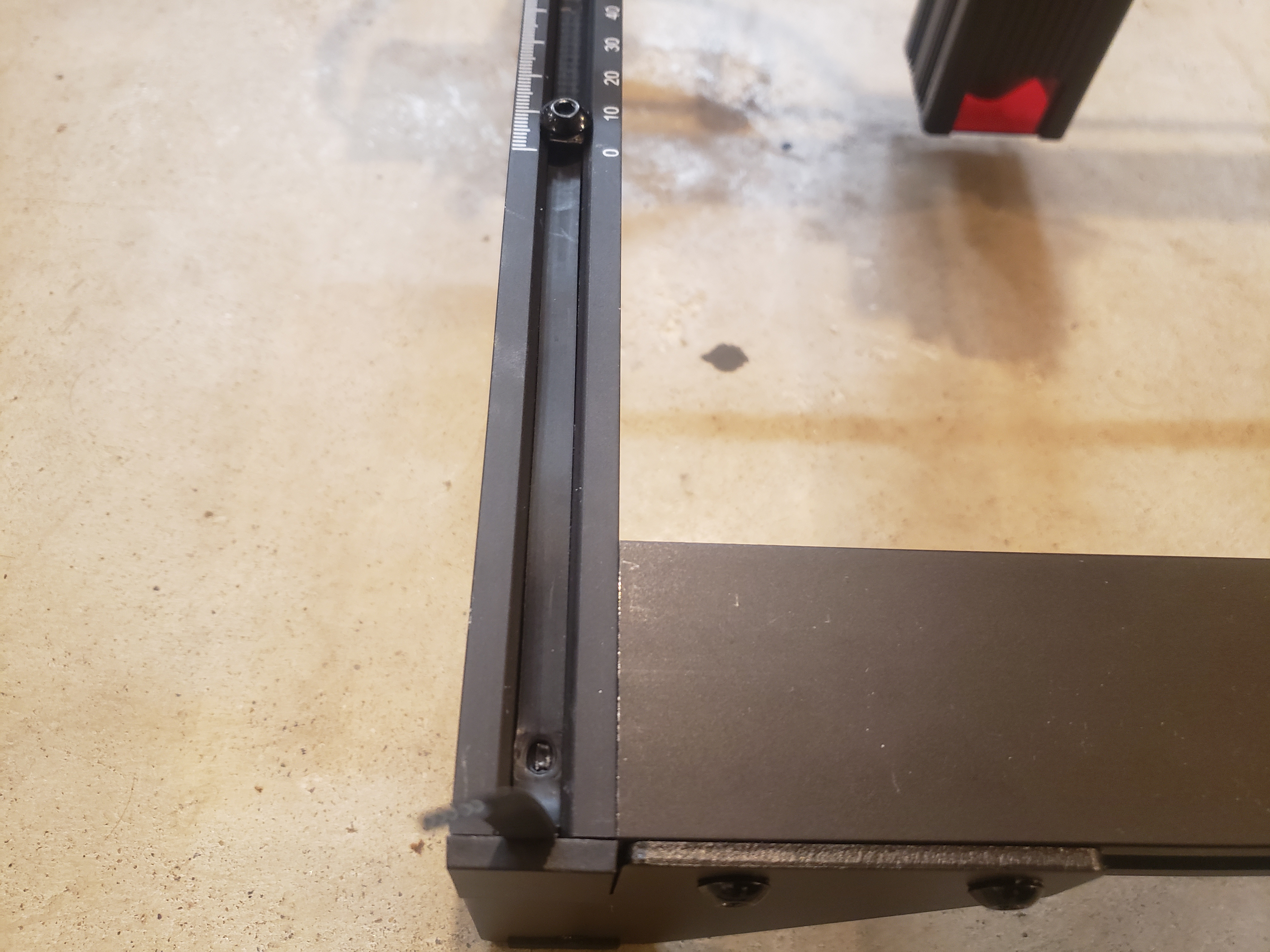

- Move the belt retaining T-nut on the left side up to the 10 graduation printed on the extrusion:

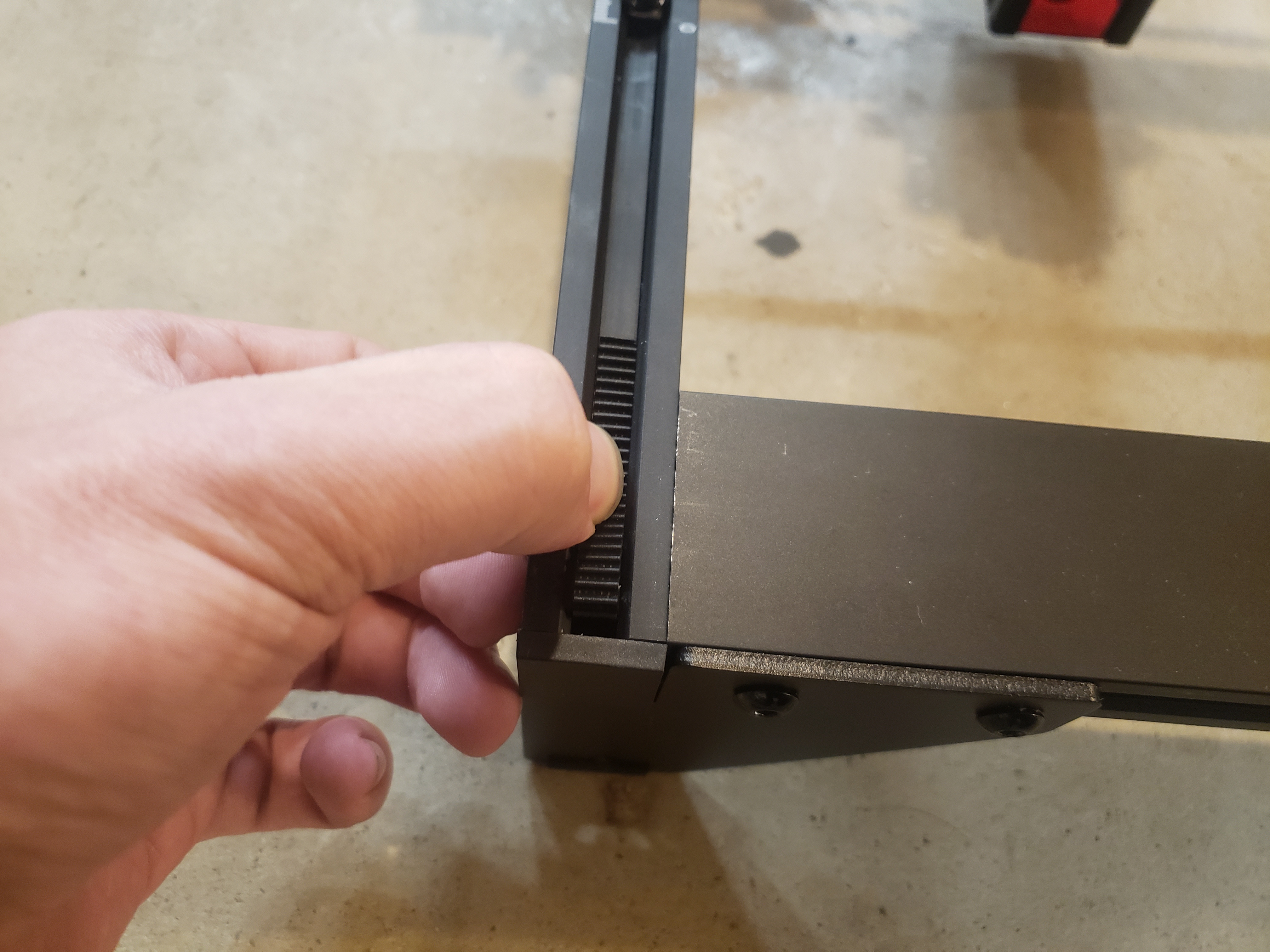

- Fold the belt down if there is excess:

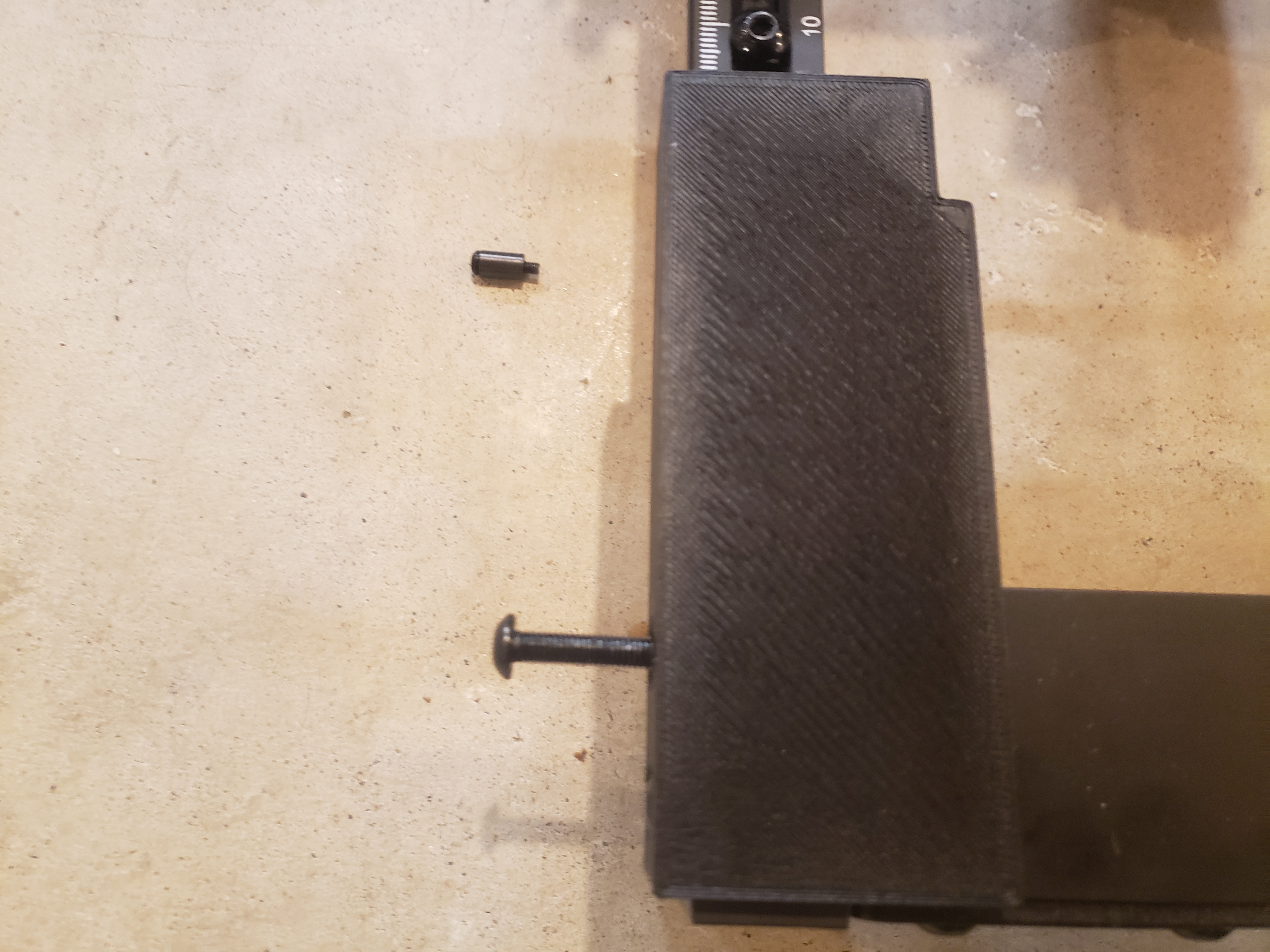

- Remove the axis end stop, this part will replace it, remove the two frame screws, align the part, and screw them back in:

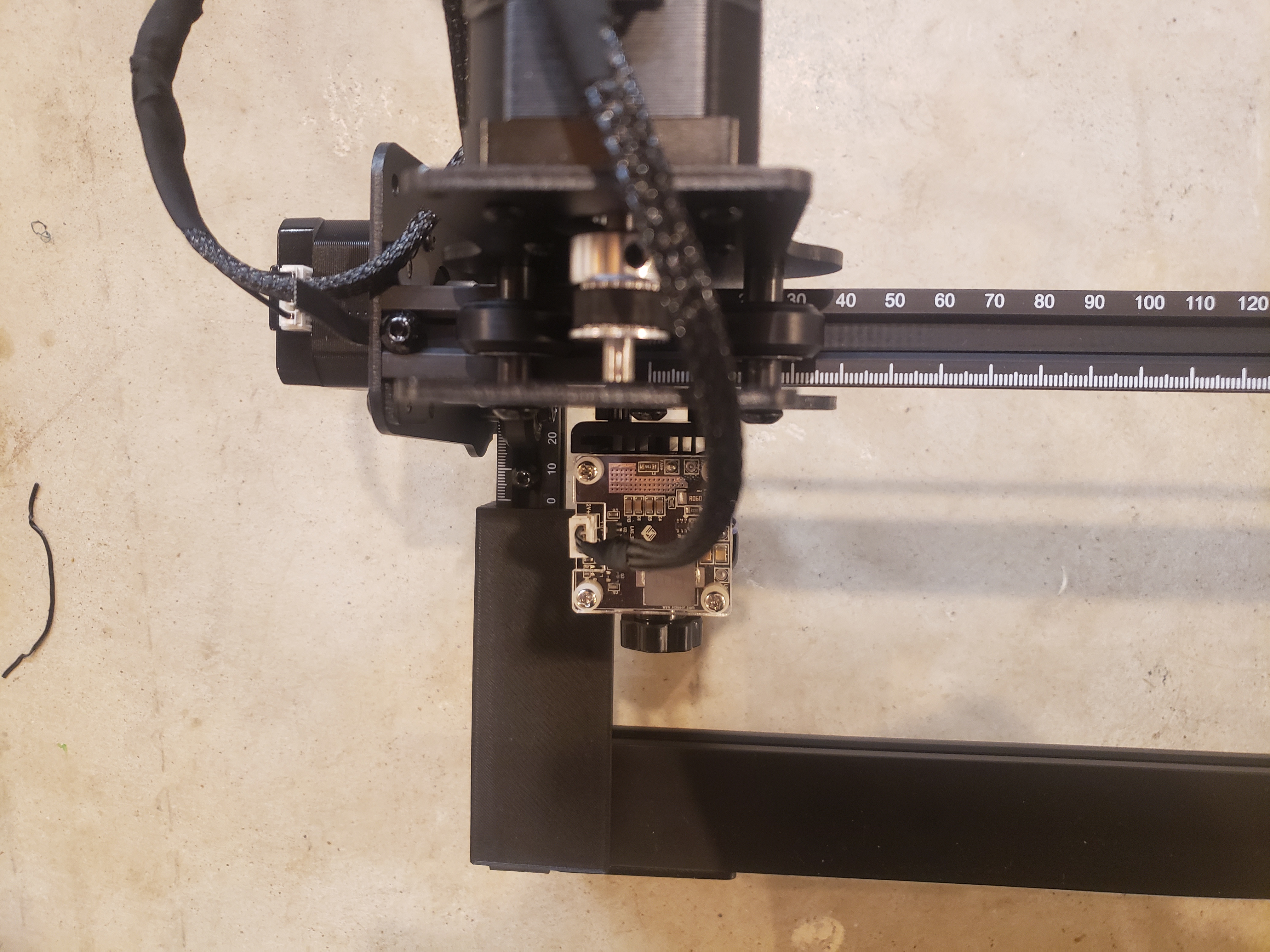

- Verify that the zeroing is correct by pushing the laser module into the notch on the zeroing block:
