MakerX D100 ESC Case
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution
Slim case made for the MakerX D100 ESC. Features:
- Built to be mounted under the skate deck, with the phase bullet connectors plugged inside the case for protection.

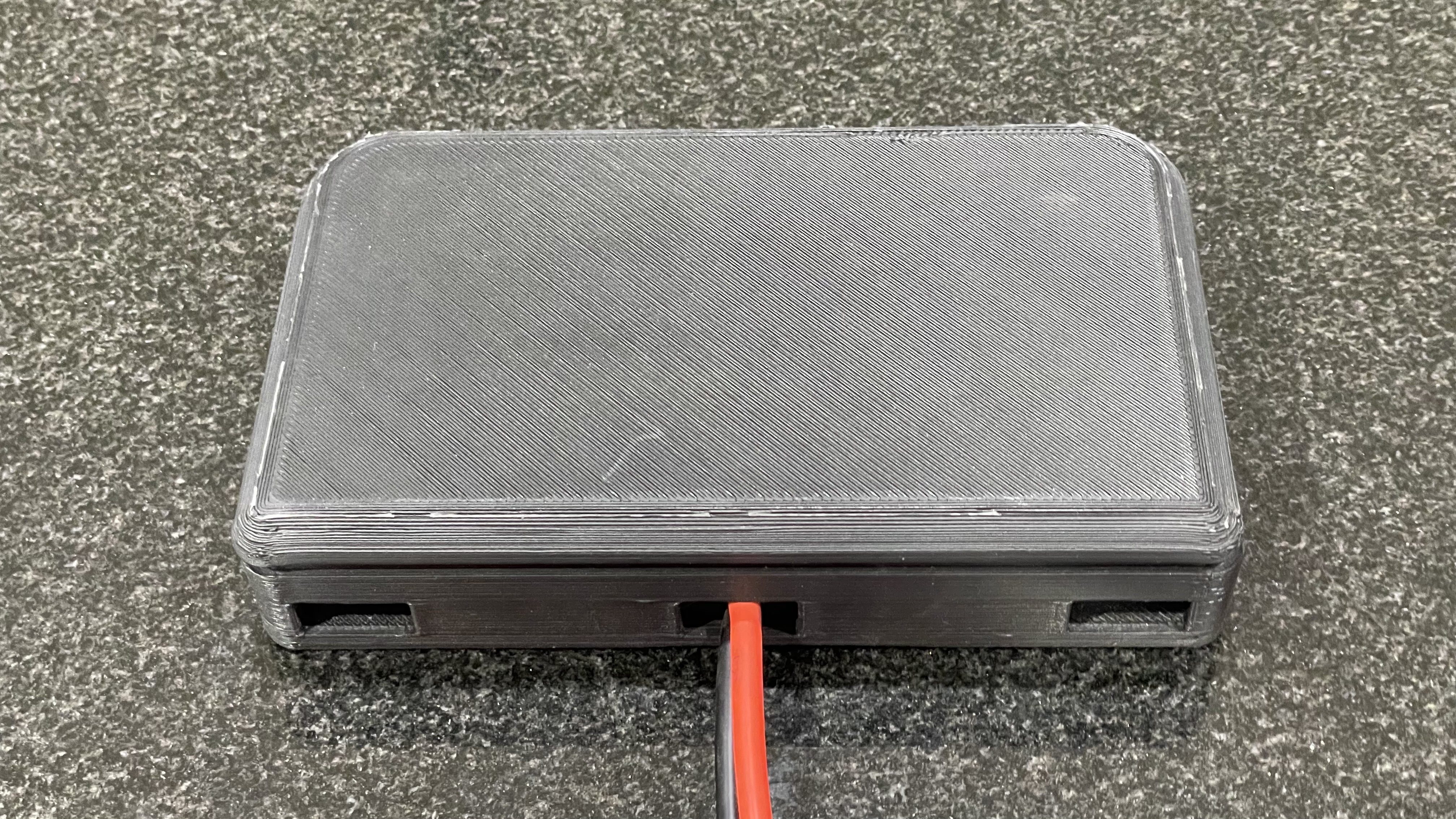

- Cooling intake holes and exhaust holes (shared with the connectors hole).
- Grooves and tight cover fit to ensure the ESC does not rock around inside the case.

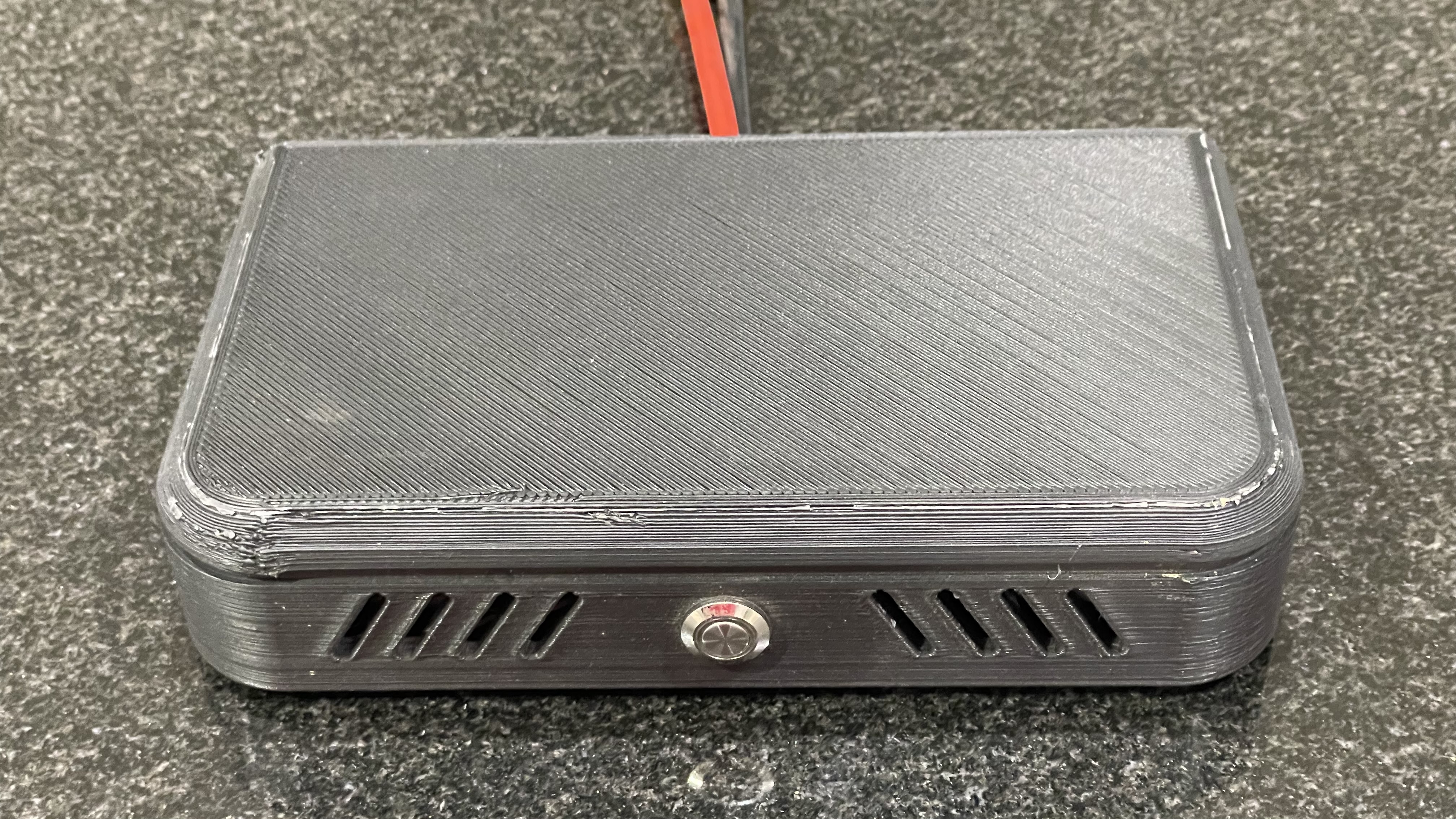

- Hole for the power button that comes with the ESC.
- Holes built to fit oversized connectors (XT90, 6mm bullets).

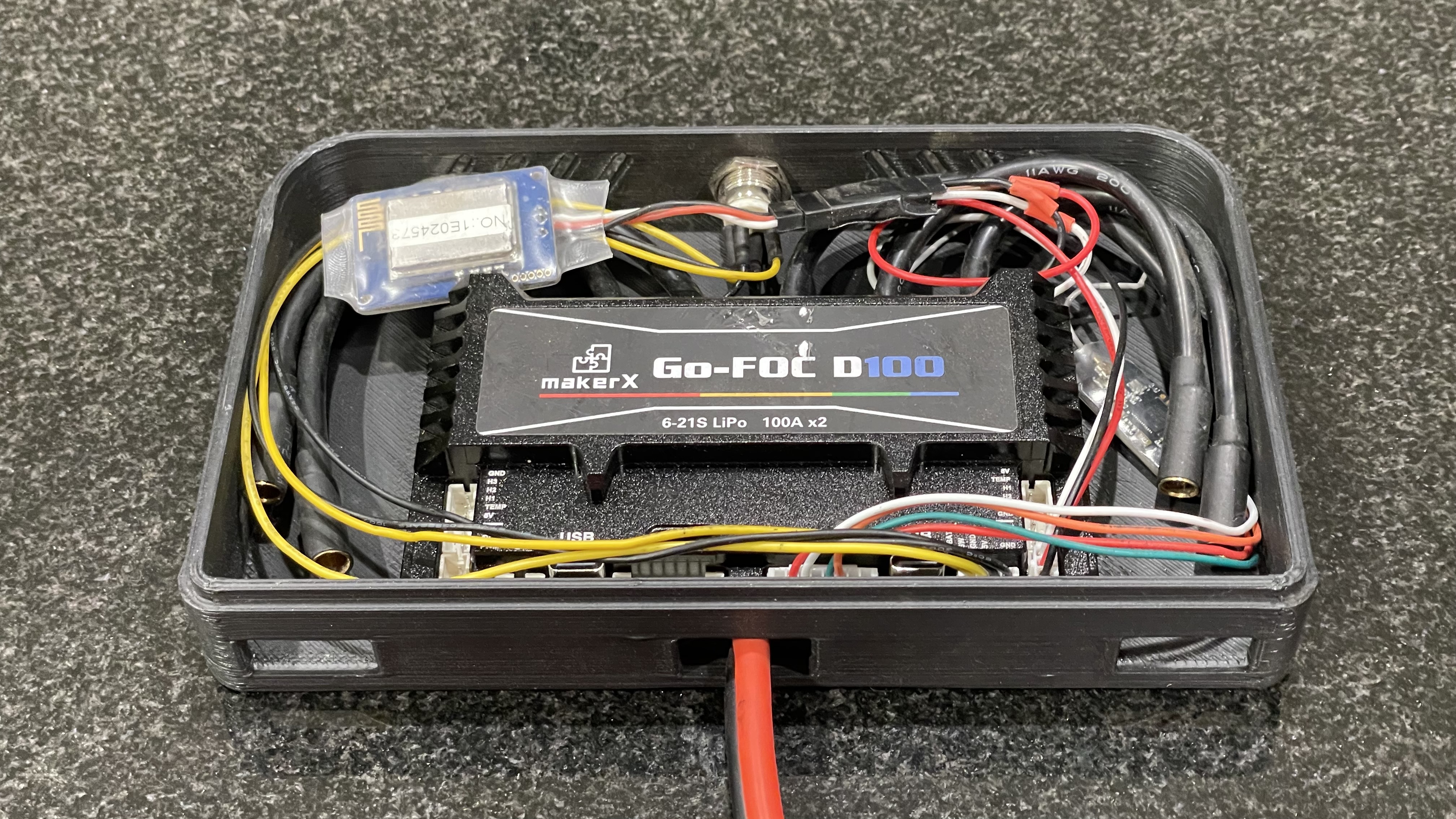

- Should have enough space to tuck in a BLE module and a remote module.
This was built just in a few hours prior to the 2022 Apple Valley Race and the tolerances for the cover are quite tight (~0.2mm). You might have to use a knife to clean up any elephant footing from the final print.
You can use either rubber or velcro at the bottom to stick the case to the deck. I've used both.
