S250 Bltouch Replaceable air duct
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other Printer Parts & Upgrades
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Introduction:

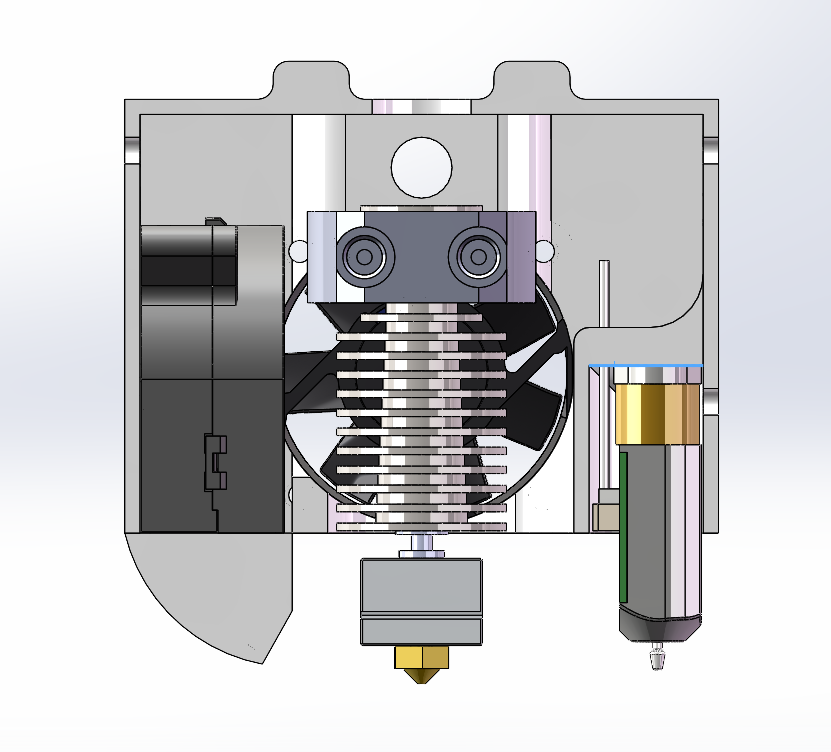

Replace the v6 hot end, optimize the internal ventilation heat dissipation, add the 3d touch installation position, the air duct can be replaced
The step file has been open source, capable friends can design their own more powerful wind channels and share
Description:
v6 clamps with air ducts need to be opened only from the print panel bracing
v6 fixture needs:
M2*3*3.2 Hot melt nut *2
M3*4*4.5 Hot melt nut *2
M2*10 round head screws *2
3D touch Leveling Settings:
X -31 Y 0
